PARTS LIST
SELF-CONTAINED CRESCENT CUBER
89/336
73/23
HOSHIZAKI
NUMBER: 71179
ISSUED: FEB. 29, 2000
KM-150BAF-E
KM-150BWF-E
REVISED: MARCH 7,2000
HA
2
Auxiliary Codes
KM-150BAF-E J-0 FEB. 1999
KM-150BWF-E K-0 MARCH 2000
IMPORTANT
IEC standards require that the clamping means of earthing terminals be
adequately secured against accidental loosening and that accessible metal parts
of the icemaker which may become live in the event of an insulation fault be
permanently and reliably connected to an earthing terminal within the icemaker or
to the earthing contact of the icemaker inlet.
This is accomplished in this icemaker through the use of stainless steel toothed
washers, Hoshizaki Part # 7R22-0400.
HA
3
MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide =Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PETP = Polyethylene terephthalate = Tetlon
PP = Polypropylene
PS = Polystyrene
PTFE = Polytetrafluoroethylene = Teflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = VinylNitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanizedsteel
SS = Stainless steel
PS = Plated steel
PAS = Primedsteel
AUXILIARYCODE
Ex.1 K-0Parts are the same as in the preceding (Note) - = Part deleted.
year. x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "2000". o = New part for "x"
Ex.2 A-1 in the same auxiliary code.
"A" is the first in alphabetical
order. So, "A" indicates "2001".
Ex.3 A-2Each time a part is changed (non-interchangeably)
in a year, this number advances.
HA
4

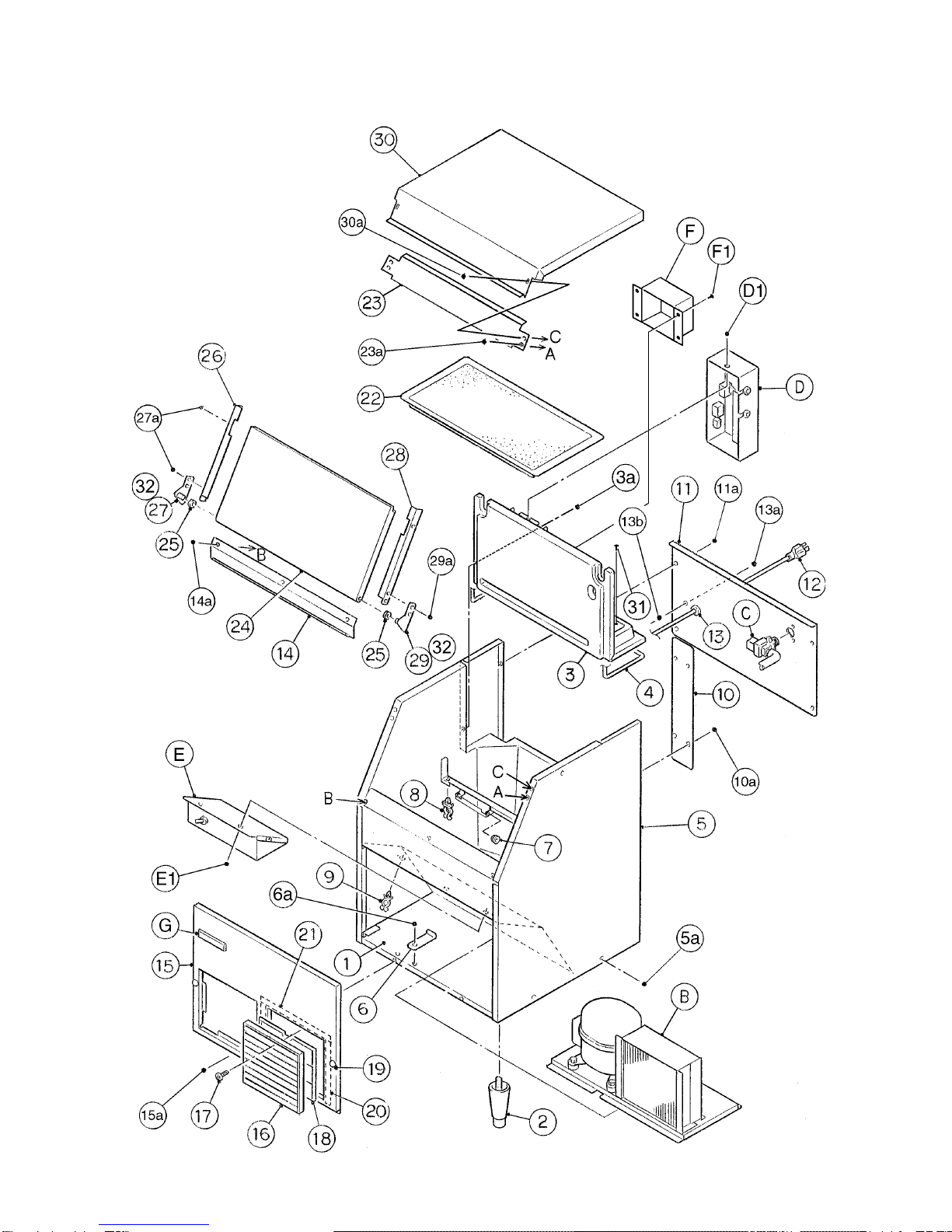

KM-150BAF-E A.ICE CUBER ASSEMBLY J-0
HA
5
MODEL: KM-150BAF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART
NUMBER REQUIRED NUMBER
NUMBER J-0
B REFRIGERATION CIRCUIT - 1A0404A01 1
C WATER CIRCUIT - 108446A02 1
D CONT. BOX ASSEMBLY (A) - 338868A03 1
D1 T2 SCREW 4X8 7P31-0408 1
E CONT. BOX ASSEMBLY (B) - 226318A02 1
E1 T2 SCREW 4X8 7P31-0408 2
F TRANSFORMER BOX ASSEMBLY - 3A1243A01 1
F1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4
G LABEL LOCATION - 3A1255A01 1
1 BASE - 108448G02 1
2 LEG AE62-99124 4A1181-01 4
3 PANEL REAR - 226469G02 1
3a TRUSS HEAD SCREW 4X25, SS 7C32-0425 5
4 GASKET L=1260 4A0753L01 1
5 BODY-INSULATION - 108444G01 1
5a T2 SCREW 4X8, SS 7P32-0408 4
6 STOPPER GS 452825-01 1
6a T2 SCREW 4X8, SS 7P32-0408 1
7 CAPILLARY RING EPDM 425307-01 2
8 CLAMP WS50-25-C 4A0337-07 2
9 CLAMP WS75-25-C 4A0337-10 2
10 REAR PANEL (B) GS 452641-01 1
10a T2 SCREW 4X8, SS 7P32-0408 4
11 REAR PANEL (A) GS 2A1436-01 1
11a T2 SCREW 4X8, SS 7P32-0408 6
12 POWER SUPPLY CORD - 452359-02 1
13 BUSHING CEE SR-6P30 450414-01 1
13a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1
13b HEX NUT 4, SS 7N12-0400 1
14 FRONT COVER (B) PS 338861-01 1
HA
6
MODEL: KM-150BAF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART
NUMBER REQUIRED NUMBER
NUMBER J-0
14a T2 SCREW 4X8, SS 7P32-0408 3
15 FRONT PANEL GS 226307-01 1
15a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
16 LOUVER - 103344-08 2
17 TAPPING SCREW (BLACK) - 433954-01 2
18 AIR FILTER (A) ABS 208840G03 1
19 CUSHION SJ-5027 4A1178-01 2
20 INSULATION (D) PE FOAM 452649-01 2
21 INSULATION (A) PE FOAM 452694-01 1
22 INSULATION-TOP PS 338859G01 1
23 SUPPORT-TOP PANEL SS 453877-01 1
23a FLAT HEAD SCREW 4X12, SS 7C22-0412 2
24 DOOR PE 226305G01 1
25 COLLAR AC 431496-01 2
26 FRONT COVER (L) SS 339026-01 1
27 HINGE (L) SS 452824G01 1
27a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3
28 FRONT COVER (R) SS 338860-01 1
29 HINGE (R) SS 452640G01 1
29a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3
30 TOP PANEL SS 108449-01 1
30a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
31 T2 SCREW 4X8, SS 7P32-0408 1
32 WASHER 8, SS 7W22-0800 2
HA
7

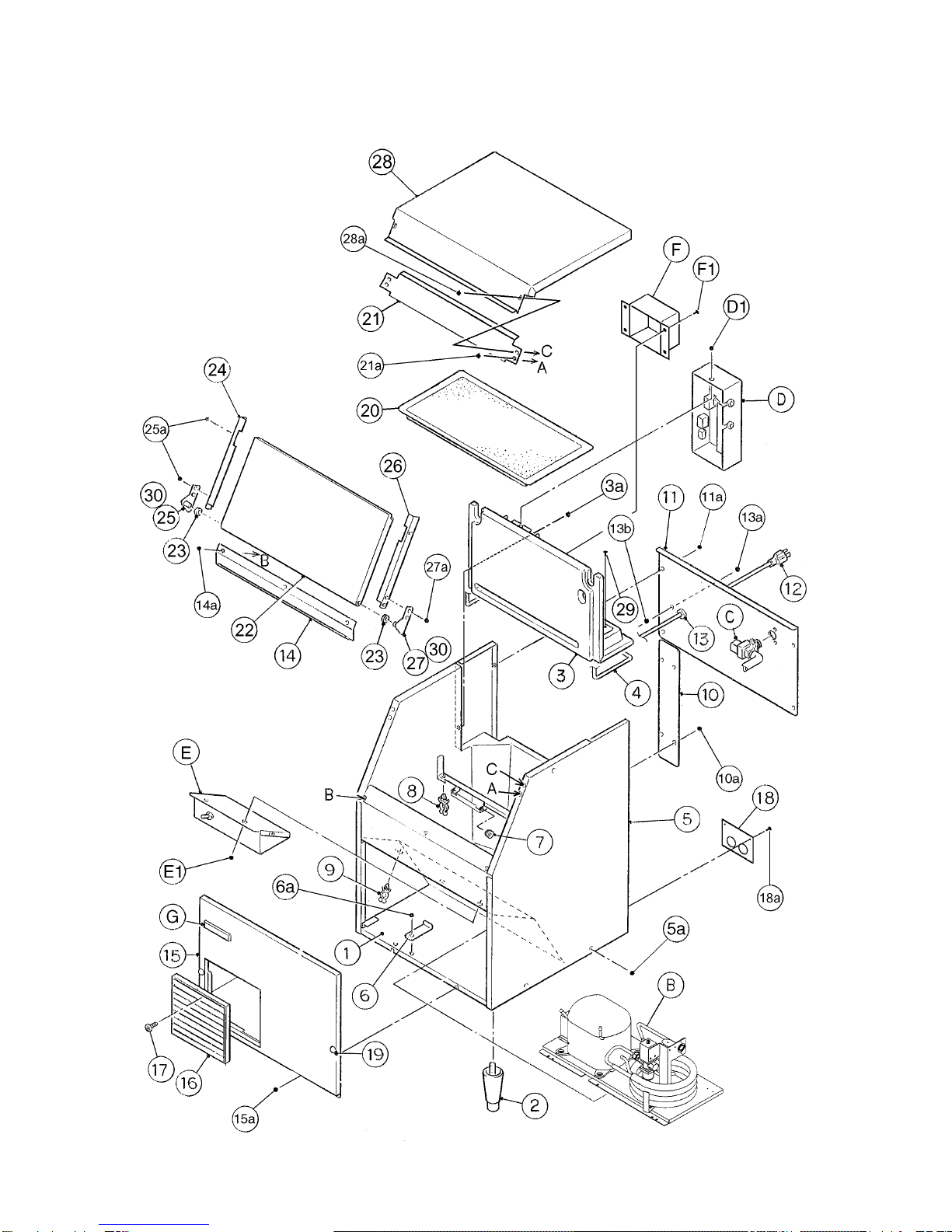

KM-150BWF-E A.ICE CUBER ASSEMBLY K-0
HA
8
MODEL: KM-150BWF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART
NUMBER REQUIRED NUMBER
NUMBER K-0
B REFRIGERATION CIRCUIT - 1A0405A01 1
C WATER CIRCUIT - 108446A02 1
D CONT. BOX ASSEMBLY (A) - 338868A03 1
D1 T2 SCREW 4X8 7P31-0408 1
E CONT. BOX ASSEMBLY (B) - 226318A02 1
E1 T2 SCREW 4X8 7P31-0408 2
F TRANSFORMER BOX ASSEMBLY - 3A1243A01 1
F1 TRUSS HEAD SCREW 4X8, SS 7C32-0408 4
G LABEL LOCATION - 3A1256A01 1
1 BASE - 108448G02 1
2 LEG AE62-99124 4A1181-01 4
3 PANEL REAR - 226469G02 1
3a TRUSS HEAD SCREW 4X25, SS 7C32-0425 5
4 GASKET L=1260 4A0753L01 1
5 BODY-INSULATION - 1A0312G01 1
5a T2 SCREW 4X8, SS 7P32-0408 4
6 STOPPER GS 452825-01 1
6a T2 SCREW 4X8, SS 7P32-0408 1
7 CAPILLARY RING EPDM 425307-01 2
8 CLAMP WS50-25-C 4A0337-07 2
9 CLAMP WS75-25-C 4A0337-10 2
10 REAR PANEL (B) GS 452641-01 1
10a T2 SCREW 4X8, SS 7P32-0408 4
11 REAR PANEL (A) GS 226306-01 1
11a T2 SCREW 4X8, SS 7P32-0408 6
12 POWER SUPPLY CORD - 4A1773-02 1
13 BUSHING CEE SR-6P30 450414-01 1
13a TRUSS HEAD SCREW 4X8, SS 7C32-0408 1
13b HEX NUT 4, SS 7N12-0400 1
14 FRONT COVER (B) PS 338861-01 1
HA
9
MODEL: KM-150BWF-E TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO. DESCRIPTION MATERIAL OR
MODEL PART
NUMBER REQUIRED NUMBER
NUMBER K-0
14a T2 SCREW 4X8, SS 7P23-0408 3
15 FRONT PANEL GS 226783-01 1
15a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
16 LOUVER - 103344-08 2
17 TAPPING SCREW (BLACK) - 433954-01 2
18 REAR PANEL (C) GS 4A1667-01 1
18a T2 SCREW 4X8, SS 7P32-0408 2
19 CUSHION SJ-5027 4A1178-01 2
20 INSULATION-TOP PS 338859G01 1
21 SUPPORT-TOP PANEL SS 453877-01 1
21a FLAT HEAD SCREW 4X12, SS 7C22-0412 2
22 DOOR PE 226305G01 1
23 COLLAR AC 431496-01 2
24 FRONT COVER (L) SS 339026-01 1
25 HINGE (L) SS 452824G01 1
25a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3
26 FRONT COVER (R) SS 338860-01 1
27 HINGE (R) SS 452640G01 1
27a TRUSS HEAD SCREW 4X16, SS 7C32-0416 3
28 TOP PANEL SS 108449-01 1
28a TRUSS HEAD SCREW 4X8, SS 7C32-0408 2
29 T2 SCREW 4X8, SS 7P32-0408 1
30 WASHER 8, SS 7W220800 2
HA
10
KM-150BAF-E B. REFRIGERATION CIRCUIT J-0
