OMV-VX Series Outdoor Visual Verification Detector - Installation Instructions

General

The OMV-VX series, visual verification outdoor detectors, are

wireless, battery operated, motion activated outdoor camera

designed for use with the Videofied security system.

Models

OMV-VX200 : 868 MHz (Europe, Africa, Asia)

OMV-VX601 : 915 MHz (USA, Canada, South America)

OMV-VX702 : 920 MHz (Australia, South America)

Features

•

4 infrared LEDs for night vision.

•

Transmits check-in/status signal every 8 minutes.

•

12 m (40 ft.) by 90 degree flexible detection pattern

adjustable to 5 ranges

•

SMDA Logic for advanced temperature compensation and

environmental noise immunity.

•

Easy Masking for over spill prevention

•

Double Conductive Shielding against bright light

disturbance

Flange

Battery box

Mounting plate

Back box

Main unit

Cover unit

Face cover

OMV-003-V0

OMV-VX Series Parts Assembly

For wall mounting

Screw (4 × 20 mm)

Use for masking optional area

Apply from the inside on a lens

Reference line

Masking seal x 2

Screw kit

OMV-004-V0

Optional cover unit

Options

( White )

( Silver )

( Black )

OMV-VX Accessories

Installation Notes

Symbol Meaning

Warning

Failure to follow the instructions provided with

this indication and improper handling may cause

death or serious injury.

Caution

Failure to follow the instructions provided with

this indication and improper handling may cause

injury and/or property damage.

Recommendation

Prohibition

Warning

Do not remove the PCB. Keep product away from

direct splash.

OMV-001-V0

Caution

0.8 – 1.2 m

(2.64 – 3.94 ft)

Parallel

Tilt

- 2 -

1 Disassembly

3Open cover unit

Unlock cover unit

Snap!

- Excessive turn

- Reverse rotation

Remove face cover

and flange

4Remove main unit

from back box

5Remove back box

from mounting plate

OMV-011-V0

Unlock

Lock

2 Battery Installation/Replacemen

SAFT LS14500

OMV-012-V0

Panasonic or Duracell

CR123

- Reverse polarity

- Mix up old and new

3 Installation

Wall mount OMV-014-V0

METAL BAND

Pole mount

* Use a metal band with

25mm or less in width

4 Horizontal Area Adjustment

OMV-016-V0

The angle can be adjusted in

7 levels from A to G.

- 3 -

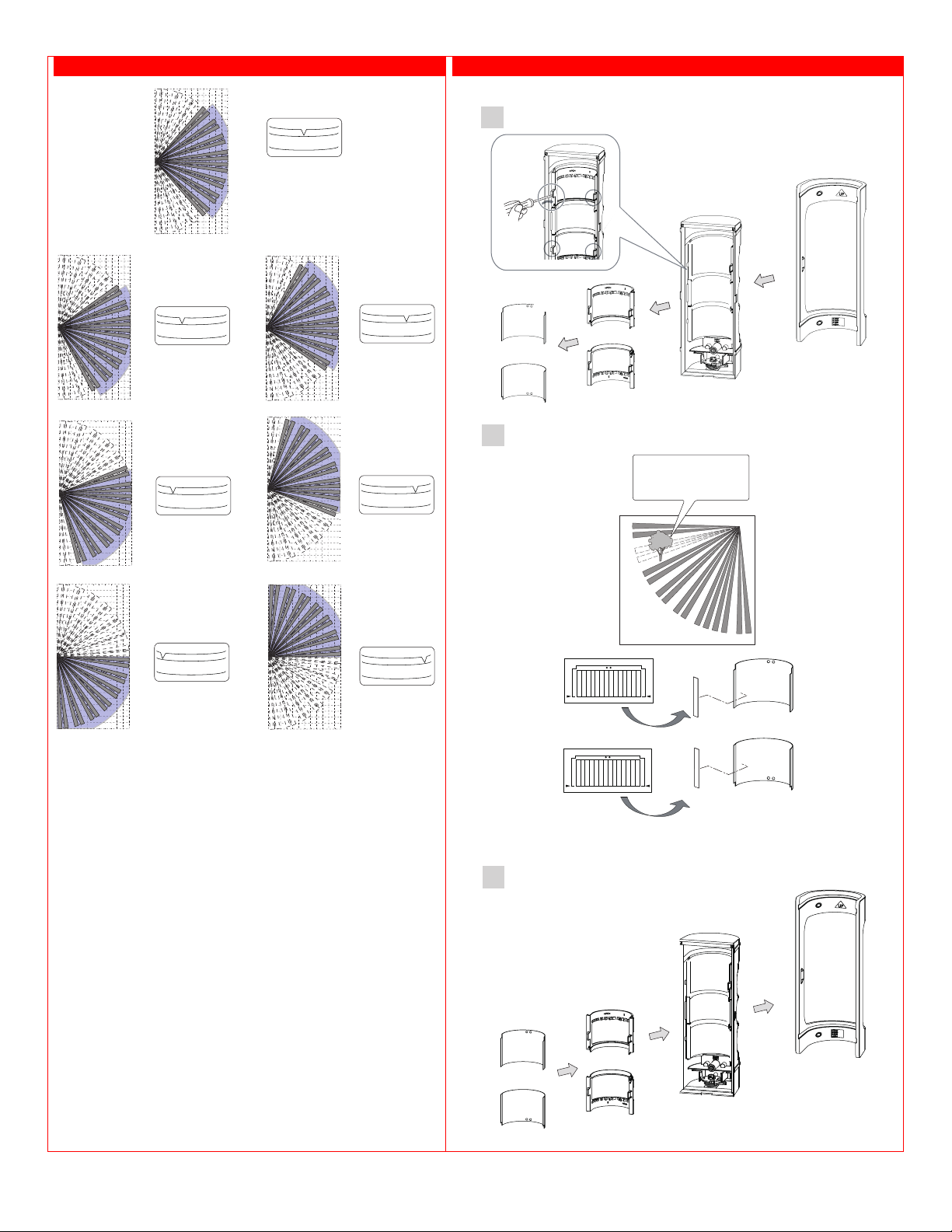

4 Horizontal Area Adjustment (Continued)

ABCEFG

ABCEFGD

ABCEFG

ABCEFGD

ABCEFG

The detection area includes 14 zones only

when A or G is selected.

Horizontal position D

(Default)

OMV-017-V0

5 Area M

asking

1Disassemble the cover unit.

OMV-019-V0

Unwanted

object (Tree)

2Attach the masking seal.

Attach the masking seals to the same location on the

upper and lower lens.

3Reassemble the cover unit.

- 4 -

7 Enrolling the Sensor

Refer to the control panel’s programming instructions.

1. Put control panel into

PROGRAMMING/CONFIGURATION mode.

2. Using a programmed alphanumeric keypad, step through

menu options until “ADD A NEW DEVICE” is displayed.

3. Select OK or YES. “PRESS PROGRAM BUTTON OF

DEVICE” is displayed.

4. Press and release program button on the OMV-VX. LED

will flash rapidly.

5. Wait for keypad to display: MOTIONVIEWER (1 - 25)

PROGRAMMED.

a. Press OK/YES, the keypad display: RADIO RANGE

TEST?

b. Press OK/YES again.

The camera LED starts flashing and keypad

displays: “RF TEST”.

6. Place the OMV-VX camera in its intended mounting

location and make sure LED flashes continuously or you

receive a 9/9 indicating good communication with the

control panel.

7. Press OK/YES to end radio range test then press

ESC/NO.

8. The keypad displays:

AREA ALLOCATION :

AREA : 1

9. Press either arrow button repeatedly until a desired area

number appears then press OK/YES. (By default all

devices in Area 1 are automatically delayed.) The

keypad displays: “NAME + LOCATION”.

10. Enter appropriate device name/location (up to 16

characters), then press OK/YES. The keypad displays

the device number and name for your verification.

Adjust PIR Sensitivity

To adjust the PIR sensitivity of the OMV-VX, enter the “$”

symbol and numeric after Detector name in step 10 as

follows:.

(Detector name) $9 : Max sensitivity

(Detector name $8 : Improved sensitivity

(Detector name) : Default sensitivity

(Detector name) $1 : Decreased sensitivity

(Detector name) $2 : Minimal sensitivity

How to enter the symbol “$” (Example)

CMA keypad : Press @ key repeatedly until “$” is

displayed.

XMA/XMB keypad : Press “1” key repeatedly until “$” is

displayed.

11. Press OK/YES. The display shows FUNCTIONAL

DEVICE TEST?

12. Press OK/YES and verify camera operation. The

activation of the LED will determine the detection field.

13. Press OK/YES to end detection verification. The keypad

displays “OPERATION COMPLETED” or “ADD A NEW

DEVICE”.

14. Press YES/OK. Repeat steps 4 - 14 to enroll additional

devices.

15. When finished, exit from configuration mode.

PROGRAMING/

CONFIGURATION

ADD A NEW

DEVICE ?

OK or YES

PRESS PROGRAM

BUTTON OF DEVICE

MOTIONVIEWER

(1-25) PROGRAMMED

OK or YES

RADIO RANGE

TEST ?

OK or YES

RF TEST

ESC/NO

AREA ALLOCATION :

AREA 1

(name + location)

Up to 16 characters

Program

Button

Enter name + location

OMV-024-V0

OK or YES

FUNCTIONAL

DEVICE TEST ?

Detected Not

detected

OK or YES

Repeat step 4-13

OK or YES

OPERATION

COMPLETED?

ADD A NEW

DEVICE

Exit

Check camera &

detection area

OK or YES

FUNCTIONAL

DEVICE TEST ?

OK or YES

- 5 -

Vertical Area Adjustment

(3.3)

(17) 10

(33) 12

(40)

0 5 10 12

OMV-023-V0

Only upper detection area is triggered

Only lower detection area is triggered

BOTH DETECTION AREAS MUST BE

BLOCKED FOR DETECTION

Both upper and lower detection area are triggered

Detection!

Detection

IMPORTANT

Resetti

ng the Sensor

Memory

The OMV-VX memory must be cleared in order to pair the

device with a new control panel. Perform the following to

reset the sensor memory.

1. Remove the batteries from the OMV-VX.

2. Wait around 30 seconds.

3. Reinstall the batteries in the OMV-VX.

4. Enroll the OMV-VX in the control panel. Refer to

“Enrolling the Sensor” section of this document.

Snap!

Battery Removal

OMV-026-V0

- 6 -

Specifications

Model OMV-VX200 OMV-VX601 OMV-VX702

Panel compatibility

Videofied W, XL, XT, XV and their variants

Detection Detection method Passive Infrared

PIR Coverage 12.0 m (40 ft) 90°wide / 16 zones

PIR distance limit 12 – 2.5 m (5 levels)

Detectable speed 0.3 – 2.0 m/s ( 1’ - 6’7” / s )

Sensitivity 2.0°C (3.6°F) at 0.6 m/s

Electrical Power input Lithium battery* SAFT LS14500, Panasonic or Duracell CR123A

Battery life Standard usage (up to 5

videos per month)

3 LS14500 : 4 years / 3 CR123A : 2 years

* Values may vary due to conditions.

High usage (about 30

videos per month)

3 LS14500 : 2 years / 3 CR123A : 1 years

* Values may vary due to conditions.

Current draw Standby : **

Max : *** mA

Warm-up period Approx. 60 sec.

LED indicator Red LED indicator

Initial, Low voltage, Program button, Walk test (only functional device test)

Radio test, Tamper (s

ee installation manual)

Radio Radio type Spread spectrum bidirectionnal, S2View® technology

Operating frequency 868 MHz

(Europe, Africa, Asia)

915 MHz

(USA, Canada, South

America)

920 MHz

(Australia, South America)

Transmission security AES encryption algorithm

Supervision Radio, batteries, tamper

Radio antenna Integrated

Video Camera Angle Wide angle 90°

Sensor type CMOS

Daylight video Programmable : Color or B&W

Night video Automatic black & white infrared

Infrared illumination Automatic with 4 IR LEDs

Infrared illumination

distance Up to 12 m

Motion


Video format MJPEG-WMV, MJPEG-DIFF

Frame rate 5 images per second

Video duration

Programmable (7 seconds by default)

Video resolution QVGA (320x240)

Quality SQ or HQ

Maximum video file size

220 kb

Still images

Format JPEG

Resolution VGA (640x480)

Quality HQ or SQ

Average image file size 8 kb

Environmental Operating temperature

-30 to +60°C (-20 to +140°F)

Environment humidity 95% max.

International protection IP55

Installation /

Mounting

Mounting Wall, Pole (Outdoor, Indoor)

Mounting height 0.8 to 1.2 m (2.64 to 3.94 ft)

Weight 700 g (without batteries)

Accessories Screw (4×20 mm) ×2, Masking seal ×2

*Specifications and designs are subject to change without prior notice.

*Battery Caution: Risk of fire, explosion and burns. Do not recharge, disassemble, heat above 212° (100° C), or

incinerate. Dispose of used batteries promptly. Keep away from children.

- 7 -

Dimensions

Unit: mm (inch)

211.6 (8.33)

129.2 (5.09)

83.5

(3.29)

155 (6.10)

OMV-028-V0

Compliance

FEDERAL COMMUNICATIONS COMMISSION STATEMENTS

The user shall not make any changes or modifications to the

equipment unless authorized by the Installation Instructions or User's

Manual. Unauthorized changes or modifications could void the user's

authority to operate the equipment.

FCC / IC STATEMENT

This device complies with Part 15 of the FCC Rules and RSS-210 of

the IC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Cet appareil est conforme à la partie 15 des règles de la FCC & de

RSS 210 des Industries Canada. Son fonctionnement est soumis

aux conditions suivantes:

(1) Cet appareil ne doit pas causer d’interférences nuisibles.

(2) Cet appareil doit accepter toute interférence reçue y compris les

interférences.

RF EXPOSURE

Warning

– The antenna(s) used for this device must be installed to

provide a separation distance of at least 7.8 inches (20 cm) from all

persons and must not be co-located or operating in conjunction with

any other antenna or transmitter except in accordance with FCC

multi-transmitter product procedures.

Mise en Garde Exposition aux Frequences Radio

Attention :

L'antenne (s) utilisée pour cet émetteur doit être installée

à une distance de séparation d'au moins 7,8 pouces (20 cm) de

toutes les personnes.

APPROVALS/LISTINGS

•

FCC part 15, Class B verified

•

IC, ICES-003, Class B verified

•

cETLus Listed

COMPLIANCE NOTES

COMPLIANCE NOTESCOMPLIANCE NOTES

COMPLIANCE NOTES

•

Product must be tested at least once each year.

•

Product must be installed within the protected area only.

For

Limitations of the entire alarm system

, refer to the control

panel’s installation guide for the receiver/control with which this

device is used.

SUPPORT & WARRANTY

or the latest documentation and online support, please

go to: https://mywebtech.honeywell.com/

OR https://support.videofied.com

or the latest warranty information, please go to:

www.honeywell.com/security/hsc/resources/wa.

or patent information, see www.honeywell.com/patents

MyWebTech Warranty Patents

Detection Area

Top view

Area diagram of horizontal position D

Camera F.O.V. H: 90 deg. V: 66 deg.

ABCEFG

(40)

(33)

(17)

Unit : m(ft)

PIR

Camera

(40)

(33)

(17)

(33)

(40)

Note>>

The maximum detection length

may varydue to environment

conditions.

Length limiting position 1 (Default)

(3.3)

(17) 10

(33) 12

(40)

Length limiting position 2

0 5 10 12

Length limiting position 3

0 5 10 12

Length limiting position 4

0 5 10 12

Length limiting position 5

0 5 10 12

Side view

Unit : m(ft)

OMV-029-V0

2 Corporate Center Drive, Suite 100

P.O. Box 9040

Melville, New York 11747

security.honeywell.com/OMV-VX

Ê800

Ê800Ê800

Ê800-

-22848kŠ

22848kŠ22848kŠ

22848kŠ

800-22848 12/16 Rev A

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Honeywell Capteur de sécurité

Honeywell

Honeywell FIRE-LITE ALARMS H365 Manuel utilisateur

Honeywell

Honeywell Activ8 PIR Manuel utilisateur

Honeywell

Honeywell FlexGuard FG-1625TAS Manuel utilisateur

Honeywell

Honeywell SC100 Manuel utilisateur

Honeywell

Honeywell PEHA MLS Digital Hi-Bay D MLS2001AHBF Manuel d'installation et d'exploitation

Honeywell

Honeywell IQ Force Manuel d'installation

Honeywell

Honeywell Miller Falcon MP50G-LE Instructions d'installation

Honeywell

Honeywell Sensepoint XCD Manuel utilisateur

Honeywell

Honeywell MeshGuard LEL IR Manuel utilisateur

Honeywell

Honeywell FlexGuard FG-1625SN V-Plex Manuel utilisateur

Honeywell

Honeywell IS312B Manuel utilisateur

Honeywell

Honeywell Ex-Or MR2500D Manuel d'installation et d'exploitation

Honeywell

Honeywell DUAL TEC DT8050A Manuel utilisateur

Honeywell

Honeywell Ex-Or MLS2021DF Manuel d'installation et d'exploitation

Honeywell

Honeywell Lyric W1 Manuel utilisateur

Honeywell

Honeywell C7061A1020 Manuel utilisateur

Honeywell

Honeywell Vitoject 890 Manuel utilisateur

Honeywell

Honeywell C7024E Manuel utilisateur

Honeywell

Honeywell ToxiPro CO Manuel utilisateur

Honeywell

Honeywell LightSpot LS1000R Manuel utilisateur

Honeywell

Honeywell 5800PIR-RES Manuel utilisateur

Honeywell

Honeywell Miller MightEvac Manuel de l'opérateur

Honeywell

Honeywell Miller Titan TR50 Manuel utilisateur

Honeywell

Honeywell C7061A Manuel d'utilisation

Manuels Capteur de sécurité populaires d'autres marques

THORLABS

THORLABS PDA10JT Manuel utilisateur

Waeco

Waeco UV-DETECT Manuel utilisateur

Intermatic

Intermatic IOS-DSIMF Manuel utilisateur

urmet domus

urmet domus 1083 Manuel utilisateur

Siemens

Siemens AZL66 Series Manuel utilisateur

BTI

BTI Profiline Multi Finder Manuel utilisateur

Challenger

Challenger SL01 Manuel utilisateur

DMP Electronics

DMP Electronics 1122INT Manuel utilisateur

Rielta

Rielta Ladoga MK-RK Manuel utilisateur

Mirion Technologies

Mirion Technologies ACCURAD PRD Manuel utilisateur

Bosch

Bosch DS835 Manuel utilisateur

DBI SALA

DBI SALA EZ Stop Manuel de l'opérateur

Lamptime

Lamptime ST05C Manuel utilisateur

Ubiquiti

Ubiquiti MFI-MSC Manuel utilisateur

Subsite

Subsite 910R Instructions d'installation

Satel

Satel OPAL Pro Manuel utilisateur

Aleph

Aleph XC-1XTEU Manuel utilisateur

Pima

Pima LARIS QUAD Manuel utilisateur
