The IS216 family of PIR motion sensors offer quality detection in an attractive white housing that blends with any décor.

The IS216 is flexible and simple to install for basic security applications—mounting easily on walls or in corners. The

IS216T contains the same great features as well as a case tamper.

•UV Tolerant Lens

Can withstand high UV environments

with minimal degradation

•Temperature Compensation

Advanced Dual Slope

•Microprocessor Controlled

Digital processing for improved

detection and false alarm protection

•S ock Algorit m

Reduces false alarms

•Tamper Proof Design

Alarm relay cannot be compromised

with a magnet

•Installer Friendly Settings

DIP switches are easier to program

and can not be lost unlike jumpers

•Improved EMI Immunity

Surface mount design reduces false

activation due to RF interference

•Attractive Sleek Design

The stylish white housing is designed

to blend with any room décor

•Surfaced Run Wiring

A large wiring channel allows for

quick, neat installations

•Look-down Zones

Honeywell patented look-down mirror

provides for optimum detection

pattern directly beneath the sensor

•Mounting Flexibility

The unit easily mounts on walls

or in corners for a full range of

coverage. With subtle corner

mounting knockouts, the IS216

maintains its streamlined aesthetics

no matter where it is placed

•Sabotage-resistant Lens Design

The lens wraps around a retainer,

making it more stable and difficult

to sabotage

•Selectable Sensitivity

Sensitivity can be adjusted to match

installation requirements

•Tamper Switc (IS216T only)

The sealed tamper switch signals

before any enclosure access

is possible

•W ite Lig t Immunity

A white light absorbing, black bug

guard dramatically increases white

light immunity to greater than 6500

Lux, reducing false activations

•Black Bug Guard

Prevents insects from entering the

sensor optics, reducing the chance

of false activation

•Applications

Designed for residential and light

commercial applications

•Silent Relay

Can be used in quiet environments

•Automatic Walk Test

Saves time on installation

FEATURES

IS216/IS216T

PASSIVE INFRARED MOTION SENSOR

• Detection Met od:

- Dual element passive infrared

• Coverage:

- 40' X 40' (12m x12m),

90º wide angle

• Detection Zones:

- 44 long range, 14 intermediate,

8 lower, 4 look-down

• PIR Sensitivity:

- DIP switch selectable -

Low (3-5 Steps PC2)

and High (1-3 Steps PC1)

• LED Enable:

- Can be enabled/disabled by

Autowalk DIP switch

• Mounting Heig t:

- 7' 6" to 9' (2.3m to 2.7m)

• Power Requirements:

- 8.5 – 15.4VDC

- 16mA @ 12VDC

• Alarm Relay:

- Form A (SPST)\30mA @ 24VDC

MAX 40 Ohm protective resistor

• Tamper Switc :

- 24VDC, 30mA

• Temperature Compensation:

- Advanced Dual Slope

• Operating Temperature:

- 14º F – 131º F (-10º C to +55º C)

• Relative Humidity:

- 5% – 95% non condensing

• RF Immunity:

- 30V/m from 10-1000 MHz.

• W ite Lig t Immunity:

- >6500 Lux

• Weig t:

- -66.62g (2.35 oz)

- Packaged Product 92.14 g

(3.25 oz)

• Dimensions:

- 3 3/8" H X 2 3/8" W x 1 1/2" D

(max protrusion)

(86mm x 60mm x 38mm)

• Agency Listing:

- FCC

- IC

- EN50131-1 and TS 50131-2-2

Security Grade 2, Environmental

Class II

- Ctick

- CE

- UL639 listed

- cUL listed to ULCS306-03

ORDERING

IS216 Passive Infrared Motion Sensor

IS216T Passive Infrared Motion Sensor with Tamper

ACCESSORIES

0-000-110-01 SMB-10: Universal White Swivel Mount Bracket (5 Pack)

0-000-155-01 SMB-10T: Tampered Universal White Swivel Mount Bracket (5 Pack)

0-000-111-01 SMB-10C: Universal White Ceiling Mount Bracket (5 Pack)

IS216/IS216T

PASSIVE INFRARED MOTION SENSOR

SPECIFICATIONS

L/IS216D/D

September 2009

2009 Honeywell International Inc.

Automation and Control Solutions

Honeywell Security & Communications

2 Corporate Center Dr. Suite 100

P.O. Box 9040

Melville, NY 11747

1.800.467.5875

www.honeywell.com

TOP VIEW

Wide Angle Lens

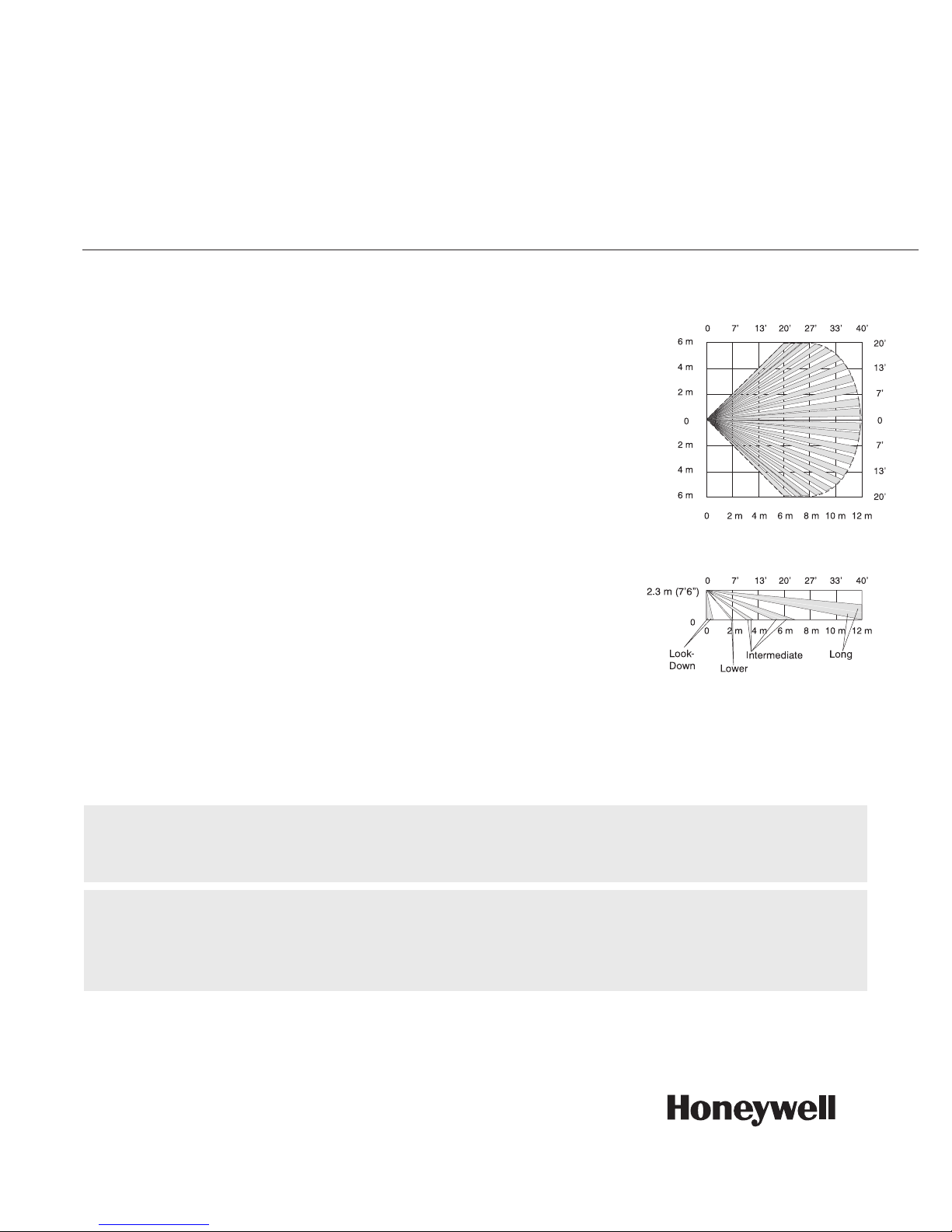

DETECTION PATTERNS

SIDE VIEW

Wide Angle Lens

For more information:

www.honeywell.com/security/hsc
