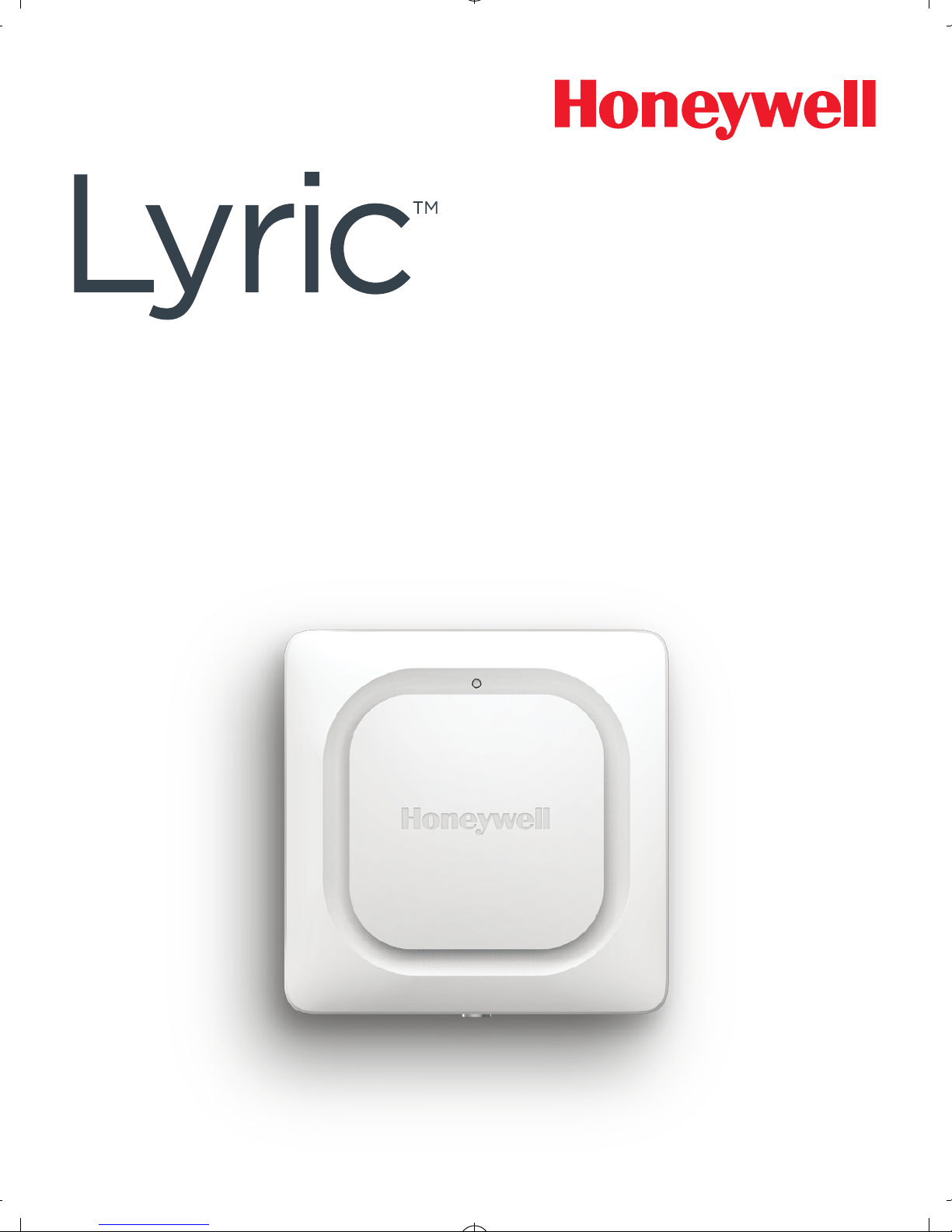

W1 Wi-Fi® Water Leak and
Freeze Detector
Quick Start Guide
32325307_A.indd 1 3/7/2017 4:41:30 PM
2
1 Download the Lyric app
Search for Honeywell Lyric in the
App Store or Google play.
After downloading, launch the app,
register (if necessary), go to Menu
and then go to Add New Device.
2 Install batteries
The detector is powered by 3 AA batteries (included). Pull open
the battery cover on the detector and install the
batteries.
When replacing the cover, press firmly
around the edges to ensure a snug
fit.
Note: Do not plug a power adaptor
into the cable sensor jack. Doing so
could damage the detector.
GET IT ON
Lyric
Need any help?
• Web: getconnected.honeywell.com
Cable
sensor jack
32325307_A.indd 2 3/7/2017 4:41:30 PM
3
3 Connect
Pair and name your
detector
1 Under Add New Device,
select Lyric Water Leak and
Freeze Detector.
Note: Make sure Bluetooth is
enabled on your mobile device.
2 Provide a location for your
detector. Press NEXT.
3 The detector will now pair
with the app.
Note: If you have more than
one detector, you will need to
connect each one individually.
4 An audible alert will sound
and your detector’s LED will
turn solid blue to indicate it
has been paired. Press NEXT.
5 Create a custom name for the
detector or select one from
the list. Press NEXT.
32325307_A.indd 3 3/7/2017 4:41:30 PM
4
Connect to Wi-Fi
1 Choose your network from
the list. Press NEXT.
2 Enter your Wi-Fi password, if
necessary. Press NEXT.
3 When connected to Wi-Fi,
the LED will turn solid green
for 5 minutes, then turn o to
preserve battery life.
Note: If you remove and replace
the detector’s batteries, it will reconnect to your Wi-Fi network
automatically.
4 Configure
Continue to follow the instructions in the app to
configure your detector. Set the high and low
levels for humidity and temperature warnings,
and identify the people you want notified in case
of an alarm. These settings can be updated at any
time using the app.
32325307_A.indd 4 3/7/2017 4:41:30 PM
5
5 Placement
Place the bottom of your
detector flat on the floor or a
surface.
For wall mounting, use the
included fixing kit (screw and
wall plug) and hang the
detector from the mounting
keyhole using the bottom cover.
If you expect a flood in the area
where you install your leak
detector that could submerge
the unit, consider hanging it on the wall (with provided
screw and wall plug), and using the included 1.2 m cable
sensor for water detection. To cover an even larger area,
purchase additional cable sensors.
Optional cable sensor
To install the optional cable sensor, remove the sensor
jack plug and insert the cable sensor. Insert the sensor
jack plug at the end the cable sensor.
Additional cable sensors (sold separately) can be
connected to extend the cable and increase water
sensing area.
The entire length of cable is an extended sensor. You
can hang the detector from the wall or place both the
detector and cable sensor on the floor.
Sensors
Mounting
keyhole
Cable
sensor jack
Sensor jack
plug
32325307_A.indd 5 3/7/2017 4:41:31 PM
6
Common uses
Operation
Lyric app experience
Below are a few examples of the Lyric app screens you will see as
you use the Lyric W1 Wi-Fi Water Leak and Freeze Detector.
Leak detected
by device
30 day rolling
temperature trends
Low temperature
detected by device
Wi-Fi connection
failure
32325307_A.indd 6 3/7/2017 4:41:31 PM
7
Reset
To reset the Wi-Fi, detector settings and to re-start the Bluetooth
pairing use one end of a paperclip to press and hold into the reset
hole for 5 seconds. The LED will blink blue.
Press and hold the paperclip into the reset hole for 15 seconds to
restore factory defaults. The LED will blink blue.
Status LED
The detector has an LED that gives device status.
LED Detector state
During installation
Blinking blue Powering up and connecting to Bluetooth.
Solid blue Paired with Bluetooth.
Blinking green Connecting to Wi-Fi network.
Solid green Has power, Wi-Fi connection, and is operating
normally.
Note: LED switches o after 5 minutes to
preserve battery life.
Solid red Failed to connect to Wi-Fi.
During operation
Blinking red Detected a leak.
32325307_A.indd 7 3/7/2017 4:41:31 PM
8
Wi-Fi® is a registered trademark of Wi-Fi Alliance®
Honeywell Novar ED&S
The Arnold Centre,
Paycocke Road,
Basildon, Essex, SS14 3EA
United Kingdom
getconnected.honeywell.com © Honeywell 2017
In case of an alert
When water is detected, it can take the detector up to 1 minute to
sound the alarm and send a notification to the user.
You can mute the detector by pressing the Mute button in the app
or removing the batteries or cable sensor from the detector. The
mute command may take up to 1 minute to reach the detector.
After the alert, wipe dry the detector and cable sensor and put
them back in place. Replace batteries if they were removed.
Caution: The detector can only take in a moderate amount of water
and may become unusable if fully submerged. If this occurs, remove
the device from water, dry it and test it for functionality. If it is still
not performing properly, replace the device.
32325307_A.indd 8 3/7/2017 4:41:31 PM
WLAN Wasser- und
Frostmelder
Schnellstartanleitung
32325307_A.indd 9 3/7/2017 4:41:33 PM
10
1 Herunterladen der Lyric-App
Suchen Sie im App Store oder
bei Google Play nach „Honeywell
Lyric“.
Wenn Sie die App heruntergeladen
haben, starten Sie diese,
registrieren Sie sich (falls erforderlich) und wechseln Sie dann zu
„Menü“ und anschließend zu „Neues Gerät hinzufügen“.
2 Batterien einlegen
Der Detektor wird über 3 AA-Batterien
betrieben (im Lieferumfang enthalten).
Önen Sie die Batterieabdeckung am
Detektor und legen Sie die Batterien
ein.
Üben Sie beim Wiederanbringen
der Abdeckung ein wenig Druck auf
deren Rand aus, um einen festen Sitz
zu gewährleisten.
Hinweis: Schließen Sie kein
Netzteil an die Kabelsensor-
Buchse an, da dies den Detektor
beschädigen könnte.
GET IT ON
Lyric
Kabelsensor-
buchse
Benötigen Sie Hilfe?
• Internet: getconnected.honeywell.com
