NEXPTZ Camera

Explosion proof Security Camera

(High Speed Standard Type)

INSTALLATION & OPERATION GUIDE BOOK

ENG

- 2 -

1. Install and use this system after reading these instruction thoroughly.

2. Keep these instructions.

3. Install in accordance with the manufacture’s instruction.

4. Take care of all Cautions and Warnings.

5. Use stainless steel hardware to fasten the mount to outdoor surfaces.

6. Only use replacement parts recommended by the manufacturer.

RISK O F ELECTRIC SHOCK

DO NOT OPEN

CAUTION

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER(OR BACK).

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PRERSONNEL

Explanation of Graphical Symbols.

This symbol is intended to alert the user to the presence of uninsulated

“dangerous voltage” within the product’s enclosure that may be of sufficient

magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important

operating and maintenance(Servicing) Instructions in the literature

accompanying the appliance.

TO REDUCE THE RISK OF IGNITION DO NOT OPEN WHEN AN EXPLOSIVE

GAS ATMOSPHERE MAY BE PRESENT

WARNING: To reduce the risk of ignition of hazardous atmospheres, conduit runs

must have a sealing fitting or cable gland connected within PT 3/4 inches of the

enclosure.

WARNING: To reduce the risk of ignition of Hazardous Atmospheres,

disconnect the equipment from the supply circuit before opening.

Important Safety Instructions

ENG

- 3 -

WARNING: Gross weight of this system is about 30kg. Use caution when lifting

and installing. It is recommended you to wear proper non-slip gloves be worn during

installation.

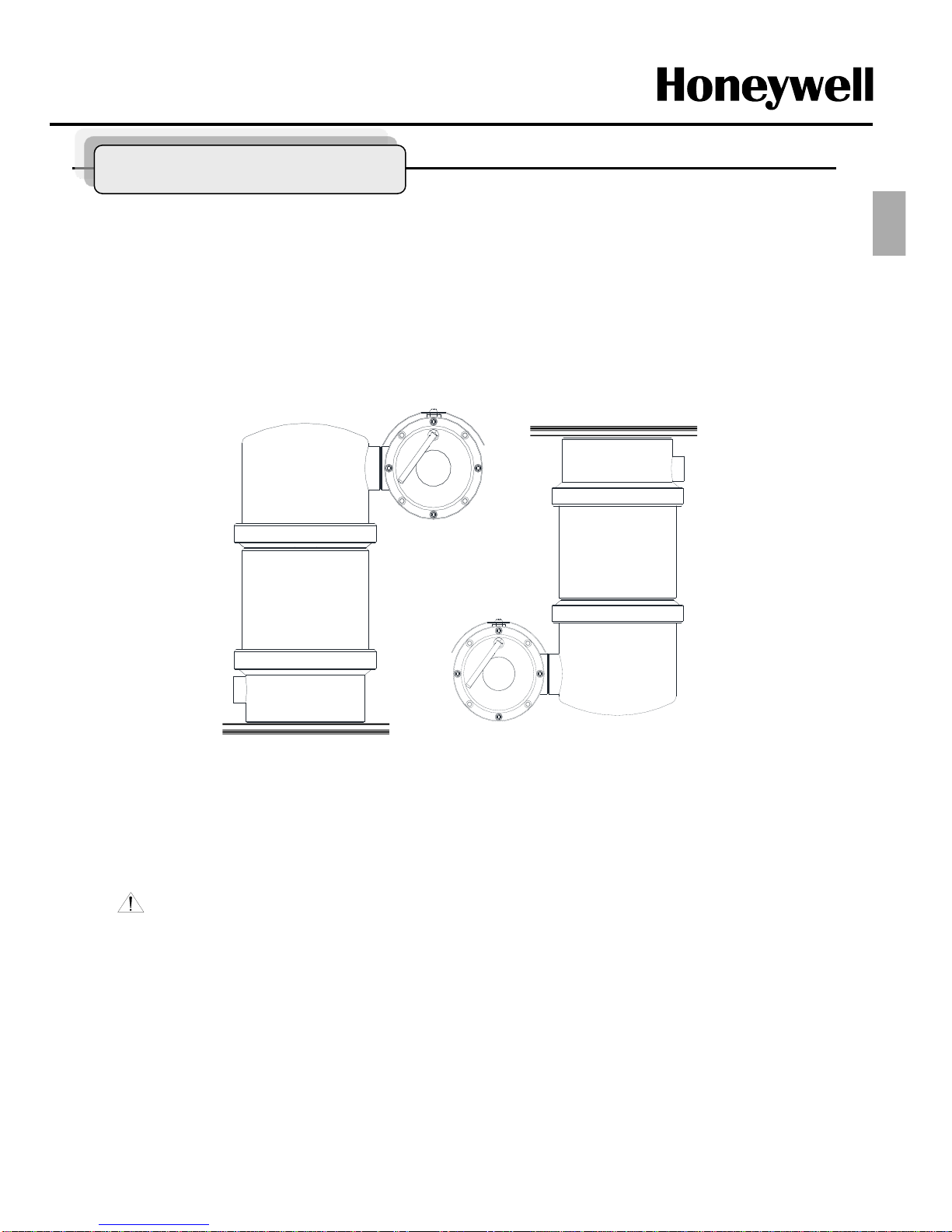

Figure1.

Method of Installation

Standard Position Inverted Position

This system can be installed in a standard or inverted position or camera Housing only with

optional bracket as below Figure1.

When installed for inverted operation, the origin of camera shall be reconfigured through the

Camera function. There is no need to be adjusted physically but sunshield bracket may not

be functional at this case.

Methods of Installation

ENG

- 4 -

Install the product to Pedestal Mount bracket

To install this product, please refer to Figure2 and do the following steps.

1. Make sure the threads of the product and the threads of the supplied M8X15mm stainless steel bolts

(Supplied) are free of dirt and debris.

2. Apply an amount of thread locking compound(not supplied) to the thread of the product and the thread of

the bolts.

3. Secure the product to the mounting surface with the adjusted wrench and four M8x15mm stainless steel

bolts and lock washers. Tighten the bolts to 250~350 kgf.cm (24Nm~34Nm)

Figure2.

Note : Figure2 shows the product being installed on a Pedestal mount which is an optional

product (not supplied) and if there is no need the pedestal mount, just follow a above step to install

the product without pedestal mount bracket.

Methods of Installation

ENG

- 5 -

Figure3.

Note : Figure3 shows the product being installed on a surface with pedestal mount.

Install Product to the surface with Pedestal mount bracket

PT 3/4 “-14

Seal Fitting

(Not Supplied)

Explosion proof

Flexible conduit

(Not Supplied)

PT 3/4”-14 Nipple

(Supplied)

Fiber Filler Sealing

compound Cables

Sealing Method

To install this product, please refer to Figure3 and do the following steps.

1. Make sure the threads of the supplied four M10X30mm stainless steel bolts (Not Supplied) and flat/spring

washers are free of dirt and debris.

2. Apply an amount of thread locking compound(not supplied) to the thread of the product and the thread of

the bolts.

3 There are more options such as wall, corner and pole mount bracket to install. (refer to the mount bracket

part page)

4. Make sure the seal fitting(not supplied) and the threaded hole of this system are free of the dirt and

particles.

5. Assemble Nipple(supplied), the threaded hole of this system, seal fitting and flexible conduit(not supplied)

to be fasten firmly and then the cables must be passed through the seal fitting, nipple and flexible conduit.

Plus, the sealing fitting, flexible conduit should be acquired IECEx Certification.

Methods of Installation

ENG

- 6 -

Figure4.

Base Schematic of Installation

POWER

AC110 or 220V

BNC

MAIN MONITOR

DATA1 DATA2

+ - -+ + -

REAR

FRONT

KEYBOARD CONTROLLER

HTX-5000

REAR

DATA 2 DATA 1 DC 12V

RS 485

1 DOME 2

IN OUT DVR RS 232C

ALARM/DVR

DC 12V

SLAVE

RS 485 +

-Alram out

COM

N/O

RS 485

DVR

1. Figure4 is recommended for the base Schematic of Installation.

2. If you wish to consist of another method or other components, you must proceed to do after

conferring with a manufacture.

3. Depend on a DVR, you can control the product with an Utility in the DVR without HTX-5000.

Base Schematic

ENG

- 7 -

Configuration of Wire Harness

POWER

(AC 220V or 110V)

BNC

Alram

In/Out Put

RS-485

Data+, -

Figure8.

Cable configuration

2m ±0.3m

Cable Configuration

Wire Color Function Description

Brown

Sky Blue

Green

Power Input

(AC 100V ~ 240V)

GND

Red

Orange

Yellow

Green

Black

Alarm Input

Alarm 1

Alarm 2

Alarm 3

Alarm 4

GND

Black

Red

Yellow

White

Alarm Output A

Alarm Output B

NO A

COM A

NO B

COM B

Black

(Coaxial cable) Video BNC Cable

Blue stripe

White stripe Control Data RS485 Data +

RS485 Data -

ENG

- 8 -

Key Feature and Introduction

The NEXPTZ Series camera which is Explosive proof camera features a high resolution Super

HAD CCD imager for enhanced lowlight sensitivity. The NEXPTZ Series follow the stringent

explosion-proof requirements with creative mechanical strength and design. Moreover, the

NEXPTZ explosion-proof system is designed to meet the rigorous requirements of explosion-

proof electrical equipment installed in hazardous locations. The system has built-in True Day

&Night zoom camera with programmable Camera setting easy to setup and program functions.

System information aides trouble shooting by displaying the hardware and software version of

the dome driver, baud rate, and protocol.

The Highest level Ex Class : Ex d IIC T6 (IECEx, ATEX, CE, FCC, KC)

Corrosion resistant SUS 316 Construction

IP67 Protection

Adapt 650TVL, Optical x36 AF Zoom module

360ºContinuous Panning with max 60º/sec High Speed

Thanks to Flip function and 360ºcontinuous rotate at Pan/ Tilt angle

Various Preset function

- Home Function

- 128 Preset potions w/ focus, iris, BLC setting

- 8 Scan ,4 Tours, Pattern

Built-in Wiper function

4 Alarm in & 2 Relay out

Integrated with Washer jet : EXWJ400

Approx 30Kg of light weight

ENG

- 9 -

* This function is specialized to HTX-5000 keyboard.

RemarksResultsProcessFunction

-ZOOM IN

-ZOOM OUT

-Focus is changed to Near or Far

-Return to Auto Focus mode by

moving the joystick.

-Iris is opened or closed

Moving the joystick reactivates Auto Iris

mode

ZOOM

/FOCUS/

Iris

For matching ID 01

If ID set 02, press and (Cam)

button

You can see the moving as following the

direction.

①Press and (CAM) button

in sequence.

②Move Joystick to the right,

left, up and down.

PAN/TILT 1

①Twist Joystick to the right.

②Twist Joystick to the left.

③Press button.

④Press button.

If it’ not raining,

forbid to keep the

moving status over

1 hour continually.

-Wiper moves as keeping a steady angle.

-Wiper stops.

Wiper

Control

①Press (On) button or

Press and (On) button

in sequence.

(86+ Preset) at Pelco Protocol

②Press (Off) button or

Press and (Off) button

in sequence.

(79+ Preset) at Pelco Protocol

Water jet

(Optional)

①Set washing position

-.Move the window face to nozzle by

using pan/tile and save the position

on preset 59.

②Press and (On) button.

(88+ Preset) at Pelco Protocol

- Set the specific position to wash front

window toward the nozzle on preset 59.

-Run washing and wiping.

Check water level in

the tank periodically.

Simple Function Control Guide

ENG

- 10 -

①Press (Pattern) button to set.

(80+ Preset) at Pelco Protocol

②Press (Esc) button or move

Joystick to the right or left.

①Set Preset (direct)

-.Select one button of ~ ,

(128) and Press (Shift) and

(Preset) in sequence.

②Running Preset

-.Press Number button and

in sequence.

-PTZ moves to the position which you

have saved the preset.

Simple Function Control Guide

RemarksResultsProcessFunction

-Menu screen is displayed.

-Go into the sub-menu items.

Change value.

Navigate through the menu items

-Navigate through the menu items.

-Escape from the menu.

①Press (Menu) button.

(95+ Preset) at Pelco Protocol

②Move Joystick to the right

or left.

③Move Joystick Up or Down.

④Press (Menu) or (Esc)

or (Enter) button twice.

ESC

(Enter)

= (94+ Preset)

at Pelco protocol

(Menu)

= (95+ Preset)

at Pelco protocol

(ESC)

= (96+ Preset)

at Pelco protocol

Scan ①Press (Scan) button to set.

(60+ Preset) at Pelco Protocol

②Press (Esc) button or move

Joystick to the right or left.

Preset

-PTZ continually moves between the start

and end point which user set among the

preset.

-Escape from the moving Auto Pan.

ESC

1 1 2 8

Tour ①Press (Tour) button to set.

(70+ Preset) at Pelco Protocol

②Press (Esc) button or move

Joystick to the right or left.

ESC

1~59+ Preset to

operate Preset 1~59

at Pelco protocol.

-PTZ continually moves to user set

position of the presets.

-Escape from the moving Tour.

61~68+ Preset to

operate Scan1~8 at

Pelco protocol.

71~74+ Preset to

operate Tour1~4 at

Pelco protocol.

Pattern

ESC

-PTZ continually moves to user set

position of the presets.

-Escape from the moving Tour.

81~84+ Preset to

operate Pattern1~4 at

Pelco protocol.

ENG

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Honeywell Caméra de sécurité

Honeywell

Honeywell EQUIP Series:EQUIP HD3HDIH Manuel utilisateur

Honeywell

Honeywell HBW2PR1 Manuel utilisateur

Honeywell

Honeywell HD61 Series Manuel utilisateur

Honeywell

Honeywell 2450Cm Series Manuel utilisateur

Honeywell

Honeywell HICC-P-3100IRV Manuel utilisateur

Honeywell

Honeywell HD4USX Manuel utilisateur

Honeywell

Honeywell HD3DS Manuel utilisateur

Honeywell

Honeywell 2450Cm Series Manuel utilisateur

Honeywell

Honeywell HD50 Series Manuel utilisateur

Honeywell

Honeywell HCU484 Manuel utilisateur

Honeywell

Honeywell HBD92SX Manuel utilisateur

Honeywell

Honeywell NightHawk HCD82484 Manuel utilisateur

Honeywell

Honeywell HD4VC4HRX Manuel utilisateur

Honeywell

Honeywell EQUIP HD3MDIP Manuel utilisateur

Honeywell

Honeywell HD3CB Manuel utilisateur

Honeywell

Honeywell HD273H Manuel utilisateur

Honeywell

Honeywell HD2FM1BX Manuel utilisateur

Honeywell

Honeywell 2450Cm Series Manuel utilisateur

Honeywell

Honeywell HEW2PRW1 Manuel utilisateur

Honeywell

Honeywell 2450Cm Series Manuel utilisateur

Honeywell

Honeywell Performance HBD1PR1 Manuel utilisateur

Honeywell

Honeywell HDZP252DI Manuel utilisateur

Honeywell

Honeywell HED2PER3 Manuel utilisateur

Honeywell

Honeywell NTSC Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
