Honeywell HCCM474M Manuel

DAY/NIGHT, MINIATURE, HIGH RESOLUTION

COLOR CAMERA

HCCM474M www.honeywellvideo.com

The HCCM474M represents a breakthrough in camera design. It has been

engineered to produce the highest level of video quality in low lighting

applications, yet remain unobtrusive in size and easy to install.

The HCCM474M adapts to varying lighting conditions to ensure the highest

picture quality even in extreme low-light conditions. When the light level drops too

low for accurate video identification in color, the camera automatically switches to

black and white video to capture more detail.

At a quarter of the size of traditional cameras, the HCCM474M can fit in

applications such as small dome housings and automated teller machines. In

installations where discreet camera surveillance is a requirement, the unobtrusive

HCCM474M fits the need.

Menu navigation is simple and picture adjustments can be made in a matter of

seconds with easy-to-use push buttons on the back of the camera. Traditionally,

making adjustments to the video output of a CCTV camera involved flipping dip-

switches located on the camera until the desired picture quality was achieved.

The HCCM474M simplifies this adjustment with an on-screen text menu for all

setup and adjustment options.

Market Opportunities

The Honeywell HCCM474M is designed for cost-effective, unobtrusive

high-resolution surveillance day and night-time applications which require a small

camera that can provide high quality video in low-light conditions. This includes

general indoor surveillance applications in retail, financial, gaming and other

commercial markets.

Features

•High-performance 1/3" CCD with DSP

•On-screen display menu for adjustment

•470 TV lines of resolution

•Low-light B/W mode

•High sensitivity (0.4 lux color, 0.1 lux B/W)

•Digital backlight compensation with 6 sensing zones

•Small footprint, 1.6" (W) x 1.6" (H) x 2.8" (D)

•Auto electronic shutter modes from

1/60 to 1/100,000 second

•Three mode white balance, ATW/AWC/Manual

•Text display, 24 alphanumeric characters

•Variable gamma, brightness and color control

•12 VDC/24 VAC with line lock

•Digital phase adjustment

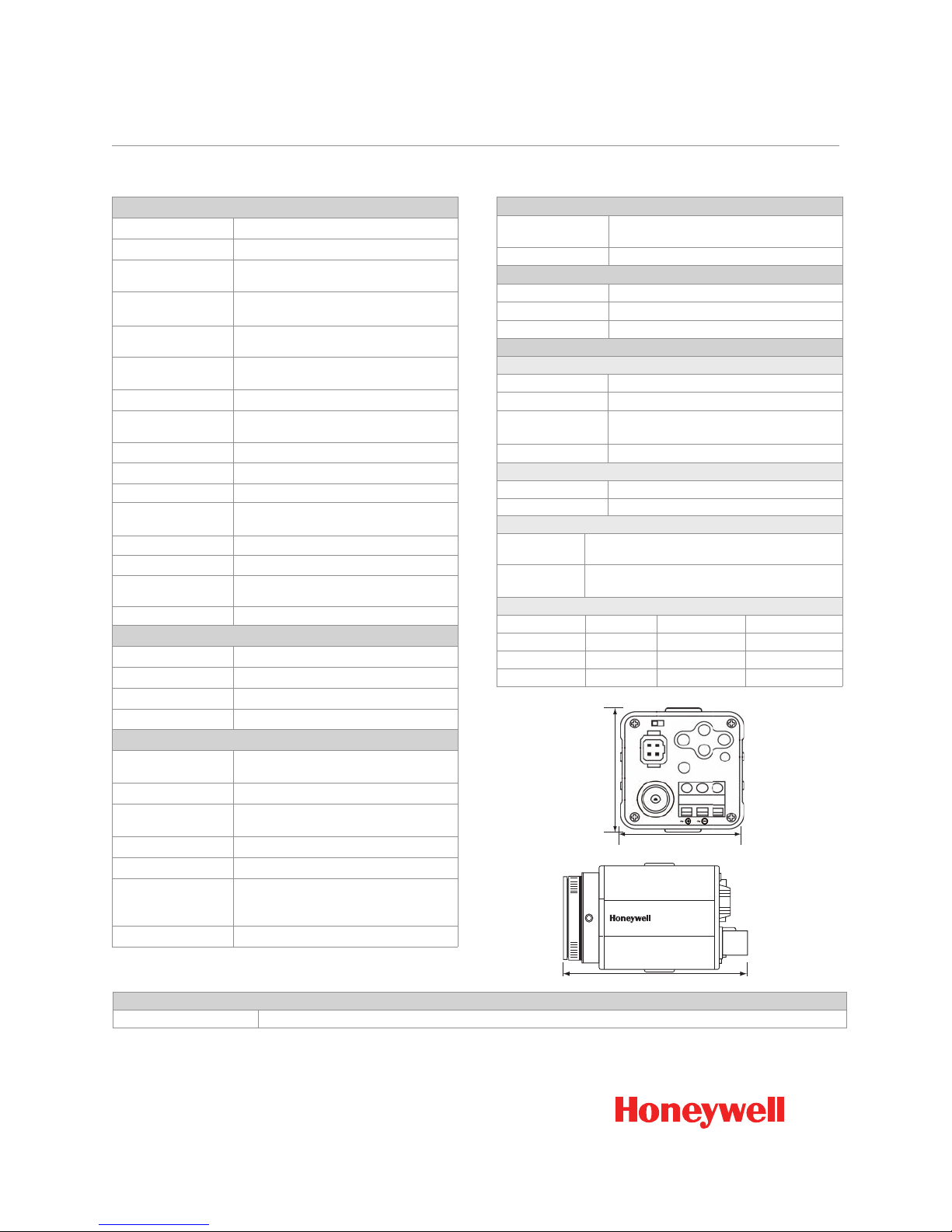

SPECIFICATIONS

HV05285

L/HCCM474M/D

August 2006

HCCM474M

Operational

Video Standard NTSC

Scanning System 525/60 lines

Image Sensor 1/3" Interline Transfer CCD Sony

ExView

Number of Pixels

(H x V) 768 x 494

Minimum

Illumination 0.4 lux Color/0.1 lux (BW) @ F1.2

(50 IRE)

Horizontal

Resolution 470 TVL

Video Output 1.0 Vp-p @ 75 Ohms

Sync System 12 VDC: Internal

24 VAC: Line lock, Internal

S/N Ratio 50 dB (AGC off)

Auto Gain Control Off/on switch (0 – 32 dB max)

ALC Adjust (with direct drive Auto Iris lenses)

Automatic Electronic

Shutter 1/60 – 1/100,000 sec

White Balance ATW/AWC/Manual

Gamma Adjustable

Line Lock Phase

Adjust Adjustable line lock vertical phase

BLC On/off, 6 sensing zones

Electrical

Input Voltage 12 VDC/24 VAC

Input Range 11 - 13 VDC, 21 - 26 VAC

Surge Suppression 1.5 kW transient

Power Consumption 3 W

Mechanical

Dimensions

(W x H x D) 1.6” x 1.6” x 2.8”

41 mm x 41 mm x 72 mm

Weight 0.34 lb (0.16 kg) camera only

Construction Housing: Aluminum

Finish: Charcoal powder coat

Camera Mount 1/4 – 20 UNC (top and bottom)

Lens Mount C/CS adjustable mounting ring

Connector Video output: BNC connector

Lens: 4-pin connector

Power Input: 3-pin screw terminal

Power Indicator LED

Ordering

HCCM474M 1/3" High-Resolution Day/Night Miniature Camera with DSP, 470 TVL, 0.4/0.1 lux, 12 VDC/24 VAC, NTSC

NOTE: Honeywell reserves the right, without notification, to make changes in product design or specifications.

www.honeywellvideo.com

Rear View

1.6"

(41 mm)

1.6" (41 mm)

VIDEO

PWR

12VDC/24 VAC

CLASS2

VIDEO

LENS

SET

GND

Side View

HCCM474M

2.8" (72 mm)

Accessories:

Recommended Lens Options

HLD25V6F12L 2.5 – 6 mm, F1.2, DC Auto Iris lens

HLD28V8F95L 2.8 – 8 mm, F0.95, DC Auto Iris lens

HLD27V13DNL 2.7 – 13.5 mm, F1.3, Aspherical

Vari-focal lens

HLD5V50F13L 5.0 – 50 mm, F1.3, DC Auto Iris lens

Housings and Mounts

HBC5WT Wall/Ceiling Mount Bracket

HHC12 Series Environmental Housing

Environmental

Temperature Operating: 14°F to 122°F (-10°C to 50°C)

Storage: -4°F to 140°F (-20°C to 60°C)

Relative Humidity < 85%, non-condensing

Regulatory

Emissions FCC, CE (EN 55013)

Immunity CE (EN50130-4)

Safety EU: 73/23/EEC LVD

Transformers

HPT2420 24 VAC, 20 VA Class 2 plug-in with thermal

cut-out

HPT12DC500 12 VDC, 500 mA plug-in regulated 2.1 mm

coaxial plug UL Listed/CSA Certified

Power Supplies

UL Listed Fused Smart Fused Description

HPTV2404UL HPTV2404 HPTV2404CB 4 A, 4 Output

HPTV2408UL HPTV2408 HPTV2408CB 4 A, 8 Output

HPTV2416UL HPTV2416 HPTV2416CB 8 A, 16 Output

Honeywell Security

Honeywell Video Systems

2700 Blankenbaker Pkwy, Suite 150

Louisville, KY 40299

1.800.796.CCTV

www.honeywell.com
