Honeywell HCD544 Manuel utilisateur

Document 800-01954 – Rev A – 08/08

User Guide

HCD544

Day/Night

Color Camera

HCD544 HCD544X

NTSC PAL

Revisions

Important Safety Information

• Read and keep these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

• Use only with the bracket or mounting system specified

by the manufacturer, or sold with the apparatus.

• Refer all servicing to qualified service personnel.

Issue Date Revisions

A 08/08 New document

Document 800-01954 Rev A 3

08/08

Warnings

Installation and servicing should be performed only by

qualified and experienced technicians to conform to all local

codes and to maintain your warranty.

WARNING! 12 VDC/24 VAC models require the use of

CSA Certified/UL Listed Class 2 power

adapters to ensure compliance with

electrical safety standards.

Caution When powering the camera from 24 VAC, a UPS

source should be considered to ensure

satisfactory performance.

Explanation of Graphical Symbols

WEEE (Waste Electrical and Electronic

Equipment). Correct disposal of this

product (applicable in the European

Union and other European countries with

separate collection systems). This

product should be disposed of, at the end

of its useful life, as per applicable local

laws, regulations, and procedures.

FCC Compliance Statement

Information to the user: This equipment has been tested and

found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference

when the equipment is operated in a residential environment.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or

television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct

the interference by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

• Consult the dealer or a radio/TV technician for help.

Caution Changes or modifications not expressly approved

by the party responsible for compliance could void

the user’s authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-

003. [Cet appareil numérique de la Classe B est conforme à la

norme NMB-003 du Canada.]

Manufacturer’s Declaration of

Conformance

The manufacturer declares that the equipment supplied with

this guide is compliant with the essential protection

requirements of the EMC directive 2004/108/EC and the Low

Voltage Directive LVD 2006/95/EC, conforming to the

requirements of standards EN 55022 for emissions, EN 50130-4

for immunity, and EN 60065 for Electrical Equipment safety.

Document 800-01954 Rev A 5

08/08

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . 6

Unpacking Everything . . . . . . . . . . . . . . . . . . . 6

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Installing the Lens . . . . . . . . . . . . . . . . . . . . . . 7

Connecting the Camera . . . . . . . . . . . . . . . . . 8

Connecting LAMP Contact . . . . . . . . . . . . . . . 9

Adjusting The Back Focus . . . . . . . . . . . . . . . 9

Mounting the Camera . . . . . . . . . . . . . . . . . . 10

Making Final Adjustments . . . . . . . . . . . . . . . 10

Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

OSD Menu Controls . . . . . . . . . . . . . . . . . . . 11

SETUP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SETUP Menu Functions . . . . . . . . . . . . . . . . 13

SPECIAL Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 14

SPECIAL Menu Functions . . . . . . . . . . . . . . . 15

Adding a Camera ID Display . . . . . . . . . . . . . 16

Programming Day and Night Modes . . . . . . 17

Setting A Privacy Zone . . . . . . . . . . . . . . . . . 19

Saving Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Factory Default Settings . . . . . . . . . . . . . . . . . . . 21

Warranty and Service . . . . . . . . . . . . . . . . . . . . . 21

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Introduction

The Honeywell HCD544 Day/Night Color Camera (HCD544)

is designed for general surveillance applications and is

ideally suited for low-light indoor environments. An intuitive

menu and Graphical User Interface (GUI) helps you quickly

set up the camera to ensure the best picture quality for your

unique environment. It requires little or no adjustment after

initial installation.

Features

• High resolution 540 TVL 1/3” CCD provides crisp, clear

images, even in low-light conditions

• Minimum illumination of 0.5 lux color/0.25 lux black/

white @ 50 IRE, f1.2

• Automatic day/night switching with adjustable threshold

level control

• 12 VDC or 24 VAC operation

Before You Begin

Please read this guide carefully before you install the

HCD544 camera.

Unpacking Everything

Check that the items received match those listed on the

order form and packing slip. The HCD544 packing box

should include, in addition to this user guide, one HCD544

camera, and an accessory package (5-pin power and LAMP

connector and a lens connector).

If any parts are missing or damaged, contact the dealer you

purchased the camera from or call Honeywell Customer

Service (see the back of this guide for contact information).

Note You will also require a Phillips screwdriver and a

flathead screwdriver to complete the installation.

Document 800-01954 Rev A 7

08/08

Installation

Installing the Lens

The HCD544 camera is factory configured for a CS-mount

lens. Figure 1 demonstrates how to attach a customer

supplied lens. Screw the lens !into the front of the camera

body ". An IR corrected Day/Night lens is recommended

for this camera.

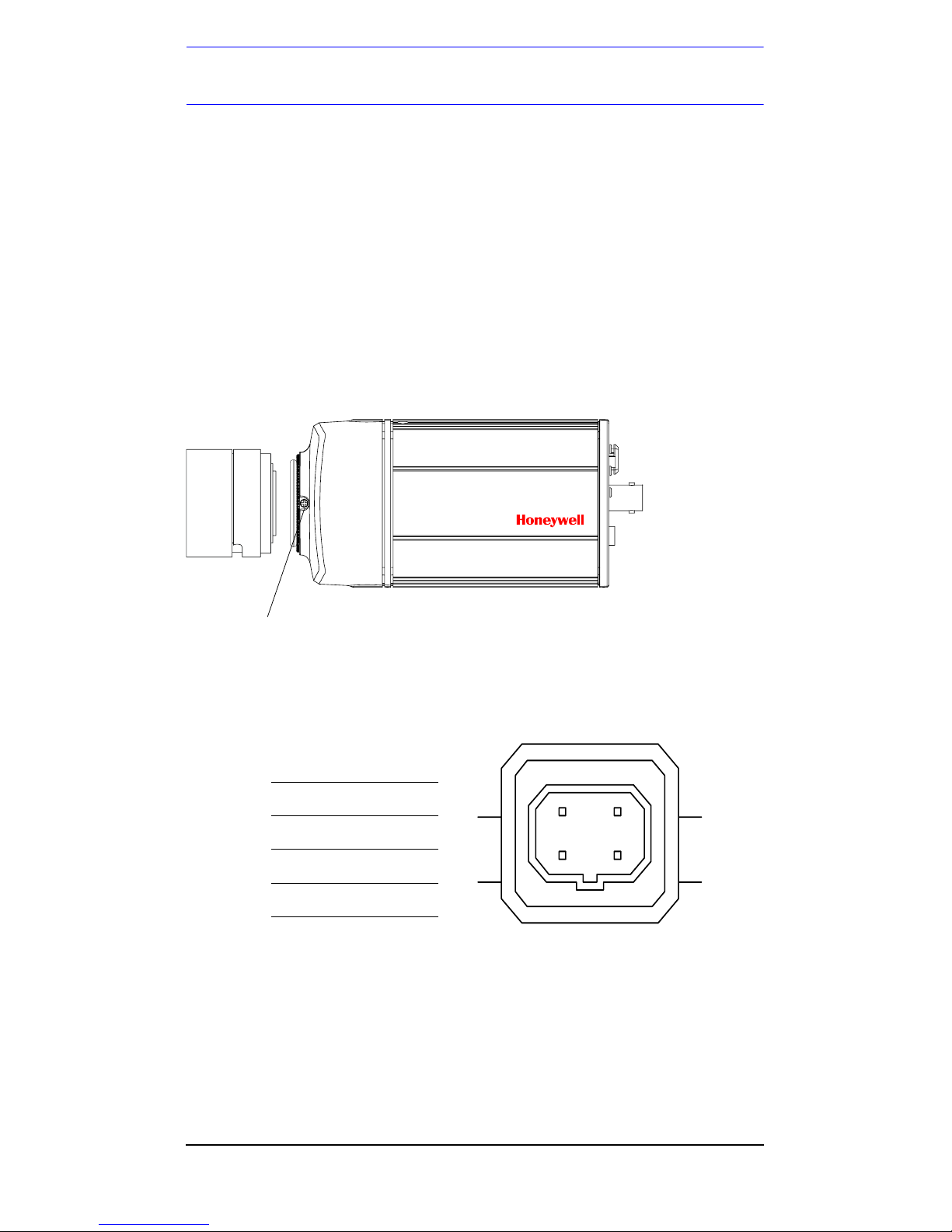

Figure 1 CS Mount

Figure 2 DC Lens Pin Definitions

Setscrews (x2) located

on top and side

Pin Function

1CTRL-

2CTRL+

3DRV+

4DRV-

Connecting the Camera

Note Check the power source from the external power

supply before applying power to the camera.

1. Connect the VIDEO connector on the rear of the camera

to the video-in connector on your monitor.

2. Connect the camera to a 12 VDC or 24 VAC power

supply (appropriate to your installation). Use a

screwdriver to first loosen the ~AC24V/DC12V terminal

screws on the terminal block.

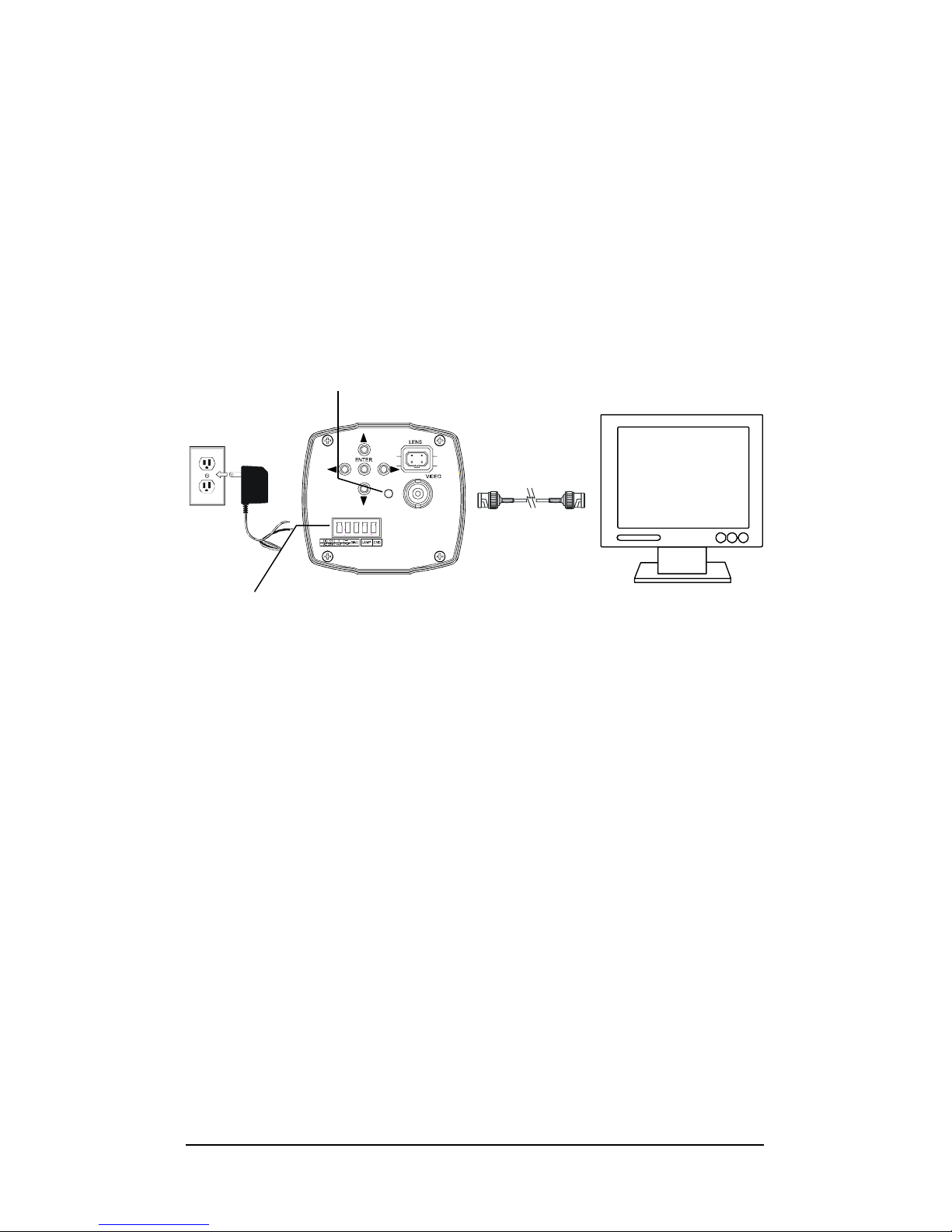

Figure 3 Video Connections

Note To ease installation, the terminal block can be

removed. The power connections of the removable

terminal block are not polarity-sensitive. Connect

either power lead to either connector terminal.

3. Secure the power leads by retightening the terminal

screws until snug.

4. Plug the power supply into an appropriate power

source. The power LED illuminates to show that the

camera is receiving power. If it does not illuminate,

check the removable terminal block connections and

the power source.

Power LED

AC24V/DC12V

terminal block

Document 800-01954 Rev A 9

08/08

Connecting LAMP Contact

The HCD544 camera is equipped with LAMP and GND

external contact terminals. When the LAMP terminal is

connected to the GND terminal, the camera is forced into

night mode (see page 15). It stays in night mode until the

LAMP terminal is disconnected from the GND terminal.

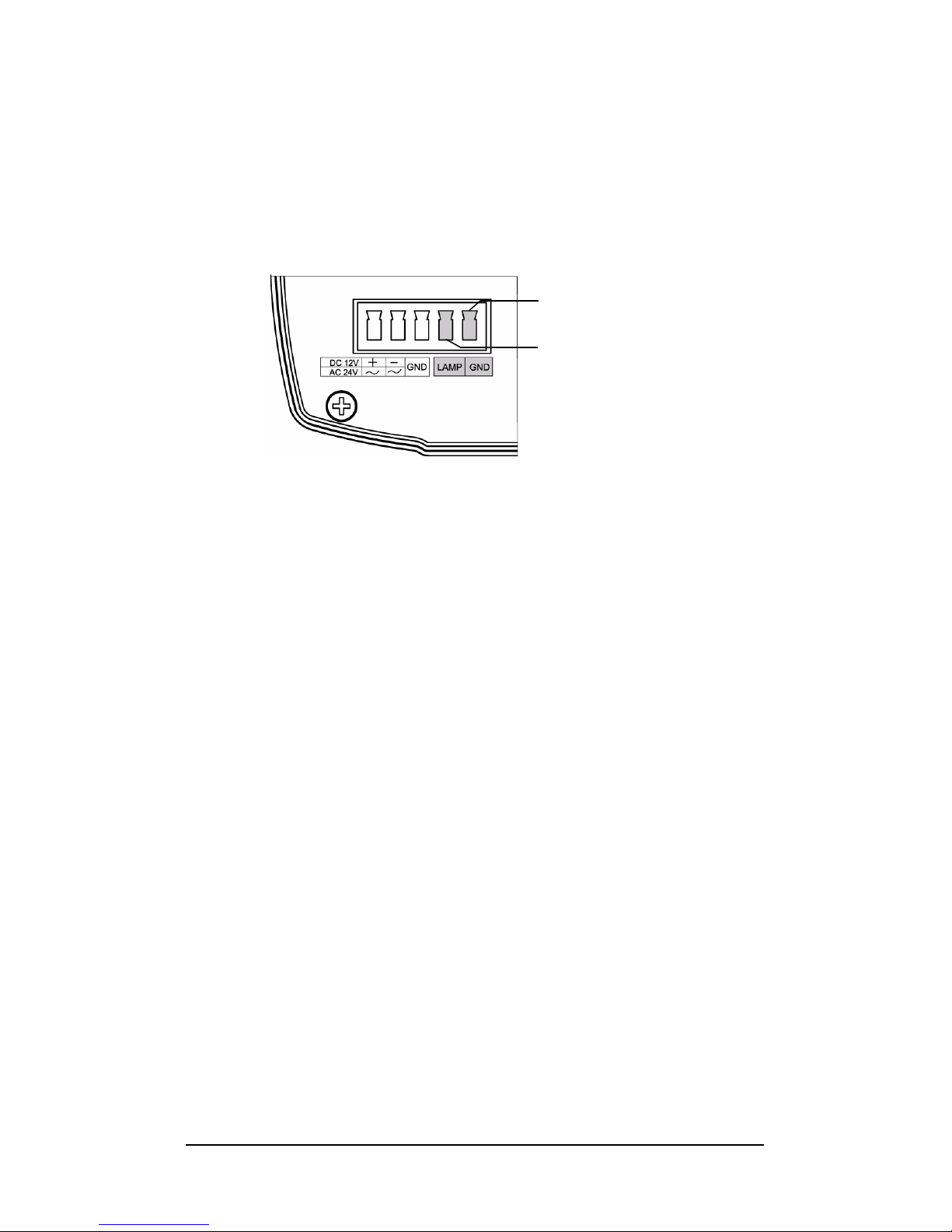

Figure 4 LAMP and GND Terminals

Adjusting The Back Focus

To adjust the back focus, aim the camera towards a darker

area, or use a Neutral Density lens filter. For best results,

there should be a minimum of 15 ft (4.5 m) between the

camera and the target focal area.

1. Loosen the setscrews with a Phillips screwdriver.

2. Set the Zoom lens adjustment to Wide and the Focus

lens adjustment to Near.

3. Adjust the back focus ring to focus the picture.

4. Retighten the setscrews.

GND terminal

LAMP terminal

Mounting the Camera

Mounting points are provided on the top and bottom of the

camera and are used to mount the camera on a bracket or

tripod. They are designed to accept standard sized

mounting bolts. The mounting bracket must be capable of

supporting the weight of the camera and its lens.

Caution Some installation codes dictate that the

mounting bracket must be capable of

supporting up to four times the combined weight

of the camera and lens.

Making Final Adjustments

Adjust the focus for your desired field of view; that is, until

you see a clear image. If necessary, adjust the brightness

using the OSD menu controls (see LENS on page 13 or AGC

(Automatic Gain Control) on page 13). Confirm the exposure

on the monitor screen.
