Honeywell HCCM674M Manuel utilisateur

User Guide

HCCM674M

High Resolution Day/Night

Miniature Box Camera

Document 800-11199 – Rev E – 09/2012

2www.honeywellvideo.com

WARNING

To prevent the risk of fire or

electric shock hazard, do not expose this

camera to rain or moisture.

Information to the User: This equipment has been

tested and found to comply with the limits for a Class A

digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protec-

tion against harmful interference when the equipment is

operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency

energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference

to radio communications. Operation of this equipment

in a residential area is likely to cause harmful interfer-

ence, in which case the user will be required to correct

the interference at his own expense.

Changes or modifications not expressly approved by the

party responsible for compliance could void the user’s

authority to operate the equipment.

This Class A digital apparatus complies with Canadian

ICES-003. Cet appareil numérique de la Classe A est

conforme à la norme NMB-003 du Canada.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

DO NOT OPEN

RISK OF ELECTRIC SHOCK

800-11199 - E - 09/2012 3

Safety Instructions 1

Read Instructions

Read all of the safety and operating instructions before

using the product and retain them for future reference.

Cleaning

Turn off the power and clean with a dry, soft cloth.

Do not use liquid cleaners or aerosol cleaners.

Attachments

Do not use attachments not recommended by the

manufacturer as doing so may result in fire, electric

shock, or serious injury.

Water and Moisture

Do not use this product near water or moisture.

Mounting

Follow the manufacturer’s instructions when mounting

the product. Use only mounting accessories

recommended by the manufacturer.

Power Sources

This product should be operated only from the type of

power source indicated on the marking label. If you are

not sure of the type of power supplied to your facility,

consult your equipment dealer or local power

company.

Ventilation

Do not block any ventilation openings. Install in accor-

dance with the manufacturer’s instructions to ensure

reliable operation of the product and to protect it from

overheating.

Servicing

Do not attempt to service this product yourself. Refer all

servicing to qualified service personnel.

4www.honeywellvideo.com

Precautions 1

Operating

Before using the camera, make sure the power supply

and video output are properly connected. When

operating the camera, if any abnormal condition or

malfunction is observed, stop using the camera

immediately and call your equipment dealer.

Handling

Do not disassemble the camera. Never touch the

internal parts of the camera.

Do not drop the camera or subject it to shocks and

vibrations.

When attaching or removing the lens, take care that no

moisture or dust enters the camera body.

Avoid viewing bright objects (such as light fixtures) for

extended periods, or bright vertical and horizontal lines

may appear on the screen.

Installation and storage

Do not point the camera at the sun as this could

damage the camera whether it is operating or not.

Do not install the camera where the temperature could

exceed the allowable range. Make sure the ambient

temperature is less than 104°F (40°C) in installations

intended for long term continuous operation.

Avoid installing or storing the camera in locations where

the camera may be exposed to:

• water/rain

• humidity

•dust

•radiation

• mechanical vibrations

• strong magnetic fields and electrical signals

Daily check

To maintain proper operation for surveillance use,

check the camera output every day for a clear and

focused picture.

800-11199 - E - 09/2012 5

Contents 1

Safety Instructions . . . . . . . . . . . . . . 3

Precautions . . . . . . . . . . . . . . . . . . 4

Features . . . . . . . . . . . . . . . . . . . . 6

Camera Parts Explained . . . . . . . . . . . 7

Installation . . . . . . . . . . . . . . . . . . 10

Lens Installation. . . . . . . . . . . . . . . 10

Mounting a Lens . . . . . . . . . . . . . . 10

Back-focus Adjustment . . . . . . . . . . . 11

Suitable Lenses . . . . . . . . . . . . . . . 12

Camera Installation . . . . . . . . . . . . . 13

Connections . . . . . . . . . . . . . . . . 14

Menu System . . . . . . . . . . . . . . . . . 15

Menu Description . . . . . . . . . . . . . . . 16

Setup Menu . . . . . . . . . . . . . . . . . 17

Lens . . . . . . . . . . . . . . . . . . . . . 17

Shutter/AGC . . . . . . . . . . . . . . . . 18

White Balance. . . . . . . . . . . . . . . . 19

Backlight . . . . . . . . . . . . . . . . . . 20

Picture Adjust . . . . . . . . . . . . . . . . 21

ATR . . . . . . . . . . . . . . . . . . . . . 21

Motion Detection . . . . . . . . . . . . . . 22

Privacy . . . . . . . . . . . . . . . . . . . 23

Day/Night . . . . . . . . . . . . . . . . . . 24

Noise Reduction . . . . . . . . . . . . . . 26

Camera ID. . . . . . . . . . . . . . . . . . 26

Sync . . . . . . . . . . . . . . . . . . . . . 27

Language . . . . . . . . . . . . . . . . . . 28

Camera Reset . . . . . . . . . . . . . . . . 28

Save All . . . . . . . . . . . . . . . . . . . 28

Specifications . . . . . . . . . . . . . . . . 29

6www.honeywellvideo.com

Features 1

High sensitivity 1/3″CCD with on-chip micro lenses

and low-noise digital signal processing circuit provides

sensitivity down to 0.1 lux at F1.2, 50 IRE.

High-quality image Horizontal resolution of 650 TVL.

Digital signal processing with optimization of control

program and image correction algorithm.

BLC/HLC When strong light enters the scene back-

ground (such as from a spotlight or window), backlight

compensation automatically adjusts the video level to

preserve visibility. Highlight compensation masks

bright spots in a scene.

White balance Seven user-selectable white balance

control modes for varying conditions.

Iris function Drive output for video iris and DC iris

lens. Built-in electronic shutter allows eight shutter

speeds up to 1/100,000 s. CCD iris function automati-

cally sets picture brightness by changing the shutter

speed of the camera according to the incident light

when using a manual iris lens.

Other functions

• Camera ID of up to 24 characters

•Noisereduction

•4motiondetectionzones

• 4 privacy zones

• Picture adjustment for mirror, brightness, contrast,

sharpness, hue, and gain

• 24 V AC or 12 V DC power source

• C or CS mount lenses

800-11199 - E - 09/2012 7

Camera Parts Explained 1

Honeywell HCCM674M

Lens mount

Use when installing the lens. C-mount lens

uses a C-mount adapter. CS-mount lens

does not need a C-mount adapter.

Back-focus screw

Use to adjust the back-focus. See page 11.

Lens mount cap

Use to cap the lens mount

when the lens is not attached.

C-mount adapter

Use to install a C-mount lens.

Remove to install a CS-mount lens.

Turn counterclockwise to remove.

See page 10.

1/4-20 UNC Mounting Hole

Use to install the camera to a

tripod.

1/4-20 UNC Mounting Hole

Use to install the camera to a

tripod.

8www.honeywellvideo.com

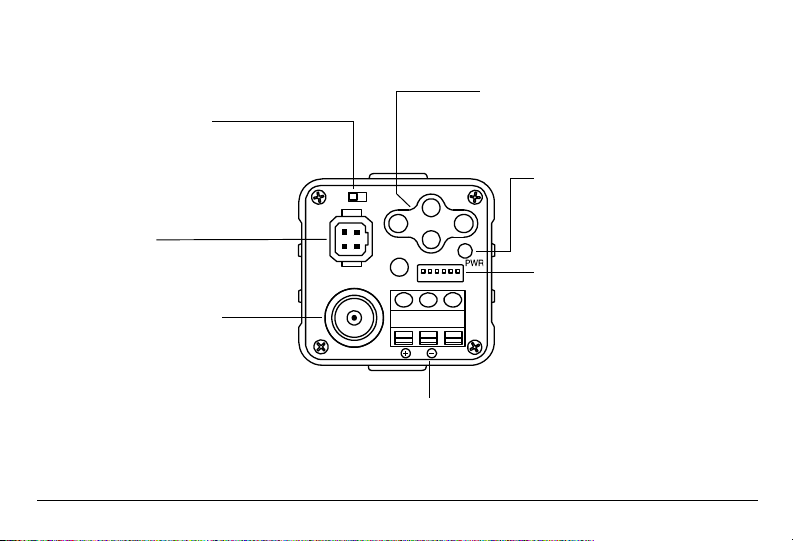

12VDC/24VAC

CLASS2

GND

VIDEO

LENS

LL INT

SET

INT/LL switch

INT: Internal sync mode

LL: Line lock sync mode

Setup buttons

Set up and adjust the camera using the

on-screen menu. See page 16.

Lens connector

Use to connect the lens cable when

using an auto-iris lens.

Video output connector

Connector a BNC connector that

outputs a composite video signal.

Power indicator

Lights up when the camera is

powered.

Alarm output connector

Factory use only.

Power input terminal

Connect to a 24 V AC or 12 V DC power source.

Do not connect the power source until all other

connections have been completed.

800-11199 - E - 09/2012 9

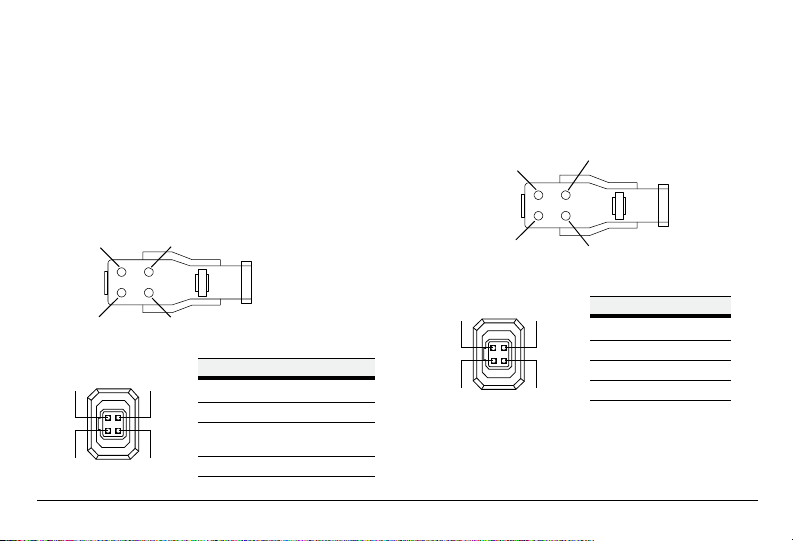

Lens Connector

When using an auto-iris lens, install the accessory lens

plug onto the lens cable as shown below.

Video Type Lens

1. Set the lens type to VIDEO.

2. Connect the lens cable of a video type lens. If the

plug on the cable is of a different type, replace it

with the supplied 4-pin iris plug.

DC Type Lens

1. Set the lens type to DC.

2. Connect the lens cable of a DC (galvanometric)

type lens. If the plug on the cable is of a different

type, replace it with the supplied 4-pin iris plug.

3. After installing the connector plug, connect it to

the lens connector on the rear panel of the

camera.

2 4

Pin Assignment Pin Signal

1 +12 V DC (50 mA max)

2 NC (not connected)

3 Video (0.7 Vp-p, high

impedance, no sync)

4GND

+12V

NC GND

Video input

Pin Signal

1Dampingcoil(–)

2Dampingcoil(+)

3Drivecoil(+)

4Drivecoil(–)

2 4

Damping coil (–) Drive coil (+)

Damping coil (+) Drive coil (–)

Pin Assignment

10 www.honeywellvideo.com

Installation 1

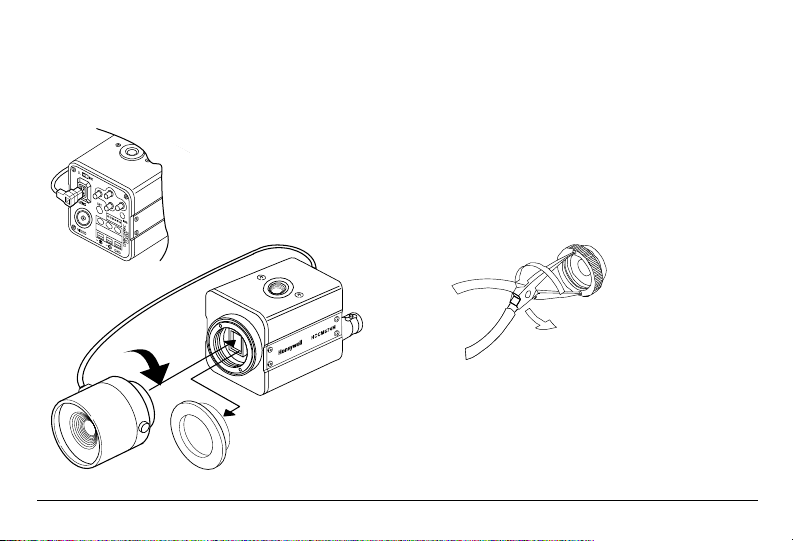

Lens Installation Mounting a Lens

1. Remove the lens mount cap from the camera.

2. Attach or remove the C-mount adapter,

depending on the lens to be used.

If necessary, use long-nosed pliers to remove the

C-mount adapter. Insert the tips of the pliers into

the holes with no threads, then turn until the

adapter comes loose.

You can also use a screwdriver by inserting M3

screws into the holes so that the screwdriver has

something to grip.

Store the C-mount adapter for future use.

3. Attach and secure the lens to the lens mount.

Table des matières

Autres manuels Honeywell Caméra de sécurité

Honeywell

Honeywell 2450Cm Series Manuel utilisateur

Honeywell

Honeywell ACUIX Manuel utilisateur

Honeywell

Honeywell HBD2PR1 Manuel utilisateur

Honeywell

Honeywell HD4 EQUIP Series Manuel utilisateur

Honeywell

Honeywell HDP302DQI Manuel utilisateur

Honeywell

Honeywell HD2FM1BX Manuel utilisateur

Honeywell

Honeywell HD3CH Manuel utilisateur

Honeywell

Honeywell ScanDome III HSDC-252 Series Manuel du propriétaire

Honeywell

Honeywell HDZ30A Manuel utilisateur

Honeywell

Honeywell HEV28C Manuel utilisateur

Honeywell

Honeywell ACUIX Manuel utilisateur

Honeywell

Honeywell HCX13M Manuel

Honeywell

Honeywell HCD95534X Manuel utilisateur

Honeywell

Honeywell HD3CHS Manuel utilisateur

Honeywell

Honeywell ACUIX ES Manuel utilisateur

Honeywell

Honeywell IPCAM-WIC1 Manuel utilisateur

Honeywell

Honeywell HD4DIR Manuel utilisateur

Honeywell

Honeywell HD8EXGCM18W Manuel utilisateur

Honeywell

Honeywell HCD95534 Manuel utilisateur

Honeywell

Honeywell Honeywell Black CAHBC720PI40-80 Feuille d'instructions

Honeywell

Honeywell ACUIX Manuel utilisateur

Honeywell

Honeywell equIP Series S Manuel utilisateur

Honeywell

Honeywell HD262 Manuel utilisateur

Honeywell

Honeywell ScanDome II HSDN-251NS/PS Manuel du propriétaire

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
