Honeywell EXPTZ-252A Guide produit
HWLKS-C-M-1918
Honeywell
- 1 -
INSTALLATION&OPERATION GUIDE BOOK
EXPTZ Camera
Explosive proof Security Camera
The EXPTZ Series follow the stringent explosion-proof requirements with creative mechanical strength and
design. Moreover, the EXPTZ explosion-proof system is designed to meet the rigorous requirements of
explosion-proof electrical equipment installed in hazardous locations. The system has built-in True Day
&Night zoom camera with programmable Camera setting, Video Flip and BMBTM (Black Masking BLC).
(HIGH SPEED)
HWLKS-C-M-1918
Honeywell
- 2 -
Important Safety Instructions -----------------------------------------------------------
Method of Installation ----------------------------------------------------------------------
Maintenance -----------------------------------------------------------------------------------
Base Schematic ------------------------------------------------------------------------------
Wire and Power Connection Guide ----------------------------------------------------
Simple Function Control Guide ---------------------------------------------------------
Program and Operation --------------------------------------------------------------------
Specifications ---------------------------------------------------------------------------------
Remote Controller ---------------------------------------------------------------------------
Optional Accessories ----------------------------------------------------------------------
EXWJ400 Schematic & Operating ----------------------------------------------------
Dimensions -------------------------------------------------------------------------------------
Product Warranty Guide --------------------------------------------------------------------
Contents
3
4
6
9
10
11
13
34
36
37
41
43
45
HWLKS-C-M-1918
Honeywell
- 3 -
Important Safety Instructions
1. Install and use this system after reading these instruction thoroughly.
2. Keep these instructions.
3. Install in accordance with the manufacture’s instruction.
4. Take care of all Cautions and Warnings.
5. Use stainless steel hardware to fasten the mount to outdoor surfaces.
6. A readily accessible disconnect device shall be incorporated in the building installation
wiring.
7. Only use replacement parts recommended by Honeywell.
8. The maximum ambient temperature range is -20℃to 50℃.
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER(OR BACK).
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PRERSONNEL
Explanation of Graphical Symbols.
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important
operating and maintenance(Servicing) Instructions in the literature
accompanying the appliance.
TO REDUCE THE RISK OF IGNITION DO NOT OPEN WHEN AN EXPLOSIVE
GAS ATMOSPHERE MAY BE PRESENT
WARNING: To reduce the risk of ignition of hazardous atmospheres, conduit runs
must have a sealing fitting connected within 3/4 inches of the enclosure.
WARNING: To reduce the risk of ignition of Hazardous Atmospheres, disconnect
the equipment from the supply circuit before opening.
HWLKS-C-M-1918
Honeywell
- 4 -
Methods of Installation
WARNING: Gross weight of this system is about 40kg. Use caution when lifting
and installing. It is recommended you to wear proper non-slip gloves during installation.
This system can be installed in a standard as below Figure1.
If you wish to install another method, you must do it after discussing with a
manufacture.aas
Figure1.
Standard Method of Installation
HWLKS-C-M-1918
Honeywell
- 5 -

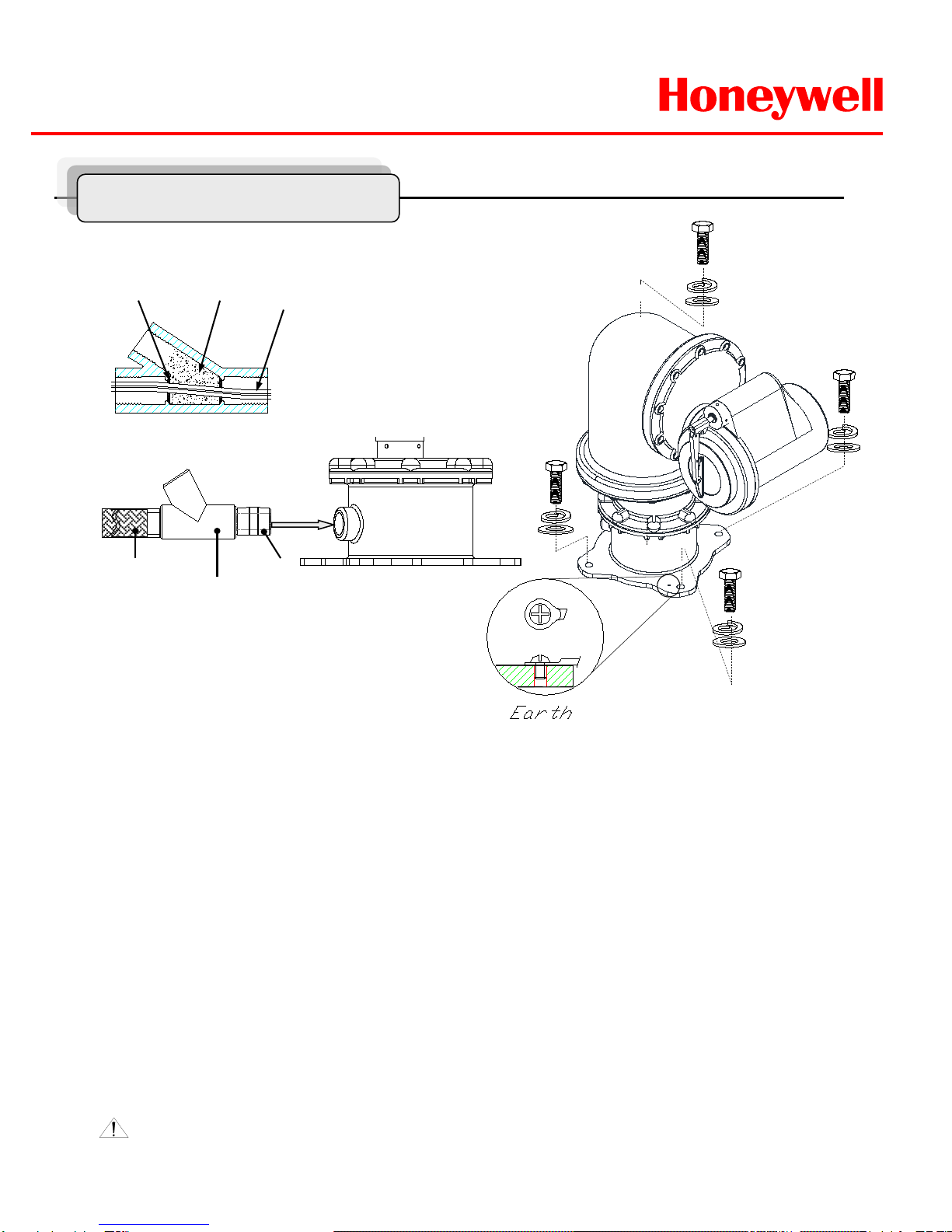

Methods of Installation
PT 3/4 “-14
Seal Fitting
Explosion proof
Flexible conduit
PT 3/4”-14 Nipple
Fiber Filler Sealing
compound Cables
Sealing Method
Standard Method of Installation
To install this system, please refer to Figure2 and do the following steps.
1. Fix this system with M10 x L40mm stainless steel bolts, flat washers and spring washers with at
least four parts each.
2. Make sure the seal fittings and the threaded hole of this system are free of the dirt and particles..
3. Assemble Nipple, the threaded hole of this system, seal fitting and flexible conduit to be fasten
firmly and then the cables must be passed through the seal fitting, Nipple and flexible conduit.
Plus, the sealing fitting, flexible conduit, Nipple should be acquired IECEx Certification.
4. Pack the seal fitting with fiber as the sealing method of Figure2,
Fiber filler makes a dam that keeps the sealing compound in chamber of the seal fitting while it
cures and hardens. And Pour the sealing compound into the fitting.
5. Install the Earth Cable like Figure2.
WARNING: Keep assembly tightly closed when operating.
Figure2.
HWLKS-C-M-1918
Honeywell
- 6 -
Maintenance
No. Description Q’TY
1 Camera Housing Assy 1EA
2 Tilt Drive Assy 1EA
3 Elbow Housing 1EA
4 Pan Drive Assy 1EA
5 Base Housing 1EA
6 Hexagon Socket Head Cap Screws 28EA
7 Hexagon Head Screws 4EA
8 Hexagon Socket Head Screws 1EA
2
5
4
3 1
7
6
6
To disassembly this product, please refer to Figure3 and do the following steps.
1. Use a Φ5 Wrench for loosen 28EA Hexagon socket head screws.
2. The Torque of jointing screws is approximately 160~200 kgf.cm . Therefore consider the torque when the
screws are loosen.
3. If there is any problem to disassemble or assemble, you should discuss with the specialist or Engineering
site of the product.
Figure3.
8
6
HWLKS-C-M-1918
Honeywell
- 7 -
1. Make the wiper vertical
and depart the clamp.
2. Depart the cover with
twist.
3. Loosen the two screws from housing and put out the camera bracket and loosen other
screws to depart the camera, bracket and PCB,
Maintenance
HWLKS-C-M-1918
Honeywell
- 8 -
1. Loosen the two screws on the bracket. 2. Loosen the Wiper Head and depart
the wiper motor assembly.
2. Loosen the Hexagon socket head screws and depart the wiper bar from the wiper head.
It can be changed as the expendable supplies.
Maintenance
HWLKS-C-M-1918
Honeywell
- 9 -
Figure4.
Base Schematic of Installation
Figure4 is recommended for the base Schematic of Installation.
If you wish to consist of another method or other components, you must proceed to do after conferring
with a manufacture.
Base Schematic
POWER
AC100~ 240V
BNC
MAIN MONITOR
DATA1 DATA2
+ - -+ + -
J-BOX REAR
J-BOX FRONT
KEYBOARD CONTROLLER
HTX-5000
REAR
DATA 2 DATA 1 DC 12V
RS 485
1 DOME 2
IN OUT DVR RS 232C
ALARM/DVR
DC 12V
SLAVE
RS 485 +
-
Alram out
COM
N/O
RS 485
HWLKS-C-M-1918
Honeywell
- 10 -
Configuration of Wire Harness
Wire Color Function Description
Brown
SkyBlue
Power Input
(AC 100V ~ 240V)
Hi
Low
Red
Orange
Yellow
Green
Black
Alarm Input
Alarm 1
Alarm 2
Alarm 3
Alarm 4
GND
White
Violet
Blue
Alarm Output
NO
NC
Com
Black
(Coaxial cable) Video BNC Cable
Blue stripe
White stripe Control Data RS485 Data +
RS485 Data -
POWER
AC 100V ~ 240V
BNC
ALARM & DATA
Wire and Power Connection Guide
