Honeywell HD4D3S Manuel utilisateur

Configuration Guide

HD4D Series

Document 800-08379 – Rev B – 05/11

Fixed Minidome Camera

HD4D3S HD4D3SX

HD4D9S HD4D9SX

HD4DAFS HD4DAFSX

HD4DIRS HD4DIRSX

Revisions

Issue Date Revisions

A04/11Newdocument.

B 5/11 Operating temperature upper limit changed to 131°F (55°C).

TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION:

DO NOT OPEN

RISK OF ELECTRIC SHOCK

Document 800-08379 Rev B 3

05/11

Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Programming the Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Exposure Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Color Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Day&Night Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Function Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Motion Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Privacy Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Sync Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Exit Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Introduction

This document provides instructions for configuring the following HD4D Series indoor/outdoor

vandal-resistant mini fixed dome cameras:

•HD4D3S(X) 3.3–12 mm Vari-focal Auto Iris lens

•HD4D9S(X) 9–22 mm Vari-focal Auto Iris lens

•HD4DAFS(X) 2.9–8.5 mm Auto Focus lens

•HD4DIRS(X) 3.3–12 mm Vari-focal Auto Iris lens, 18 LEDs

These instructions are intended for system installers, administrators, and operators.

Document 800-08379 Rev B 5

05/11

Programming the Camera

The camera is programmed using the on-screen display (OSD) menus. You may need to connect a

portable monitor during installation using the supplied adapter cable.

To access the OSD menu system, press the OSD controller joystick located on the camera control

board. Move the joystick left or right, up or down, to navigate through the menus. Menu icons are

located along the top of each menu screen to allow easy programming.

The camera has the following OSD menu structure:

1. EXPOSURE

LENS

E. SHUTTER

BLC

MAX_DR

AGC

SENSE_UP

2. COLOR

WB MODE

R-Y GAIN

B-Y GAIN

3. DAY&NIGHT

D&N MODE

4. FUNCTION

MIRROR

SHARPNESS

GAMMA

3D DNR

D_ZOOM

SLC

HME

DIS

5. MOTION

MOTION

SET WINDOW

ALL SET

ALL CLEAR

SENSITI.

SHOW INDI.

DELAY OUT

6. PRIVACY

MASK 1

MASK 2

MASK 3

MASK 4

MASK 5

MASK 6

7. SYNC

SYNC MODE

V_PHASE

8. SETUP

CAMERA ID

TITLE

DPC

OMNI LENS*

* HD4DAFS Only

9. EXIT

EXIT

SAVE&EXIT

FACTORY SET

OSD

controller

Monitor out

Exposure Menu

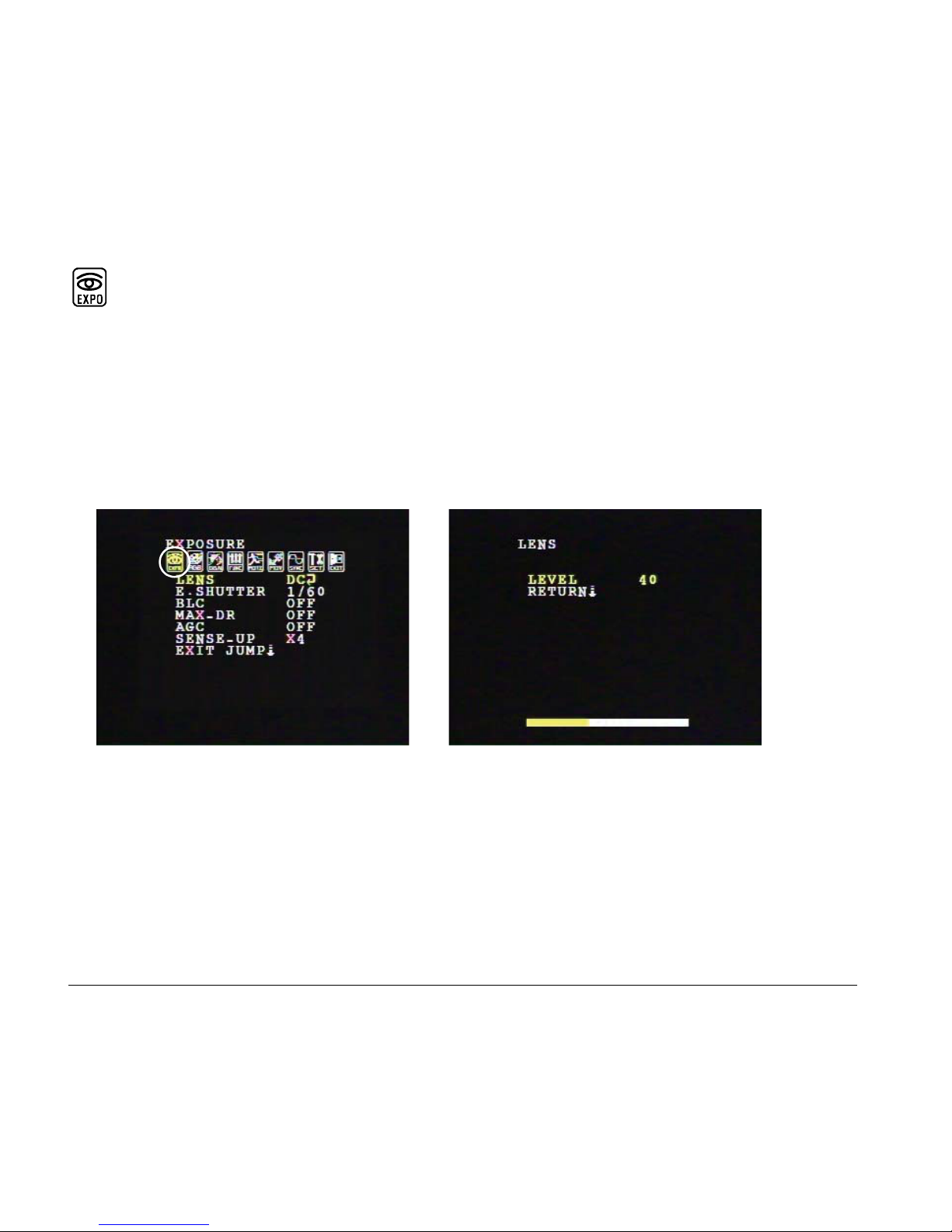

EXPOSURE LENS

Note Only DC mode is supported at this time. Choosing MANUAL mode may cause the camera to

operate incorrectly.

Select DC. Press the OSD controller joystick to adjust the brightness level of the monitor screen.

Select a value from 0to 99 (99 = brightest).

Document 800-08379 Rev B 7

05/11

EXPOSURE E. SHUTTER (Electronic Shutter)

You can select from 18 different shutter

speed levels, from X256 to 1/100000. The

default shutter speed is 1/60.

Note The SENSE_UP menu cannot be

controlled if the E.SHUTTER

setting is above 1/250.

Select 1/100FLC to run camera in

flickerless mode.

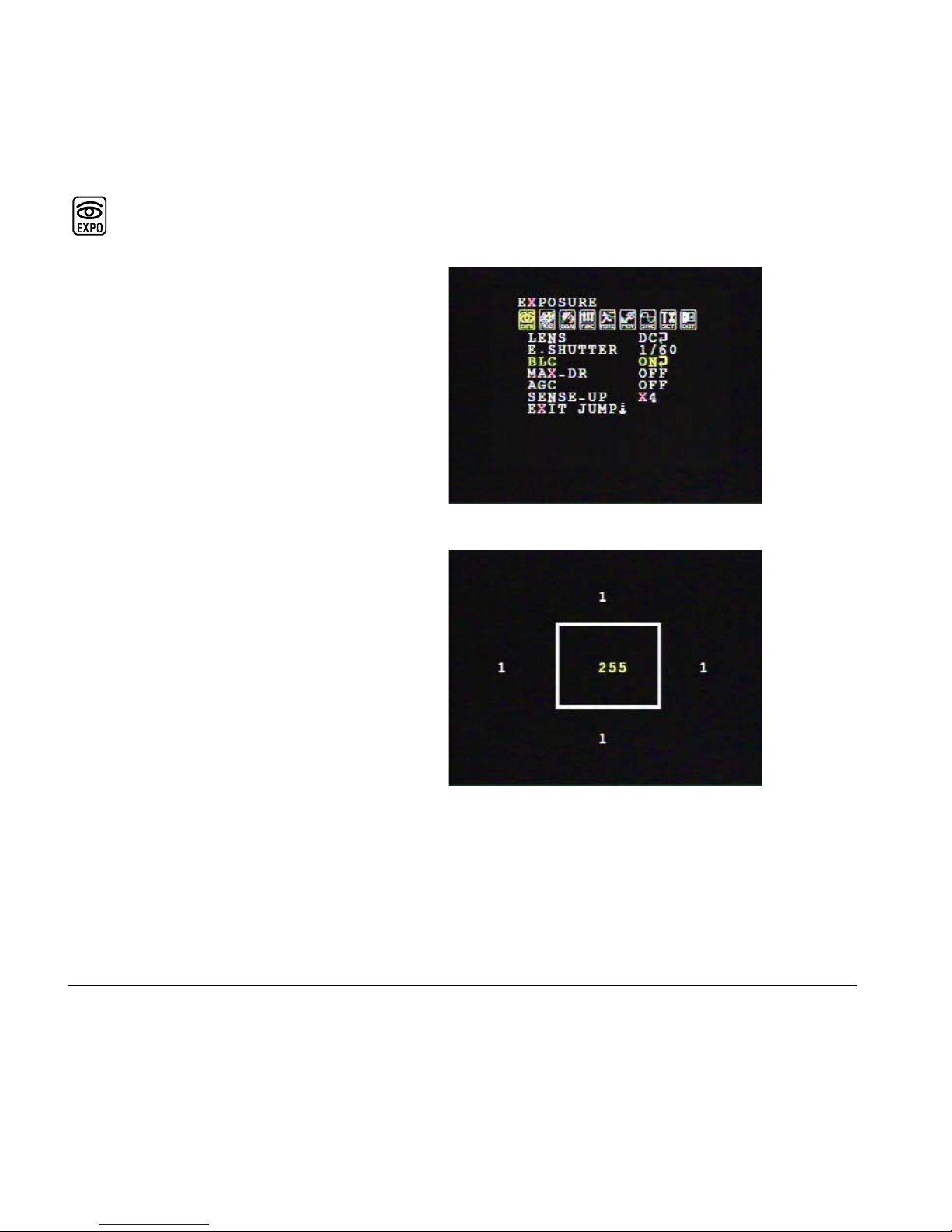

EXPOSURE BLC (Backlight Compensation)

Backlight Compensation prevents

subjects in defined areas of the scene

from appearing too dark when

backlighting is present.

Select ON or OFF.

If ON is selected, you can adjust the BLC

level in five areas of the scene (top,

bottom, center, left, right).

Select a value from 0to 255 for each area.

Increase the BLC level in the areas you

want to lighten.

Document 800-08379 Rev B 9

05/11

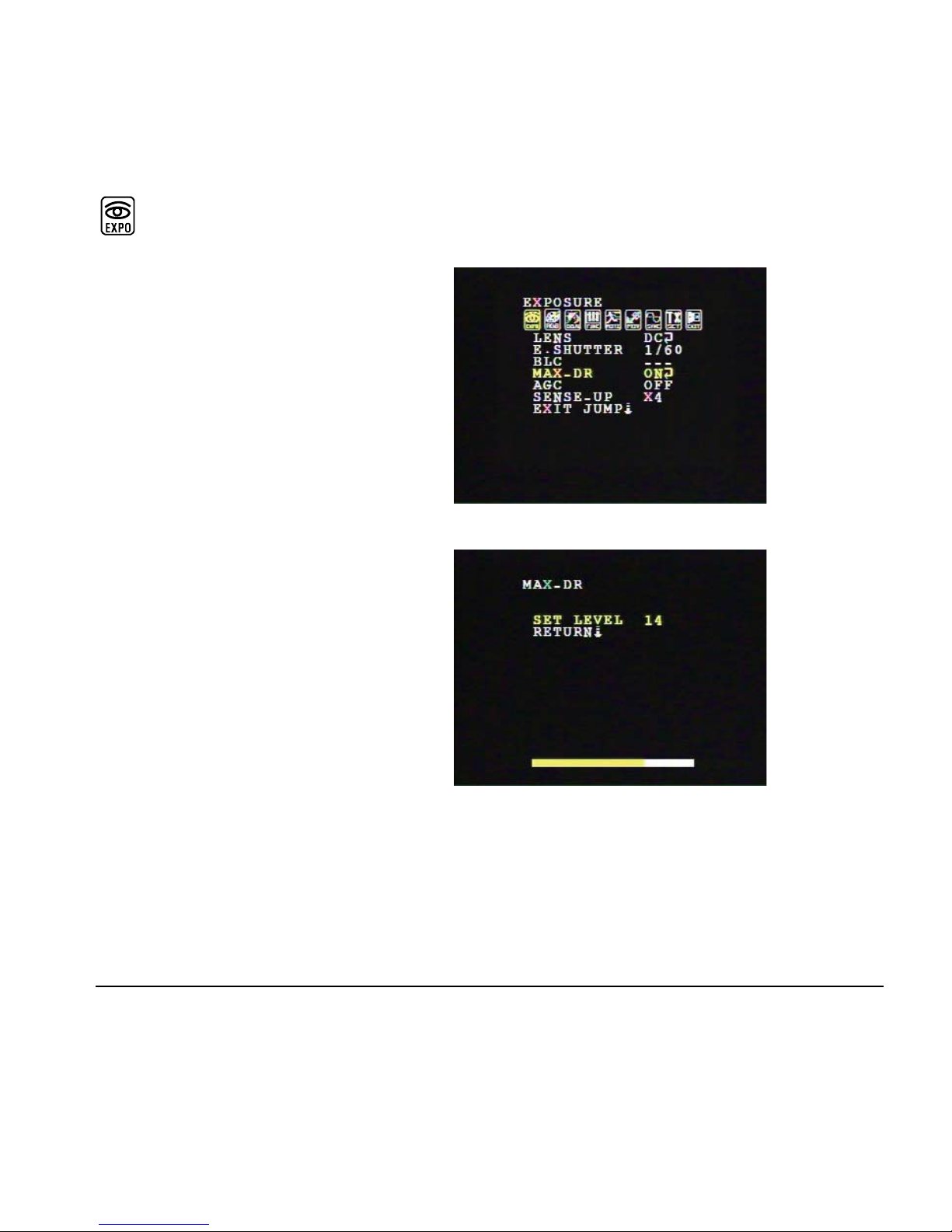

EXPOSURE MAX_DR (Maximum Dynamic Range)

Maximum Dynamic Range provides

clear images even when strong

backlighting is present.

Select ON or OFF.

If ON is selected, you can adjust the

MAX_DR level.

Select a value from 0to 20.

EXPOSURE AGC (Auto Gain Control)

EXPOSURE SENSE_UP

Auto Gain Control automatically adjusts

the video gain to enhance picture

brightness in low light conditions.

Select one of the following settings:

•OFF

•LOW

• MIDDLE

•HIGH

Sense Up automatically activates slow

shutter function when a scene is too dark.

Select a value from X2 to X256 to set the

frame integration level.

Note The SENSE_UP menu cannot be

controlled if the E.SHUTTER

setting is above 1/250.
