Honeywell GC-715N24 Manuel utilisateur
GC-715N24
GC-715P24
MEMO
Control Products Business Unit
18F, Kukje Center Building, 191,
Hangangro-2ga, Yongsan-gu,
Seoul 140-702, Korea
Tel : 82-2-799-6109
Fax : 82-2-749-6119
E-mail : cctv@honeywell.com
http://www.honeywell.co.kr/cctv
Printed in Korea
G-110821
READ AND RETAIN THIS OPERATION MANUAL
* “BMB
BMBTM
TM” is the Trade Mark of Honeywell, CCTV CoE.
DSP COLOR CAMERA
MEMO
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER(OR BACK).
NO USER SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PRERSONNEL
Explanation of Graphical Symbols.
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage”within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important
operating and maintenance(Servicing) Instructions in the literature
accompanying the appliance.
CAUTIONS FOR SAFE OPERATION !
●Changes or modifications not approved
by manufacturer could void the user’s
authority to operate the equipment.
●To prevent fire or shock hazard, do not
expose this camera to rain or moisture.
●To prevent electric shocks and other
hazards, do not use different from the
specified power source.
●Do not install too hot or cold places,
recommended operation temperature
is -10℃~ 50℃
●Do not expose lens directly to the sun.
CCD may be damaged.
●Do not place the camera to heavy
shocks or vibrations.
●Do not place or install the camera on
an unstable place, stand, tripod, bracket
or table.
That may cause serious injury to
people or damage to appliance.
●Do not attempt to service or repair of
yourself. Please contact all servicing to
qualified service personnel
●In case of installing too close to Monitor,
variation of monitor brightness cause any
hunting of camera in low light mode.
1
1
Cautions for safe operation ------------------------------------- 1
About GC-715N/P24 ------------------------------------- 3
Name and function of each section ------------------------------------- 4
Installation ------------------------------------- 5
Adjustment and operation ------------------------------------- 8
Specifications ------------------------------------- 23
Accessory
●C mount adapter
●IRIS JACK for AUTO IRIS LENS
2
2
①
②③
④
⑤
⑥⑦ ⑧
68
51
①AUTO IRIS lens connector
②AUTO IRIS lens select switch
③Sync. select switch
④Video output connector
⑤Power input connector
⑥Power lamp
⑦DC IRIS level adjustment
(when using DC IRIS lens)
⑧V- PHASE adjustment
(when using LINE LOCK)

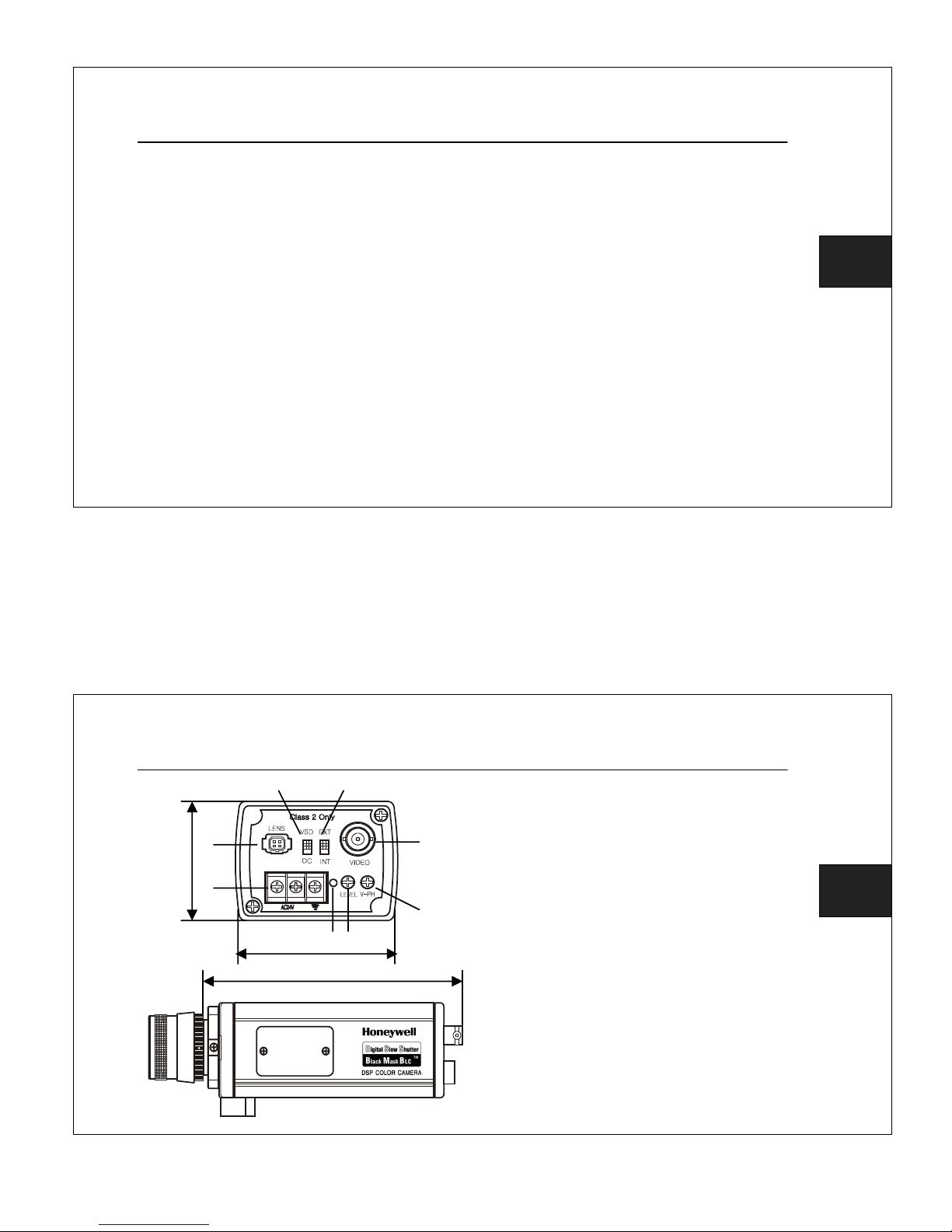

Name and function of each section
[unit : mm]
148
GC-715N/P24
Outlines
Honeywell’s GC-715N/P24 is a high sensitivity CCD color camera with high sensitivity
function of the field integration technique.
Features
☞1/3” IT Super HAD CCD ( NTSC: 410,000 / PAL: 470,000 )
☞Outstanding BLC implementation with Honeywell’s BMB(Black Mask BLC) function.
( 3 levels adjustable )
☞CS/C lens mount.
☞Excellent signal-to-noise ratio of more than 50dB.
☞High Sensitivity : Minimum illumination of 0.001lx ( F1.2, 30IRE, SENS On X 128 )
☞2-WAY Auto Iris : Video iris or DC iris lens can be used.
☞External synchronization with LINE LOCK.
☞Auto White Balance : Auto white balance realizes true color reproduction within various
light sources. ( 2,800 ºK~8,000 ºK )
☞Control : Flickerless, Back light compensation , AGC , Manual shutter control,
Maximum Sensitivity select, Auto white Balance/ Indoor/Outdoor/Fluorescent light/ BMB Level
3
3
4
4
Installation
Mounting a Lens
1. Remove the protective cap in front of the camera.
2. Confirm the mount ring whether it is for C or CS. * Caution1
3. Attach the lens to the lens mount ring.
4. If the lens has an Auto Iris mechanism, connect the iris cable to the Lens connector
(EE/VSD S/W must be set to VSD on the side of the camera)
A. In the case of having no iris amplifier : Set the slide switch to DC (Down side)
B. In the case of having iris amplifier : Set the slide switch VSD (Upper side)
C. Set the S/W on the side of the camera to DC or VSD, too.
☞If using lens that has iris amplifier, “LEVEL” and “ALC” volume of lens must be
adjust carefully. It may cause any hunting.
☞When connecting Auto iris lens, be sure to use the connector to be recommended
by manufacturer. (E4-191, Chuo Musen, Japan)
* Caution 1 : This appliance is set to CS mount default.
If you want to use C mount lens, fix a C adapter ring additionally packed
in the box.
5
5
When Auto-Iris Lens is used...
VSD LENS PIN CONFIGURATION
12
34
①③
④②
1. POWER(12V) 2. NO CONNECTION
3. VIDEO SIGNAL 4. GND
Set the select switch to VSD
DC IRIS LENS PIN CONFIGURATION
12
34
①
③
④②
1. CONTROL- 2. CONTROL+
3. DRIVE+ 4. DRIVE-
Set the select switch to DC
* For the best condition, read lens manual carefully .
* After connecting Auto iris-lens you may need to set flange back focus.
Connection of AC power supply
☞Must be checked the power source from the external power supply before power on.
☞Recommended power source capacity :
AC 24V, more than 500mA
6
6
Adjustment and operations
Fig 1. SIDE view Fig 2. REAR view
Configuration
The function of each part
1. Button “1” & “2”
In line lock mode, zero crossing point can be adjusted by pressing these buttons.
In MWB mode, manual white balance can be adjusted by pressing these buttons.
2. Button “3”
In One push lock mode, white balance can be aligned by pressing this button.
When this button is released, white balance is locked.
“10” “11”
8
8
LENS VSD
DC
LL
INT
AC24
LEVEL V-PH
VIDEO
“8” “9”
GND
“1” “2”
“3”
“4”
“5”“6”
“7”
UP DOWN
PUSH LOCK
4
5
6
012
3
7
8
90
4
5
6
01
2
3
7
8
90
Flange back focus adjustment
1. In case of fixed focus lens
a. Loosen the locking ring and set the focus ring of lens to infinity ( ∞).
b. Tune the mount ring to get a clear picture( distance from camera to object is
more than 23m) and fasten the locking ring.
2. In case of zoom lens
a. Loosen the locking ring and set the lens to the maximum telephoto position.
Then turn the focus ring to focus.
☞in the case of Auto iris lens, shoot a comparatively dark object or reduce
the ambient light so that the Iris is fully open.
b. Set the lens to its maximum wide angle position, and set the focus.
c. Repeat step a and b, until the difference between focusing position a and b
is smallest.
D. When the best focusing point is found, fasten the locking ring.
7
7
3. Connector “4”
Used for EEPROM data setting in factory.
4. DIP switch “5”
Shipment setting consists of “AGC High”, “AWC”, “SENS”.

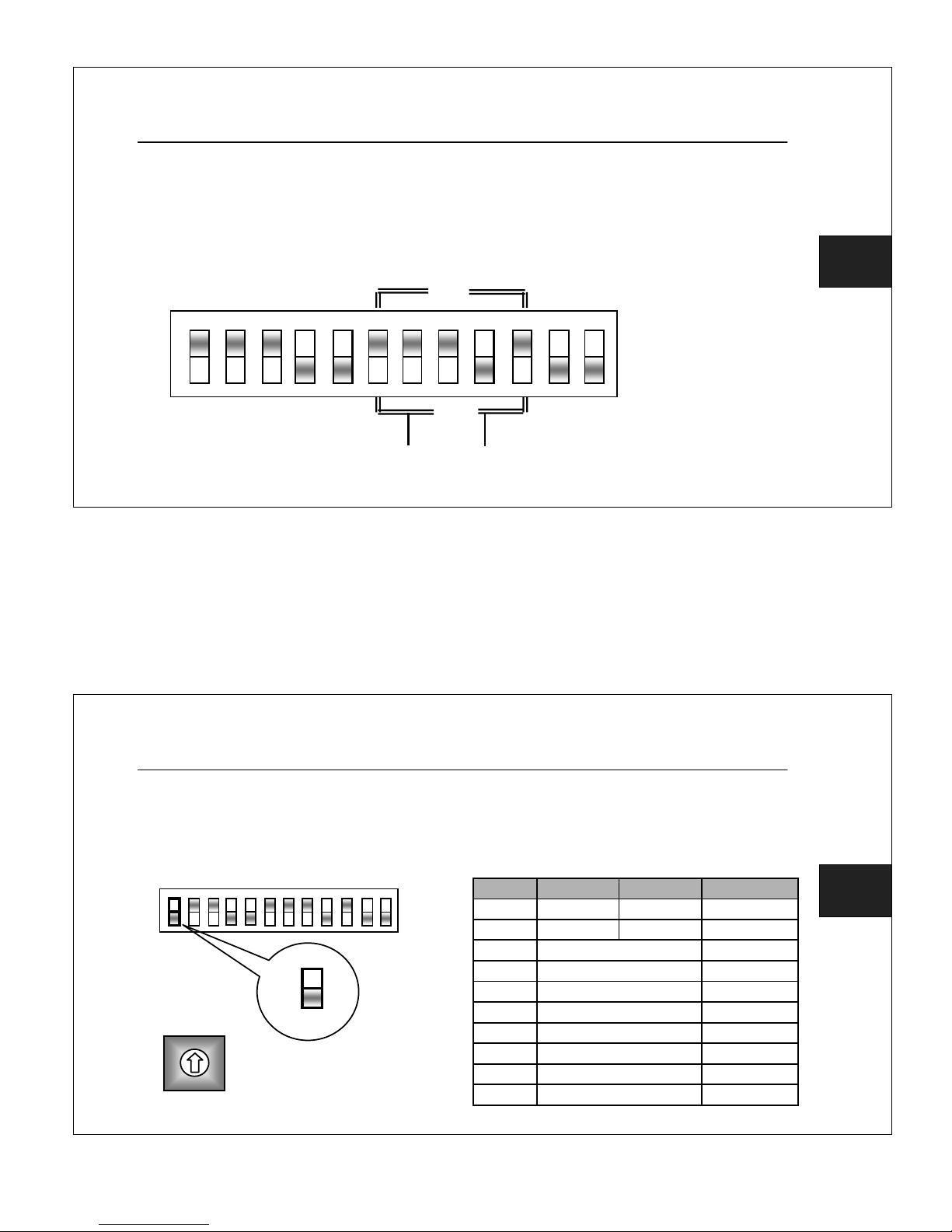

Fig 3. Button detail
①“EE/ME” Mode ( Electronic Exposure / Manual Exposure )
If using electronic exposure or a lens with automatic iris, the “EE/ME” switch
has to be set to “EE”. If using a manual lens, you can use the rotary switch
to adjust the shutter speed of the camera manually.
Mode Remark715N24 715P24
0default1/60 sec 1/50 sec
11/120 sec 1/100 sec
21/250 sec
3
4
5
6
7
1/500 sec
1/1,000 sec
1/2,000 sec
1/4,000 sec
1/5,000 sec
81/10,000 sec
91/100,000 sec
012
3
4
5
6
7
8
90
“6” switch
Fig 4. Shutter Speed
in ME mode
EE
ME
9
9
10
10
OFF
①②③④⑤⑥⑦⑧⑨⑩⑪⑫
WB1
WB2
WB3
BMB
FL
BLC
LEE EE DC
SENS
ME VSD VSD HH1 H0
BMB
L1 L0
ON
AUTO AGC
◆in case of using AUTO iris lens
-. Set “EE/VSD” switch on Side
to “VSD”.
-. Set “EE/VSD” switch on Rear
to “VSD”.
②“EE/VSD” Mode ( Lens type selection )
If using a manual lens,
the “EE/VSD” switch has to be set
to “EE”. If using a lens with automatic
iris, the “EE/VSD” switch has to be set
to “VSD”
③“DC/VSD(AUTO)” Mode ( Auto Iris Lens type selection )
Auto Iris Lens are DC Type or VSD Type.
DC
VSD
EE
VSD
◆in case of using DC iris lens.
-. “EE/VSD” switch on side to “VSD”,
“EE/VSD” switch on rear to “DC”.
-. Slowly turn “8” LEVEL on Rear until
the monitor picture appears to be not
too bright or too dark.
11
11
12
12
EE
VSD(Auto)
DC
EE
Auto
⑤“BMB/SENS” Mode
What is BMB?
-. BMB is the trade mark of Honeywell, that means BLACK MASK BLC. (BMB
BMBTM)
-. It is to improve the weak points of Electronic Iris & BLC.
-. Mask the excessive light by 3 making level and minimize the loss of outlines of Objects
due to strong light.
④“AGC” Mode ( Automatic Gain Control )
Select the AGC mode to high ( gain 32dB) or low ( gain 26dB ).
AGC
When this switch is to “high”, the
maximum AGC is set to 32 dB, and
sensitivity increases automatically when
illumination becomes dark . In AGC high
mode , the integration time of the memory
can be further decreased than AGC low
mode ( 26dB) , and moving object is
displayed more natural. But the noise of
video signal is further increased .
◆BMB(Black Mask BLC) Mode
It can be adjustable to 3 levels according to surrounding condition.
( Factory default : 3Level )
BLACKOO3
DARK GRAYXO2
GRAYOX1
XXOFF
RemarkH0H1LEVEL
< BMB level adjustment >
As higher BMB level, making level is darker.
and around the masked area become lighter.
L1 L0
13
13
14
14
L
H
BMB
SENS H1 H0
◆SENS( Sensitivity Up mode ) Mode
If the sensitivity ON mode is selected and in low light conditions, the camera
sensitivity is increased by getting picture from the memory.
Maximum sensitivity is selectable out of 9 steps . ( Refer to Fig5 )
Fig 5. Maximum sensitivity setting table
Mode RemarkSetting Fields/sec
0
X2 301
152
3
4
5
6
7
8
9Default
012
3
4
5
6
7
8
90
“7” FIELD switch
X4
X6
X8
X10
X16
X32
X64
X128
10
7.5
6
3.8
1.9
0.9
0.5
☞In the sensitivity ON mode , sensitivity is automatically controlled within maximum
sensitivity setting value.
☞It is impossible to use BMB and SENS functions simultaneously !!!
To use BMB or SENS, select “BMB/SENS” switch one of two,
To use neither BMB nor SENS, select “BMB” and level “H1,H0” to OFF.
or select “SENS” and set the Rotary switch “7” to “0”.
BMB
SENS
15
15
16
16
OFF 60
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Honeywell Caméra de sécurité
Honeywell
Honeywell HD61 Series Manuel utilisateur
Honeywell
Honeywell HB273H Manuel utilisateur
Honeywell
Honeywell HCX3W Manuel utilisateur
Honeywell
Honeywell HD3VC4SHR Manuel utilisateur
Honeywell
Honeywell HCS544 Manuel utilisateur
Honeywell
Honeywell HCC334L Manuel utilisateur
Honeywell
Honeywell HCC474M Manuel utilisateur
Honeywell
Honeywell HCD95534 Manuel utilisateur
Honeywell
Honeywell HD51PX Manuel utilisateur
Honeywell
Honeywell HD4DIR Manuel utilisateur
Honeywell
Honeywell HCCWD484 Manuel utilisateur
Honeywell
Honeywell HBD92SX Manuel utilisateur
Honeywell
Honeywell HWC-S363-RV Manuel utilisateur
Honeywell
Honeywell equIP H2S1P6X Manuel utilisateur
Honeywell
Honeywell HD45IP Manuel utilisateur
Honeywell
Honeywell HC60WB4R2 Manuel utilisateur
Honeywell
Honeywell HCC334L Manuel utilisateur
Honeywell
Honeywell HD55IP Manuel utilisateur
Honeywell
Honeywell H3W2GR1 Manuel utilisateur
Honeywell
Honeywell HD3CHS Manuel utilisateur
