Honeywell CK75LAN Manuel utilisateur

CK75

with Windows Embedded Handheld 6.5

Quick Start Guide

CK75-W65-EN-QS-01 Rev (a)

2/17

Preliminary Draft, Not for Release

Please Review 2/1/17

Out of Box

Make sure that your shipping box contains these items:

• CK75 mobile computer (Model CK75LAN)

• Rechargeable 3.7 V, Lithium-ion battery

• Product Documentation

If you ordered accessories for your mobile computer, verify that

they are also included with the order. Be sure to keep the original

packaging in case you need to return the mobile computer for

service.

Memory Card Specifications

Honeywell recommends the use of Single Level Cell (SLC)

industrial grade microSD™ memory cards with the computer for

maximum performance and durability. Contact a Honeywell

sales representative for additional information on qualified

memory card options.

Preliminary Draft, Not for Release

Please Review 2/1/17

Computer Features

Notification

LED

Scan Button

Microphone

Power Button

Battery Status

LED

Good Read LED

Speaker

Touch Panel

Preliminary Draft, Not for Release

Please Review 2/1/17

Volume

Buttons

Speaker Port

Battery

Camera

Imager

(LED/Laser Aperture)

Preliminary Draft, Not for Release

Please Review 2/1/17

Detach Hand Strap

Detach the hand strap to access to the back of the computer.

Preliminary Draft, Not for Release

Please Review 2/1/17

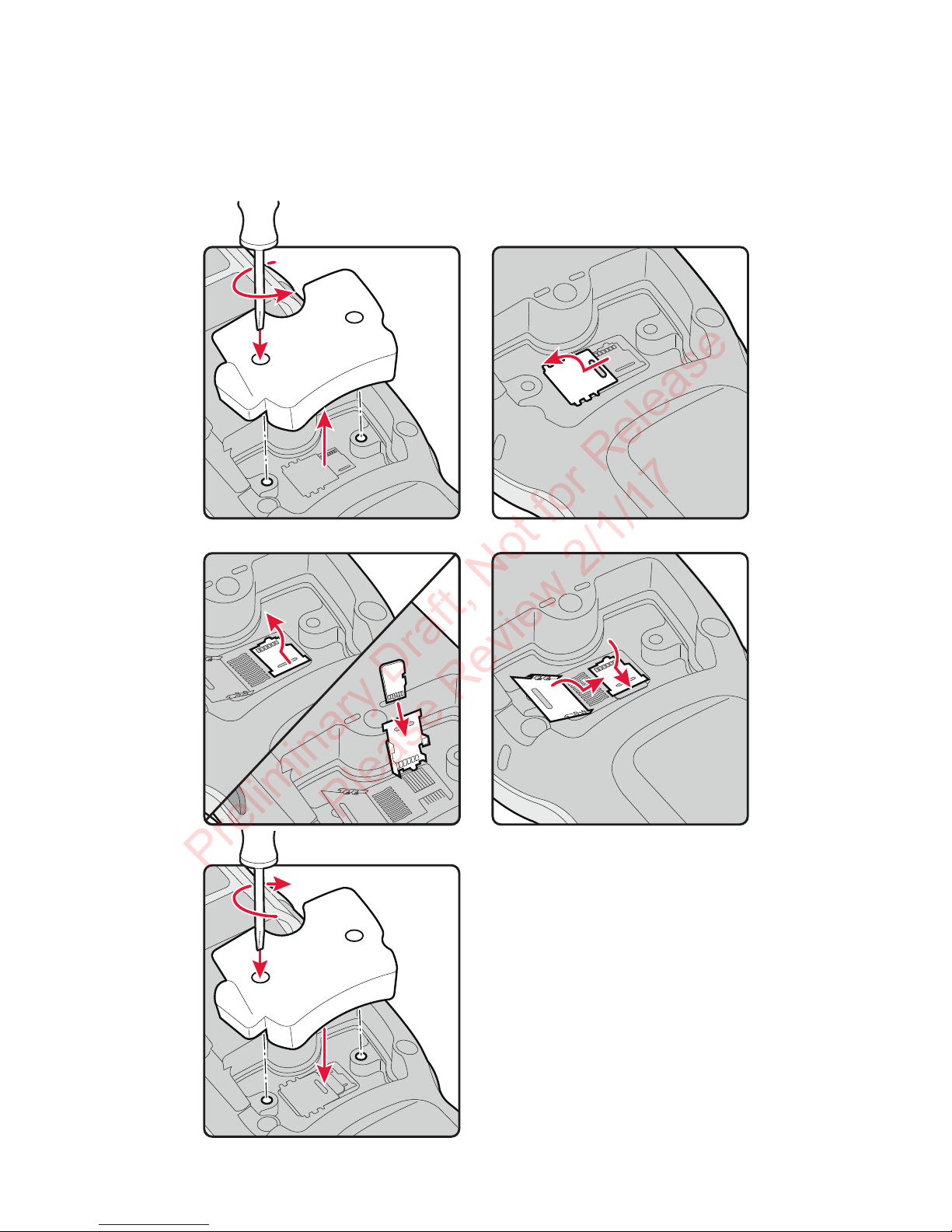

Install a microSD Card

Note: Format the microSD card before initial use.

1 2

3 4

Preliminary Draft, Not for Release

Please Review 2/1/17

Install the Battery

The CK75 mobile computer ships with a Lithium-ion 3.7 V, 5200

mAH (19.24 Wh) battery manufactured for Honeywell Interna-

tional Inc.

We recommend use of Honeywell Li-ion battery packs.

Use of any non-Honeywell battery may result in

damage not covered by the warranty.

Ensure all components are dry prior to placing the

battery in the terminal. Mating wet components may

cause damage not covered by the warranty.

Preliminary Draft, Not for Release

Please Review 2/1/17

Charge the Computer

The CK75 mobile computer ships with a partially charged

battery. Charge the battery with a 70 Series charging device for

a minimum of 6 hours.

Using the computer while charging the battery increases the

time required to reach a full charge. If the terminal is drawing

more current than supplied by the charging source, charging

will not take place. For additional information, see the user

guide.

CK75 mobile computers are designed for use with the

following charging accessories: DX1 Desktop Dock, DX2 Dual

Dock, and DX4 Quad Dock and a power supply.

We recommend the use of Honeywell peripherals,

power cables and power adapters. Use of any non-

Honeywell accessories or power adapters may cause

damage not covered by the warranty.

Ensure all components are dry prior to mating the

computers and batteries with peripheral devices.

Mating wet components may cause damage not

covered by the warranty.

Preliminary Draft, Not for Release

Please Review 2/1/17

Turn Power On

The computer automatically turns on when you install the

battery pack.

Suspend Mode (Sleep Mode)

Suspend mode automatically turns off all radios and internal

devices not involved in saving the system state to save battery

power when the computer is inactive for a programmed period

of time.

• Press and release the Power button to wake the computer.

To manually activate suspend mode:

1. Press and hold the Power button until the options menu

appears.

2. Touch Suspend.

Note: To adjust the time out limit, touch.Settings > System >

Power. Select the Advanced tab

Use Hibernate Mode for Battery Removal

You should always place the computer in hibernate mode before

removing the battery.

To activate hibernate mode:

1. Press and hold the Power button until the options menu

appears.

2. Touch Hibernate.

Preliminary Draft, Not for Release

Please Review 2/1/17

About the Home Screen

Title Bar

(Notification /

Status Bar)

Touch to access the Start menu.

Tile Bar

Search Bar

Preliminary Draft, Not for Release

Please Review 2/1/17
