Honeywell Voyager 9520 Manuel utilisateur

Voyager 9520/40
Eclipse 5145
Quick Start Guide
VG-ECL-QS Rev A
5/10
Aller à www.honeywellaidc.com pour le français.
Vai a www.honeywellaidc.com per l'italiano.
Gehe zu www.honeywellaidc.com für Deutsch.
Ir a www.honeywellaidc.com para español.
Para Português, acesse www.honeywellaidc.com.br.
Перейти на русскоязычный сайт www.honeywellaidc.com.
日本語 :  www.honeywellaidc.com をご覧ください。
如要到中国 www.honeywellaidc.com（简体）。
한글 www.honeywellaidc.com 로이동합니다 .

Getting Started

Turn off the computer’s power before connecting the scanner, then

power up the computer once the scanner is fully connected.

Connecting the Scanner

USB:

Serial

(RS232):

Keyboard

Wedge:

optional adapter cable

Reading Techniques

Recall Defaults

The following bar code resets all standard product default settings.

Interface Selections

USB

³999998

Recall Defaults

³999970

³316400

USB Keyboard

Emulation

Load Integrated Full

Speed USB IBM/OEM

Defaults

³316460

USB Serial Emulation

Keyboard Wedge

Keyboard Country

Scan a bar code to select one of the following keyboard country

templates. Refer to your Configuration Guide for additional keyboard

country settings.

³ 5155143

Keyboard Wedge Emulation

³416210

³416220

United Kingdom

³416230

Germany/Austria

France

³416260

United States

³416200

Belgium

³416250

Spain

³416240

Italy

ALT Mode

If your bar code contains special characters from the extended ASCII

chart, for example, an e with an accent grave (è), scan the ALT Mode

On bar code. The data is then output with the special character(s).

Note: Scan ALT mode after scanning the appropriate Keyboard

Country code.

RS232 Communication Commands

³116217

ALT Mode On

³115816

RTS/CTS

Handshaking On

³115914

XON/XOFF On

³115913

ACK/NAK On

³116013

8 Data Bits

³116014

1 Stop Bit

³316045

No Parity

Prefix

Scan one of the following bar codes to program your scanner to add

or remove a start of text character, or AIM, NCR, or Nixdorf

identification characters before each bar code.

³116615

³116605

³107905

³107901

STX Prefix On

STX Prefix Off

³107915

AIM ID Prefix On

AIM ID Prefix Off

³107911

NCR Prefix On

NCR Prefix Off

³107907

³107917

Nixdorf Prefix On

Nixdorf Prefix Off

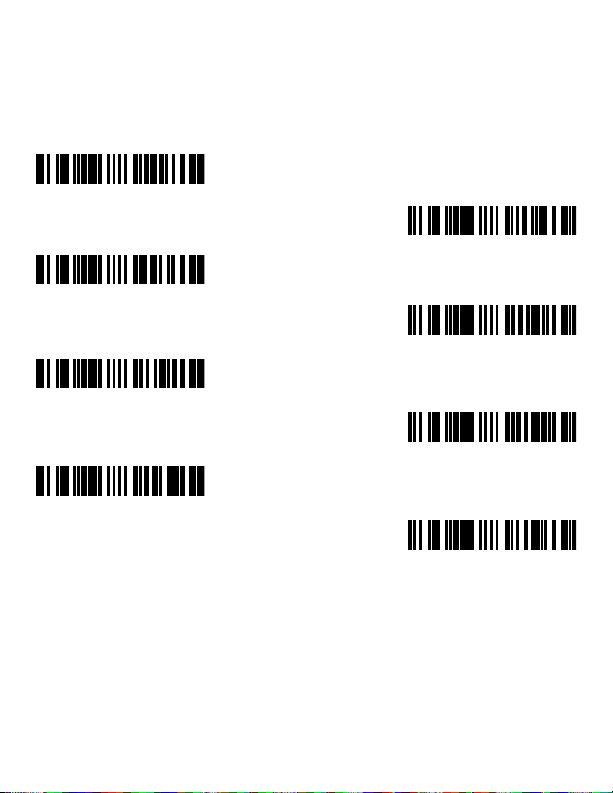

Suffix

Scan one of the following bar codes to program your scanner to add

or remove a carriage return, line feed, tab, or end of text after each

bar code.

³116613

³116603

³116604

CR Suffix On

CR Suffix Off

³116612

LF Suffix On

³116602

LF Suffix Off

³116610

Tab Suffix On

³116600

Tab Suffix Off

³116614

ETX Suffix On

ETX Suffix Off

User Configurable Prefix/Suffix

One or two prefix or suffix characters can be added and assigned for

data transmission. Use one of the codes below with a 3 code byte

sequence that represents the desired character (see ASCII

Conversion Chart, end of document) for your prefix or suffix. (To add

additional prefix/suffix characters, refer to your Single-Line

Configuration Guide.)

Scan the Enter/Exit Programming bar code to begin. Then scan

the 3 digit decimal equivalent of the ASCII character into the

appropriate character location with the code byte bar codes (see

Code Bytes, end of document). To save, scan the Enter/Exit

Programming bar code again.

Example: To add an asterisk (*) as a prefix, scan the bar codes:

1. Enter/Exit Programming

2. Configurable Prefix #1

3. Code Byte 0

4. Code Byte 4

5. Code Byte 2

6. Enter/Exit Programming

³904500

Configurable Suffix #1

³904600

Configurable Suffix #2

³903500

Configurable Prefix #1

³903600

Configurable Prefix #2

³999999

Enter/Exit Programming

Supplements

Scan one of the bar codes below to program your scanner for 2 or 5

digit bar code supplements.

977 (2 Digit) Supplement Required: Turn on this feature when a 2

digit supplement is required for EAN-13 codes that begin with 977.

³101217

2 Digit Supplements

³101207

2 Digit Supplements Off

³101216

5 Digit Supplements

³101206

5 Digit Supplements Off

³101314

977 Supplements On

³101304

977 Supplements Off

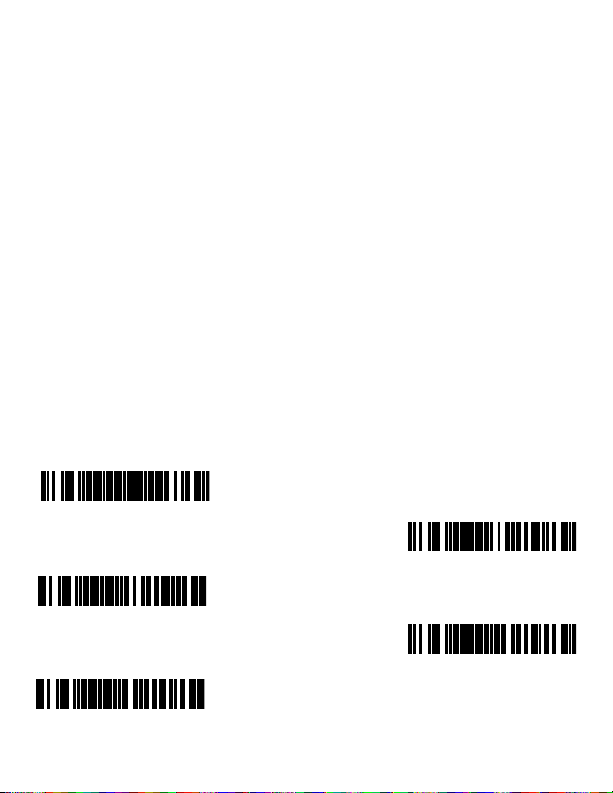

UPC/EAN Formatting

Scan Convert UPC-A to EAN-13 and a leading zero is transmitted

before a UPC-A bar code to convert it to EAN-13.

Scan Transmit Lead Zero on UPC-E to transmit a zero before each

UPC-E bar code.

Scan Transmit UPC-A Number System to transmit the UPC-A

leading digit with the bar code data. To transmit just the data, without

the leading digit, scan Don’t Transmit UPC-A Number System.

³107514

Convert UPC-A to

EAN-13

³107504

Don’t Convert UPC-A to

EAN-13

³107513

Transmit Lead Zero on

UPC-E

³107503

Don’t Transmit Lead

Zero on UPC-E

³107511

³107501

Don’t Transmit UPC-A

Number System

Transmit UPC-A

Number System
