HomeWorks®QS MDU Processor
Specifications
Model Numbers HQP6-MDU
Power Processor (P): 24 V-250 mA
Links (L1 / L2): 24 V-2 A per link
Typical Power
Consumption
5 W; 8 Power Draw Units (PDUs)
Test conditions: Two Ethernet links connected, both device links in use
Regulatory Approvals UL, cUL, CE, CTICK
Environment Indoor use only. 32°F to 104°F (0°C to 40°C), 0%to90%humidity,
non-condensing
Heat Generated 17 BTU/hr — typical
(24 BTU/hr with 2 links at 2 A each output)
Cooling Method Passive Cooling
Power Failure Memory System data stored in non-volatile memory. Timeclock retention for 10years
Internal Timeclock ±1 minute per year
Miswire Protection All terminal block inputs are over-voltage and miswire protected against wire
reversals and shorts.
Low-Voltage Link
Wire Type
Two pair — one pair 18 AWG (0.75mm2), one pair 18 to 22 AWG
(0.34 to 0.75mm2)twisted shielded — IEC PELV / NEC®Class 2 cable
Low-Voltage Power
Wire Type
18 AWG (0.75mm2)
Communications Ethernet, RS485 (QS, RF, Power Panel)

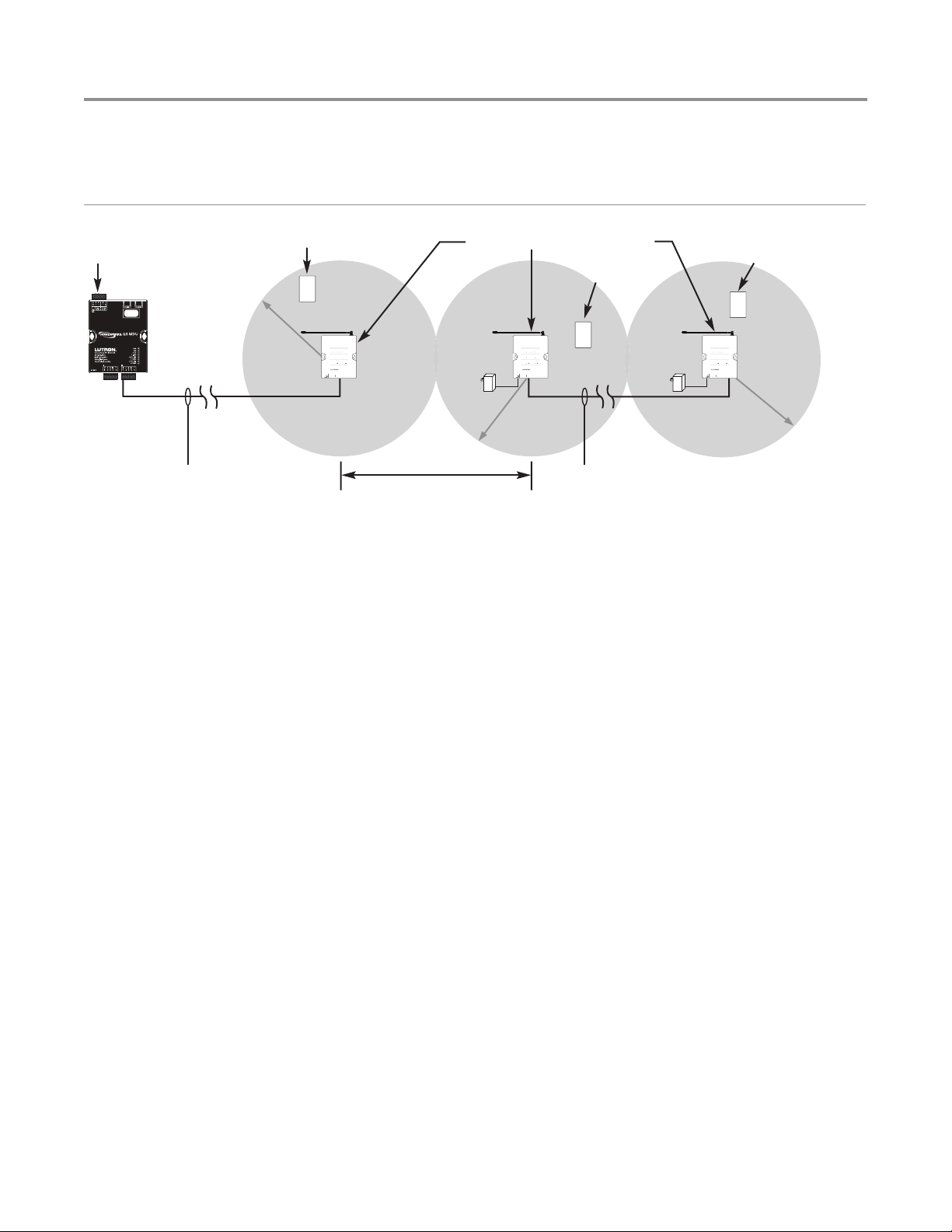

Link Capacities Total link capacity between the HomeWorks®QS Wired Device Link and the
HomeWorks®QS RF Link cannot exceed 50 devices / 50 zones.
ESD Protection Meets or exceeds the IEC 61000-4-2 standard
Surge Protection Meets or exceeds ANSI/IEEE C62.41 standard
Mounting Mounts in HQ-LV21, L-LV14, or L-LV21
Dimensions With terminal blocks (as shown): 4.27 in (108 mm) x 6.0 in (152 mm)
Without terminal blocks: 4.27 in (108 mm) x 5.26 in (134 mm)
Connections Two 5-pin removable terminal blocks* for Links 1 and 2.
One 5-pin removable terminal block* for Power Input.
Two RJ 45 standard Ethernet connections.
* Each terminal will accept up to two 18 AWG (0.75mm2) wires.
Warranty http://www.lutron.com/TechnicalDocumentLibrary/HomeWorks_Warranty.pdf
http://www.lutron.com/TechnicalDocumentLibrary/ HomeWorks_Intl_Warranty.pdf
