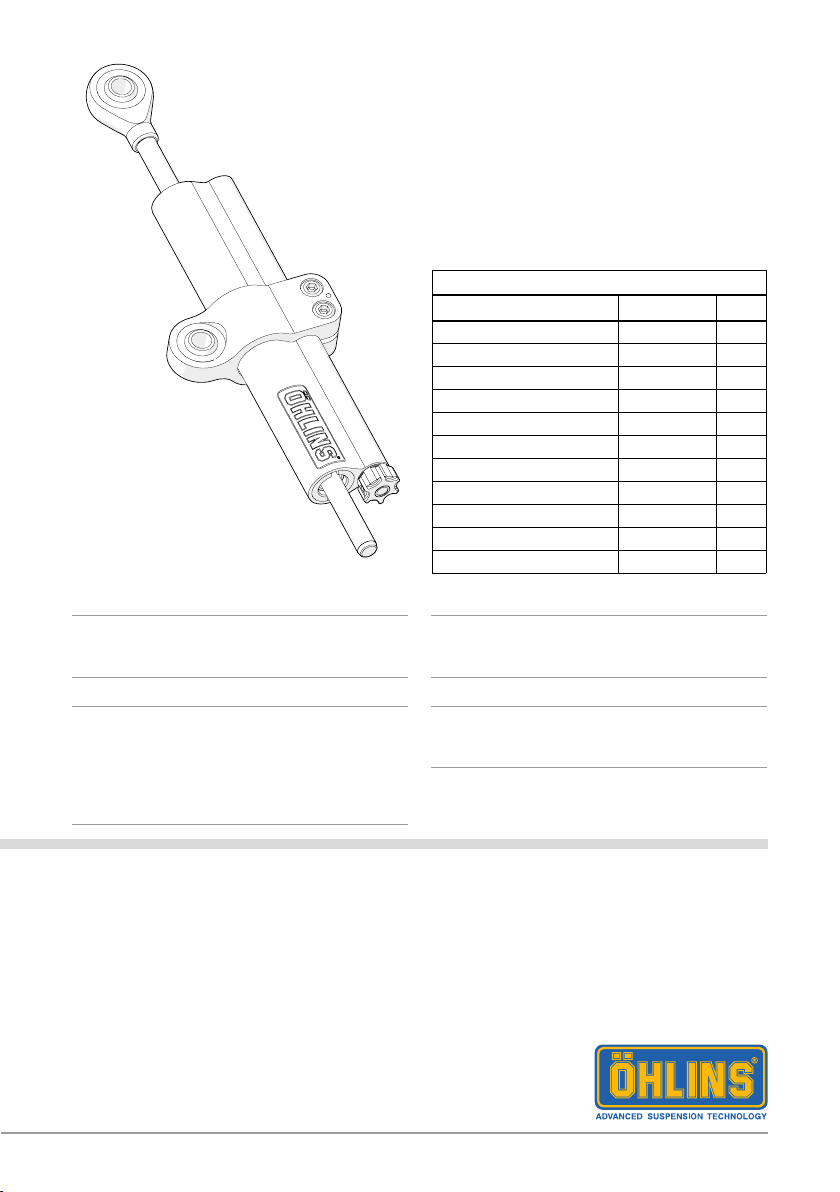

Steering damper for BMW S1000RR

SD 064

Mounting Instructions

Note!1

Please note that there can be small differences

between your product and the images in

these instructions.

Note!1

Please note that during storage and transport,

especially at high ambient temperature, some

of the oil and grease used for assembly may

leak and stain the packaging. This will not cause

damage to the product, wipe off the excessive

oil or grease with a cloth.

Note!1

Before you install this product, check the kit

contents. If anything is missing, please contact

an Öhlins dealer.

Warning!⚠

Before you install this product, read the Öhlins

Owner’s manual. This product is an important

part of the vehicle and the vehicle stability.

Kit Contents

Description Part No Pcs

Steering damper strl 63 02262-10 1

Washer 8.4/24/2 00426-03 1

Sleeve 02238-18 1

Spacer PA 02259-01 1

Screw M8x60 01046-53 1

Bracket assy 02205-11 02230-09 1

Sleeve 02238-10 1

Sleeve 02238-16 1

Screw M8x35 05404-05 1

Owner´s Manual 07261-02 1

Sticker “ÖHLINS” 10207-01 1

Remove the plastic cover below original

steering damper.

Remove the original steering damper.

Mount the Öhlins steering damper to Bracket

assembly (02230-09). Mount according to

gure.

Mount the Öhlins steering damper to the frame.

Use Sleeve 02238-18

Spacer PA 02259-01

Screw M8x60 01046-53

Sleeve 02238-10

Fasten the end eye to the triple clamp, from

below.

Use Screw M8x35 05404-05

Washer 8.4/24/2 00426-03

Sleeve 02238-16

MOUNTING INSTRUCTIONS

Warning!⚠

We strongly recommend to let an Öhlins dealer

install this product.

Warning!⚠

If you work with a lifted vehicle, make sure that it

is safely supported to prevent it from tipping over.

Note!1

When you work with this product, see the

vehicle service manual for vehicle specic

procedures and important data.

Note!1

Before you install this product clean the vehicle.

Loosen the screws to Bracket assembly

(02230-09) in step 4. Adjust the steering

damper by letting it slide in its bracket

assembly so that the steering damper uses

similar stroke both ways.

Note!1

Make sure that the steering has clearance

for turning both to the left and to the right end

positions, and that the damper is not used as a

stop.

Mount the plastic cover back.

Caution!✋

Make sure that you tighten all screws to the

correct torque and that nothing fouls or restricts

movement of the shock absorber/front fork/

steering damper when the suspension is fully

compressed or extended.

- right side

Front fork leg

- left side

Front fork leg

Front of the

vehicle

Frame

MOUNTING INSTRUCTIONS

Sleeve

02238-18

Screw 01046-53

Screw 05404-05

Sleeve 02238-16

Triple clamp

Spacer PA

02259-01

Washer 00426-03

Sleeve 02238-10

Tightening

torque 6Nm

Tightening

torque

according to

vehicle manual

Öhlins Racing AB

Box 722

S-194 27 Upplands Väsby, Sweden

Phone +46 8 590 025 00

fax +46 8 590 025 80

reserved. Any reprinting or

unauthorized use without the written

permission of Öhlins Racing AB

is prohibited.

Öhlins products are subject to

continuous improvement and

development, therefore, although

these instructions include the most

up-to-date information available at

the time of printing, minor updates

may occur.

To nd the latest information

contact an Öhlins distributor.

Please contact Öhlins if you have

any questions regarding the

contents in this document.

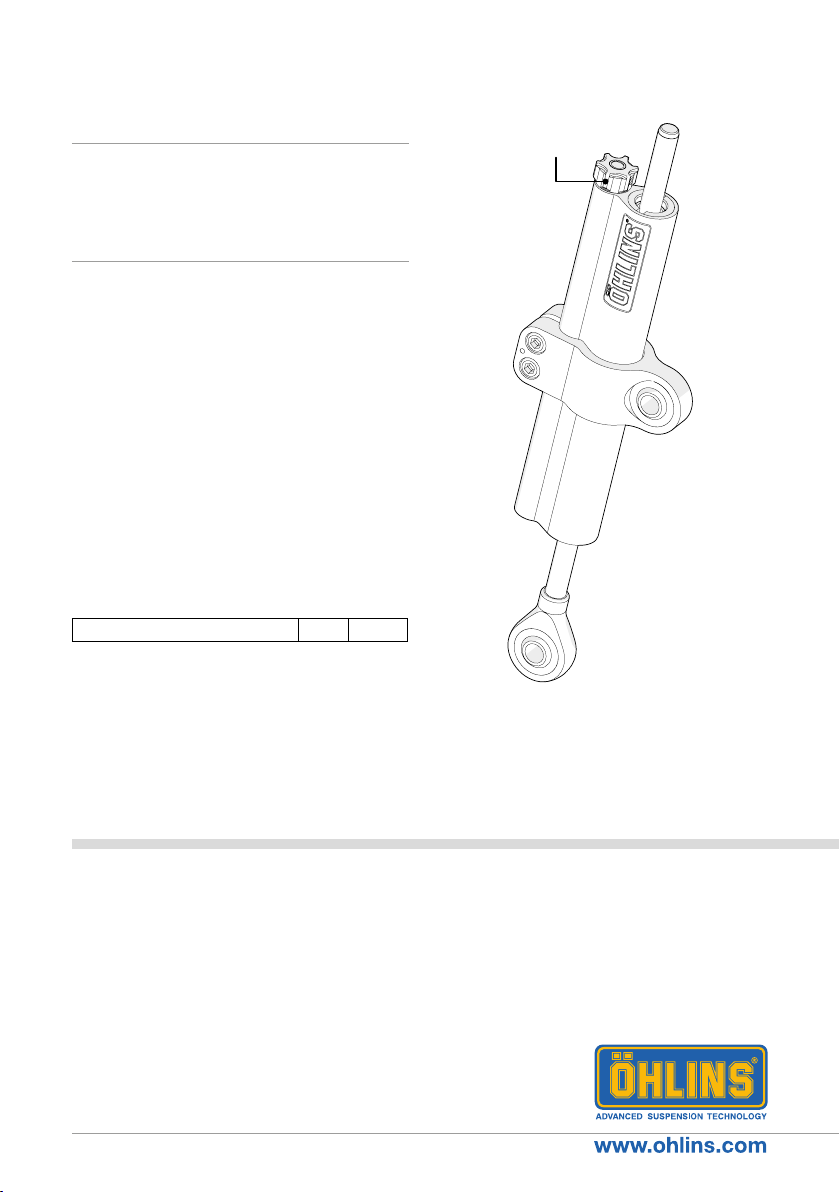

SETUP DATA

Adjuster

knob

Warning!⚠

Before you ride/drive, always make sure that the

setup is according to the recommended setup

data. Read about adjustments and setting up

in the Öhlins Owner’s Manual before you make

any adjustments. Contact an Öhlins dealer if you

have any questions about setting up.

ADJUSTMENTS

Part no. MI_SD064_0

Issued 2019-04-11

Recommended set-up 10 clicks
