Ohlins YA 559 Manuel utilisateur

Shock Absorber for YAMAHA Mslaz

YA 559

Mounting Instructions

Note!

Please note that this image is a general representation

of the product and may differ slightly from your product.

Note!

Please note that during storage and transportation,

especially at high ambient temperature, some of the oil

and grease used for assembling may leak and stain the

packaging. This is in no way detrimental to the product,

wipe off the excessive oil/grease with a cloth.

Note!

Before installing this product, check the contents of the

kit. If anything is missing, please contact an Öhlins dealer

Warning!

Before installing this product, read the Öhlins Owner’s

Manual. The shock absorber is an important part of your

vehicle and will affect the stability.

Kit Contents

Description Part No Pcs

Shock absorber YA 559 1

Bracket, reservoir 60006-12 1

Clamp bracket 03102-15 1

Screw M6x12 01046-36 2

Screw M6x14 00382-16 1

Screw M8x20 00432-02 2

C-spanner 60710-01 2

Sticker Öhlins 01185-01 2

Sticker Öhlins 01185-04 2

Sticker Öhlins 00192-01 2

Owner's Manual 07241-02 1

Note!

Before installing this product, check the contents of

the kit. If anything is missing, please check an Öhlins

dealer.

MOUNTING INSTRUCTIONS

Put the motorcycle on a work stand so that the

rear wheel barely touch the ground.

Remove the rear seat by using the ignition key.

Make sure that the motorbike is in a stable

position.

Warning!

It is advisable to have an Öhlins dealer install the shock

absorber.

Warning!

If working on a raised vehicle, ensure it is securely

supported so that it will not tip over.

Note!

Before mounting this product clean the vehicle

thoroughly.

Note!

When working on this product, always see the Vehicle

Service Manual for vehicle specic procedures and

important data.

Note!

Lower the vehicle so that the suspension is slightly

compressed before tightening the screws.

Caution!

Ensure that all screws are tightened to the correct

torque and that nothing fouls or restricts movement

of the shock absorber when the suspension is fully

compressed or extended.

MOUNTING INSTRUCTIONS

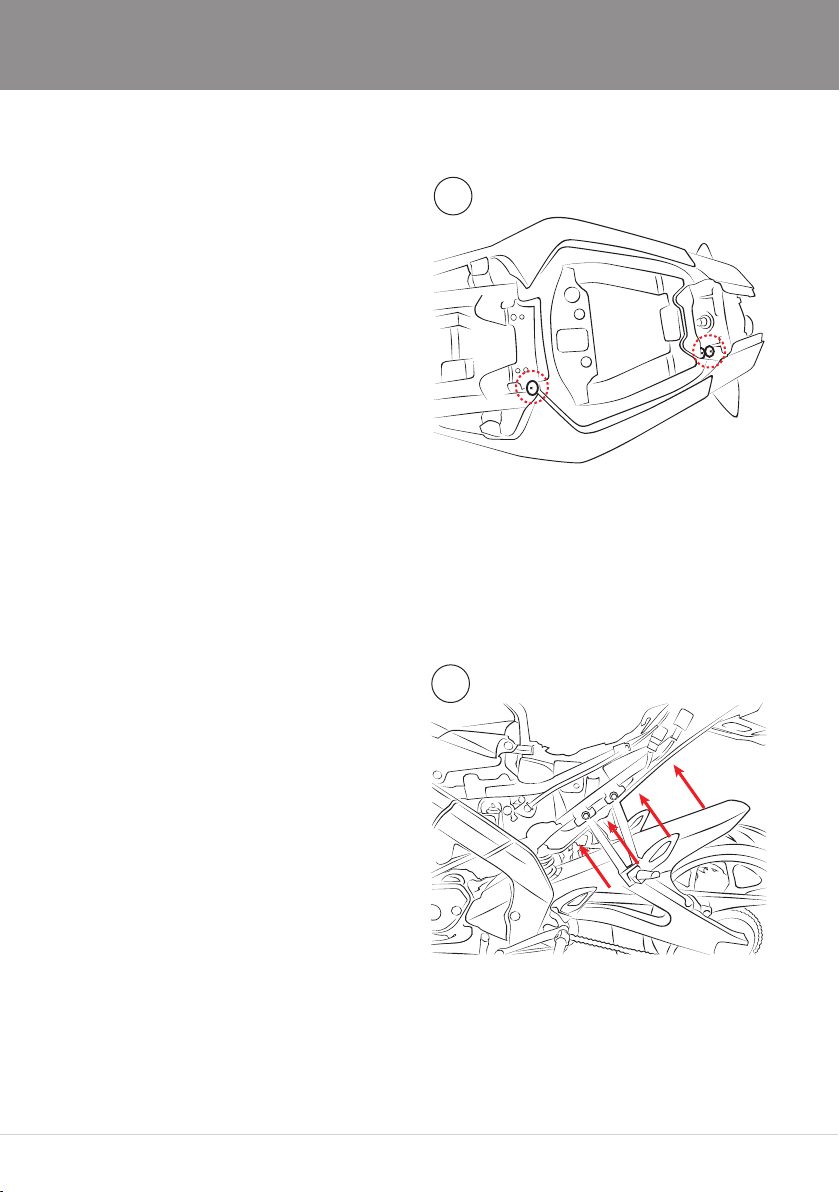

Remove the 2 screws (1,2) and slide backward

the rear cowling. Take off the center seat by

removing the 2 screws (3,4).

Take off the LH lateral fearing by removing 2

screws.

MOUNTING INSTRUCTIONS

Take off the LH lateral fearing by removing 2

screws.

MOUNTING INSTRUCTIONS

Take off the LH lateral fearing by removing 2

screws on the top and 4 screws on the bottom.

MOUNTING INSTRUCTIONS

Take off the footpeg by removing 2 screws.

Take off the linkage by removing 1 screw (1).

Remove the shock absorber by removing the

upper and lower bolt (2,3).

MOUNTING INSTRUCTIONS

Install the steel plate bracket between the

footpeg and the frame by the 2 screws 00432-

02. Tighten as specied in the vehicle service

manual.

Install the Öhlins shock absorber by tightening

the lower and upper mounting screw at a

torque value as specied in the vehicle service

manual.

Fix the clamp bracket to the steel plate bracket

by the 2 screws 01046-36.

Slide the reservoir into the clamp bracket, then

tighten it.

Reverse all procedures.

Öhlins products are subject to

continuous improvement and

development, therefore, although

these instructions include the most

up-to-date information available at

the time of printing, minor updates

may occur.

To nd the latest information

contact an Öhlins distributor.

Please contact Öhlins if you have

any questions regarding the

contents in this document.

SET-UP DATA

Warning!

Before riding, always make sure that the basic settings

made by Öhlins are according to recommended

Set-up Data. Read about adjustments and setting up

in the Öhlins Owner’s Manual before you make any

adjustments. Contact an Öhlins dealer if you have any

questions about setting up.

ADJUSTMENTS

Part no. MI_YA559_EN_1

Issued 2016-04-26

Recommended set-up

Spring Preload...................... 9 mm

Compression adjuster.......... 12 Clicks

Spring

Part No ................................ 60281-11

Free spring length................ 165 mm

Spring rate........................... 100 N/mm

Preload adjustment range.... 0mm-14mm

Shock absorber data

Length ......................................... 264 mm

Stroke ......................................... 52 mm

Spring Preload

Adjuster

Öhlins Racing AB

Box 722

SE-194 27 Upplands Väsby,

Sweden Phone +46 8 590 025 00

fax +46 8 590 025 80

reserved. Any reprinting or

unauthorized use without the

written permission of Öhlins

Racing AB

Compression

adjuster
