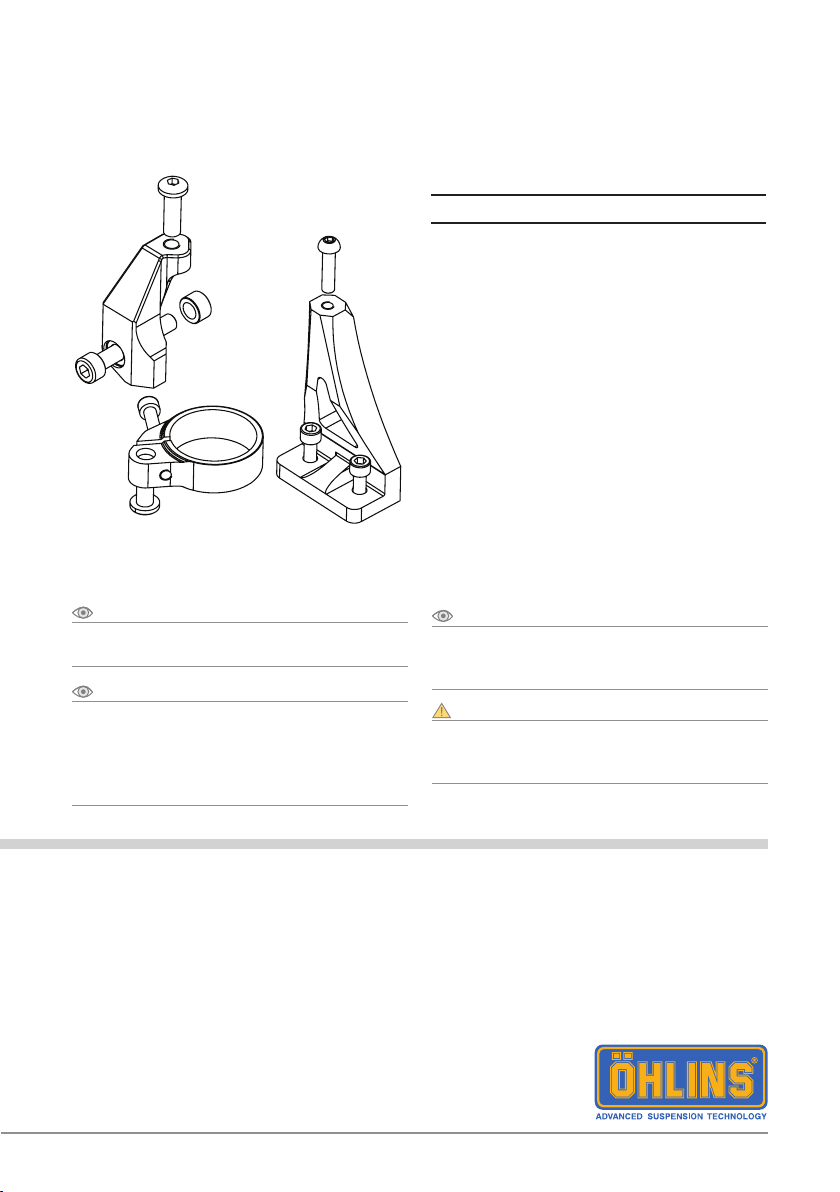

Steering damper brackets kit for Yamaha R25/R3

- To be used with SD 000 -

SD 053

Mounting Instructions

Note!

Please note that this image is a general representation

of the product and may differ slightly from your product.

Note!

Please note that during storage and transportation,

especially at high ambient temperature, some of the oil

and grease used for assembling may leak and stain the

packaging. This is in no way detrimental to the product,

wipe off the excessive oil/grease with a cloth.

Warning!

Before installing this product, read the Öhlins Owner’s

Manual. This product is an important part of your vehicle

and will affect the stability.

Kit Contents

Description Part No Pcs

Bracket-frame 02272-25 1

Bracket-triple clamp 02270-38 1

Clamp-fork leg 02235-20 1

Sleeve 6/14/15 02239-01 1

Sleeve 8.5/13.5-14 61123-10 1

Spacer 18/13.3/1.5 02259-01 1

Washer 6.4/18/1.6 00426-04 1

Screw M6x25 05404-06 1

Screw M8x25 05404-14 2

Screw M6x20 01046-16 2

Screw M6x25 01046-17 1

Screw M8x50 01046-25 1

Note!

Before installing this product, check the contents of

the kit. If anything is missing, please check an Öhlins

dealer.

MOUNTING INSTRUCTIONS

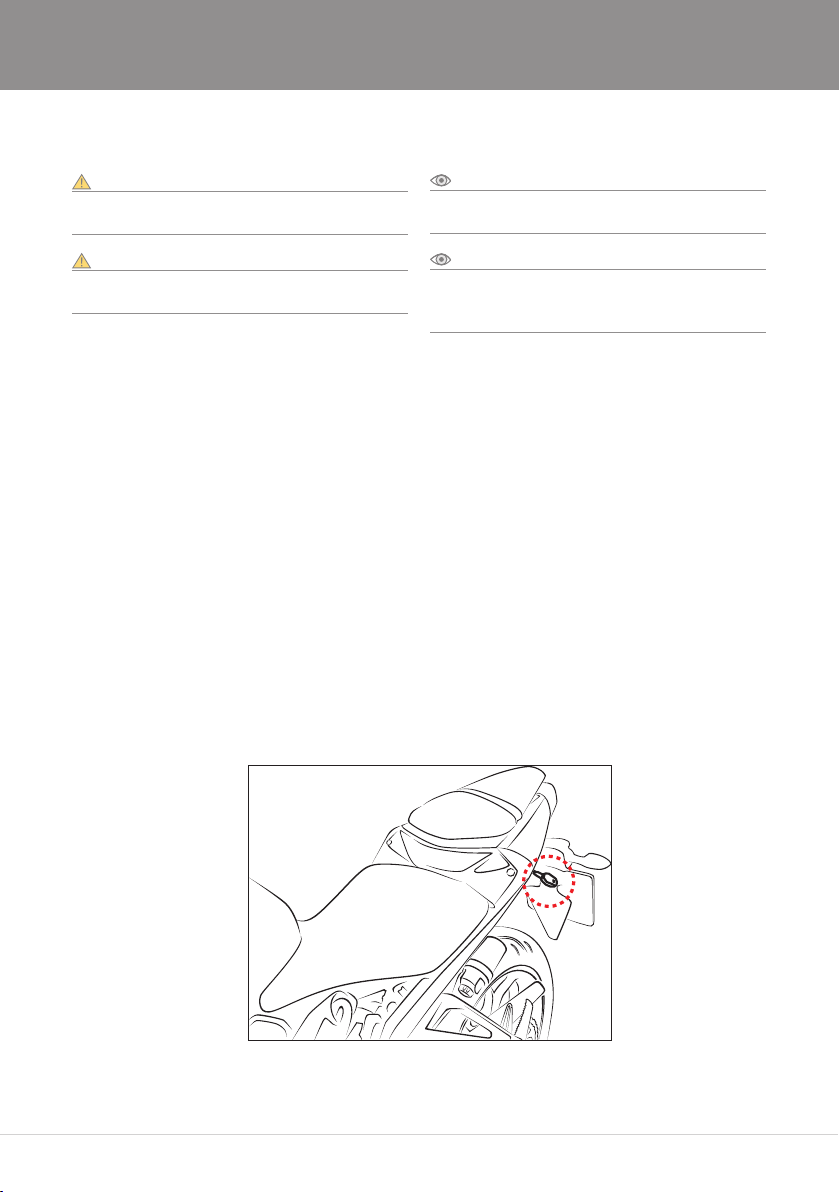

Use the ignition key to unlock the passenger

seat.

Put the motorcycle on a work stand so that the

front wheel barely touches the ground.

Warning!

It is advisable to have an Öhlins dealer install this

product.

Warning!

If working on a raised vehicle, ensure it is securely

supported so that it will not tip over.

Note!

Before mounting this product clean the vehicle

thoroughly.

Note!

When working on this product, always see the Vehicle

Service Manual for vehicle specic procedures and

important data.

MOUNTING INSTRUCTIONS

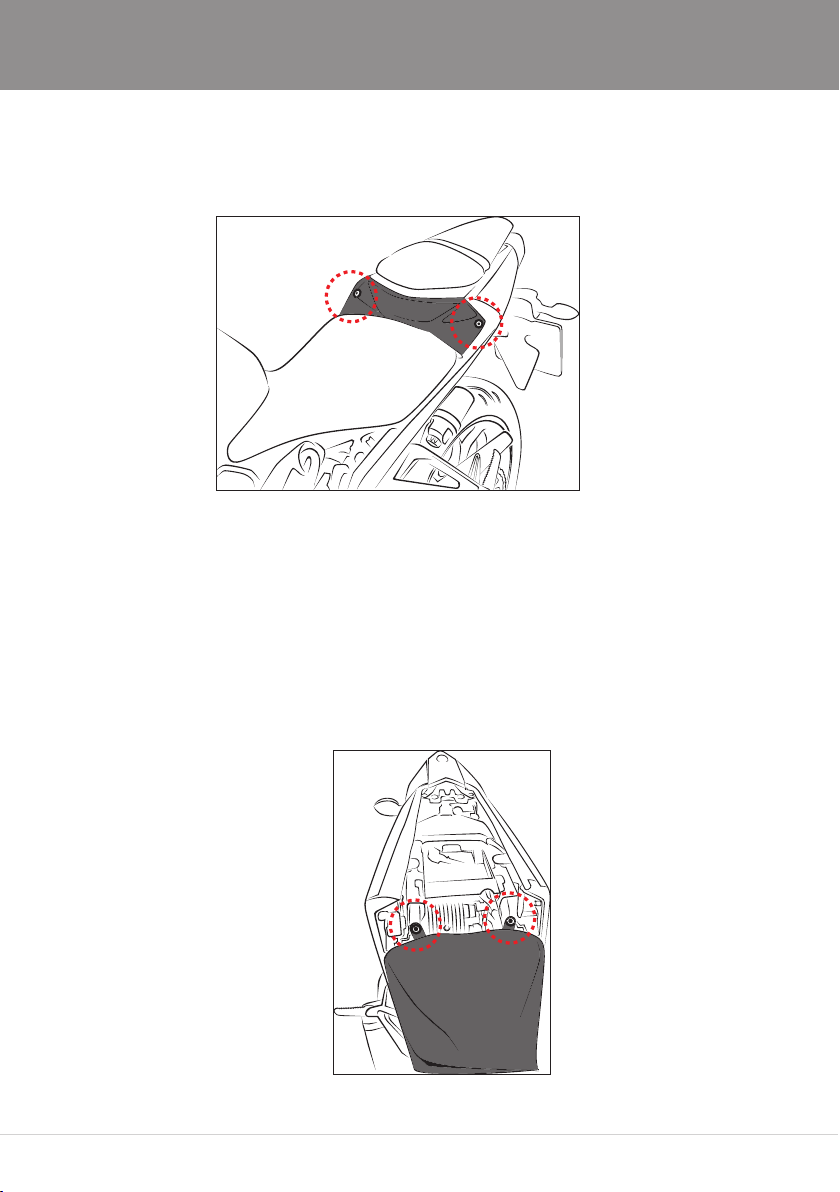

Remove the fairing by removing the 2 screws.

Remove the front seat, by removing the 2 screws.

MOUNTING INSTRUCTIONS

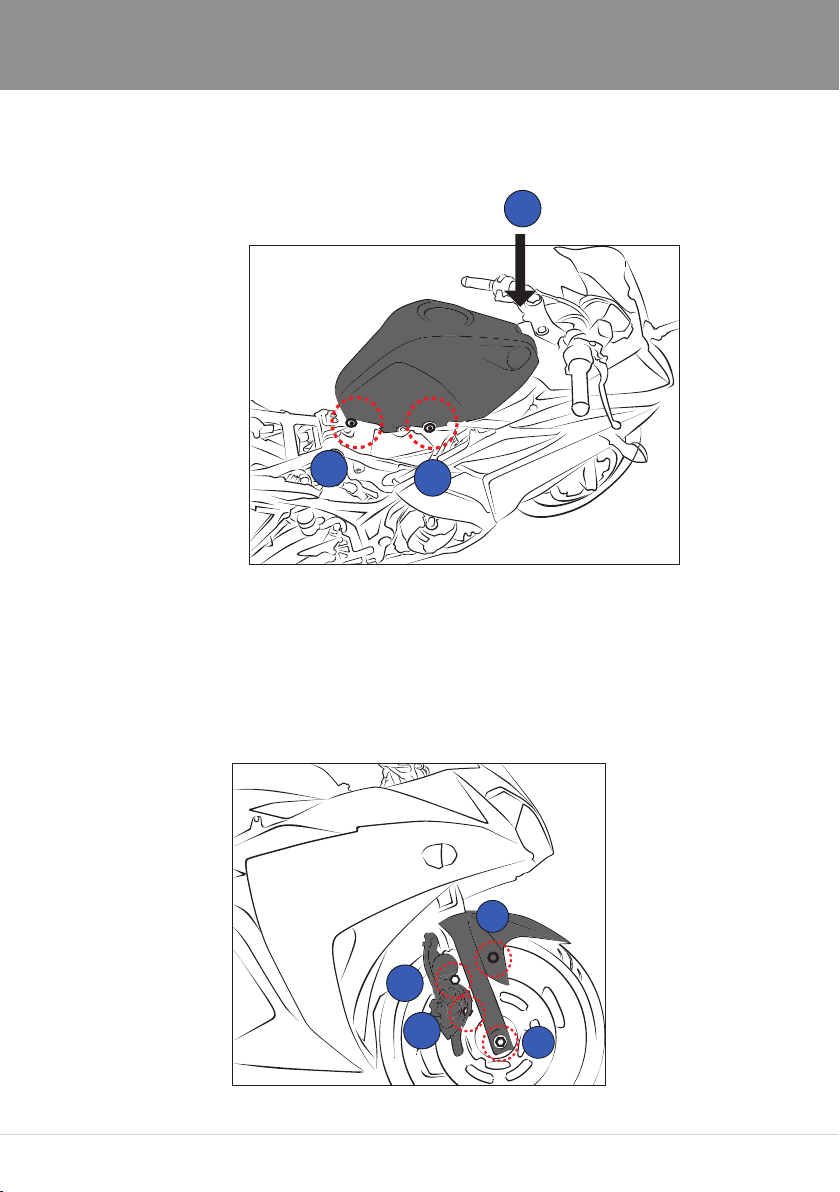

Remove the fuel tank cover, by removing the 5

screws 1, 2 (including another side) and 3, which

is in front of the fuel tank.

Remove the screws 1,2,3,4 (wheel axle ) in order

to remove the wheel, caliper and the front mud

guard.

MOUNTING INSTRUCTIONS

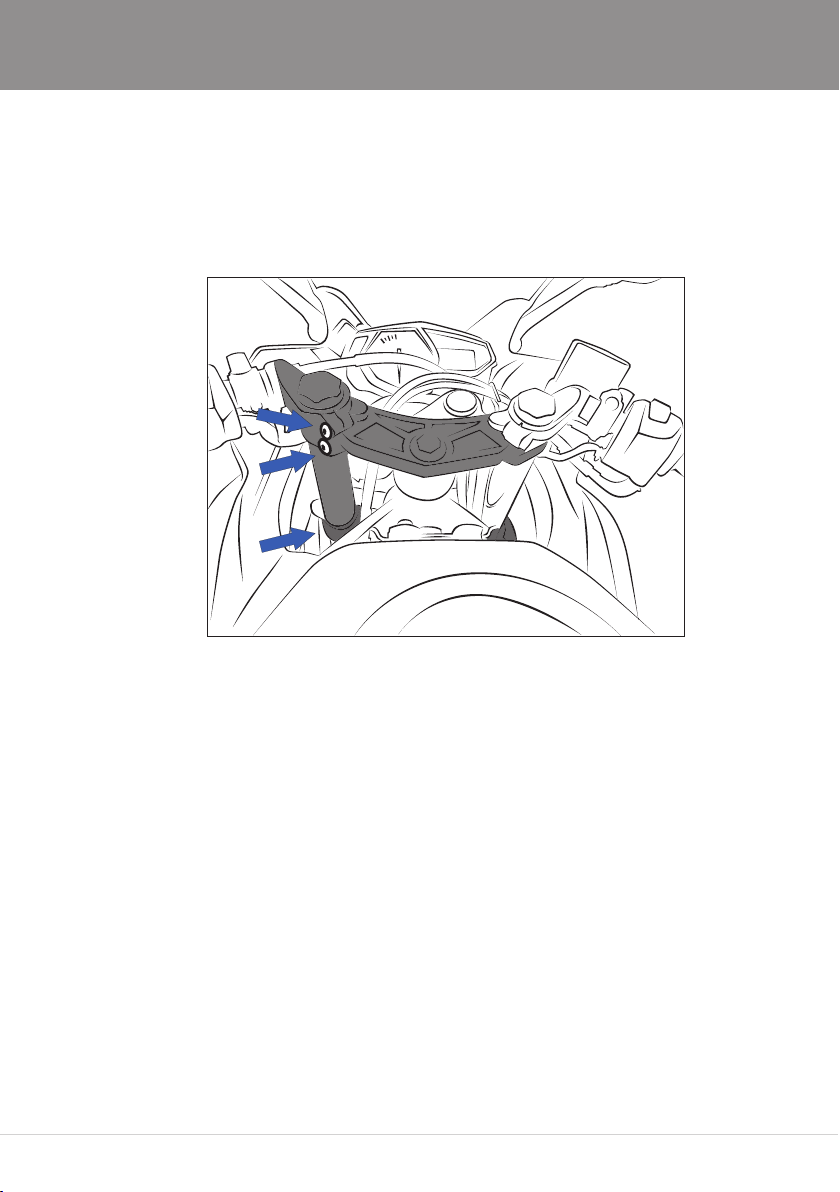

Loosen the handlebar and triple clamp screws

in order to slide down the left fork leg.

MOUNTING INSTRUCTIONS

Adjust the steering damper by letting it slide

in its bracket assembly so that the steering

damper uses similar stroke both ways.

Set the damper to the recommended set-up.

See set-up data for adjusting on the next

page.

Ret all the parts in reverse order.

Install the clamp fork leg(02235-20) (don’t

tighten yet) to the left-front fork, then lift the

left-front fork to the initial position.Tighten

the bottom triple clamp at torque value as

specied on service manual.

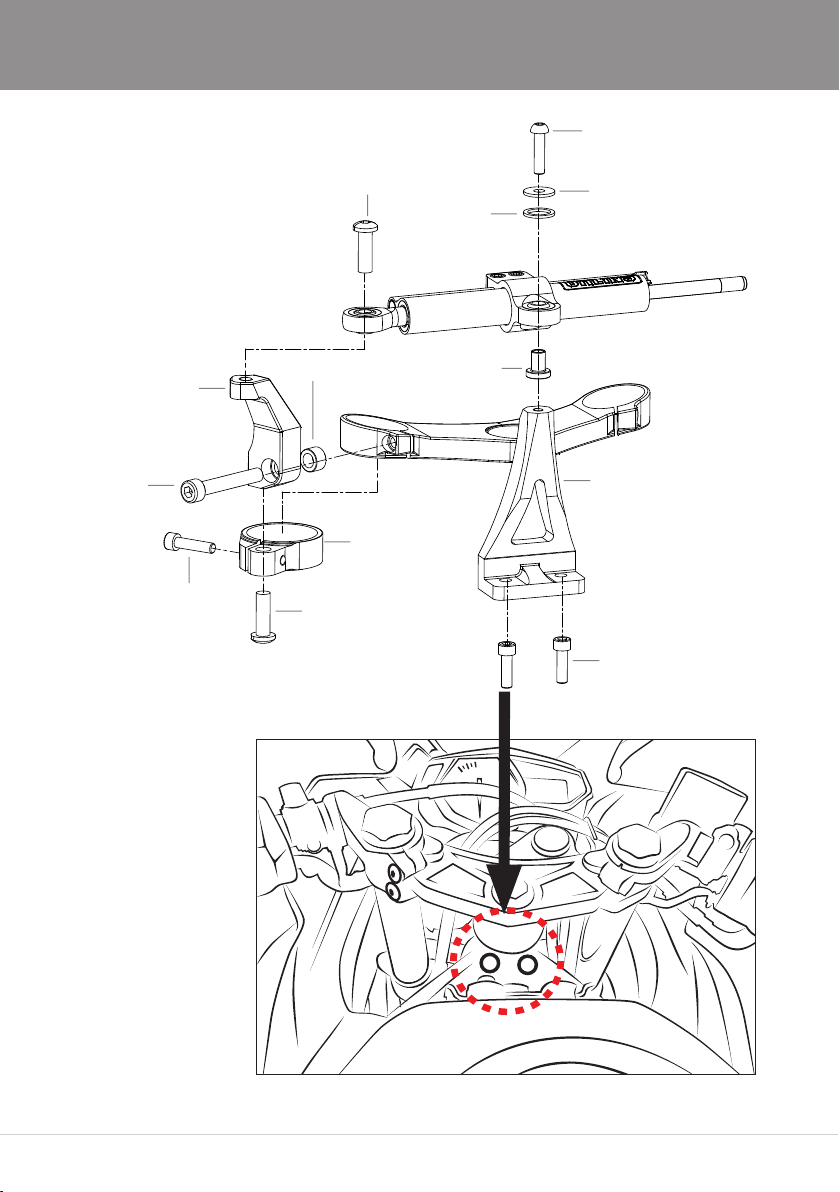

Assy the brackets and steering damper

according to diagram P1

MOUNTING INSTRUCTIONS

Screw

05404-14

Screw

05404-14

Screw

01046-25

Screw

01046-17

Screw (2x)

01046-16

Clamp, fork leg

02235-20

Bracket, frame

02272-25

Bracket, triple clamp

02270-38

Sleeve

61123-10

Screw

05404-06

Washer

00426-04

Spacer

02259-01

Sleeve

02239-01

P 1

Tighten the bolt to the correct torque

Screw M6 7 Nm

Screw M8 15 Nm

Öhlins Asia Co. Ltd

700/937 Moo5, Tambol Nongkhaga,

Amphur Phantong, Chonburi Province

20160 Thailand

reserved. Any reprinting or

unauthorized use without the written

permission of Öhlins Racing AB

is prohibited.

Öhlins products are subject to

continuous improvement and

development, therefore, although

these instructions include the most

up-to-date information available at

the time of printing, minor updates

may occur.

To nd the latest information

contact an Öhlins distributor.

Please contact Öhlins if you have

any questions regarding the

contents in this document.

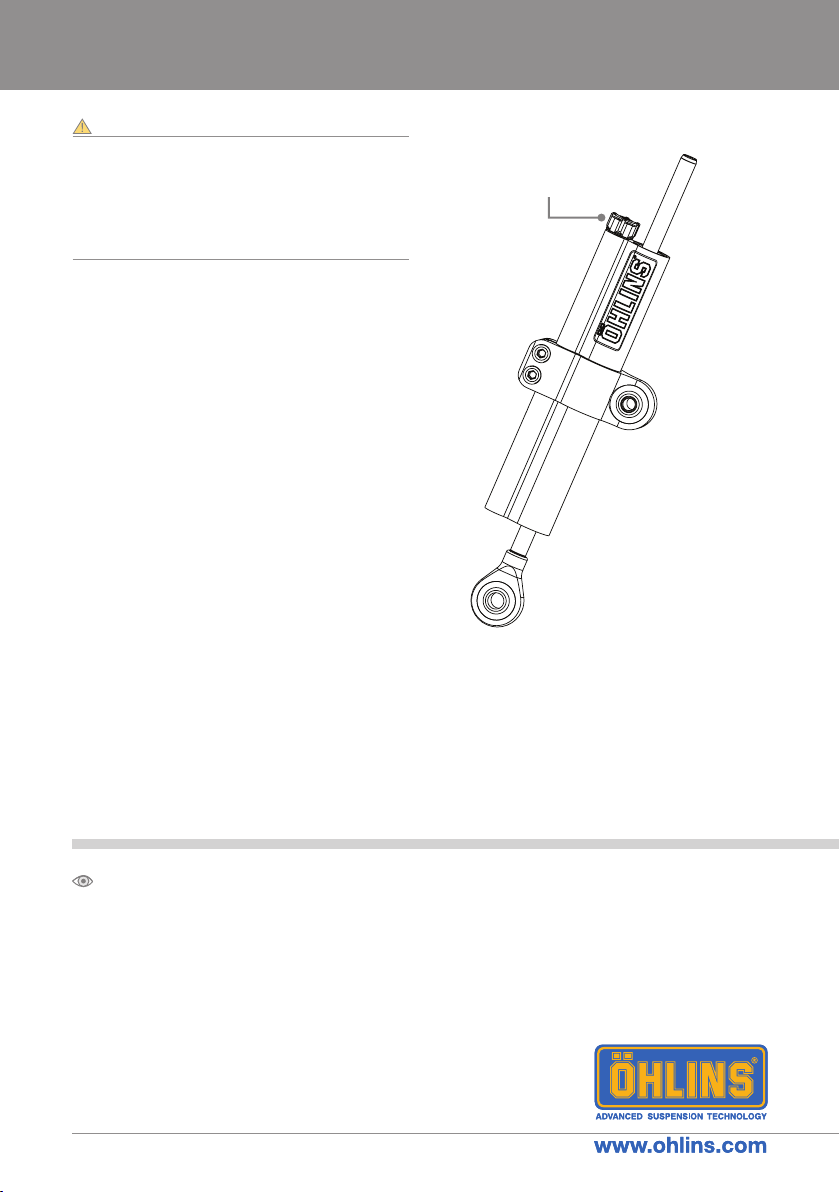

RECOMMENDED SETTING FOR SD 000

SET-UP DATA

Warning!

Before riding, always make sure that the basic settings

made by Öhlins are according to recommended

Set-up Data. Read about adjustments and setting up

in the Öhlins Owner’s Manual before you make any

adjustments. Contact an Öhlins dealer if you have any

questions about setting up.

Part no. MI_SD 053_EN_0

Issued 2017-05-25

Recommended set-up 10 Clicks

Adjuster

Knob
