HiTi Digital BS-G400 Manuel utilisateur

HiTi BS-G400

User Manual

English

All manuals and user guides at all-guides.com

all-guides.com

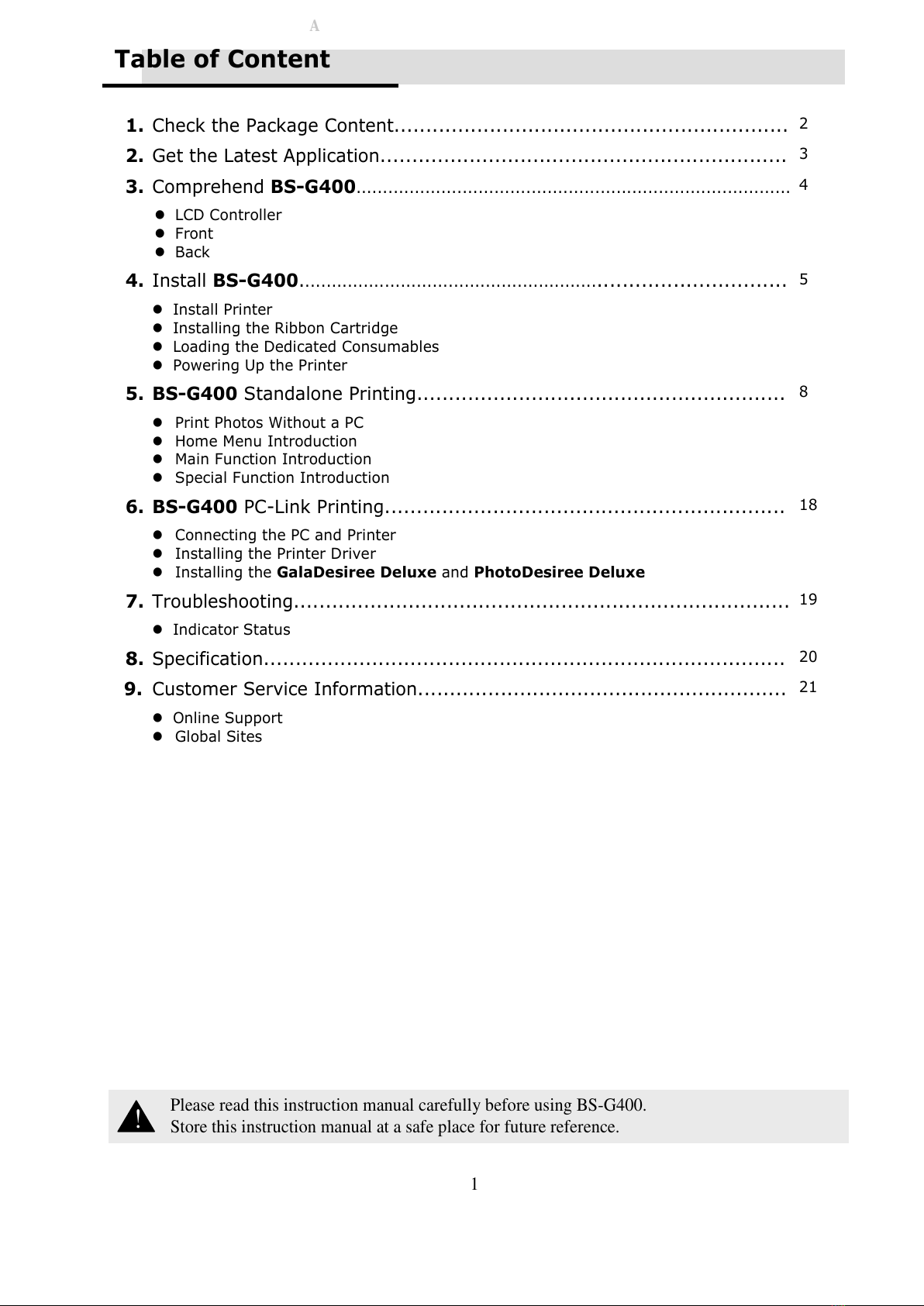

Table of Content

Check the Package Content..............................................................

Get the Latest Application................................................................

Comprehend BS-G400

..................................................................................

LCD Controller

Front

Back

Install BS-G400.

.......................................................

..............................

Install Printer

Installing the Ribbon Cartridge

Loading the Dedicated Consumables

Powering Up the Printer

BS-G400 Standalone Printing..........................................................



Print Photos Without a PC

Home Menu Introduction

Main Function Introduction

Special Function Introduction

BS-G400 PC-Link Printing...............................................................

Connecting the PC and Printer

Installing the Printer Driver

Installing the GalaDesiree Delu e and PhotoDesiree Delu e

Troubleshooting..............................................................................

Indicator Status

Specification..................................................................................

Customer Service Information..........................................................

Online Support

Global Sites

Please read this instruction manual carefully before using BS-G400.

Store this instruction manual at a safe place for future reference.

All manuals and user guides at all-guides.com

1. Check the Package Content

Before using BS-G400, please check the package content for following items

：

BS-G400 LCD Controller Power Cord

USB Cable Paper Cassette* Master CD

(BS-G400 / PhotoDesiree Deluxe)

User Manual

(BS-G400 / PDD* / GalaD Deluxe* )

Printer Cleaning Kit*

Software CD

(

GalaDesiree Deluxe

)

Note

Paper Cassette: 2 types of paper cassettes are included. One type is used for loading photo paper or 1x1 stickers and the

other type is for loading 4/2/4 or 4x4 stickers.



Printer Cleaning Kit includes cleaning kit user guide, cleaning paper, sponge, and micro fiber cleaning cloth.

All manuals and user guides at all-guides.com

2. Acquiring the Latest Application

HiTi website provides the latest driver, application, user manual etc. for users

to download. Please log on to www.hi-ti.com for more information. If there is any

question toward HiTi product, please contact your local service center for detail.

Please prepare those data as below when you have any question about BS-G400 that can help us to provide better

service for you

：

Printer serious number

Printer model

Printer firmware version

Printer driver version

Computer and OS information

Version of PhotoDesiree Deluxe and GalaDesiree Deluxe

All manuals and user guides at all-guides.com

3. Comprehend the BS-G400

Please read this using manual before you using BS-G400

：

LCD Controller

Front

Back

TFT Color LCD

[OK]

[EDIT]

[ESC]

[PRINT]

[Directional Button]

Ribbon Door

Ribbon Door Button

Paper Cassette Door

Paper Cassette

Memory Card Slot Cover

Controller Holder

Controller Socket

Power Switch

Power Cord Socket

USB Host Socket

Dust Shield

All manuals and user guides at all-guides.com

4. Install the BS-G400

Set Up the Printer

Connect the LCD controller to BS-iD400

Install the Ribbon Cartridge

1. Twist the spool lock counter clockwise and remove it as illustrated.

2. Open the ribbon door and install the ribbon cartridge

3. Close the ribbon door

All manuals and user guides at all-guides.com

all-guides.com

Load the Dedicated Consumables *

1. Identify the difference of 2-paper cassette and then choose the correct

2. Follow the instruction marked on the plastic bag to properly handling of consumables

3. Load photo papers into the paper cassette and then close the cover( Please hold the photo

papers wide side and toward the Hiti mark side to the back into the paper cassette)

4. Inwardly push the paper cassette door and insert paper cassette into the printer

Note

Please use HiTi BS serious photo paper kit and BS cleaning kit for BS-G400 to get the highest printing quality.

All manuals and user guides at all-guides.com

Power Up the Printer

Plug the power cord in the socket and then turn on the power

All manuals and user guides at all-guides.com

5. BS-G400 Standalone Printing

Standalone Printing

1. Insert memory card

Please insert the correct memory card in the printer memory card slot that will make the

printing process successfully, because the photo files will come from your memory card when

BS-G400 printing in standalone printing situation.

2. Print photos without a PC

When you finished those steps as below, you can use the LCD Controller to process the

printer output.

A.Set up the printer

(Please see ‘Install BS-G400’ for detail)

B.Install ribbon cartridge

(Please see ‘Install BS-G400’ for detail)

C.Load dedicated photo papers

(Please see ‘Install BS-G400’ for detail)

D.Power up the printer

(Please see ‘Install BS-G400’ for detail)

E. Insert memory card

(Please see ‘Standalone Printing’ for detail)

You can get the information about

‘

How to use the LCD Controller’ from ‘Home Menu

Introduction’

Note

The Memory Stick duo and xD memory card can be used on BS printer only when a USB card reader or adapter is used.

When you insert the SM/SD/MMC/MS card and the top of home menu will show the number ‘1’, when you use the

CF/Micro Drive card and the top of home menu will show the number’2’. If you use these slots at same time but just

one card in the slot will be used.

All manuals and user guides at all-guides.com

Home Menu Introduction

You can see this menu in your LCD controller when you power up the BS-G400

：

Image device from USB host

Image device from CF / Micro Drive

Image device from SD / SM / MMC / MS / MS

Printing control by BS-G400

Printing control by digital camera

E-Frame

Setup

E-Frame display area

Cancel or Go back

Confirm or Continue
