HiTi BS-G400
User Manual
E
E
English
1
Table of Content
1.
Check the Package Content..............................................................
2
2.
Get the Latest Application................................................................
3
3.
Comprehend BS-G400
..................................................................................
4
LCD Controller
Front
Back
4.
Install BS-G400.
.......................................................
..............................
Install Printer
Installing the Ribbon Cartridge
Loading the Dedicated Consumables
Powering Up the Printer
5.
BS-G400 Standalone Printing..........................................................
8
Print Photos Without a PC
Home Menu Introduction
Main Function Introduction
Special Function Introduction
6.
BS-G400 PC-Link Printing...............................................................
18
Connecting the PC and Printer
Installing the Printer Driver
Installing the GalaDesiree Delu e and PhotoDesiree Delu e
7.
Troubleshooting..............................................................................
19
Indicator Status
8.
Specification..................................................................................
20
9.
Customer Service Information..........................................................
21
Online Support
Global Sites
Please read this instruction manual carefully before using BS-G400.
Store this instruction manual at a safe place for future reference.
!
2
1. Check the Package Content
Before using BS-G400, please check the package content for following items
：
BS-G400 LCD Controller Power Cord
USB Cable Paper Cassette* Master CD
(BS-G400 / PhotoDesiree Deluxe)
User Manual
(BS-G400 / PDD* / GalaD Deluxe* )
Printer Cleaning Kit*
Software CD
(
GalaDesiree Deluxe
)
Note
Paper Cassette: 2 types of paper cassettes are included. One type is used for loading photo paper or 1x1 stickers and the
other type is for loading 4/2/4 or 4x4 stickers.
Printer Cleaning Kit includes cleaning kit user guide, cleaning paper, sponge, and micro fiber cleaning cloth.
3
2. Acquiring the Latest Application
HiTi website provides the latest driver, application, user manual etc. for users
to download. Please log on to www.hi-ti.com for more information. If there is any
question toward HiTi product, please contact your local service center for detail.
Please prepare those data as below when you have any question about BS-G400 that can help us to provide better
service for you
：
Printer serious number
Printer model
Printer firmware version
Printer driver version
Computer and OS information
Version of PhotoDesiree Deluxe and GalaDesiree Deluxe
!
4
3. Comprehend the BS-G400
Please read this using manual before you using BS-G400
：
LCD Controller
Front
Back
TFT Color LCD
[OK]
[EDIT]
[ESC]
[PRINT]
[Directional Button]
Ribbon Door
Ribbon Door Button
Paper Cassette Door
Paper Cassette
Memory Card Slot Cover
Controller Holder
Controller Socket
Power Switch
Power Cord Socket
USB Host Socket
Dust Shield
5
4. Install the BS-G400
Set Up the Printer
Connect the LCD controller to BS-iD400
Install the Ribbon Cartridge

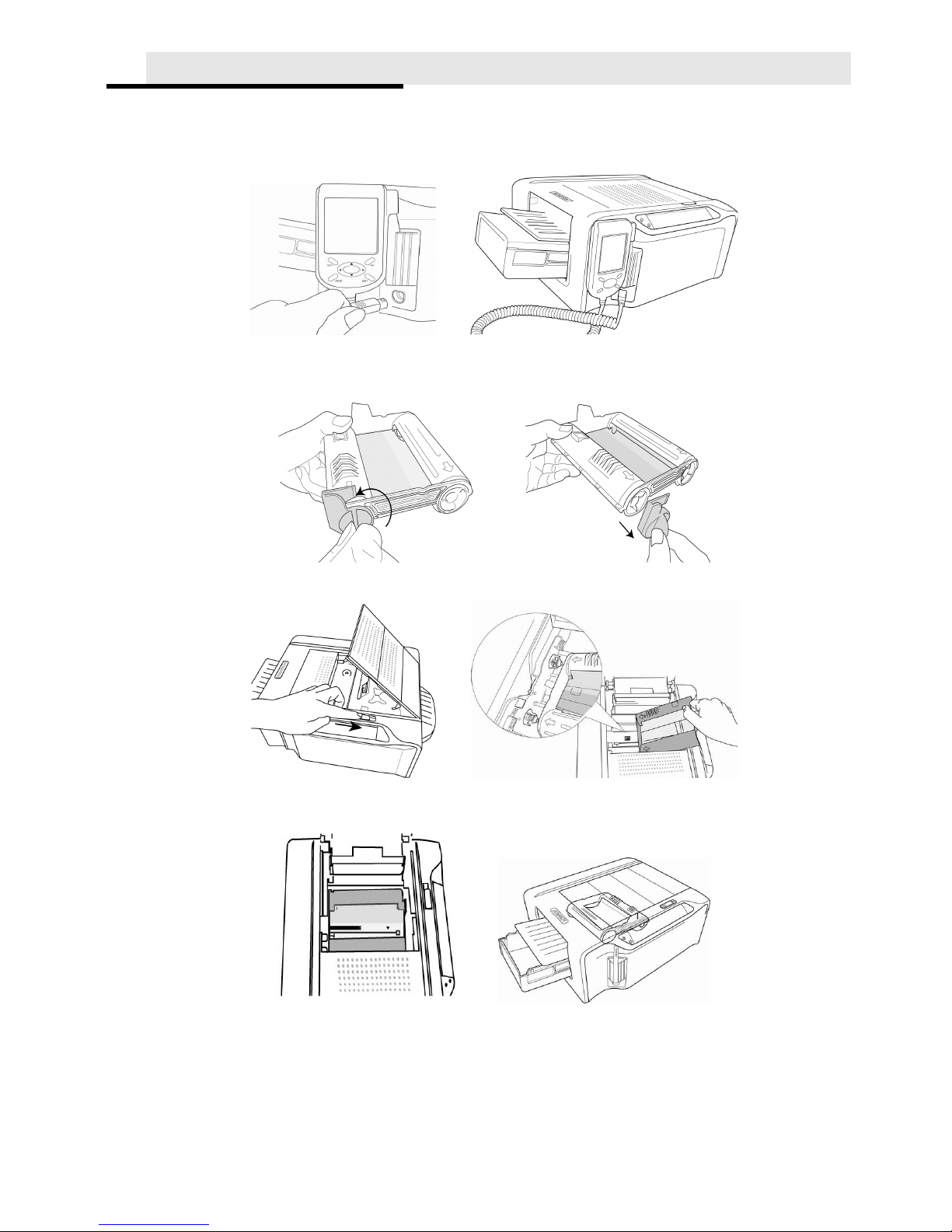

1. Twist the spool lock counter clockwise and remove it as illustrated.
2. Open the ribbon door and install the ribbon cartridge
3. Close the ribbon door
6
Load the Dedicated Consumables *
1. Identify the difference of 2-paper cassette and then choose the correct
2. Follow the instruction marked on the plastic bag to properly handling of consumables
3. Load photo papers into the paper cassette and then close the cover( Please hold the photo
papers wide side and toward the Hiti mark side to the back into the paper cassette)
4. Inwardly push the paper cassette door and insert paper cassette into the printer
Note
Please use HiTi BS serious photo paper kit and BS cleaning kit for BS-G400 to get the highest printing quality.
7
Power Up the Printer
Plug the power cord in the socket and then turn on the power
8
5. BS-G400 Standalone Printing
Standalone Printing

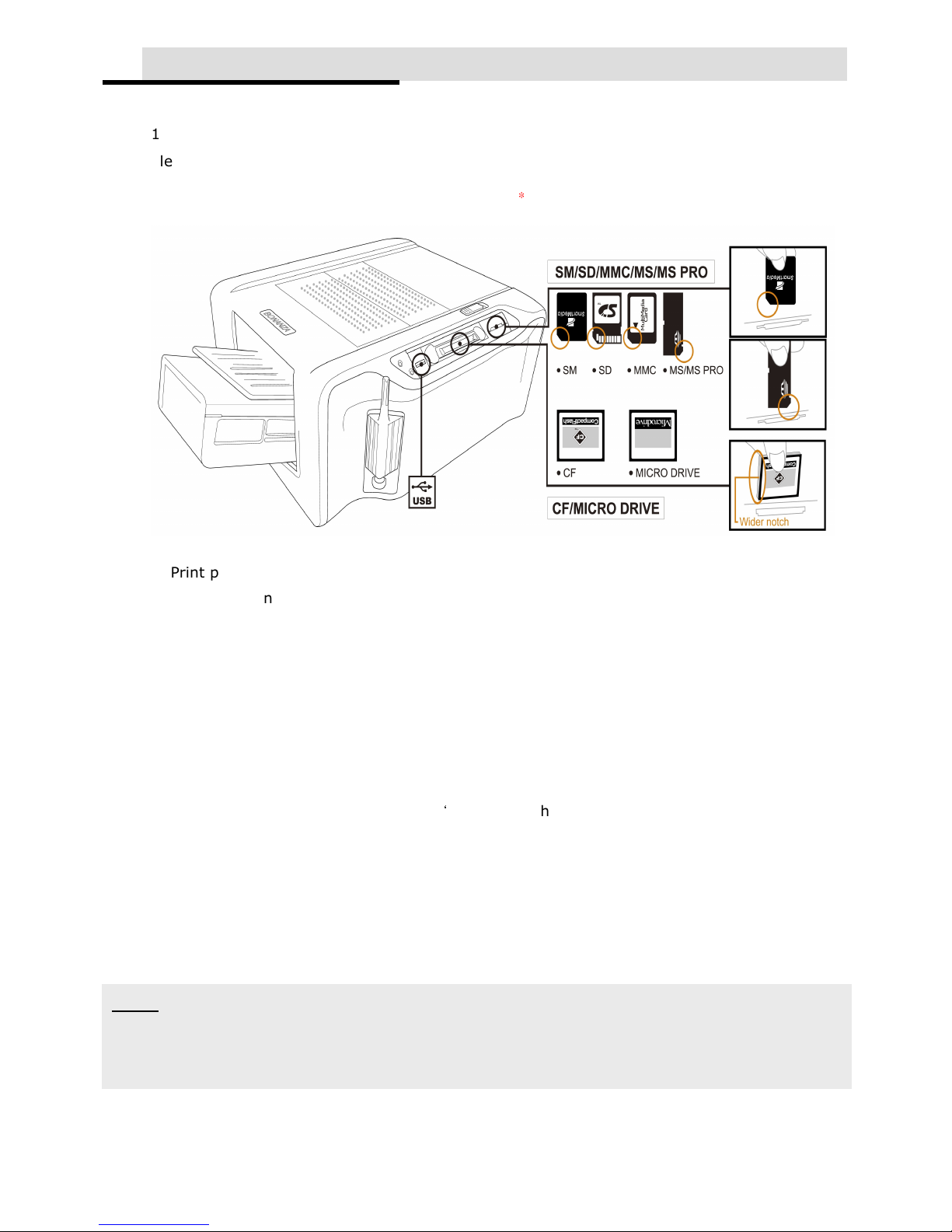

1. Insert memory card
Please insert the correct memory card in the printer memory card slot that will make the
printing process successfully, because the photo files will come from your memory card when
BS-G400 printing in standalone printing situation.
*
2. Print photos without a PC
When you finished those steps as below, you can use the LCD Controller to process the
printer output.
A.Set up the printer
(Please see ‘Install BS-G400’ for detail)
B.Install ribbon cartridge
(Please see ‘Install BS-G400’ for detail)
C.Load dedicated photo papers
(Please see ‘Install BS-G400’ for detail)
D.Power up the printer
(Please see ‘Install BS-G400’ for detail)
E. Insert memory card
(Please see ‘Standalone Printing’ for detail)
You can get the information about
‘
How to use the LCD Controller’ from ‘Home Menu
Introduction’
Note
The Memory Stick duo and xD memory card can be used on BS printer only when a USB card reader or adapter is used.
When you insert the SM/SD/MMC/MS card and the top of home menu will show the number ‘1’, when you use the
CF/Micro Drive card and the top of home menu will show the number’2’. If you use these slots at same time but just
one card in the slot will be used.
9
Home Menu Introduction
You can see this menu in your LCD controller when you power up the BS-G400
：
1
Image device from USB host
2
Image device from CF / Micro Drive
3
Image device from SD / SM / MMC / MS / MS
4
Printing control by BS-G400
Printing control by digital camera
6
E-Frame
7
Print
8
Setup
9
E-Frame display area
10
Cancel or Go back
11
Confirm or Continue
