nstalling your storage system

Hitachi Virtual Storage Platform E1090 (VSP E1090) storage systems are designed for self-installation, so you can

install and set up your storage system for the first time without assistance from a Hitachi Vantara representative.

Make sure your data center meets all site preparation requirements in the Hitachi Virtual Storage Platform E1090

Hardware Reference Guide before you install the storage system. f you are not using a Hitachi Universal Rack make

sure the electrical specifications of your rack meet the power requirements of the storage system.

This video shows how to mount and cable your storage system and how to perform the initial setup by using Hitachi

Storage Advisor Embedded.

Step 1: Unpack the storage system

Procedure

1. nspect all materials for signs of damage. f you see damage, discontinue the installation and contact your Hitachi

Vantara representative.

2. Loosen the band around the cartons and open all boxes. Remove all packing materials, envelopes, and boxes

from the cartons.

3. Retain all packing materials and cartons in case you need to transport or ship the storage system in the future.

4. Check the items you received against the packing list. f any items are missing or damaged, discontinue the

installation and contact your Hitachi Vantara representative.

5. Check the labels of each controller and drive box and verify the location of each component on the rack layout

diagram.

6. Place the keys for the front bezel in a safe place. You will need them to attach the bezel to the front of the

controllers.

Step 2: Verify component location in the rack

The controller and drive boxes for the VSP E1090 are shipped fully configured and must be installed in the rack at the

specific location designated by the rack layout.

Each pre-configured component is shipped with two identification labels: one attached to the shipping box, the other

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT

attached to the component itself. The labels include a unit number that corresponds to a location on the rack layout.

An example rack layout is shown in the following figure:

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT

tem Description

RACK# Which rack the component belongs to.

UN T# The rack unit that corresponds to the rack layout.

CBL# Controller number

DBN# Drive box number

CBL Storage system model for the controller

DBN Storage system model for the drive box

U Location The rack unit where the component must be installed.

SYSTEM Serial # The serial number assigned to the storage system.

SYSTEM COO The region or location where the storage system is installed.

Procedure

1. Find the component label on the shipping box and verify it matches the label on the component included in the

box.

Repeat step for each component.

2. Place each component in descending order by Unit# and match the Unit# to the corresponding place on the rack

layout.

3. Match the U Location on the label with the Unit Number on the physical rack.

Step 3: nstall the controller into the rack

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT

Mount the controller into the Hitachi Universal Rack or into a 4-post E A 310-D compliant 19-inch rack with square

mounting holes and rear-facing power distribution units (PDUs).

For information about installing the controller in a third-party rack, see the documentation for that rack.

NoteThe rail kit comes with pins that will fit racks with square or circular shaped holes. Use the correct pin type for your

rack.

Number tem

1 Pin for square holes

2 Pin for round holes

Before you begin

• Make sure the rack is secure and cannot fall over.

• Make sure the rack has PDUs installed.

• Verify that all power cables are removed from the AC power receptacles on the rear of the controller.

• nstall the rack stabilizers before mounting the storage system in the rack.

Procedure

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT

1. Attach stopper with three screws on the rear side of the rail. Repeat step for both rails.

Number tem

1 Stopper

2 Screws

3 Rail

2. nsert pins on the front and back of the rail into the holes on the front and back of the rack and hold in place using

the rail clips. Repeat step for both sides.

3. nstall the rear side of the rail with a washer and binding screw. Repeat step for both sides.

Number tem

1 Pin

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT

Number tem

2 Clip

3 Washer and bind screw

4. Position the controller so the front faces the front of the rack, and then slide the controller gently onto the rails.

Stop sliding when the mounting flanges on the front of the controller touch the vertical face of the rack.

NoteCheck the rear of the controller chassis to be sure the chassis is fit securely into the stoppers.

Number tem

1 Stopper

5. On the front of the controller chassis, attach the two bind screws and washers to each side of the rack.

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT

Number tem

1 Bind screws

Step 4: nstalling the drive boxes into the rack

Drive boxes must be installed using a rack rail at specific locations on the rack depending on the rack layout.

Before you begin

Match or replace the positioning pins on the rail with either circular or square positioning pins depending on the shape of

the position holes on the rack.

Procedure

1. Pull down the clips on the front and rear of the rail.

2. Fit the positioning pins into the position holes on the right side of the rack.

3. Replace the clips to the upright position to hold the rail in place.

Number tem

1 Pin

2 Clip

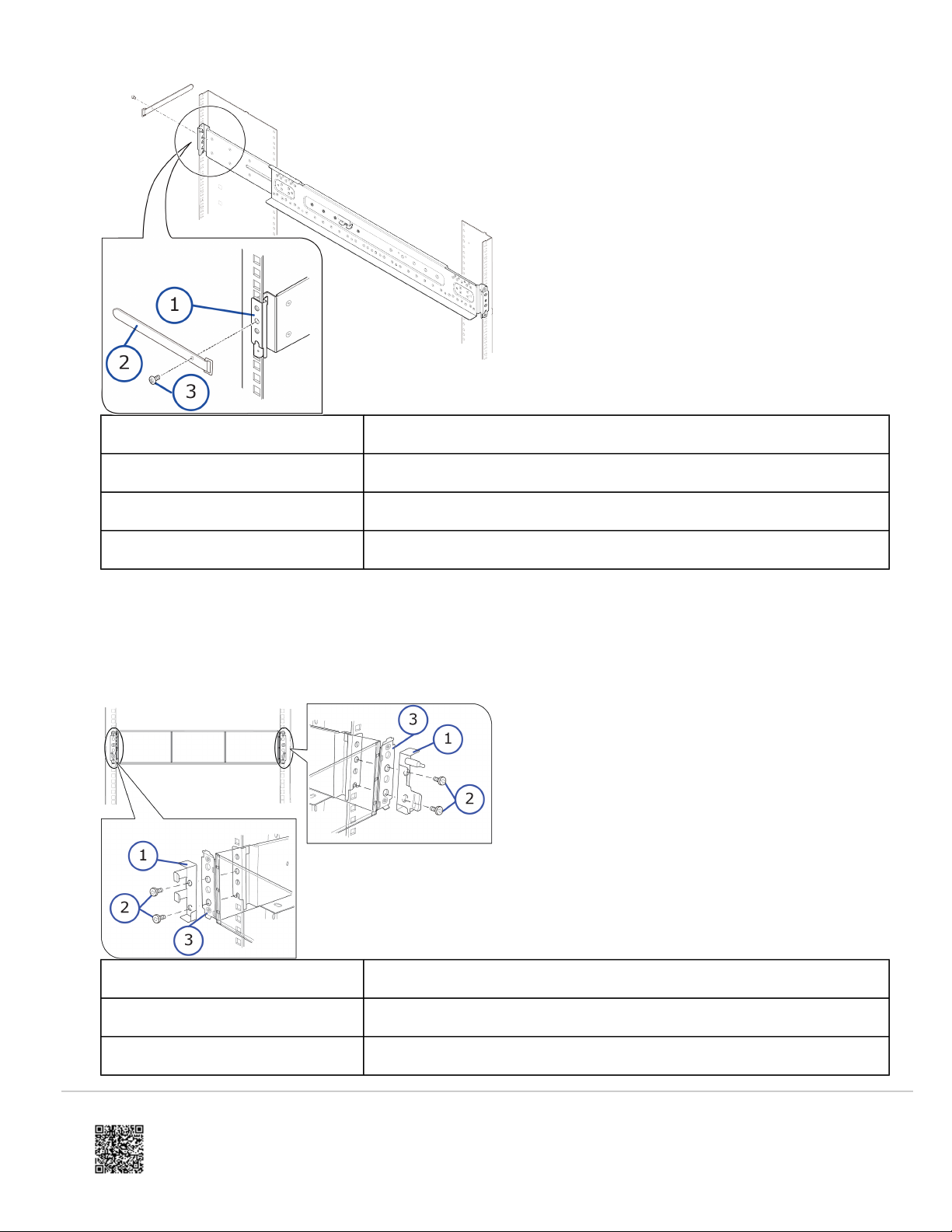

4. Fix the loop cable tie with the rail screw and fix into position on the rear of the rack.

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT

Number tem

1 Clip

2 Cable tie

3 Screw

5. Repeat Steps 1-4 on the left side of the rack.

6. nstall the drive box to the rail using the drive box bracket.

7. Fasten the bracket and drive box to the rail using two screws on each side of the rack.

Number tem

1 Bracket

2 Screws

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT

Number tem

3 Clip

8. Attach the side bezel to the left and right sides of the rack by sliding the bezels in place.

Step 5: Cable the drive boxes

The drive boxes must be cabled to the controller exactly how they were configured before shipping.

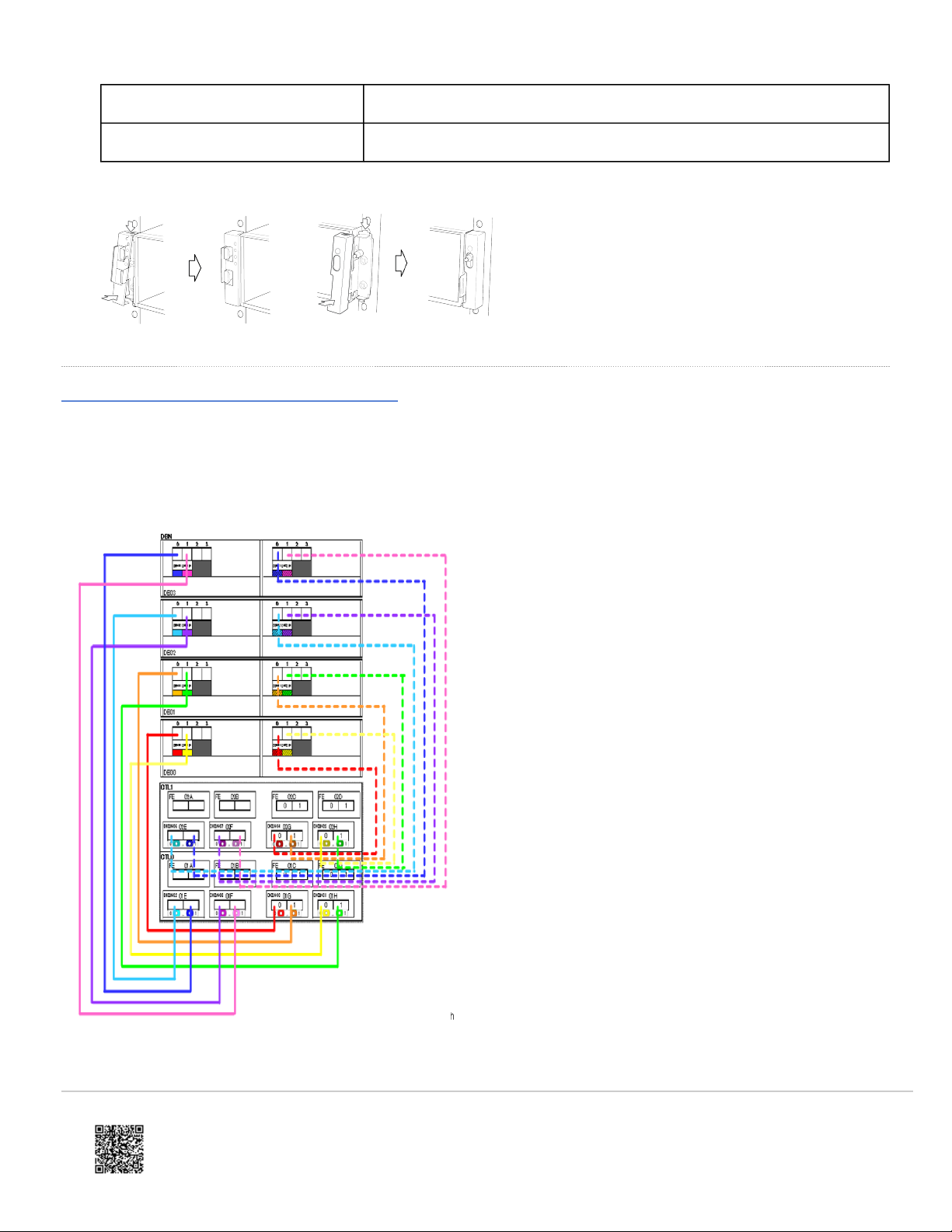

The drive boxes and controllers are shipped pre-configured and must be cabled according to the following cable

diagram.

Procedure

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT

1. Using the cabling diagram, connect each drive box to the controller using either iSCS or fibre channel cables

depending on the connectors on the controller.

2. Route cables for each drive box through the loop cable tie.

Number tem

1 Cable tie

2 Cable

Step 6: Connect the storage system to power

Power for the storage system is provided through two power supplies, one per controller. The input voltage is auto-

adjusting for 200-240 (-11%) VAC, 50-60 Hz power connections.

For best practice, establish power redundancy by routing each power supply to independent PDUs and then routing the

PDUs to separate external power sources on different branch circuits. This arrangement enables the storage system to

continue operating if AC power is lost to one power supply.

NoteMultiple outlets in a PDU or power strip do not constitute an independent electrical source.

Procedure

1. Confirm that all power sources are off.

2. Connect an AC power cable to the power receptacle on the rear of each controller.

3. Route the power cables from each controller to separate PDUs, and then use the pre-installed tie wraps at each

controller power receptacle to secure the power cables.

4. Connect the PDUs to separate external power sources on different branch circuits.

NoteTo prevent the storage system from being turned off by accident, make sure the external power sources are

not controlled by a wall switch.

https://knowledge.hitachivantara.com/Documents/Storage/VSP_E_Series/93-06-4x/VSP_E1090_ nstallation/01_ nstalling_yo…

Updated: Sun, 18 Jun 2023 03:59:58 GMT
