Hitachi Travelstar 5K500 Manuel utilisateur

Page 1 version 1.0

Quick Installation Guide

Hitachi Travelstar 5K500 &

Travelstar E5K500

Models: HTS545050KTA300

HTS545040KTA300

HTS545050KTSA01

HTS545040KTSA01

HTE545050KTA300

HTE545040KTA300

Hitachi Global Storage Technologies

Page 2 version 1.0

Handling precautions

Set the drive down gently to prevent damage from impact or vibration.

Handle the drive carefully by the edges. Do not touch the exposed printed circuit board or any electronic components.

Do not press on the top or bottom of the drive.

Before handling the drive, discharge any static electricity from yourself and your clothing. With one hand touch an

unpainted metal surface, then touch the ESD bag with the other hand. Remain in contact with the chassis and the bag

for a minimum of two seconds.

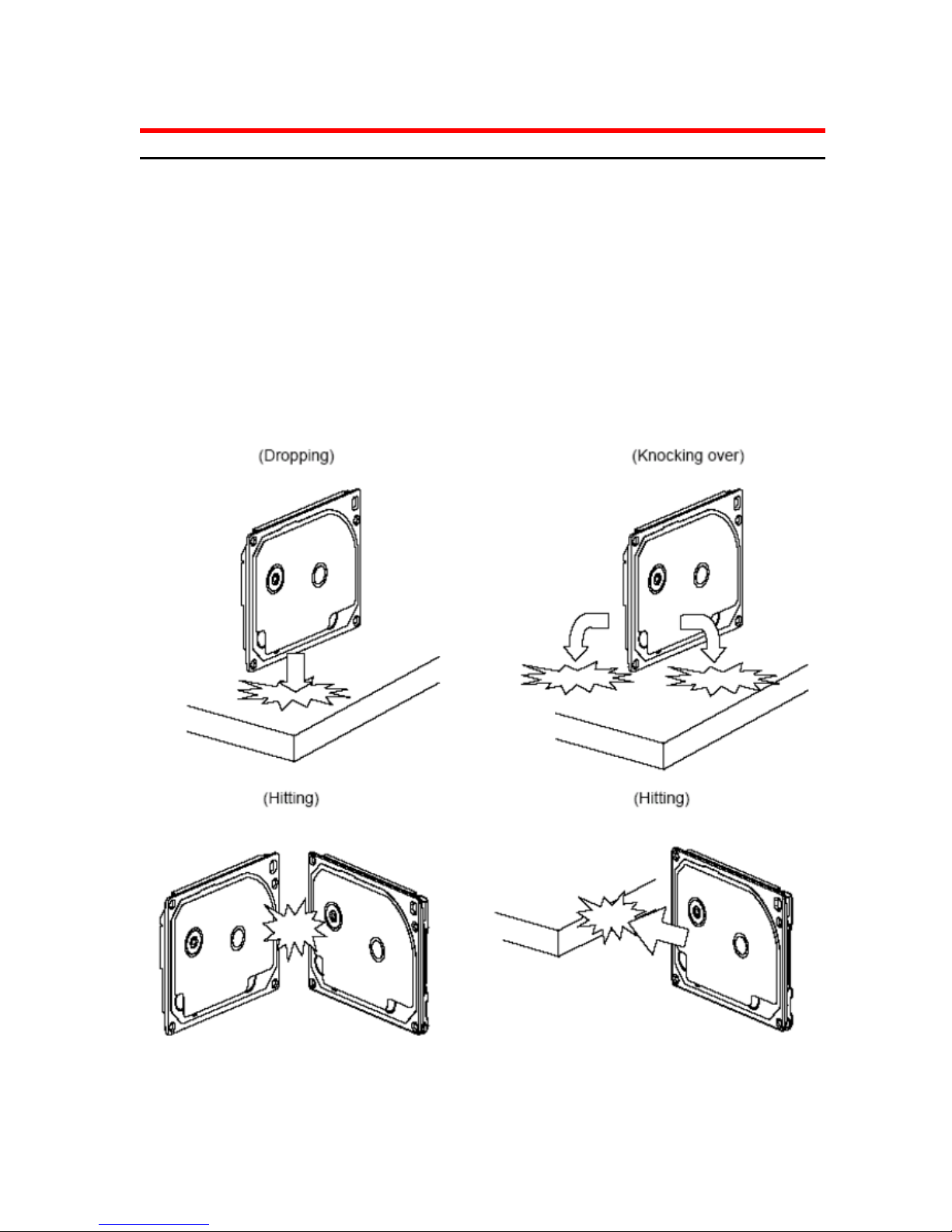

Vibration, shock and static electricity to the drive will damage the precision parts. In particular, prevent vibration or

shock generated by dropping, knocking over or hitting the drive. Also, avoid touching the electrical components

directly, which can discharge electrostatic energy and damage the drive.

Hitachi Global Storage Technologies

Page 3 version 1.0

Mounting Recommendations

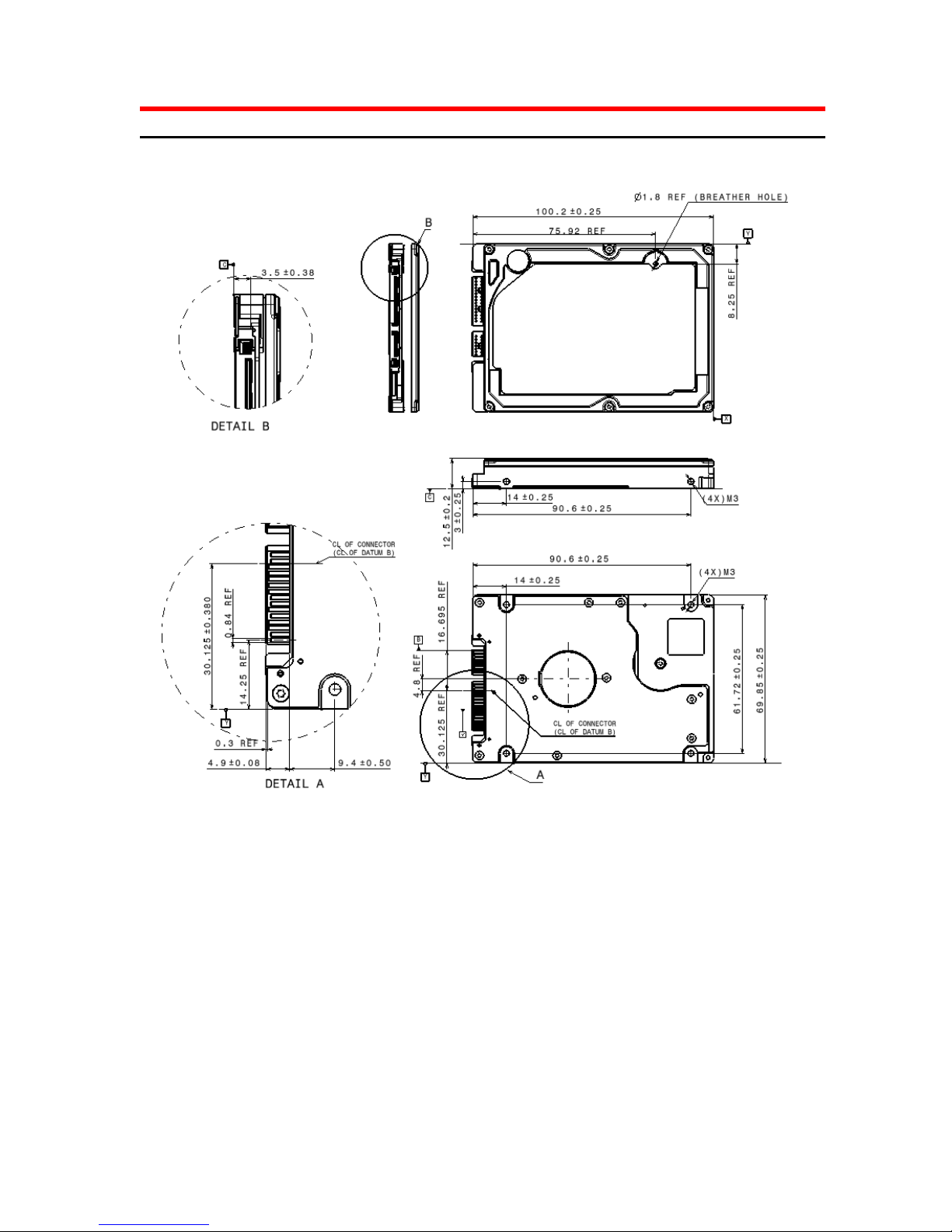

The mounting hole locations and size of the drive are shown below:

The drive will operate in all axes (six directions) and will stay within the specified error

rates when tilted ±5 degrees from these positions. Performance and error rate will stay

within specification limits if the drive is operated in the other permissible orientations from

which it was formatted. Thus a drive formatted in a horizontal orientation will be able to

run vertically and vice versa.

The recommended mounting screw torque is 0.3±0.05 Nm.

The recommended mounting screw depth is 3.0±0.3 mm for bottom and 3.5±0.5 mm for

horizontal mounting.

The user is responsible for using the appropriate screws or equivalent mounting hardware

to mount the drive securely enough to prevent excessive motion or vibration of the drive at

seek operation or spindle rotation.

Hitachi Global Storage Technologies

Page 4 version 1.0

Interface connector

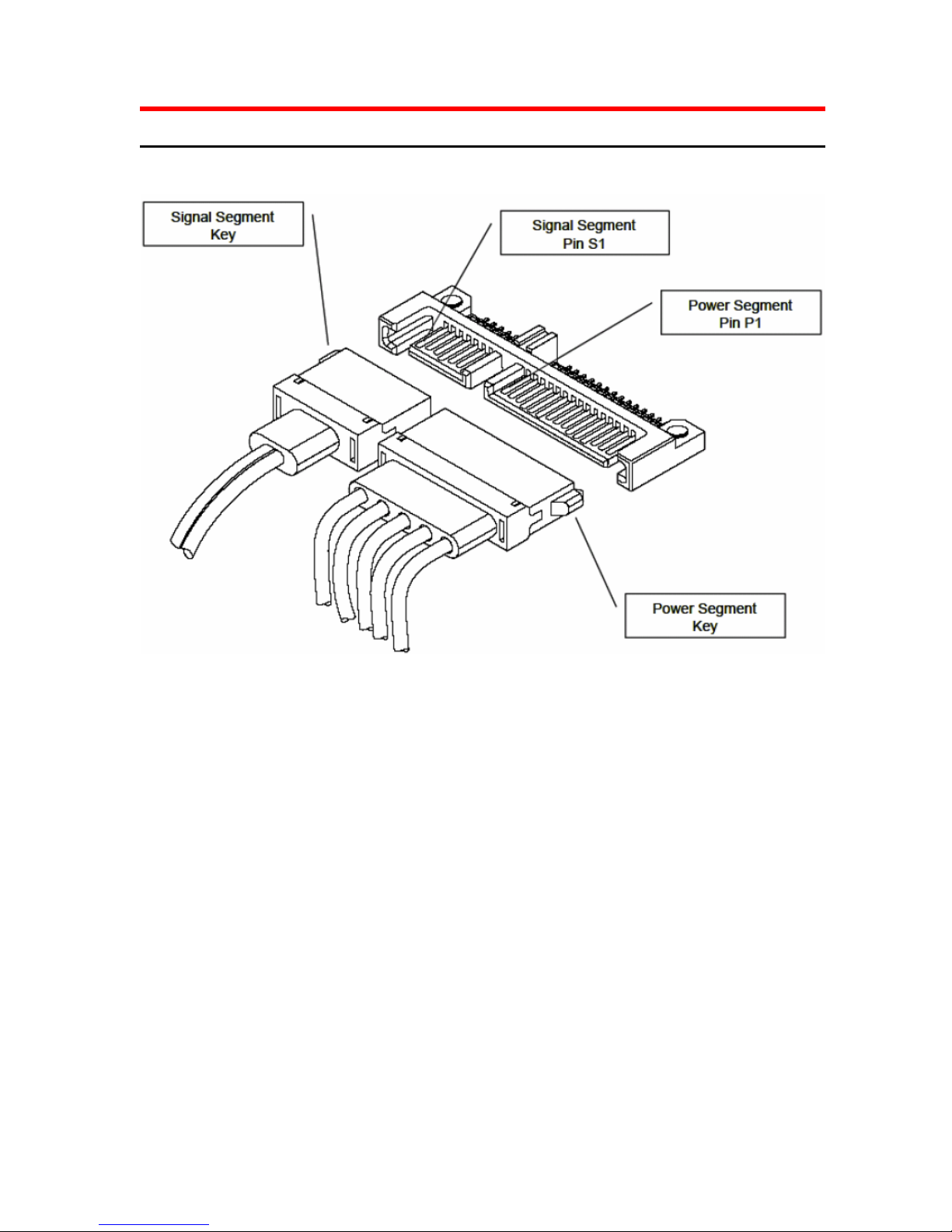

The figure below shows the physical pin location

All pins are in a single row, with a 127 mm (0.050”) pitch.

All V5 pins must be terminated.

The mating sequence for the case of back-plane blind-mate connector is referred to

OEM Spec.

Hitachi Global Storage Technologies

Page 5 version 1.0

Hitachi Global Storage Technologies

Produced in the United States

1/08

Hitachi Global Storage Technologies’ trademarks

are authorized for use in countries and jurisdictions

in which Hitachi Global Storage Technologies has

the right to use, market and advertise the brands.

The Travelstar trademark is authorized for use in

the Americas, EMEA, and the following Asia-

Pacific countries and jurisdictions: Australia, Hong

Kong, Japan, New Zealand, South Korea and

Taiwan. Contact Hitachi Global Storage

Technologies for further information. Hitachi

Global Storage Technologies shall not be liable to

third parties for unauthorized use of Hitachi Global

Storage Technologies trademarks.

References in this publication to Hitachi Global

Storage Technologies’ products, programs, or

services do not imply that Hitachi Global Storage

Technologies intends to make these available in all

countries in which it operates.

Product specifications provided are sample

specifications and do not constitute a warranty.

Information is true as of the date of publication and

is subject to change. Actual specifications for

unique part numbers may vary. Please visit the

Support section of our website,

www.hitachigst.com/support, for additional

information on product specifications.

Photographs may show design models.

03 January 2008
