Hitachi Travelstar 5K250 Manuel utilisateur

Page1 version1.0

Quick Installation Guide

Hitachi Travelstar 5K250 &

Travelstar E5K250

Models: HTS542525K9A300 HTE542525K9A300

HTS542516K9A300 HTE542516K9A300

HTS542512K9A300 HTE542512K9A300

HTS542580K9A300 HTE542580K9A300

HTS542525K9SA00

HTSS42516K9SA00

HTS542512K9SA00

HTS542580K9SA00

Handling precautions



Set the drive down gently to prevent damage from impact or vibration.



Handle the drive carefully by the edges. Do not touch the exposed printed circuit board or any electronic components.



Do not press on the top or bottom of the drive.



Before handling the drive, discharge any static electricity from yourself and your clothing. With one hand touch an

unpainted metal surface, then touch the ESD bag with the other hand. Remain in contact with the chassis and the bag for a

minimum of two seconds.



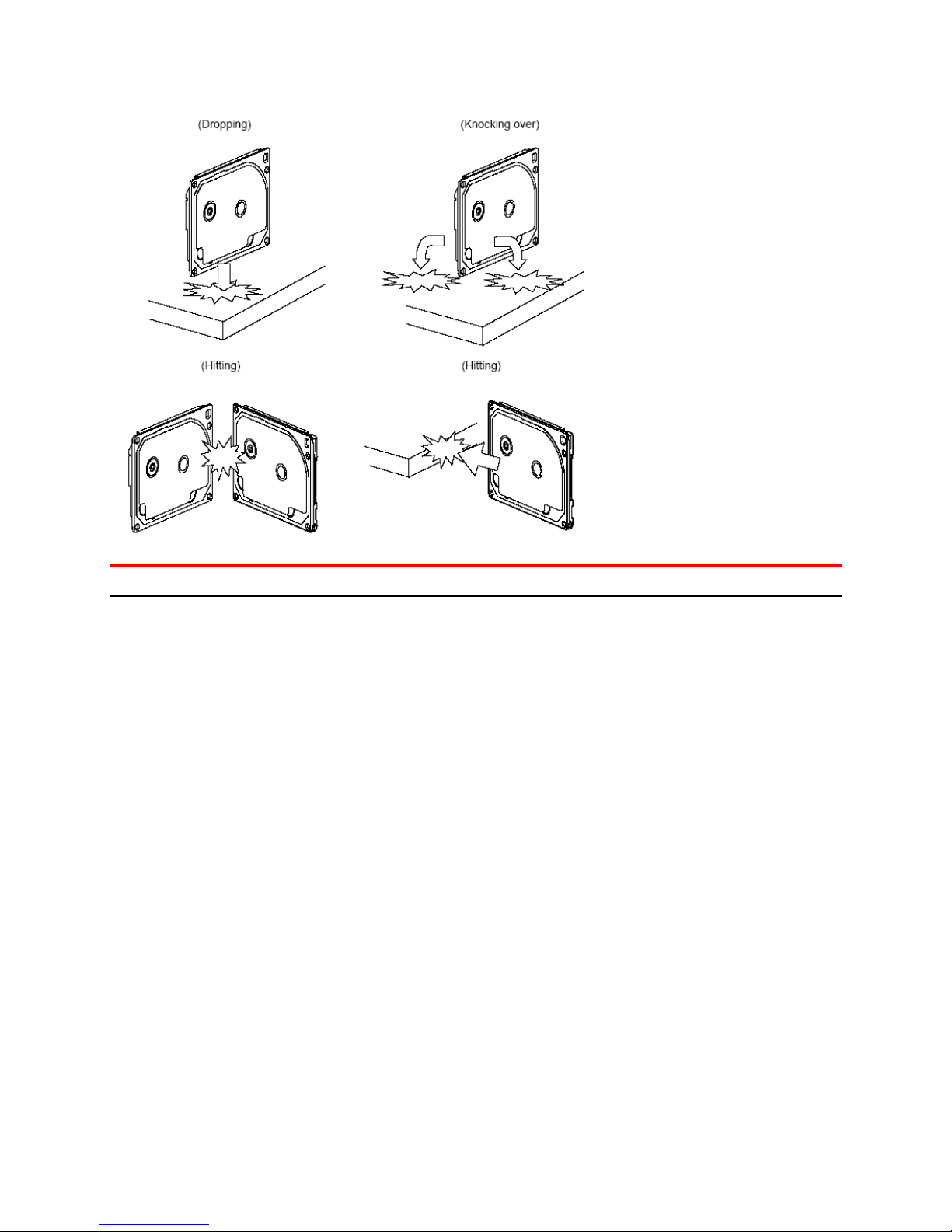

Vibration, shock and static electricity to the drive will damage the precision parts. In particular, prevent vibration or shock

generated by dropping, knocking over or hitting the drive. Also, avoid touching the electrical components directly, which

can discharge electrostatic energy and damage the drive.

Hitachi Global Storage Technologies

Page2 version1.0

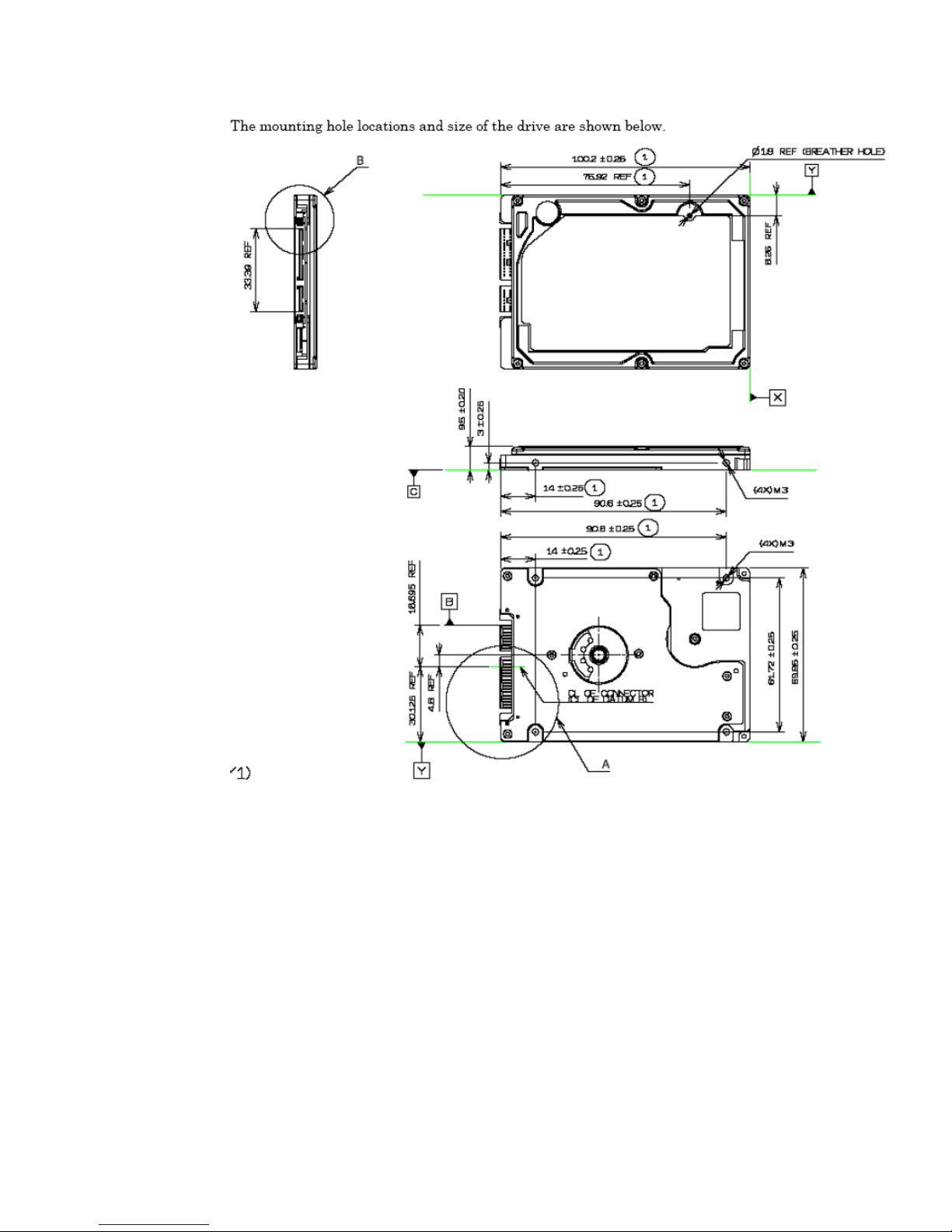

Mounting Recommendations

Hitachi Global Storage Technologies

Page3 version1.0

The drive will operate in all axes (six directions) and will stay within the specified error rates when tilted ±5

degrees from these positions. Performance and error rate will stay within specification limits if the drive is

operated in the other permissible orientations from which it was formatted. Thus a drive formatted in a horizontal

orientation will be able to run vertically and vice versa.

The recommended mounting screw torque is 0.3±0.05 Nm.

The recommended mounting screw depth is 3.0±0.3 mm for bottom and 3.5±0.5 mm for horizontal

mounting.

The user is responsible for using the appropriate screws or equivalent mounting hardware to mount

the drive securely enough to prevent excessive motion or vibration of the drive at seek operation or

spindle rotation.

Hitachi Global Storage Technologies

Page4 version1.0

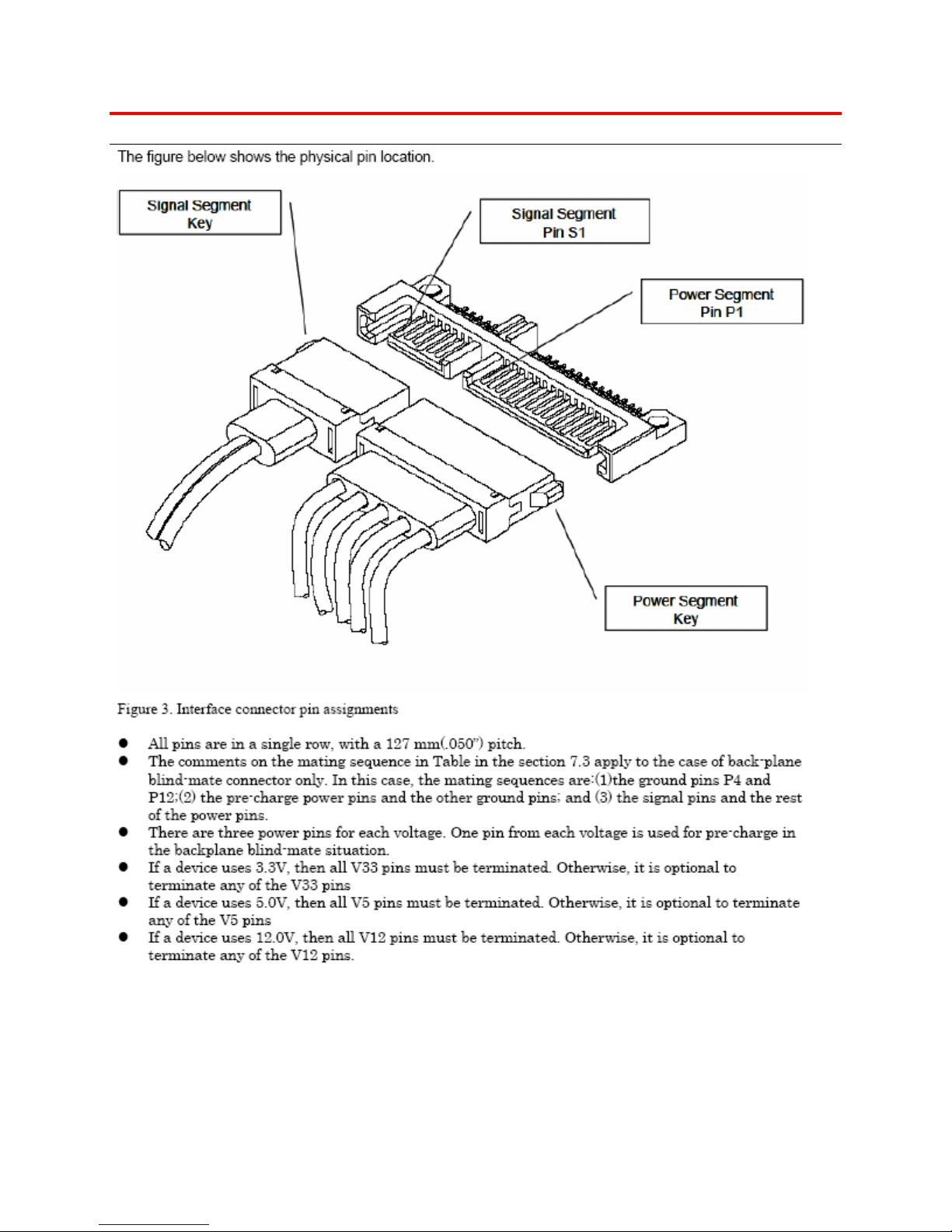

Interface connector

Mounting Solution Company: E-A-R

Hitachi Global Storage Technologies

Page5 version1.0

Hitachi Global Storage Technologies

Produced in the United States

6/07

Travelstar

is a trademark of

Hitachi Global Storage Technologies.

Microsoft, Windows XP, and Windows are

trademarks of Microsoft Corporation in the United

States, other countries, or both.

Other product names are trademarks or registered

trademarks of their respective companies.

References in this publication to Hitachi Global

Storage Technologies products, programs or services

do not imply that Hitachi Global Storage

Technologies intends to make these available in all

countries in which Hitachi Global Storage

Technologies operates.

Product information is provided for information

purposes only and does not constitute a warranty.

Information is true as of the date of publication and is

subject to change. Actual results may vary.

This publication is for general guidance only.

Photographs may show design models.

05 June 2007
