Hitachi KP-F500GV Manuel utilisateur

MODEL KP-F500GV

KP-F500GV

Specifications

Prod. Code - Order No.

STORED DATE

DESIGNED DATE

CHECKED DATE

APPROVED DATE

REV.

TOLERANCE

SCALE

UNIT F

SHEET

DWG.

No.

TITLE

DF022-4PE-T1

Gigabit Ethernet

Progressive scan CCD camera

KP-F500GV

Specifications (Preliminary) Ver.1.00

1. General

The KP-F500GV is single CCD type camera which utilized the progressive scan CCD image

sensor with square pixel for VGA format of 2/3-inch.

By adoption of Gigabit Ethernet interface, high-speed connection of maximum of 1 Gbps can be

possible. Moreover, by using hub or switcher, construction of multiple camera system can be

easily performed.

2. Outstanding features

(1) High resolution

The 2/3-inch 5,050,000 pixels square lattice progressive scan CCD achieve a high resolution of

2456(H) x 2058(V).

(2) Gigabit Ethernet interface

High-speed serial interface Gigabit Ethernet is supported and direct connection is possible to

PC by the diameter cable of thin as compared with parallel output. It is possible to 100m.

(3) GigE Vision (Ver 1.00) correspondence

Based on Industrial camera interface standard GigE Vision, a maximum of 1Gbps high speed

data transmit is available and suitable for image processing.

(4) GENiCAM (Ver. 1.00) correspondence

Development of camera control system is easy because industrial camera control API

"GENiCAM" lead EMVA (European Machine Vision Association).

(5) PoE correspondence

Power supply can be input via Ethernet cable (Power over Ethernet).

(6) Remote control

- Multi-step electronic shutter (from 1/16 to 1/50000 second in 8 steps)

- Variable shutter (from 10 to 1/100000 second)

- The image capture at desired timing using the external trigger signal

and other various functions are set by remote control via a Gigabit Ethernet cable.

-May.31,2008

(first edition)

SYMBOL

DATE DESCRIPTION (DRAWN)

DESIGNED

SHEET

DF022-4PE-S1

DWG.

No.

3. Specifications

(1) Imaging device 2/3-inch progressive scan interline CCD

Total pixels 2536 (H) x 2068 (V)

Effective pixels 2456 (H) x 2058 (V)

Pixel size 3.45 um (H) x 3.45 um (V) (square lattice)

(2) Scanning area 8.47 mm (H) x 7.10 mm (V)

(3) Scanning system Progressive

(4) Aspect ratio 5 : 4

(5) Frame rate 16 frames per second (full pixel readout)

(6) Sync system Internal / external

(7) Lens mount C mount

(8) Flange focal distance 17.526 mm

(9) Video output

Interface Gigabit Ethernet

Protocol GigE Vision compliant

Transfer 1 Gbit per second

Image format Mono 8/10/12bit

Maximum image size 2448 (H) x 2050 (V)

Frame rate 16 frame per second

*Frame rate is different for following format

Mono 10/12bit: 11 frame per second

(10) Sensitivity 400lx, F5.6, 3200K

(11) Minimum illumination 1 lx (F1.4 GAIN MAX)

(12) Electric shutter OFF / Auto (AES) / Manual (PRESET or VARIABLE)

OFF is normal exposure (frame rate)

PRESET 1/16, 1/60, 1/100, 1/250, 1/1000, 1/2000,

1/10000, 1/50000 second.

VARIABLE 10 to 1/100000 second

(13) External trigger shutter

Mode Fixed shutter

One trigger

VD Sync

Reset control

Input Via Gigabit Ethernet cable (Software trigger)

12-pin connector (dware trigger)

Input level 24Vp-p +/- 1V

Threshold 3.7V +/- 0.5V (Low --> High)

3.5V +/- 0.5V (High --> Low)

Input polarity High / Low adjustable

Input delay Adjustable

SHEET

DF022-4PE-S1

DWG.

No.

(14) External sync signal

VD output 5Vp-p +/- 0.3V

Strobe out 5Vp-p +/- 0.3V

Output Polarity High / Low adjustable

Strobe delay Adjustable

Strobe duration Adjustable

(15) Partial scan Selectable start position and width of picture grabbing in 1H step.

(16) ALC (Auto level control) Adjustable for video level

(17) Gain Auto / Manual (0dB to 18db)

(18) Gamma OFF (γ=1) / ON

(19) V-Binning OFF / ON

(20) Sharpness Adjustable

(21) Black level Adjustable

(22) Knee Adjustable (Knee point and Knee slope)

(23) Power supply voltage DC+12V +/- 1V (input from 12-pin connector)

48V (PoE)

(24) Current consumption Approx. 6.0W (DC+12V)

(25) Ambient

Performance 0 to +40℃(+32 to +104 F), less than 90 % RH

Operation -10 to +50℃(+14 to 122 F), less than 90 % RH

Storage -20 to +60℃(-4 to 140 F), less than 70 % RH (without dew condensation)

(26) Vibration endurance 68.65 m/s2or less (10 to 200Hz, 30 minutes each on XYZ axes)

(Do not subject to strong vibration for long periods of time.)

(27) Shock endurance 490.3 m/s2 or less (vertical, horizontal, once each face)

(28) External dimensions 44(W) x 29(H) x 72(D) mm (not including lens and protrusions)

(29) Mass Approx. 140g

SHEET

DF022-4PE-S1

DWG.

No.

4. Composition

(1) Camera (with IR cut filter)

(2) CD-ROM (Operation manual, Control software and SDK)

(3) Composition table

5. Optional accessories

(1) Dummy glass (AR coated) ARC1214

(2) IR cut filter IRC650

(3) Junction box JU-F30,

(4) Tripod adaptor TA-M1

(5) 12pin plug HR10A-10P-12S(01)

(6) Camera cable

Molded type Shield type

2 m C-201KSM C-201KSS

5 m C-501KSM C-501KSS

10 m C-102KSM C-102KSS

In the CE Marking region, use the shield type and install clamp filter

（ZCAT2035-0930A: TDK）at both ends of the cable.

(7) LAN cable (Commercial item) CAT5E Straight cable

CAT5E Cross cable

CAT6 Straight cable

CAT6 Cross cable

SHEET

DF022-4PE-S1

DWG.

No.

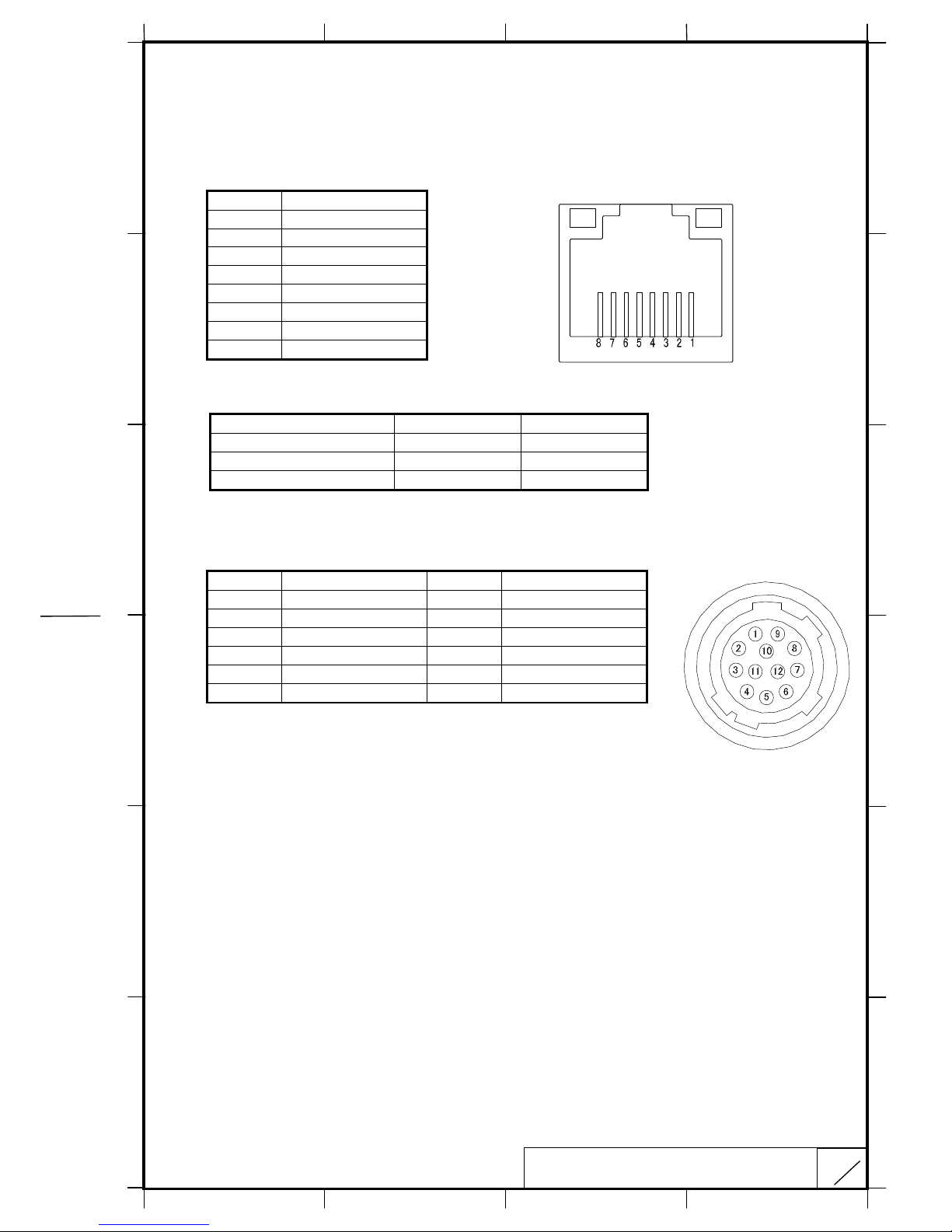

6. Specification of Digital output connector

(1) Gigabit Ethernet connector

PIN NO.

Signal

1 TRP1+

2 TPR1-

3 TRP2+

4 TPR3+

5 TRP3-

6 TRP2-

7 TRP4+

8 TRP4-

Connector: RJ-45

*LED Status

STATUS LED1(Green) LED2 (Yellow)

Power ON Light Off Light On

Transmission Blink On Light On

Transmission pause Light Off Light On

(2) 12-pin connector

PIN NO.

Signal PIN NO.

Signal

1 GND (+12V) 7 TRIG-A / VD (H)

2 +12V 8 TRIG-B (C)

3 GND 9 TRIG-B (H)

4 AUX 10 FLASH / VD OUT

5 GND 11 N.C.

6 N.C. 12 TRIG-A / VD (C)

Connector (camera side) : SAMWOO SNH-10-12 (RPCB) or equivalent

Plug (matching cable plug) : Hirose HR10A-10P-12S (01) or equivalent

Please do not unplug and insert cable (camera cable) with a power supplied to a camera.

Install clamp filter (ZCAT 2035-0930A: TDK) at both ends (camera and video processor

ends) in the CE marking legion.

Please do not connect 1 pin and 3/5 pin when using PoE. When connecting it, PoE may stop

the power supply. Because TRIG-A/VD and TRIG-B are photo coupler input, 8/12 pin is

isolated with 1/3/5 pin. When 8/12 pin is connected to GND, please connect to 3 pin or 5 pin.

Note: Please do not input any signal to N.C. pin because machine may break down.

LED1 LED2

SHEET

DF022-4PE-S1

DWG.

No.

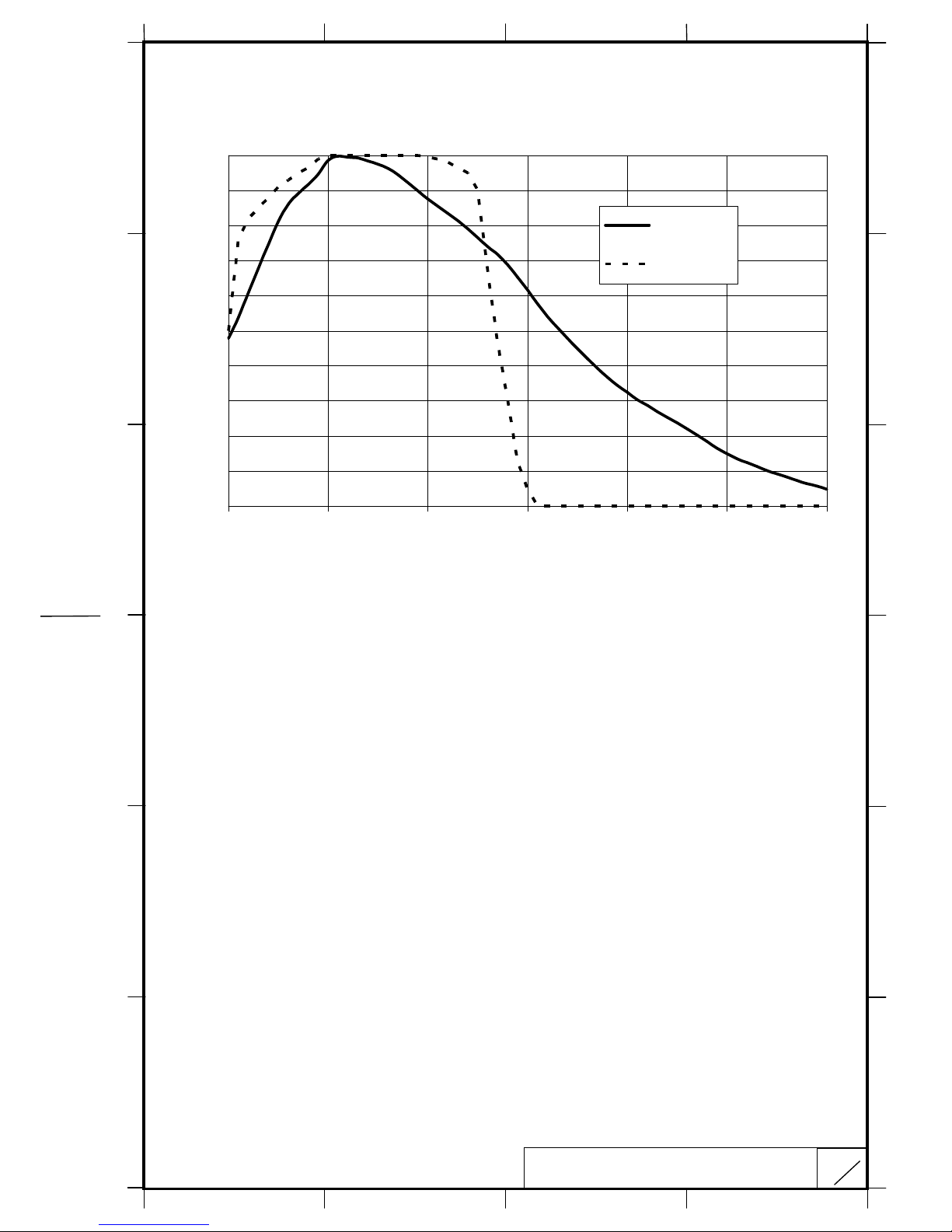

9. Spectral response

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

400 500 600 700 800 900 1000

Wave Length (nm)

Relative Response

CCD

IR cut filter

SHEET

DF022-4PE-S1

DWG.

No.

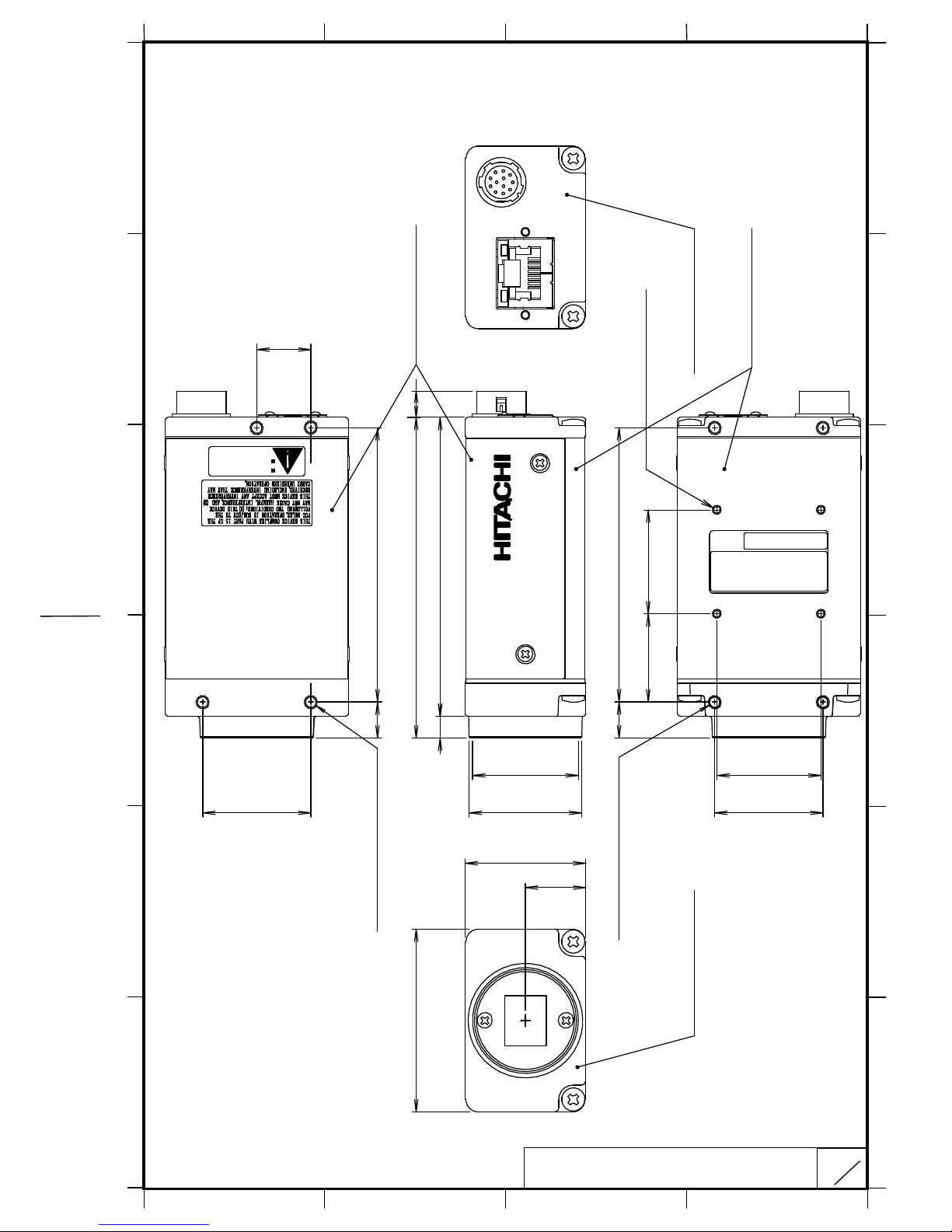

10. External view

ＰＬＡＴＥＲＡＴＥＤ

ＳＥＲ．ＮＯ．

ＤＣＩＮ/ＳＹＮＣ

Ｅｔｈｅｒｎｅｔ

Ｕ１

２６（φ２７.４）

７２.０

７７.２

６６.０８.７

２９

１４.５

４－Ｍ３（ＤＥＰＴＨ：３.５）

２５

２６

２１.２

６６.０８.７

２５

４－Ｍ２（ＤＥＰＴＨ：３.５）

４－Ｍ３（ＤＥＰＴＨ：３.５）

５.２

４４（６.３）

ＣＯＬＯＲ：ＢＬＡＣＫＣＯＬＯＲ：ＢＬＡＣＫ

ＣＯＬＯＲ：ＢＬＡＣＫ

１３

ＳＥＥ　ＭＡＮＵＡＬ

ＡＰＥＲＣＥＶＯＩＲ

ＭＡＮＵＥＬ

・ＭＡＳＳ：　ＡＰＰＲＯＸ　１４０ｇ

・ＴＯＬＥＲＡＮＣＥ：　±０.５

・ＵＮＩＴ：　ｍｍ

・ＳＣＡＬＥ：　ＮＴＳ

SHEET

DF022-4PE-S1

DWG.

No.

Warranty and service:

(1) The guarantee period is one year after the data purchase.

However, the defects due to erroneous use or intentional act are excluded.

(2) As the defect after expiration of the guarantee period, where product repair is

possible, repair will be performed at charge.

(3) The present Warranty pertains only to the camera unit. Secondary malfunctions

attributable to camera failure as well as expenses incurred by disassembly and

reassembly of the related system, are beyond the scope of this Warranty.

(4) Compensation for loss of business, loss or damage to software, database and other

contingent losses are beyond the scope of this Warranty.

(5) Hitachi Kokusai Electric Inc. is not liable for the losses caused when the equipment

is used in a system, use for business trades, production process, medical fields,

crime prevention applications, etc.

(6) In the case of camera trouble by miss wiring of cable, it will be considered as out of

warranty.

RoHS Compliant

This product complies with the requirement of the RoHS(Restriction of

the use of Certain Hazardous Substances in Electrical

and Electronic

Equipment) Directive 2002/95/EC

Notice:

These specifications are subject to change without prior notice due to

product improvement.

Confirm the most recent specifications at time of order.

Hitachi Kokusai certifies this product complies with

the standard

warranty conditions of Hitachi Kokusai, and that quality control is

implemented to the extent required to comply with these conditions.

SHEET

DF022-4PE-S1

DWG.

No.

Modification history

SIMBLE

DATE CORRECTION AND REASONS DESIGNED
