ENGLISH

LCD Projector

MC-WU5506M

MC-WX5506M

User's Manual (concise)

Thank you for purchasing this projector.

This is the basic manual on the product. Visit our website to get the detailed

manuals and the latest information on the product. Check them before using the

product, for safe use and utilization of the product.

Our website: See the attached sheet.

WARNING Ź%efore using this product, be sure to read all manuals for this

product. After reading them, store them in a safe place for future reference.

ŹHeed all the warnings and cautions in the manuals or on the product.

Ź)ollow all the instructions in the manuals or on the product.



)irst of all............................................ 2

Entries and graphical symbols explanation ......2

Important safety instruction ..............................2

Regulatory notices.............................. 3

About Electro-Magnetic Interference ................3

'isposal of 2ld ETuipment and %atteries

Only for European Union and countries with

recycling systems .............................................4

Contents of package........................... 4

Preparing for the remote control......... 5

Arrangement....................................... 6

Connecting with your devices............. 8

Attaching the terminal cover............. 10



Connecting power supply ................. 11

)astening the cable .......................... 11

Turning on the power........................ 12

Adjusting the projector's elevator ..... 13

Displaying the picture ....................... 14

Turning off the power........................ 15

Replacing the lamp........................... 16

Cleaning and replacing the air ¿lter

.. 18

Installing or replacing

the internal clock battery

................. 20

Speci¿cations ................................... 21

Troubleshooting

- Warranty and after-service ........... 23

Contents

NOTE •

In this manual, unless any comments are accompanied, “the manuals”

means all the documents provided with this product, and “the product” means this

projector and all the accessories came with the projector.

First of all

Entries and graphical symbols explanation

The following entries and graphical symbols are used for the manuals and the product

as follows, for safety purpose. Please know their meanings beforehand, and heed them.

Important safety instruction

The followings are important instructions for safely using the product. %e sure to

follow them always when handling the product. The manufacturer assumes no

responsibility for any damage caused by mishandling that is beyond normal usage

de¿ned in these manuals of this projector.

WARNING

This entry warns of a risk of serious personal injury or even death.

CAUTION This entry warns of a risk of personal injury or physical damage.

NOTICE This entry notices of fear of causing trouble.

WARNING ŹNever use the product in or after an abnormality (ex. giving

off smoke, smelling strange, took a liquid or an object inside, broken, etc.) If an

abnormality should occur, unplug the projector urgently.

ŹSituate the product away from children and pets.

Ź.eep small parts away from children and pets. If swallowed, consult a

physician immediately for emergency treatment.

ŹDo not use the product when there is fear of a thunderbolt.

ŹUnplug the projector from the power outlet if the projector is not used for the

time being.

ŹDo not open or remove any portion of the product, unless the manuals direct

it. )or internal maintenance, leave it to your dealer or their service personnel.

ŹUse only the accessories speci¿ed or recommended by the manufacturer.

ŹDo not modify the projector or accessories.

ŹDo not let any things or any liquids enter to the inside of the product.

ŹDo not wet the product.

Do not place the projector where any oils, such as cooking or machine oil, are used.

Oil may harm the product, resulting in malfunction, or falling from the mounted position.

Do not use adhesive such as threadlocker, lubricant and so on.

ŹDo not apply a shock or pressure to this product.

- Do not place the product on an unstable place such as the uneven surface

or the leaned table.

- Do not place the product unstably. Place the projector so that it does not

protrude from the surface where the projector is placed on.

- Place your hands on the grip on the bottom of the projector when carrying

the projector.

- Remove all the attachments including the power cord and cables, from the

projector when carrying the projector.

Do not look into the lens and the openings on the projector, while the lamp is on,

since the projection ray may cause a trouble on your eyes.

Do not approach the lamp cover and the exhaust vents, while the projection lamp

is on. Also after the lamp goes out, do not approach them for a while, since too hot.

ENGLISH

Regulatory notices

About Electro-Magnetic Interference

This is a Class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

This product may cause interference if used in residential areas. Such use must

be avoided unless the user takes special measures to reduce electromagnetic

emissions to prevent interference to the reception of radio and television

broadcasts.

In Canada

CAN ICES-3(A) NM%-3(A).

In the US and places where the FCC regulations are applicable

This device complies with part 15 of the )CC Rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the )CC Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential

area is likely to case harmful interference in which case the user will be required to

correct the interference at his own expense.

INSTRUCTIONS TO USERS: Some cables have to be used with the core set.

Use the accessory cable or a designated type cable for the connection. )or cables

that have a core only at one end, connect the core to the projector.

CAUTION: Changes or modi¿cations not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

As with any bright source, do not

stare into the direct beam, RG2

IEC 62471-5:2015.

Contents of package

Your projector should come with the items shown below. Check that all the items

are included. Require of your dealer immediately if any items are missing.

Refer to ¿gure F-7 at the back of this manual.

(1) Remote control with the two AA batteries

(2) Power cord (x2)

(3) Computer cable

(4) Lens cover

(5) User’s manual *

* This is the basic manual on the product. Visit our website to get the detailed manuals and the

latest information on the product.

(6) Security label

(7) Wireless adapter

(8) Terminal cover

() HDMI cable holder (x3)

(10) Cable tie (x3)

(11) Cable tie (x1)

(12) Hook metal

(13) Screw

NOTE • .eep the original packing materials for future reshipment. %e sure to

use the original packing materials when moving the projector.

Regulatory notices (continued)

WARNING Ź.eep small parts away from children and pets. Take care

not to put in the mouth. If swallowed, consult a physician immediately for

emergency treatment.

Disposal of Old Equipment and Batteries Only for European

Union and countries with recycling systems

The above mark is in compliance with the Waste Electrical and Electronic

Equipment Directive 2012/19/EU (WEEE). The mark indicates the

requirement NOT to dispose the equipment including any spent or

discarded batteries as unsorted municipal waste, but use the return and

collection systems available. If the batteries or accumulators included

with this equipment display the chemical symbol Hg, Cd, or Pb, then it

means that the battery has a heavy metal content of more than 0.0005%

Mercury, or more than 0.002% Cadmium or more than 0.004% Lead.

Note for the battery symbol (bottom symbol):

This symbol

might be used in combination with a chemical symbol. In this case it

complies with the requirement set by the Directive for the chemical involved.

ENGLISH

Preparing for the remote control

Please insert the batteries into the remote control before using it. If the remote

control starts to malfunction, try to replace the batteries. If you will not use the

remote control for long period, remove the batteries from the remote control and

store them in a safe place.

1. Remove the battery cover.

2. Align and insert the two AA batteries

according to their plus and minus

terminals as indicated in the remote

control. (Use the appropriate AA

carbon-zinc or alkaline batteries (non-

rechargeable) in accordance with laws

and regulations.)

3. Put the battery cover back to the former state.

WARNING ŹAlways handle the batteries with care and use them only as

directed. Improper use may result in battery explosion, cracking or leakage,

which could result in ¿re, injury and/or pollution of the surrounding environment.

• When replacing the batteries, replace both of the batteries with new batteries

of the same type. Do not use a new battery with a used battery.

• %e sure to use only the batteries speci¿ed. Do not use batteries of different

types at the same time. Do not mix a new battery with used one.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• .eep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

•

Do not place a battery in a ¿re or water. .eep batteries in a dark, cool and dry place.

•

If you observe battery leakage, wipe out the leakage and then replace a battery.

If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

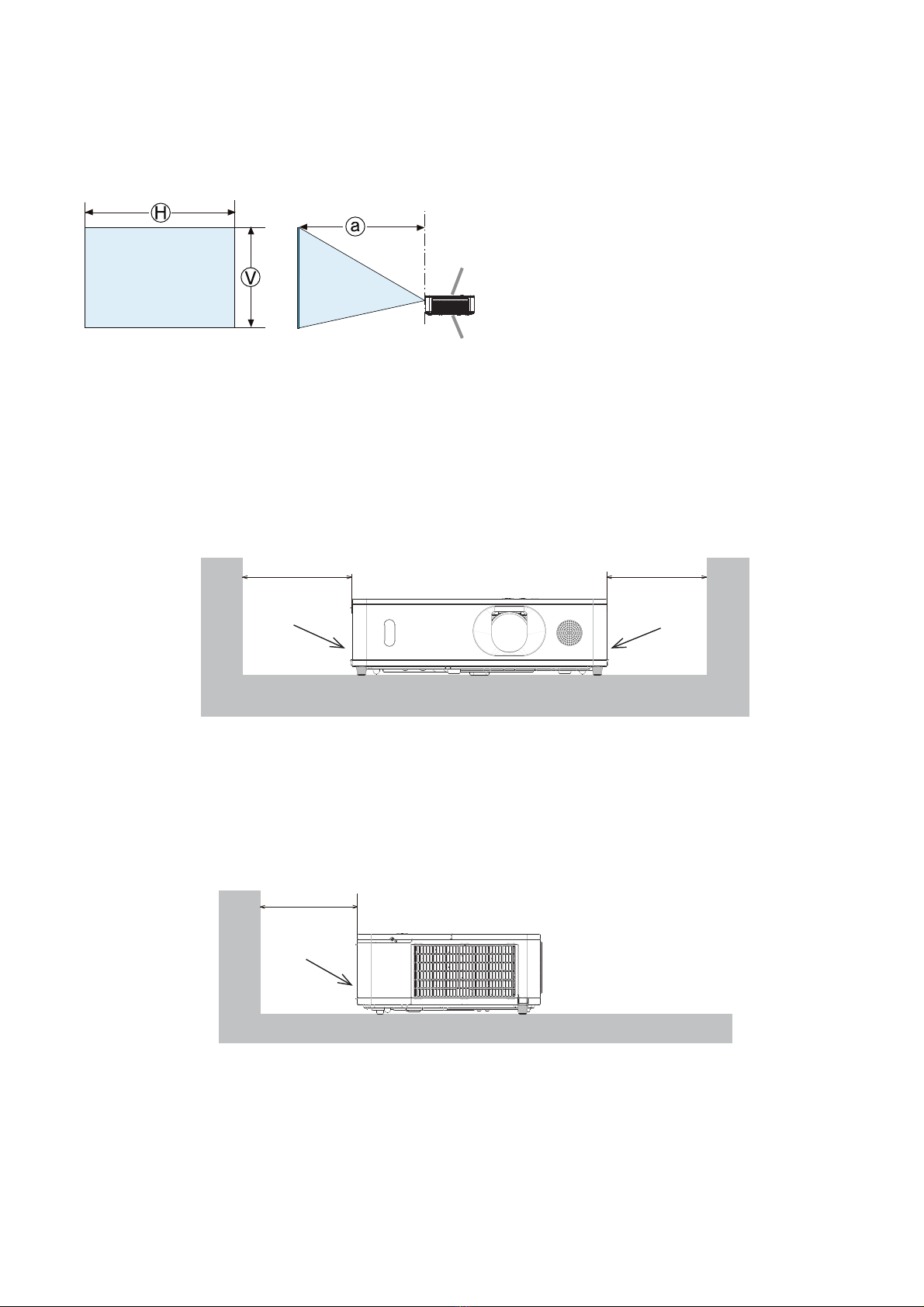

Arrangement

Refer to tables T-1 to T-2 at the back of this manual as well as the following to

determine the screen size and projection distance. The values shown in the table

are calculated for a full size screen.

Projector top

Projector bottom

Ⓗ×Ⓥ : Screen size

ⓐ:

Projection distance

(from the front of the

projector unit)

Secure a clearance of 50cm or greater between the exhaust vents and walls, and

a clearance of 30cm or greater between the intake vents and walls. Assume that

there is enough clearance in the front, back, and top of the projector in the ¿gure

below.

Secure a clearance of 30cm or greater between the intake vents and walls.

Assume that there is enough clearance in the front, sides, and top of the projector

in the ¿gure below.

(continued on next page)

50cm or greater

Intake

vents

Exhaust

vents

30cm or greater

Intake

vents

ENGLISH

WARNING ŹInstall the projector where you can access the power outlet

easily.

ŹInstall the projector in a stable horizontal position.

• Do not use any mounting accessories except the accessories speci¿ed by the

manufacturer. Read and keep the manuals of the accessories used.

• )or special installation such as ceiling mounting, be sure to consult your

dealer beforehand. Speci¿c mounting accessories and services may be

required.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise speci¿ed

in the manual.

ŹDo not install the projector near thermally conductive or Àammable things.

ŹDo not place the projector where any oils, such as cooking or machine oil, are

used.

ŹDo not place the projector in a place where it may get wet.

ŹDo not block the intake vents and exhaust vents of the projector. If the intake

vents and exhaust vents of the projector are blocked, the accumulated inside

heat may cause ¿re.

CAUTION ŹPlace the projector in a cool place with suf¿cient ventilation.

• Do not stop up, block nor cover the projector's vent holes.

• Do not place the projector at places that are exposed to magnetic ¿elds, doing

so can cause the cooling fans inside the projector to malfunction.

ŹAvoid placing the projector in smoky, humid or dusty place.

• Do not place the projector near humidi¿ers.

NOTICE ŹPosition the projector to prevent light from directly hitting the

projector’s remote sensor.

ŹDo not place the product in a place where radio interference may be caused.

ŹSet the ALTITUDE MODE of the SERVICE item in the OPTION menu

correctly. If the projector is used with a wrong setting, it may cause damage to

the projector itself or the parts inside. )or details, see User’s Manual -

Operating Guide. (1)

• When the temperature inside the projector rises high, it may cause the

high rotation of the fan for cooling temporarily.

NOTE

Arrangement (continued)

Connecting with your devices

%efore connecting the projector to a device, consult the manual of the device to

con¿rm that the device is suitable for connecting with this projector and prepare

the required accessories, such as a cable in accord with the signal of the device.

Consult your dealer when the required accessory did not come with the product or

the accessory is damaged.

After making sure that the projector and the devices are turned off, perform the

connection, according to the following instructions. Refer to ¿gures F-1 to F-4 at the

back of this manual.

)or details, see User’s Manual - Operating Guide. (1) %efore connecting the

projector to a network system, be sure to read User’s Manual - Network Guide

too. (1)

Attaching the wireless adapter

1. Turn the projector off, and unplug the power

cord. Allow the projector to suf¿ciently cool

down.

2. Pick and pull up the ¿lter cover knobs to

take it off.

3. Attach the wireless adapter to the

projector, paying attention to the direction

of the adapter.

4. Put the ¿lter cover back into the place.

)ilter cover

knobs

Wireless adapter

ENGLISH

WARNING ŹUse only the appropriate accessories. Otherwise it could

cause a ¿re or damage the projector and devices.

• Use only the accessories speci¿ed or recommended by the projector’s

manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. %e careful not to damage the

accessories. Route a cable so that it is neither stepped on nor pinched out.

Heat may build up in the wireless adapter, to avoid possible burns

disconnect the projector power cord for 10 minutes before touching the adapter.

CAUTION Ź)or a cable with a core at only one end, connect the end with

the core to the projector. That may be required by EMI regulations.

Ź%efore connecting the projector to a network system be sure to obtain the

consent of the administrator of the network.

Do not connect the LAN port to any network that might have the excessive

voltage.

The designated wireless adapter that is sold as an option is required to use the

wireless network function of this projector. %efore connecting the wireless adapter,

turn off the power of the projector and disconnect the power cord.

NOTE • Do not turn on or off the projector while connected to a device in

operation, unless that is directed in the manual of the device.

• Some input ports are selectable in the use. )or details, see User's Manual -

Operating Guide. (1)

• %e careful not to mistakenly connect a connector to a wrong port.

Attaching the terminal cover

Insert the two claws of the Terminal cover into the hole of

the case and con¿rm Hook is ¿tting into the case.

Terminal cover

When detaching the Terminal cover, push the Hook

in the direction of the arrow and pull it forward.

Claw

Hook

NOTE •

This is a Class A product. When wiring a signal cable or a communication

cable (for example, a LAN cable) close to this product, it may cause radio interference

in which case the user may be required to take adequate measures.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hitachi Projecteur

Hitachi

Hitachi CPX10WN Manuel utilisateur

Hitachi

Hitachi CP-X9110 Manuel utilisateur

Hitachi

Hitachi CP-S225 Manuel utilisateur

Hitachi

Hitachi CP-EX3051WN Manuel utilisateur

Hitachi

Hitachi Projector Manuel d'installation et d'exploitation

Hitachi

Hitachi CP-X2 series Manuel utilisateur

Hitachi

Hitachi CPX251 - 2000 Lumen XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-X380W Manuel d'utilisation et d'entretien

Hitachi

Hitachi X308 - CP XGA LCD Projector Document technique

Hitachi

Hitachi CPX1 Series Manuel utilisateur

Hitachi

Hitachi CP-X4020E Manuel utilisateur

Hitachi

Hitachi CP-WX3015WN Manuel utilisateur

Hitachi

Hitachi X807 - CP XGA LCD Projector Instructions d'installation et d'entretien

Hitachi

Hitachi ED-X10 Manuel utilisateur

Hitachi

Hitachi CP-S318 series Manuel utilisateur

Hitachi

Hitachi CP-WU8460 Manuel utilisateur

Hitachi

Hitachi Innovate ED-X26 Manuel utilisateur

Hitachi

Hitachi CP-X2514WN Manuel utilisateur

Hitachi

Hitachi CP-X980W Manuel utilisateur

Hitachi

Hitachi CP-X430W Manuel utilisateur

Hitachi

Hitachi CP-X380 Manuel utilisateur

Hitachi

Hitachi CP-AW3019WNM Manuel utilisateur

Hitachi

Hitachi CP-SX12000 Manuel utilisateur

Hitachi

Hitachi CP-X2541WN Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
