ENGLISH

Liquid Crystal Projector

CP-X870W

USER'S MANUAL, Vol. 1

Please read this user's manual thoroughly to ensure correct usage through understanding.

00CP-X380W01.11.1911:53AMページ2

LCD Projector CP-X870

USER'S MANUAL

USER'S MANUAL Vol.1 (Basic)

Page

PROJECTOR FEATURES................2

PREPARATIONS..............................2

PART NAMES...................................4

SETTING UP

THE PROJECTOR............................6

CONNECTING

YOUR DEVICES................................8

USING THE REMOTE

CONTROL.......................................13

TURNING ON THE POWER...........15

TURNING OFF THE POWER .........17

ADJUSTING THE VOLUME ...........18

TEMPORARILY MUTING

THE SOUND....................................18

ADJUSTING THE POSITION..........19

USING THE AUTOMATIC

ADJUSTMENT FEATURE..............20

CORRECTING KEYSTONE

DISTORTIONS................................21

Page

USING THE MAGNIFY

FEATURE........................................22

FREEZING THE SCREEN ..............22

ADJUSTING SCREEN WITH

ONE-TOUCH...................................23

SELECTING THE ASPECT

RATIO..............................................24

TEMPORARILY BLANKING

THE SCREEN..................................24

DISPLAYING CHILD WINDOW

(P. IN. P: Picture in Picture)..........24

USING THE MENU

FUNCTIONS....................................25

OPERATING THE PC SCREEN.....26

THE LAMP ......................................27

THE AIR FILTER.............................29

OTHER CARE.................................31

CONTENTS

Thank you for purchasing this projector.

• The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual

• The reproduction, transmission or use of this document or contents is not permitted without express

written authority.

TRADEMARK ACKNOWLEDGEMENT :

• PS/2, VGA and XGA are registered trademarks of the International Business Machines Corporation.

• Apple, Mac and ADB are registered trademarks of Apple Computer, Inc.

• VESA and SVGA are trademarks of the Video Electronics Standard Association.

• Windows is a registered trademark of Microsoft Corporation.

• All other trademarks are the property of their respective owners.

NOTE

WARNING • Please read the accompanying manual “SAFETY

INSTRUCTIONS” and this “USER'S MANUAL” thoroughly to ensure correct

usage through understanding. After reading, store this instruction manual in a

safe place for future reference.

01CP-X870Vol1/E-責03.1.94:19PMページ1

●

Ultra High Brightness

Crisp, ultra-bright presentations is achieved

by using a UHB (ultra high brightness) lamp

and a highly efficient optical system

●

Partial Magnification Function

Interesting parts of images can be magnified

for closer viewing

●

One Touch Function

Just press the ONE TOUCH button to

automatically retrieve input signals, calibrate

images, and correct keystone distortion

PREPARATIONS Your projector should come with the items

shown below. Check to make sure that all the

items are included. Contact your dealer if

anything is missing.

Projector

(with Lens Cap)

ENGLISH

DEUTSCH

FRANÇAIS

ITALIANO

ESPAÑOL

NEDERLANDS

NORSK

PORTGÊS

中中文文

REGULATORY

NOTICES

USER'S MANUAL Vol.1 Basic

Pleaseread this user's manual thoroughly to ensure correct usage through understanding.

BEDIENUNGSANLEITUNG Teil 1 Grundlagen

Bittelessen Sie diese Benutzerhandbuch zugunsten der korrekten Bedienung aufmerksam.

MANUEL D'UTILISATION Vol.1Fondements

Nousvous recommandons de lire attentivement ce manuel pour bien assimiler le fonctionnement de

l'appareil.

MANUALE D'ISTRUZIONI Vol.1 Informazioni di base

Vipreghiamo voler leggere attentamente il manuale d'istruzioni in modo tale da poter comprendere

quantoriportato ai fini di un corretto utilizzo del proiettore.

MANUAL DE USUARIO Vol.1 Básico

Leacuidadosamente este manual del usuario para poder utilizar corretamente el producto.

GEBRUIKSAANWIJZING Vol.1 Basis

Leesvoor het qebruik alstublieft deze handleiding aandachtig door, om volledig profijt te hebben van

deuitgebreide mogelijkheden.

BRUKERHÅNDBOK Vol.1 Grunnleggende

Vennligstles denne bruksanvisningen grundig for å være garantert driftssikker bruk.

NSTRUÇÕES DO PROPRIETÁRIO Vol.1 Básico

Paraassegurar o uso correto do equipamento, por favor leia atentamente este manual do utilizador.

Liquid Crystal Projector

CP-X870

(CP-X870W)

User's Manuals

(Vol.1/Vol.2)

Safety Instructions

Soft carrying case

Power cord

(US Type)

RS-232C

adapter

Power cord

(UK Type) Power cord

(Europe Type)

RGB cable

Remote control

Two AA batteries

(for the remote

control)

Video/Audio cable

PROJECTOR

FEATURES

This liquid crystal projector is used to project

various computer signals as well as NTSC / PAL /

SECAM video signals onto a screen. Little space

is required for installation and large images can

easily be realized.

• Keep the original packing material for future reshipment.

NOTE

STANDBY/ON

VIDEO

DOWN

BLANK

ASPECT

PUSH

LASER

INDICATOR

LASER

RGB

FOCUS

ENTER

OFF

ESC MENU RESET

POSITION

MAGNIFY VOLUME

MUTE

WIRELESS KEYSTONE

FREEZE

ONE TOUCH

AUTO

PinP

ZOOM PAG E

01CP-X870Vol1/E-責03.1.94:19PMページ2

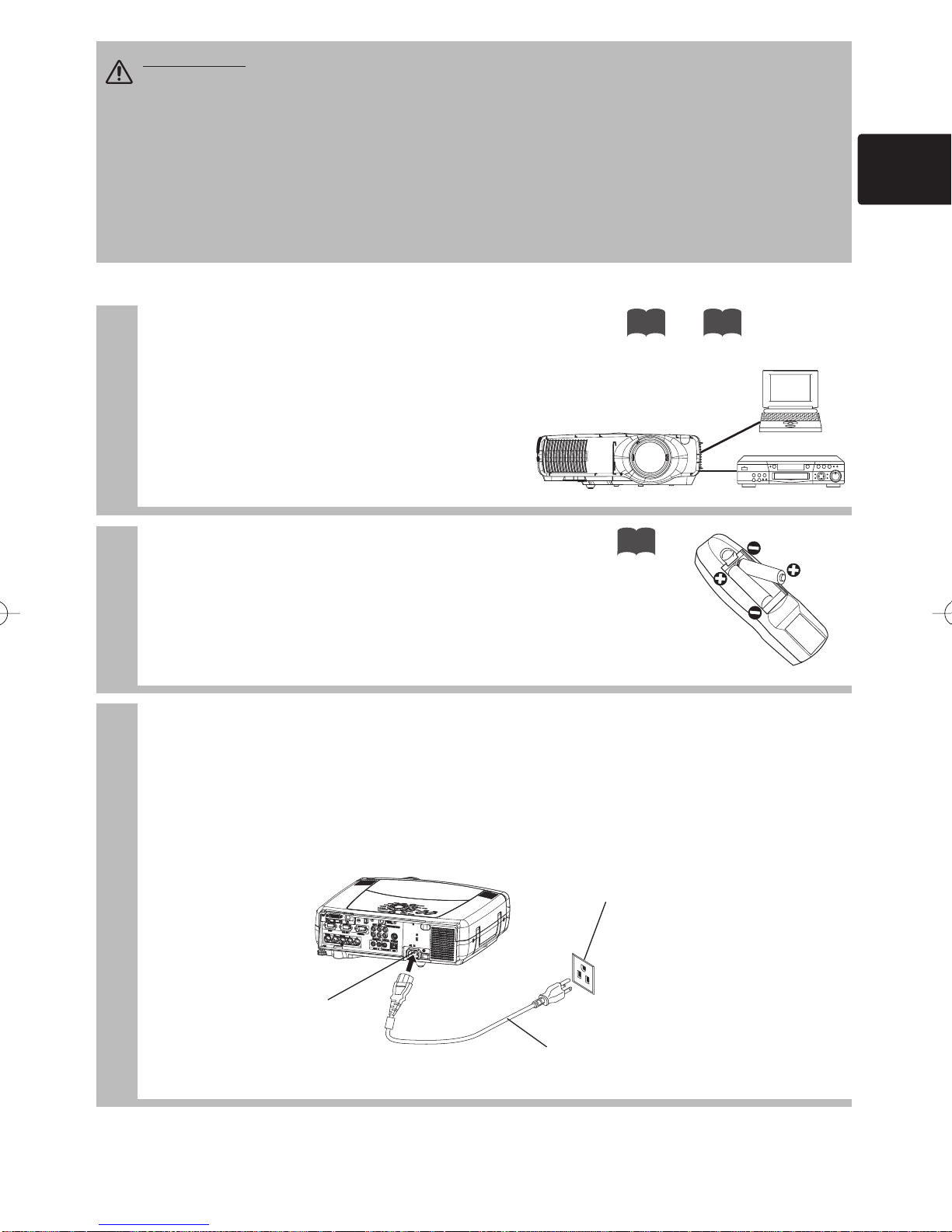

1Connect your devices to the projector

Connect your computer, VCR and/or other

devices you will be using to the projector.

Insert the batteries into the remote

control

3Connect the power cord

(1)

Connect the connector of the electrical power cord to the AC inlet of the main unit.

(2) Firmly plug the power cord's plug into the outlet

WARNING Precautions to observe in regards to the power cord: Please use extra

caution when connecting the projector's power cord as incorrect or faulty

connections may result in FIRE AND/OR ELECTRICAL SHOCK. Please adhere to the

following safety guidelines to insure safe operation of the projector:

•

Only plug the power cord into outlets rated for use with the power cord's specified voltage range.

• Only use the power cord that came with the projector.

• NEVER ATTEMPT TO DEFEAT THE GROUND CONNECTION OF THE THREE-

PRONGED PLUG!

• Make sure that you firmly connect the power cord to the projector and wall outlet.

〜

812

(1)

(2)

Power outlet

Power cord

AC inlet

01CP-X870Vol1/E-責03.1.94:19PMページ3

PART NAMES The Projector Indicates the

corresponding

reference page

Air filter

Elevator button

Elevator screw

COMPONENT indicator

S-VIDEO indicator 16

VIDEO indicator 16

DVI indicator 16

BNC indicator 16

RGB indicator 16

INPUT dial 16

ZOOM

button

FOCUS button

RESET button

MENU button

ONE TOUCH button

KEYSTONE button

TEMP indicator

LAMP indicator

Lens

Remote sensor

Lens cap 15

Elevator feet 6

Remote sensor

S-VIDEO IN port

VIDEO IN port

DVI port 11

RGB port 10

BNC port 11

AUDIO IN R/L port 12

AUDIO IN 1/2 port

AUDIO OUT port

REMOTE CONTROL port

CONTROL port 10

WIRELESS & NETWORK

MODULE port Vol.2

RGB OUT port 12

USB port

COMPONENT VIDEO port 12

Power switch

STANDBY/ON

INPUT KEYSTONE

RESET

LANP

TENP

ONE TOUCH

RGB

BNC

DVI

VIDEO

S-VIDEO

COMPONENT

FOCUS ZOOM

Control Panel

AC power inlet

STANDBY/ON button 15

Vol.2

01CP-X870Vol1/E-責03.1.94:19PMページ4

The Remote Control

ZOOM

buttons

Right mouse button

VIDEO button 16

LASER INDICATOR 14 RGB button

LASER button

FOCUS buttons 16

PAGE buttons

BLANK button 24

ASPECT button 24

ESC button 25

MENU button 25

POSITION button 19

MAGNIFY buttons 22

KEYSTONE button 21

REMOTE CONTROL port 14

Left /Right

Key buttons 25

Lever switch (*)

RESET button

AUTO button

PinP button

VOLUME button

MUTE button

FREEZE button

ONE TOUCH button

Battery cover

(The back)

STANDBY/ON

VIDEO

DOWN

BLANK

ASPECT

PUSH

LASER

INDICATOR

LASER

RGB

FOCUS

ENTER

OFF

ESC MENU RESET

POSITION

MAGNIFY VOLUME

MUTE

WIRELESS KEYSTONE

FREEZE

ONE TOUCH

AUTO

PinP

ZOOM PAGE

STANDBY/ON button

Mouse cursor movement

Left mouse click

Right mouse click

* Using the lever switch

Flip toward disk pad : Up ( ) key

Flip toward MENU button

: Down ( ) key

Press in center : ENTER button

Inside of the Battery cover

Laser switch

1: enables the laser function.

: disables the laser function.

WIRELESS button Vol.2

Disk pad

01CP-X870Vol1/E-責03.1.94:19PMページ5

Adjusting the Projector's Elevator Feet

1Press and hold in the elevator

buttons

2Raise or lower the projector to the

desired height and then release the

elevator buttons

When you release the elevator buttons, the elevator

feet will lock into position.

3Turn the elevator screw to fine tune.

If the surface on which the projector is placed, or the screen is tilted, use the

elevator feet and elevator screw to adjust the projection angle of the main unit.

The adjustment range of the elevator feet is 0 to 10 degrees.

CAUTION •

Install the projector in a suitable environment according to instructions

of the accompanying manual “SAFETY INSTRUCTIONS”and this manual.

•If you press the elevator buttons without holding the projector, the projector might

crash down, overturn, smash your fingers and possibly result in malfunction. To

prevent damaging the projector and injuring yourself, ALWAYS HOLD THE

PROJECTOR whenever using the elevator buttons to adjust the elevator feet.

•An installation angle should be adjusted within the specified adjustment range. The

adjustment beyond the range may become the cause of shortening the lamp life.

SETTING UP THE PROJECTOR

Elevator button

Elevator feet

Elevator screw

01CP-X870Vol1/E-責03.1.94:19PMページ6

Refer to the illustrations and tables below to determine the screen size and

projection distance.

Adjusting the Screen Size and Projection Distance

Top view

Lens center

The screen

Side view

Top view

Lens center

The screen

Side view

If 4:3 aspect ratio

If 16:9 aspect ratio

The values shown in the table are calculated for a full size screen

a:Distance from the projector to the screen (±10%)

b:Distance from the lens center to the bottom of the screen (±10%)

c:Distance from the lens center to the top of the screen (±10%)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 42 (1.1) 56 (1.4) 1 (2) 17 (44)

40 (1.0) 57 (1.4) 75 (1.9) 1 (3) 23 (58)

50 (1.3) 72 (1.8) 94 (2.4) 1 (4) 29 (73)

60 (1.5) 87 (2.2)

113 (2.9)

2 (4) 34 (87)

70 (1.8)

102

(2.6)

133 (3.4)

2 (5) 40 (102)

80 (2.0)

117

(3.0)

152 (3.9)

2 (6) 46 (116)

90 (2.3)

131 (3.3) 171 (4.3)

3 (7) 51 (131)

100 (2.5)

146 (3.7) 190 (4.8)

3 (7) 57 (145)

120 (3.0)

176 (4.5) 229 (5.8)

3 (9) 69 (174)

150 (3.8)

221 (5.6) 287 (7.3)

4 (11) 86 (218)

200 (5.0)

296 (7.5) 383 (9.7)

6 (15)

114 (290)

250 (6.3)

371 (9.4)

479 (12.2)

7 (18)

143 (363)

300 (7.5)

446 (11.3)

576 (14.6)

9 (22)

171 (435)

Screen Size [inch (m)] a [inch (m)] b

[inch (cm)]

Min. Max.

30 (0.8) 45 (1.2) 61 (1.5) 1 (4) 16 (41)

40 (1.0) 62 (1.6) 81 (2.1) 2 (5) 21 (54)

50 (1.3) 78 (2.0)

102 (2.6)

2 (6) 26 (67)

60 (1.5) 94 (2.4)

123 (3.1)

3 (7) 31 (79)

70 (1.8)

111 (2.8)

144 (3.7)

3 (8) 36 (92)

80 (2.0)

127 (3.2) 165 (4.2)

4 (9) 41 (105)

90 (2.3)

143 (3.6) 186 (4.7)

4 (11) 47 (119)

100 (2.5)

160 (4.1) 207 (5.3)

5 (12) 53 (135)

120 (3.0)

192 (4.9) 249 (6.3)

6 (14) 65 (166)

150 (3.8)

241 (6.1) 312 (7.9)

7 (18) 82 (207)

200 (5.0)

322 (8.2)

147 (10.6)

9 (24)

106 (270)

250 (6.3)

404 (10.3)

522 (13.3)

12 (29)

124 (315)

300 (7.5)

485 (12.3)

627 (15.9)

14 (35)

128 (324)

01CP-X870Vol1/E-責03.1.94:19PMページ7

Display monitors

DVD players

VCRs

Laptop computers

Desktop computers

Indicates the

corresponding

reference page

ATTENTION

Precautions to observe when connecting other devices to the projector

•Whenever attempting to connect other devices to the projector, please thoroughly

read the manual of each device to be connected.

•TURN OFF ALL DEVICES prior to connecting them to the projector. Attempting to

connect a live device to the projector may generate extremely loud noises or other

abnormalities that may result in malfunction and/or damage to the device and/or

projector. Refer to the “TECHNICAL”of the USER’S MANUAL (Vol.2) for the pin

assignment of connectors and RS-232C communication data.

•Make sure that you connect devices to the correct port. Incorrect connection may

result in malfunction and/or damage to the device and/or projector.

•Some cables have to be used with core set. Use the accessory cable or a

designated-type cable for the connection. For cables that have a core only at one

end, connect the core to the projector.

•Secure the screws on the connectors and tighten.

CONNECTING YOUR DEVICES

Devices You Can Connect to the Projector

(Refer to this section for planning your device

configuration to use for your presentation.)

CAUTION •Incorrect connecting could result in fire or electrical shock. Please

read this manual and the separate “SAFETY INSTRUCTIONS”.

01CP-X870Vol1/E-責03.1.94:19PMページ8

Ports and Cables

Refer to the table below to find out which projector port and cable to use for connecting a

given device. Use this table for determining which cables to prepare.

* Before using the BNC port, change RGB input to component video input on the BNC menu item of

the INPUT menu.

About Plug-and-Play Capability

•

This projector is compatible with VESA DDC 1/2B. Plug-and-Play can be achieved by connecting

this projector to computers that are VESA DDC (display data channel) compatible. Please take

advantage of this function by connecting the accessory RGB cable to the RGB port (DDC 1/2B

compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

•Plug-and-Play is a system composed of the computer, its operating system and

peripheral equipment (i.e. display devices).

•Please use the standard drivers as this projector is a Plug-and-Play monitor.

NOTE

Function Projector Port Connection Cables

Analog RGB input

RGB

RGB cable

(With D-sub 15-pin shrink jack and inch

thread screws)

BNC(R/CR/PR)(G/Y)(B/CB/PB)(H)(V)

•When BNC (RGB) is selected (*) BNC cable

Analog output RGB OUT

RGB cable

(With D-sub 15-pin shrink jack and inch

thread screws)

DVI input DVI

DVI cable

Audio input from computer

AUDIO IN 1

•

Linked to RGB or DVI port input

Audio/video cable (Stereo mini)

AUDIO IN 2

•

Linked to BNC (RGB) port input (*)

USB mouse control USB

USB cable

PS/2 mouse control

CONTROL

PS/2 mouse cable

ADB mouse control ADB mouse cable

Serial mouse control Serial mouse cable

RS-232C communications RS-232C adapter + RS-232C cable

S video input S-VIDEO IN S-video cable (mini DIN 4-pin jack)

Video input VIDEO IN Audio/video cable

Component video input

COMPONENT(CR/PR)(CB/PB)(Y)

Component video cable

BNC(R/CR/PR)(G/Y)(B/CB/PB)

•When BNC (COMPONENT) is

selected (*)

Audio input from video equipment

AUDIO IN R,L

Audio/video cable or audio cable (RCA jack)

Audio output AUDIO OUT Audio cable (Stereo mini)

Wired remote control signal input

REMOTE CONTROL Audio cable (Stereo mini)

01CP-X870Vol1/E-責03.1.94:19PMページ9

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hitachi Projecteur

Hitachi

Hitachi CPX608 - XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-AX2503 Manuel utilisateur

Hitachi

Hitachi CPX251 - 2000 Lumen XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-X2 series Manuel utilisateur

Hitachi

Hitachi CP-AX3503 Manuel utilisateur

Hitachi

Hitachi CP-X4030WN Manuel utilisateur

Hitachi

Hitachi Innovate CP-X2520 Manuel utilisateur

Hitachi

Hitachi CP-X880 Manuel utilisateur

Hitachi

Hitachi CP-X980W Manuel utilisateur

Hitachi

Hitachi CP-SX635W Manuel utilisateur

Hitachi

Hitachi EDX-3250 Manuel utilisateur

Hitachi

Hitachi CP-X2011 Manuel utilisateur

Hitachi

Hitachi CP-X2511 Series Manuel utilisateur

Hitachi

Hitachi CP-X2511N Manuel utilisateur

Hitachi

Hitachi CP-WX8255A guide Guide d'installation

Hitachi

Hitachi CP-X4021N Manuel utilisateur

Hitachi

Hitachi CP-AW3506 Manuel utilisateur

Hitachi

Hitachi CP-WX3011N Manuel utilisateur

Hitachi

Hitachi CP-A200 Manuel utilisateur

Hitachi

Hitachi CP-RX80 - XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-X615 series Instructions d'installation et d'entretien

Hitachi

Hitachi CP-CX251N Manuel utilisateur

Hitachi

Hitachi ED-X8250 series Manuel utilisateur

Hitachi

Hitachi 8943A Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
