Projector

CPX2/CPX6

User's Manual (detailed)

Technical

Example of PC signal

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1400 x 1050 65.2 60.0 VESA SXGA+ (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution

before connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these

modes will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some

cases. Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution

before being displayed. The best display performance will be achieved if the

resolutions of the input signal and projector panel are identical.

• Automatically adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a

composite sync or a sync on G.

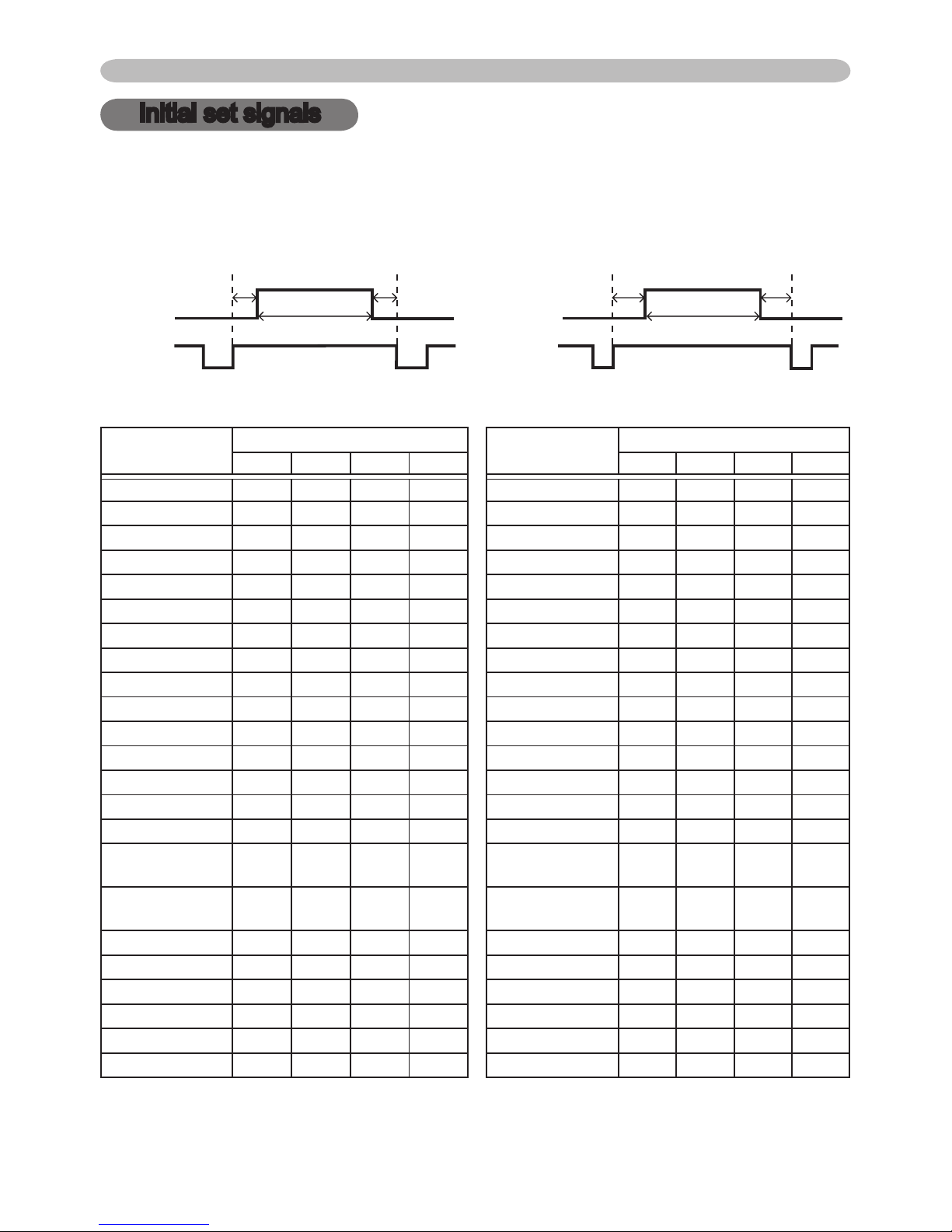

Initial set signals

The following signals are used for the initial settings. The signal timing of some

PC models may be different. In such case, adjust the items V POSITION and H

POSITION in the IMAGE menu.

PC/Signal Horizontal signal timing (μs) PC/Signal Vertical signal timing (lines)

(A) (B) (C) (D) (a) (b) (c) (d)

TEXT 2.0 3.0 20.3 1.0 TEXT 3 42 400 1

VGA (60Hz) 3.8 1.9 25.4 0.6 VGA (60Hz) 2 33 480 10

VGA (72Hz) 1.3 4.1 20.3 0.8 VGA (72Hz) 3 28 480 9

VGA (75Hz) 2.0 3.8 20.3 0.5 VGA (75Hz) 3 16 480 1

VGA (85Hz) 1.6 2.2 17.8 1.6 VGA (85Hz) 3 25 480 1

SVGA (56Hz) 2.0 3.6 22.2 0.7 SVGA (56Hz) 2 22 600 1

SVGA (60Hz) 3.2 2.2 20.0 1.0 SVGA (60Hz) 4 23 600 1

SVGA (72Hz) 2.4 1.3 16.0 1.1 SVGA (72Hz) 6 23 600 37

SVGA (75Hz) 1.6 3.2 16.2 0.3 SVGA (75Hz) 3 21 600 1

SVGA (85Hz) 1.1 2.7 14.2 0.6 SVGA (85Hz) 3 27 600 1

Mac 16" mode 1.1 3.9 14.5 0.6 Mac 16" mode 3 39 624 1

XGA (60Hz) 2.1 2.5 15.8 0.4 XGA (60Hz) 6 29 768 3

XGA (70Hz) 1.8 1.9 13.7 0.3 XGA (70Hz) 6 29 768 3

XGA (75Hz) 1.2 2.2 13.0 0.2 XGA (75Hz) 3 28 768 1

XGA (85Hz) 1.0 2.2 10.8 0.5 XGA (85Hz) 3 36 768 1

1152 x 864

(75Hz) 1.2 2.4 10.7 0.6 1152 x 864

(75Hz) 3 32 864 1

1280 x 960

(60Hz) 1.0 2.9 11.9 0.9 1280 x 960

(60Hz) 3 36 960 1

SXGA (60Hz) 1.0 2.3 11.9 0.4 SXGA(60Hz) 3 38 1024 1

SXGA (75Hz) 1.1 1.8 9.5 0.1 SXGA (75Hz) 3 38 1024 1

SXGA (85Hz) 1.0 1.4 8.1 0.4 SXGA (85Hz) 3 44 1024 1

UXGA (60Hz) 1.2 1.9 9.9 0.4 UXGA (60Hz) 3 46 1200 1

W-XGA (60Hz) 1.7 2.5 16.0 0.8 W-XGA (60Hz) 3 23 768 1

SXGA+ (60Hz) 1.2 2.0 11.4 0.7 SXGA+ (60Hz) 3 33 1050 1

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Display interval (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Display interval (c)

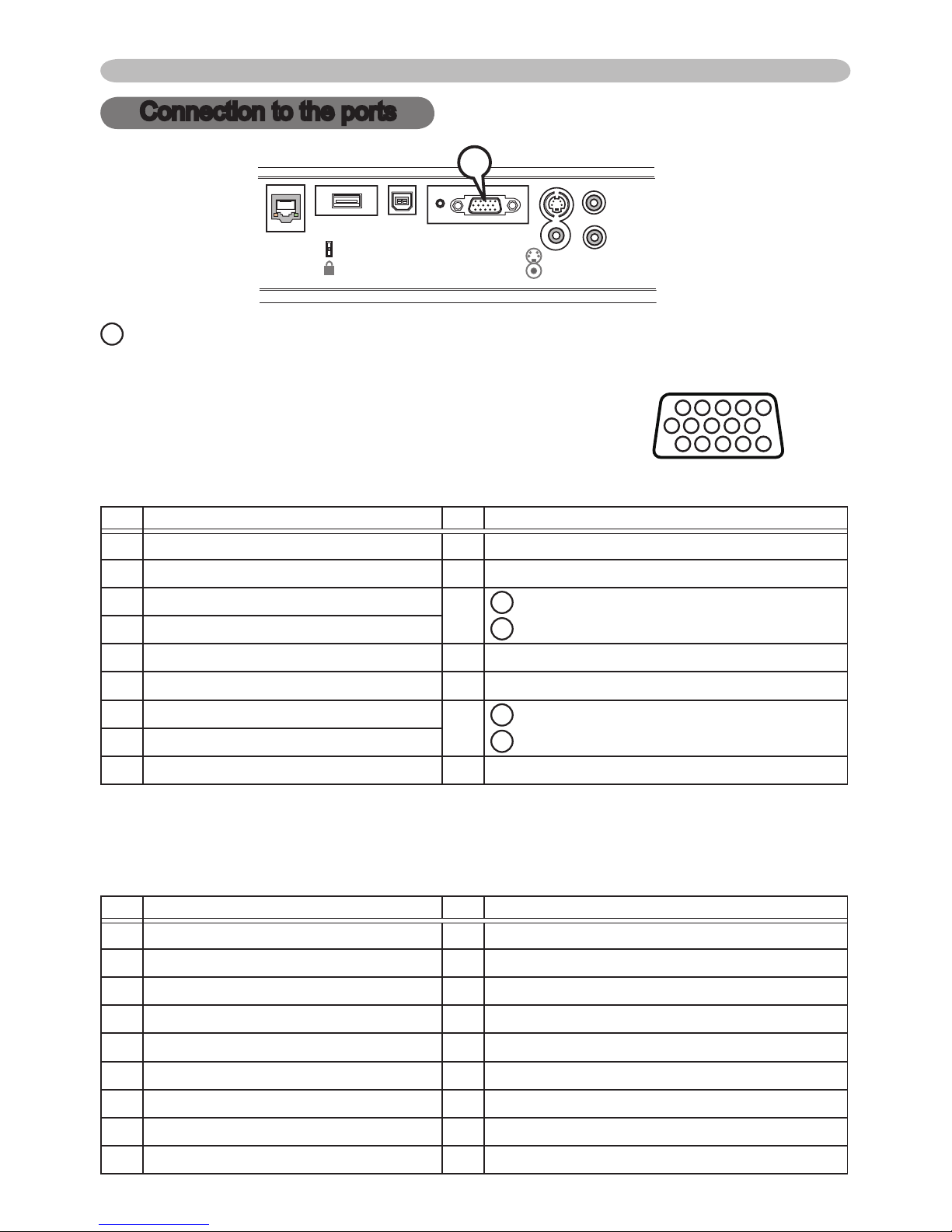

Connection to the ports

ACOMPUTER IN

D-sub 15pin mini shrink jack

(1) for Computer signal

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω

terminated (positive)

• H/V. sync. Signal: TTL level (positive/negative)

• Composite sync. Signal: TTL level

Pin Signal Pin Signal

1Video Red 10 Ground

2Video Green 11 (No connection)

3Video Blue 12 A

: SDA (DDC data)

: (No connection)

4(No connection)

5Ground 13 H. sync / Composite sync.

6Ground Red 14 V. sync.

7Ground Green 15 A

: SCL (DDC clock)

: (No connection)

8Ground Blue

9(No connection) - -

Connection to the ports

109876

54321

141312

(2) for Component signal

• Y : Component video Y, 1.0±0.1 Vp-p, 75 Ω terminator with composite

• CR/PR: Component video CR/PR, 0.7±0.1 Vp-p, 75 Ω terminator

• CB/PB: Component video CR/PR, 0.7±0.1 Vp-p, 75 Ω terminator

Pin Signal Pin Signal

1CR/PR10 Ground

2Y 11 (No connection)

3CB/PB12 (No connection)

4(No connection) 13 (No connection)

5Ground 14 (No connection)

6Ground CR/PR15 (No connection)

7Ground Y - -

8Ground CB/PB- -

9(No connection) - -

COMPUTER IN

USB

USB STORAGE

DC 5V 0.5A

AUDIO OUT

AUDIO IN

S-VIDEO

VIDEO

LAN

COMPUTER IN

USB

USB STORAGE

DC 5V 0.5A

AUDIO OUT

AUDIO IN

S-VIDEO

VIDEO

LAN

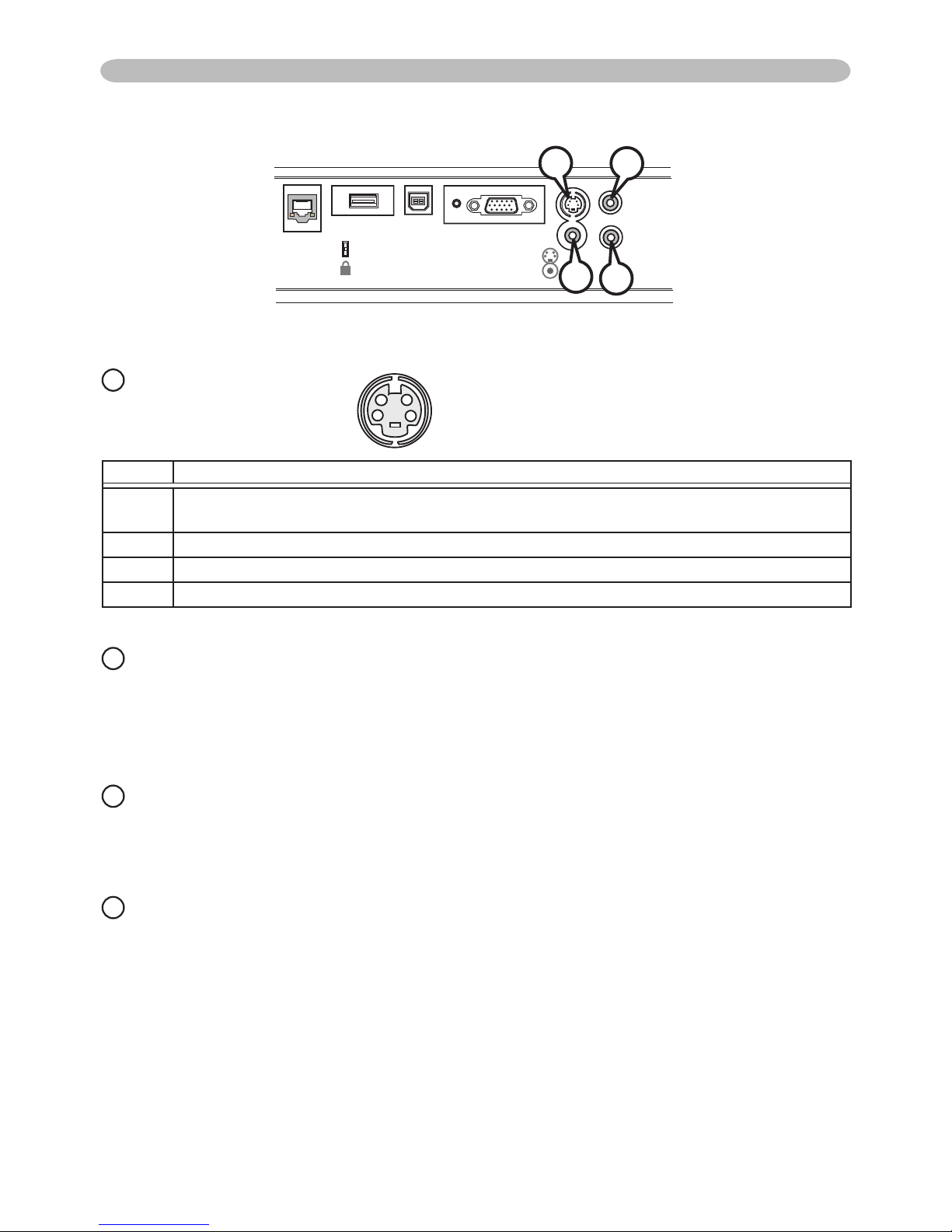

Connection to the ports (continued)

CVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43

• 1.0±0.1Vp-p, 75Ω terminator

AUDIO IN

Ø3.5 stereo mini jack

• 200 mVrms 47kΩ terminator

EAUDIO OUT

Ø3.5 stereo mini jack

• 200 mVrms 1kΩ output impedance

BS-VIDEO

Mini DIN 4pin jack

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2Brightness signal, 1.0Vp-p, 75Ω terminator

3Ground

4Ground

COMPUTER IN

USB

USB STORAGE

DC 5V 0.5A

AUDIO OUT

AUDIO IN

S-VIDEO

VIDEO

LAN

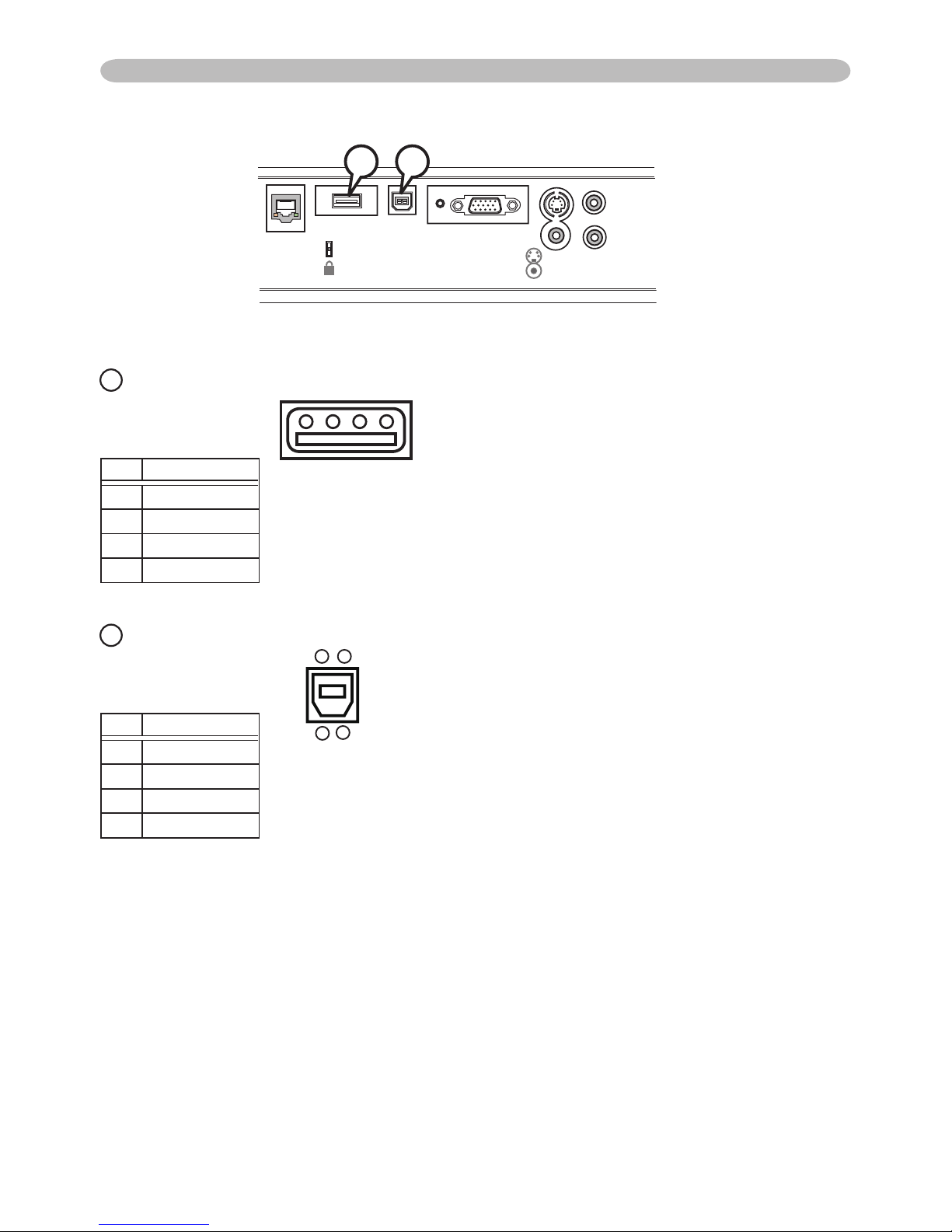

Connection to the ports (continued)

USB STORAGE

USB A type jack

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

USB

USB B type jack

432 1

Pin Signal

1 +5V

2 - Data

3 + Data

4 Ground

F G

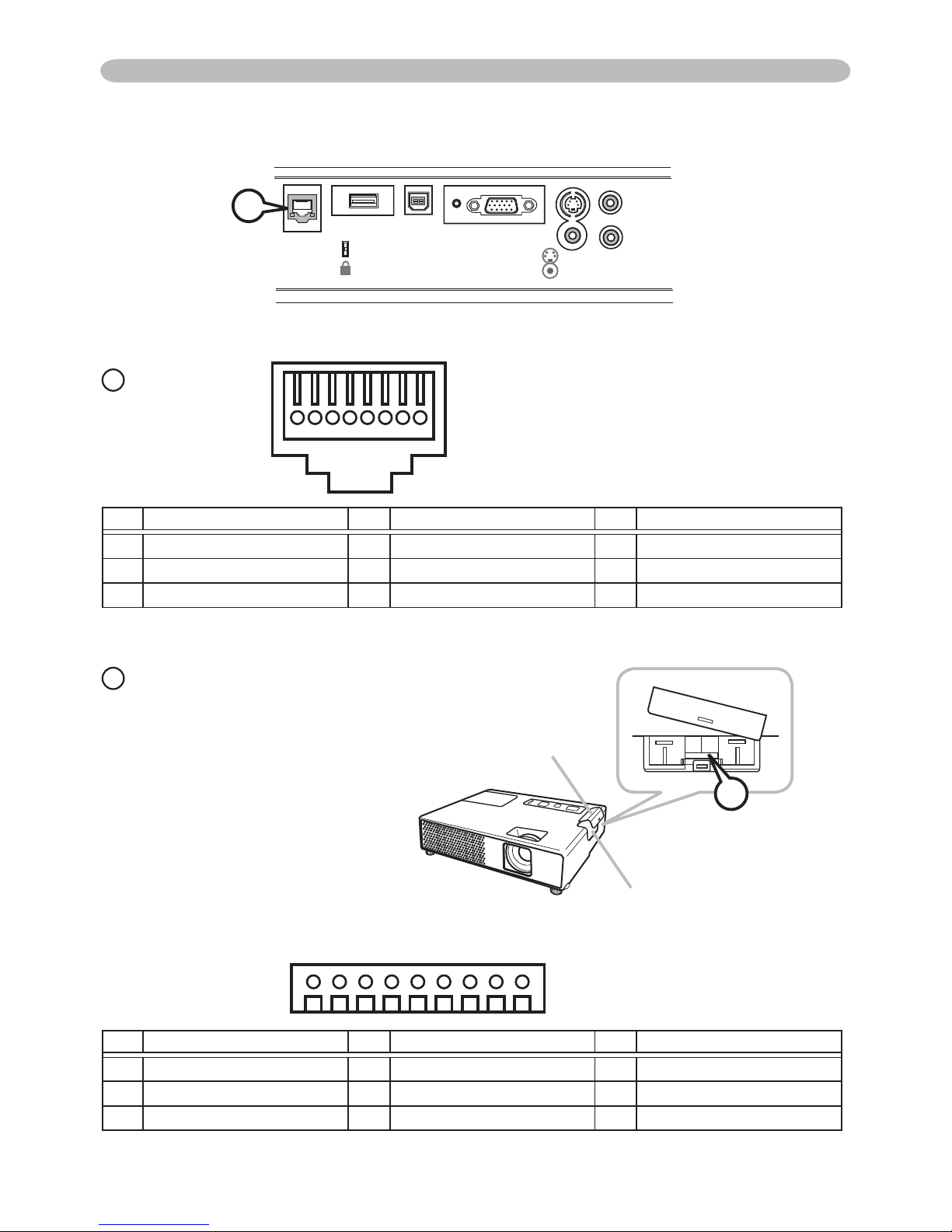

Connection to the ports (continued)

HLAN

RJ-45 jack

Pin Signal Pin Signal Pin Signal

1 TX + 4 - 7 -

2 TX - 5 - 8 CTS-

3 RX + 6 RX - - -

ISD card slot

The SD card slot is in the side

opposite to the lamp cover of the

projector.

SD card slot

Pin Signal Pin Signal Pin Signal

1 CD/DAT 3 4 VDD 7 DAT 0

2 CMD 5 CLK 8 DAT 1

3 VSS 6 VSS 9 DAT 2

8 7 6 5 4 3 2 1 9

876

COMPUTER IN

USB

USB STORAGE

DC 5V 0.5A

AUDIO OUT

AUDIO IN

S-VIDEO

VIDEO

LAN

SD CARD

SDCARD

SD card slot cover

SD card slot

Command Control via the Network

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Command Control Settings

Congure the following items form a web browser when command control is used.

When the authentication setting is enabled, the following settings are required.

Command Control via the Network

Port Settings

Netowrk Control

Port1 (Port: 23)

Port open

Click the [Enable] check box to open [Network

Control Port1 (Port: 23)] to use TCP #23.

Default setting is “Enable”.

Authentication

Click the [Enable] check box for the

[Authentication] setting when authentication

is required.

Default setting is “Disable”.

Network Control

Port2 (Port: 9715)

Port open

Click the [Enable] check box to open [Network

Control Port2 (Port: 9715)] to use TCP

#9715.

Default setting is “Enable”.

Authentication

Click the [Enable] check box for the

[Authentication] setting when authentication

is required.

Default setting is “Enable”.

Security Settings

Network Control

Authentication

Password Enter the desired authentication password.

This setting will be the same for [Network

Control Port1 (Port: 23)] and [Network

Control Port2 (Port: 9715)].

Default setting is blank.

Re-enter

Authentication

Password

Command Control via the Network (continued)

Command Format

[TCP #23]

1. Protocol

Consist of header (7 bytes) + command data (6 bytes)

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high

CRC_low: Lower byte of CRC ag for command data

CRC_high: Upper byte of CRC ag for command data

3. Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5

Action Type Setting code

low high low high low high

Action (byte_0 - 1)

Action Classication Content

1 Set Change setting to desired value.

2 Get Read projector internal setup value.

4 Increment Increment setup value by 1.

5 Decrement Decrement setup value by 1.

6 Execute Run a command.

Requesting projector status (Get command)

(1) Send the following request code from the PC to the projector.

Header + Command data (‘02H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector returns the response code ‘1DH’ + data (2 bytes) to the PC.

Changing the projector settings (Set command)

(1) Send the following setting code from the PC to the projector.

Header + Command data (‘01H’ + ‘00H’ + type (2 bytes) + setting code (2 bytes))

(2) The projector changes the setting based on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

Using the projector default settings (Reset Command)

(1) The PC sends the following default setting code to the projector.

Header + Command data (‘06H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector changes the specied setting to the default value.

(3) The projector returns the response code ‘06H’ to the PC.

Increasing the projector setting value (Increment command)

(1) The PC sends the following increment code to the projector.

Header + Command data (‘04H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector increases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

Command Control via the Network (continued)

Decreasing the projector setting value (Decrement command)

(1) The PC sends the following decrement code to the projector.

Header + Command data (‘05H’ + ‘00H’ + type (2 bytes) + ‘00H’ + ‘00H’)

(2) The projector decreases the setting value on the above setting code.

(3) The projector returns the response code ‘06H’ to the PC.

When the projector cannot understand the received command

When the projector cannot understand the received command, the error code ‘15H’

is sent back to the PC.

Sometimes the projector cannot properly receive the command. In such a case,

the command is not executed and the error code ‘15H’ is sent back to the PC. If

this error code is returned, send the same command again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code ‘1CH’ +

‘xxxxH’ is sent back to the PC.

When the data length is greater than indicated by the data length code, the

projector ignore the excess data code. Conversely when the data length is shorter

than indicated by the data length code, an error code will be returned to the PC.

When authentication error occurred.

When authentication errorr occurred, the error code the ‘1FH’ + ‘0400H’ is sent

back to the PC.

[TCP #9715]

1. Protocol

Consist of header (1 byte) + data length (1 byte) + command data (13 bytes) +

check sum (1 bytes) + connection ID (1 byte).

2. Header

02, Fixed

3. Data Length

Network control commands byte length (0D, Fixed)

4. Command data

Network control commands that start with BE EF (13bytes).

5. Check Sum

This is the value to make zero on the addition of the lower 8 bits from the header

to the checksum.

6. Connection ID

Random value from 0 to 255 (This value is attached to the reply data).

NOTE • Operation cannot be guaranteed when the projector receives an undened

command or data.

• Provide an interval of at least 40ms between the response code and any other code.

• Commands are not accepted during warm-up.

7. Reply Data

The connection ID (the data is same as the connection ID data on the sending

data format) is attached to the Network control commands reply data.

ACK reply: ‘06H’ + ‘xxH’

NAK reply: ‘15H’ + ‘xxH’

Error reply: ‘1CH’ + ‘xxxxH’ + ‘xxH’

Data reply: ‘1DH’ + ‘xxxxH’ + ‘xxH’

Projector busy reply: ‘1FH’ + ‘xxxxH’ + ‘xxH’

Authentication error reply: ‘1FH’ + ‘0400H’ + ‘xxH’

(‘xxH’ : connection ID)

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no

communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success

when authentication is enabled. The projector uses a challenge response type

authentication with an MD5 (Message Digest 5) algorithm. When the projector is

using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind

this received 8 bytes and the authentication password and digest this data with

the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the authentication password is set to “password” and the

random 8 bytes are “a572f60c”.

1) Select the projector.

2) Receive the random 8 bytes “a572f60c” from the projector.

3) Bind the random 8 bytes “a572f60c” and the authentication password

“password” and it becomes “a572f60cpassword”.

4) Digest this bind “a572f60cpassword” with MD5 algorithm.

It will be “e3d97429adffa11bce1f7275813d4bde”.

5) Add this “e3d97429adffa11bce1f7275813d4bde” in front of the commands and

send the data.

Send “e3d97429adffa11bce1f7275813d4bde”+command.

6) When the sending data is correct, the command will be performed and the

reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the

authentication data can be omitted when the same connection.

Command Control via the Network (continued)

Autres manuels pour CP-X2 - XGA LCD Projector

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Hitachi Projecteur

Hitachi

Hitachi CP-X940E Manuel utilisateur

Hitachi

Hitachi CP-WU8460 Manuel utilisateur

Hitachi

Hitachi CP-X5022WN Manuel utilisateur

Hitachi

Hitachi CP-X2 series Manuel utilisateur

Hitachi

Hitachi CP-X980 Manuel utilisateur

Hitachi

Hitachi CP-AW3019WN Manuel utilisateur

Hitachi

Hitachi ED-A100 Manuel d'installation et d'exploitation

Hitachi

Hitachi Innovate ED-X50 Manuel utilisateur

Hitachi

Hitachi CP-WUX645N Manuel utilisateur

Hitachi

Hitachi CP-X440 series Manuel utilisateur

Hitachi

Hitachi CP-X2 series Document technique

Hitachi

Hitachi CP-X1230 Document technique

Hitachi

Hitachi CPX870D Manuel utilisateur

Hitachi

Hitachi CP-X2011 Manuel utilisateur

Hitachi

Hitachi CPX960WA Manuel utilisateur

Hitachi

Hitachi CP-X4021N Manuel utilisateur

Hitachi

Hitachi IPJ-AW250N Instructions d'installation et d'entretien

Hitachi

Hitachi CP-X320 Manuel utilisateur

Hitachi

Hitachi CPX268 - Portable Lcd Projector Manuel utilisateur

Hitachi

Hitachi PJ1065 Manuel utilisateur

Hitachi

Hitachi CP-EX401 Manuel utilisateur

Hitachi

Hitachi CP-SX1350 Series Manuel utilisateur

Hitachi

Hitachi CP-X340W Manuel utilisateur

Hitachi

Hitachi ED-A100 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
