Hitachi CP-SX5600W Manuel utilisateur
YK No.0528E
CP-SX5600W
(C5SXRB)
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT.
Multimedia LCD Projector
October 2002 Digital Media Division
SERVICE MANUAL
Be sure to read this manual and the service manual of CP-SX5500W (YK 0517E) before servicing. This model
is similar to the model CP-SX5500W except the matter mentioned in this manual. To assure safety from fire,
electric shock, injury, harmful radiation and materials, various measures are provided in this Hitachi Multimedia
LCD projector. Be sure to read cautionary items described in the manual to maintain safety before servicing.
Caution
1. When replace the lamp, to avoid burns to your ngers. The lamp becomes too hot.
2. Never touch the lamp bulb with a nger or anything else. Never drop it or give it a shock. They may cause
bursting of the bulb.
3. This projector is provided with a high voltage circuit for the lamp. Do not touch the electric parts of power
unit (main), when turn on the projector.
4. Do not touch the exhaust fan, during operation.
5. The LCD module assembly is likely to be damaged. If replacing to the LCD module assembly, do not hold
the FPC of the LCD module assembly.
6. Use the cables which are included with the projector or specied.
Service Warning
1. Features --------------------------------------------------- 2
2. Service points -------------------------------------------- 2
3. Replacement parts list---------------------------------- 7
Contents
2
CP-SX5600W
3
CP-SX5600W
1. Features
0.9 inches reflecting type liquid crystal panel use.
High brightness, High resolution.
RS-232C communication.
Complies with VESA DDC1/2B specifications.
Right and left reversal, vertical reversal function.
2. Service points
Instruction for cleaning the dust from panel and optical filter
1. Preparation
Please prepare these cleaning materials tools. And, prepare relatively clean room not to work in additional dust,
while removing operation.
1) Swab for cleaning ....P#NX08061, "Cotton stick L147"
2) Air duster (Dust blower, spray can type)
3) Vacuum cleaner
4) Remote control unit for CP-SX5500W/CP-SX5600W
2. Disassemble
1) Please refer to service manual. CP-SX5500W Service Manual YK No.0517E
On the manual, page 16,17,and 18 shows the way to disassemble the set.
2) Remove the upper case and PWB ass’y MAIN.
3) In this case, please attach the "Lamp door" (Page18)and connect two cables(EPOW and EFN1)(Page27).
4) Remove duct cover and packing as shown in Fig 1.
Duct cover
Rivets x2
Screws x3
Packing x3
Fig.1 Removing duct cover and packing
Note: In early production, duct cover was attached by tape instead of rivets.
2
CP-SX5600W
3
CP-SX5600W
5) Remove air intake filter and duct as shown in Fig2.
Air intake filter
Screws x4
Duct
Fig.2 Removing air intake filter and duct
6) Fig.3 shows the location of panels.
Fig.3 Location of LCOS panels
Blue Panel
Red Panel
Green Panel
4
CP-SX5600W
5
CP-SX5600W
3. Maintenance point
Construction of panel and optical filter is shown in Fig.4.
Each color part has same construction.
By using swab and air duster, you can easily
remove dust from panel and optical filter.
Flexible cable
Swab
Panel
Lambda filter
Fig.4 Construction of panels and filter
4. Cleaning the panels and filters.
1) Identify the color of dust.
Re-connect flexible cable of panes to connectors of PWB main.
Turn on the set and lit on the light by using remote control.
Set blank screen to black one by using menu button of remote control.
Color of dust is as follows.
Green spot: Green area
Red spot : Red area
Blue spot: Blue area
2) Identify the position of dust

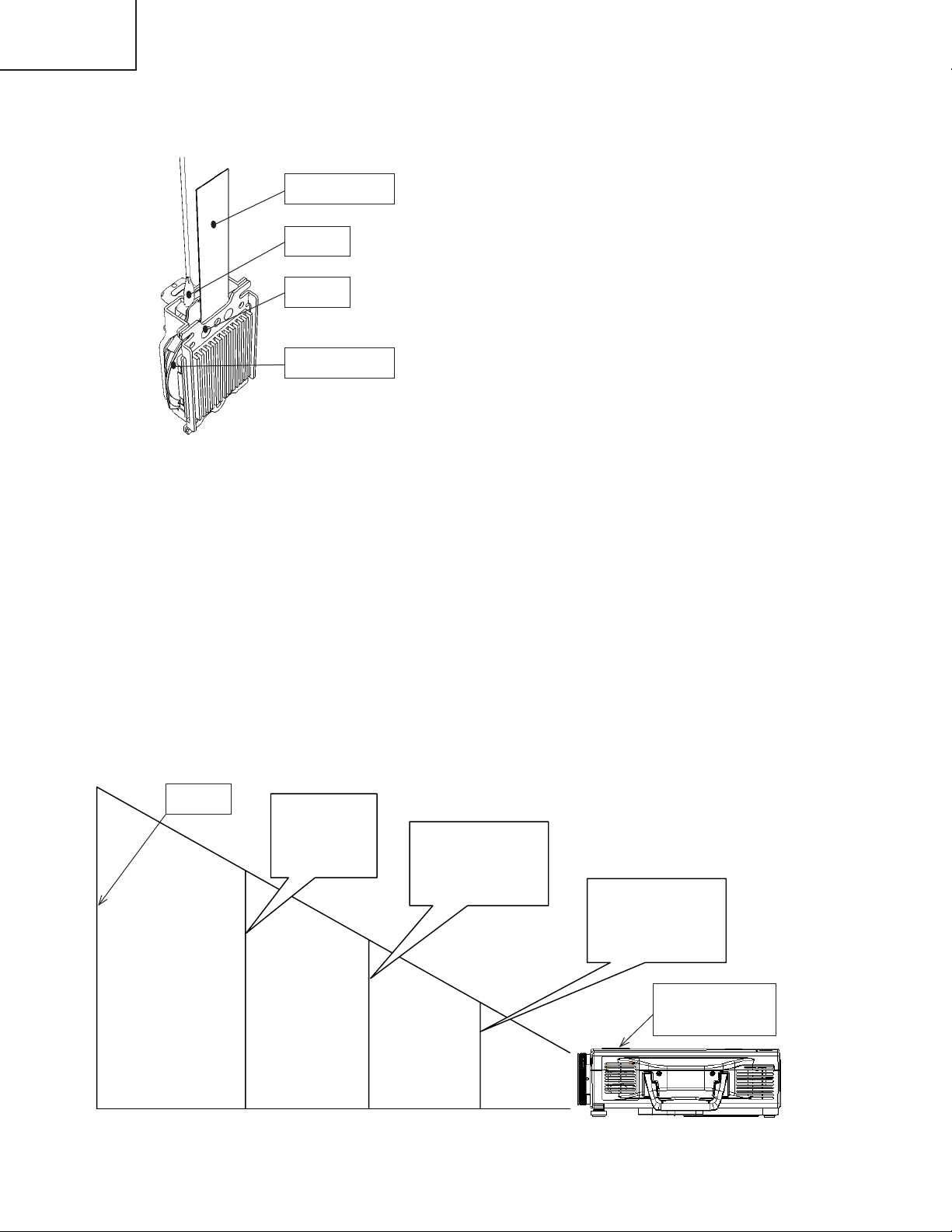

Each color spot has focal point. According to these focal point, you can identify the location of dust on optical
parts. Fig.5 shows the focal point of each surface on optical parts.
Fig.5 Focal point of each surface on optical parts
Screen
Surface of
panel Lambda filter
inside surface
Lambda filter
outside surface
CP-SX5500W
CP-SX5600W
4
CP-SX5600W
5
CP-SX5600W

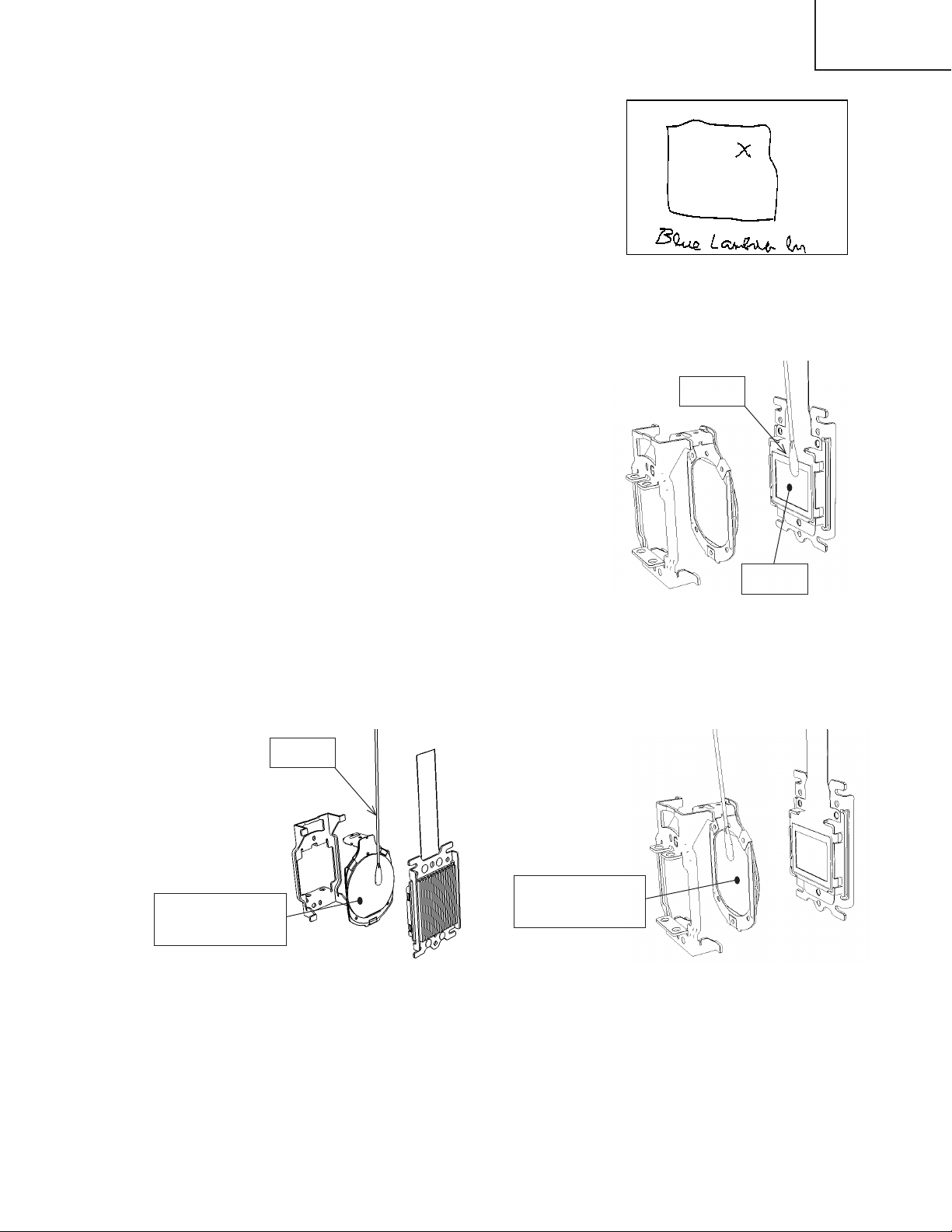

Note: In this step, please make a memo of location of dust on the
screen as shown in Fig.6.
In next step, the memo will help you to find the dust in a white
picture.
3) Clean and remove the dust.
a) Turn off the set and remove all flexible cables of panels and
open the PWB. Two cables (EPOW and EFN1)are needed to
connect.
b) In next step, turn on the set and lit on the lamp. Now you can
see a white picture on the screen.
c) Fig.7 shows the way how to remove the dust on panel surface.
d) By using swab and air duster, remove the dust.
e) In this operation, you can recognize dust and the location of
swab by shadow on the screen.
f) The dust will be pulled by intake fan and exhaust fan. And it will
be lead to external side of the set.
Note: These figures are separated formations and are not real.
Actual formation is shown in Fig4.
g) Fig.8 shows the way to remove the dust on inside surface of
lambda filter.
h) Fig.9 shows the way to remove the dust on outside surface of
lambda filter.
Fig.6 Example of memo
5. Check and re-assembly
1)Re-connect flexible cable of panels to connectors of PWB main.
2)Check the color spot on the screen.
3)If the spot is still exist on the screen, please try to remove again as shown in step 4.
4)Lit off the light and turn off the set.
5)Re-assemble the set.
6)While re-assembling, please clean the intake filter, duct and duct cover by using vacuum cleaner.
Swab
Panel
Fig.7 Cleaning the panel
Inside surface of
lambda filter
Swab
Outside surface
of lambda filter
Fig.8 Cleaning the inside surface of Lambda filter Fig.9 Cleaning the outside surface of Lambda filter
6
CP-SX5600W
7
CP-SX5600W
Notice of AUTO adjustment
Use of AUTO adjustment with the image through RGB input optimizes VPOSI, HPOSI, HSIZE and HPHASE
automatically.
In case that projected image has dark tone around its peripheral, AUTO operation sometimes makes artifacts in the
image, shifts capture area and so on. Those failures are caused by period of image data is not exactly
distinguished to period of blanking on signal processing.
To avoid such phenomena, AUTO function should be used with the full size picture that has bright tone on its
peripheral.
Note
1) The phenomenon at the failure of AUTO adjustment depends on resolution of input source, scene of picture etc.
2) There is no failure above in AUTO with video source through VIDEO, S-VIDEO or COMPONENT input. The reason
is why recognition of input signal’s standard does not need to search the capture range from input signal itself.
Image when AUTO is failed.
Noting image of top or bottom lines.
Shift of the image to East or West.
Artifacts on image. Etc.
Image when AUTO complete with success
6
CP-SX5600W
7
CP-SX5600W
SYMBOL PARTS SYMBOL PARTS
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
1 JP04667 PWB ASS'Y FAN 26 HA00941 POWER UNIT(CIRCUIT)
2 JP04664 PWB ASS'Y SWITCH 27 FH00203 TEMPERATURE SENSOR SWITCHI
3 JP04673 PWB ASS'Y VIDEO 28 GK00654 SPEAKER
4 JP04674 PWB ASS'Y RGB 29 CK31602R EL4332CS
5 JP04995 PWB ASS'Y MAIN 30 EA00464R CPC50 BSVT CONNECTOR
6 MN04291 FILTER ASS'Y 31 EA01402R CPC50 BSHT CONNECTOR
7 PC05312 C5 CONTROL BUTTON 32 EA00282R CPC50 FPHT CONNECTOR
8 PE00161 FOOT RUBBER A 33 EA00932R CPC50 FPVT CONNECTOR
9 PE00162 FOOT RUBBER B 34 EA01034R CPC28 LOW CONNECTOR
10 PH30961 AC DOOR 35 EA00568R CPC28 UP CONNECTOR
11 PV00311 HANDLE 36 DT00421 C5 LAMP UNIT ASS'Y
12 QD08011 LENS CAP
13 QD33073 UPPER CASE ASS'Y
14 QD33095 BOTTOM CASE ASS'Y
15 QD33123 FRONT BEZEL ASS'Y EV01491 POWER SUPPLY CORD(US TYPE) W/CORE
16 QD33141 LAMP DOOR ASS'Y EV01511 POWER SUPPLY CORD(UK TYPE) W/CORE
17 QD33161 FILTER COVER EV01501 POWER SUPPLY CORD(EUROPE TYPE) W/CORE
18 QJ00622 ADJUST FOOT EW06661 RGB-D CABLE(15PIN MALE TO 15 PIN MALE)
19 UE09261 LIGHT UNIT ASS'Y EW06031 3 CONDUCTOR VIDEO/AUDIO CABLE
20 UX07833 LCD/LENS PBS ASS'Y EW06651 COMPONENT CABLE
21 2722448 FUSE EW02753 PS/2-2 MOUSE CABLE W/CORE
22 GS00462 DC FAN(POWER) HL01841 REMOTE CONTROL UNIT W/POINTER
23 GS00611 DC FAN(INTAKE)
24 GS00621 DC FAN(EXHAUST)
25 HA00951 POWER UNIT(BALLAST)
3. Replacement Parts list
PRODUCT SAFETY NOTE : Components marked with a have special characteristics important to safety. Before replacing any of there com-
ponents, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don't degrade the safety of the receiver through improper ser-
vicing.
CP-SX5600W YK No.0528E Digtal Media Division
QR55671 Printed in Japan (S)
