NOTE • Be sure to check jack type, signal level, timing and resolution before

connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these modes

will not be possible with this projector.

• Depending on the input signal, full-size display may not be possible in some cases.

Refer to the number of display pixels above.

• Although the projector can display signals with resolution up to UXGA (1600x1200),

the signal will be converted to the projector’s panel resolution before being displayed.

The best display performance will be achieved if the resolutions of the input signal

and projector panel are identical.

• Automatic adjustment may not function correctly with some input signals.

• The image may not be displayed correctly when the input sync signal is a composite

sync or a sync on G.

• The HDMITM input does not support the signals marked with *.

Projector

CP-AW250N

User's Manual (detailed)

Operating Guide – Technical

Resolution (H x V) H. frequency (kHz) V. frequency (Hz) Rating Signal mode

720 x 400 37.9 85.0 VESA TEXT

640 x 480 31.5 59.9 VESA VGA (60Hz)

640 x 480 37.9 72.8 VESA VGA (72Hz)

640 x 480 37.5 75.0 VESA VGA (75Hz)

640 x 480 43.3 85.0 VESA VGA (85Hz)

800 x 600 35.2 56.3 VESA SVGA (56Hz)

800 x 600 37.9 60.3 VESA SVGA (60Hz)

800 x 600 48.1 72.2 VESA SVGA (72Hz)

800 x 600 46.9 75.0 VESA SVGA (75Hz)

800 x 600 53.7 85.1 VESA SVGA (85Hz)

832 x 624 49.7 74.5 Mac 16” mode

1024 x 768 48.4 60.0 VESA XGA (60Hz)

1024 x 768 56.5 70.1 VESA XGA (70Hz)

1024 x 768 60.0 75.0 VESA XGA (75Hz)

1024 x 768 68.7 85.0 VESA XGA (85Hz)

1152 x 864 67.5 75.0 VESA

1152 x 864 (75Hz)

1280 x 768 47.7 60.0 VESA W-XGA (60Hz)

1280 x 800 49.7 60.0 VESA

1280 x 800 (60Hz)

1280 x 960 60.0 60.0 VESA

1280 x 960 (60Hz)

1280 x 1024 64.0 60.0 VESA SXGA (60Hz)

1280 x 1024 80.0 75.0 VESA SXGA (75Hz)

*1280 x 1024 91.1 85.0 VESA SXGA (85Hz)

1440 x 900 55.9 59.9 VESA WXGA+ (60Hz)

1680 x 1050 65.3 60.0 VESA WSXGA+ (60Hz)

*1600 x 1200 75.0 60.0 VESA UXGA (60Hz)

Example of computer signal

(Type nos. CP-AW250N, CP-AW250NM)

All manuals and user guides at all-guides.com

all-guides.com

Initial set signals

The following signals are used for the initial settings. The signal timing of some

computer models may be different. In such case, adjust the items V POSITION

and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Back porch (b) Front porch (d)

Active video (C)

Data Data

H. Sync. V. Sync.

Sync (A) Sync (a)

Active video (c)

Resolution

(H x V)

Horizontal signal timing (μs) Vertical signal timing (lines) Signal mode

(A) (B) (C) (D) (a) (b) (c) (d)

720 x 400 2.0 3.0 20.3 1.0 342 400 1TEXT

640 x 480 3.8 1.9 25.4 0.6 2 33 480 10 VGA (60Hz)

640 x 480 1.3 4.1 20.3 0.8 328 480 9 VGA (72Hz)

640 x 480 2.0 3.8 20.3 0.5 316 480 1VGA (75Hz)

640 x 480 1.6 2.2 17.8 1.6 325 480 1VGA (85Hz)

800 x 600 2.0 3.6 22.2 0.7 2 22 600 1SVGA (56Hz)

800 x 600 3.2 2.2 20.0 1.0 4 23 600 1SVGA (60Hz)

800 x 600 2.4 1.3 16.0 1.1 6 23 600 37 SVGA (72Hz)

800 x 600 1.6 3.2 16.2 0.3 321 600 1SVGA (75Hz)

800 x 600 1.1 2.7 14.2 0.6 327 600 1SVGA (85Hz)

832 x 624 1.1 3.9 14.5 0.6 339 624 1Mac 16" mode

1024 x 768 2.1 2.5 15.8 0.4 6 29 768 3XGA (60Hz)

1024 x 768 1.8 1.9 13.7 0.3 6 29 768 3XGA (70Hz)

1024 x 768 1.2 2.2 13.0 0.2 328 768 1XGA (75Hz)

1024 x 768 1.0 2.2 10.8 0.5 336 768 1XGA (85Hz)

1152 x 864 1.2 2.4 10.7 0.6 332 864 11152 x 864

(75Hz)

1280 x 768 1.7 2.5 16.0 0.8 323 768 1W-XGA (60Hz)

1280 x 800 1.6 2.4 15.3 0.8 324 800 11280 x 800

(60Hz)

1280 x 960 1.0 2.9 11.9 0.9 336 960 11280 x 960

(60Hz)

1280 x 1024 1.0 2.3 11.9 0.4 3 38 1024 1SXGA (60Hz)

1280 x 1024 1.1 1.8 9.5 0.1 3 38 1024 1SXGA (75Hz)

1280 x 1024 1.0 1.4 8.1 0.4 344 1024 1SXGA (85Hz)

1440 x 900 1.4 2.2 13.5 0.8 6 25 900 3WXGA+ (60Hz)

1680 x 1050 1.2 1.9 11.5 0.7 6 30 1050 3WSXGA+ (60Hz)

1600 x 1200 1.2 1.9 9.9 0.4 346 1200 1UXGA (60Hz)

All manuals and user guides at all-guides.com

Connection to the ports

NOTICE ►Use the cables with straight plugs, not L-shaped ones, as the

input ports of the projector are recessed.

►Only the signal that is input from the COMPUTER IN1 or IN2 can be output

from the MONITOR OUT port.

COMPUTER IN1COMPUTER IN2

HDMI

USB TYPE B

S-VIDEO

VIDEO

AUDIO OUT

AUDIO IN3AUDIO IN1

AUDIO IN2

MIC

MONITOR OUT

CONTROL

USB

TYPE A

DC5V

0.5A

ACOMPUTER IN1, BCOMPUTER IN2, CMONITOR OUT

D-sub 15pin mini shrink jack

(1) for PC signal

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. Signal: TTL level (positive/negative)

• Composite sync. Signal: TTL level

Pin Signal Pin Signal

1Video Red 10 Ground

2 Video Green 11 (No connection)

3Video Blue 12 A

: SDA (DDC data)

B, C

: (No connection)

4 (No connection)

5Ground 13 H. sync / Composite sync.

6 Ground Red 14 V. sync.

7Ground Green 15 A

: SCL (DDC clock)

B, C

: (No connection)

8Ground Blue

9 (No connection) - -





 

(2) for Component signal

• Y : Component video Y with composite sync, 1.0±0.1 Vp-p, 75 Ω terminator

• Cr/Pr : Component video Cr/Pr, 0.7±0.1 Vp-p, 75 Ω terminator

• Cb/Pb : Component video Cb/Pb, 0.7±0.1 Vp-p, 75 Ω terminator

System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60

Pin Signal Pin Signal

1Cr/Pr 9 (No connection)

2 Y 10 Ground

3Cb/Pb 11 (No connection)

4 (No connection) 12 (No connection)

5Ground 13 (No connection)

6 Ground Cr/Pr 14 (No connection)

7Ground Y 15 (No connection)

8Ground Cb/Pb - -

All manuals and user guides at all-guides.com

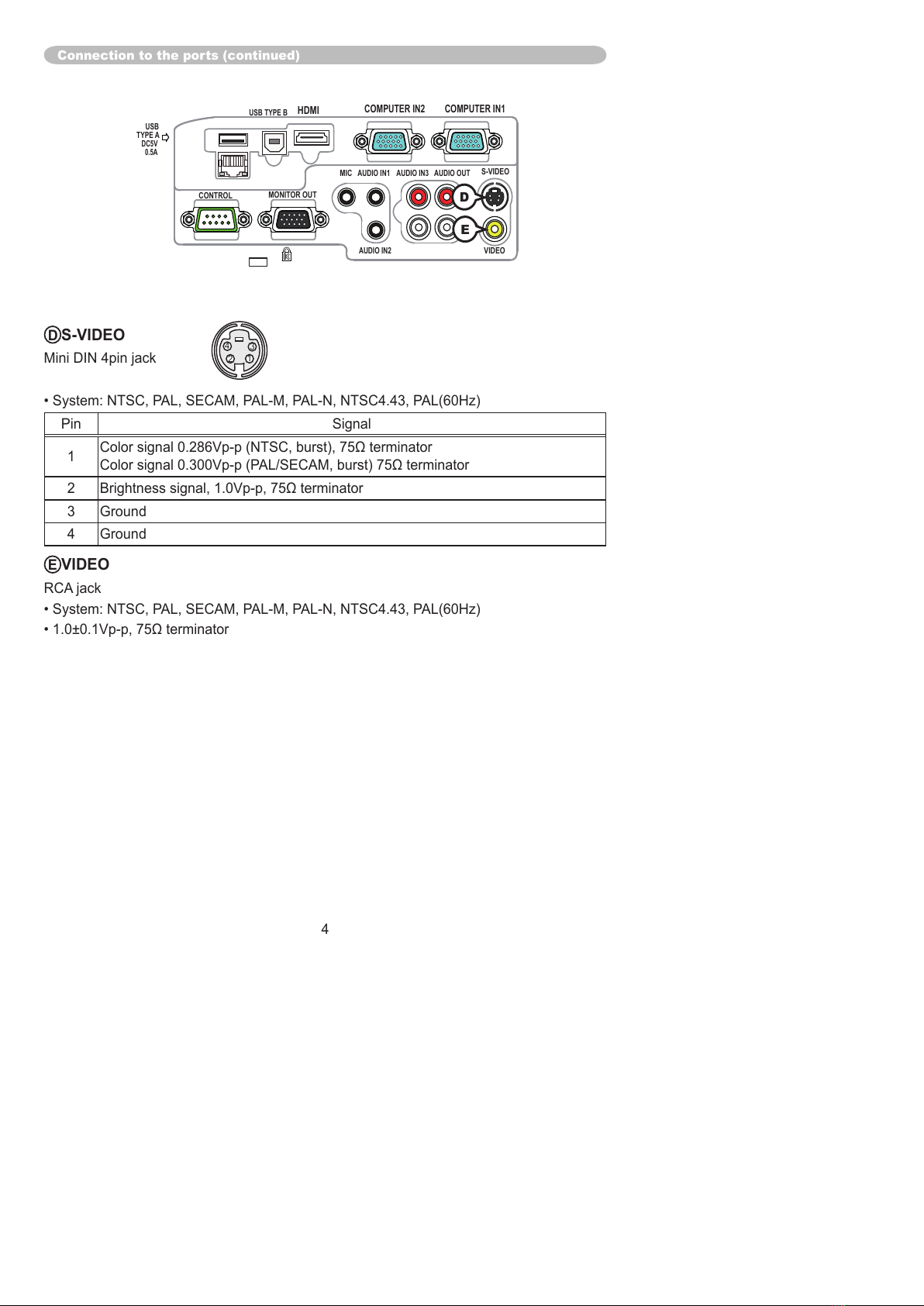

DS-VIDEO

Mini DIN 4pin jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Pin Signal

1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminator

Color signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator

2 Brightness signal, 1.0Vp-p, 75Ω terminator

3Ground

4 Ground

Connection to the ports (continued)

EVIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

• 1.0±0.1Vp-p, 75Ω terminator

COMPUTER IN1COMPUTER IN2

HDMI

USB TYPE B

S-VIDEO

VIDEO

AUDIO OUT

AUDIO IN3AUDIO IN1

AUDIO IN2

MIC

MONITOR OUT

CONTROL

USB

TYPE A

DC5V

0.5A

All manuals and user guides at all-guides.com

Connection to the ports (continued)

GAUDIO IN1,

AUDIO IN2

Ø3.5 stereo mini jack

• 200 mVrms, 47kΩ terminator

AUDIO IN3

RCA jack x2

• 200 mVrms, 47kΩ terminator

AUDIO OUT

R, LL

RCA jack x2

• 200 mVrms, 1kΩ output impedance

MMIC

Ø3.5 mono mini jack

• 2 mVrms, 1kΩ terminator

• 20 mVrms, 1kΩ terminator

FHDMI

• Type :Digital audio/video connector

• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

Pin Signal Pin Signal Pin Signal

1T.M.D.S. Data2 + 8T.M.D.S. Data0 Shield 15 SCL

2 T.M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA

3T.M.D.S. Data2 - 10 T.M.D.S. Clock + 17 DDC/CEC Ground

4 T.M.D.S. Data1 + 11 T.M.D.S. Clock Shield

+5V Power

5T.M.D.S. Data1 Shield 12 T.M.D.S. Clock - 19 Hot Plug Detect

6 T.M.D.S. Data1 - 13 CEC

7T.M.D.S. Data0 + 14 Reserved(N.C. on device)

10 12 14 16 182468

911131517191357

COMPUTER IN1COMPUTER IN2

HDMI

USB TYPE B

S-VIDEO

VIDEO

AUDIO OUT

AUDIO IN3AUDIO IN1

AUDIO IN2

MIC

MONITOR OUT

CONTROL

USB

TYPE A

DC5V

0.5A

All manuals and user guides at all-guides.com

Connection to the ports (continued)

USB

TYPE B

USB B type jack

Pin Signal

1+5V

2 - Data

3+ Data

4Ground

CONTROL

D-sub 9pin plug

• About the details of RS-232C communication,

please refer to the section "RS-232C Communication".

Pin Signal Pin Signal Pin Signal

1(No connection) 4 (No connection) 7RTS

2 RD 5Ground 8CTS

3TD 6 (No connection) 9 (No connection)

LAN

RJ-45 jack 87654

Pin Signal Pin Signal Pin Signal

1TX+ 4 - 7-

2 TX- 5-8-

3RX+ 6 RX-

NUSB TYPE A

USB A type jack 4321

Pin Signal

1+5V

2 - Data

3+ Data

4Ground

54321

COMPUTER IN1COMPUTER IN2

HDMI

USB TYPE B

S-VIDEO

VIDEO

AUDIO OUT

AUDIO IN3AUDIO IN1

AUDIO IN2

MIC

MONITOR OUT

CONTROL

USB

TYPE A

DC5V

0.5A

All manuals and user guides at all-guides.com

all-guides.com

Connection to the ports (continued)

To input component video signal to COMPUTER IN ports

ex.

To input component video signal to the COMPUTER IN1 or IN2 port of the

projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the

descriptions about COMPUTER IN1 and IN2 port (&3).

Y CB/PBCR/PR

COMPONENT VIDEO OUT

COMPUTER IN1COMPUTER IN2

HDMI

USB TYPE B

S-VIDEO

VIDEO

AUDIO OUT

AUDIO IN3AUDIO IN1

AUDIO IN2

MIC

MONITOR OUT

CONTROL

USB

TYPE A

DC5V

0.5A

RCA plugs

D-sub plug

VCR/DVD/Blu-ray

Disc player

RCA connectors

All manuals and user guides at all-guides.com

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the

projector can be controlled with RS-232C commands from the computer.

For details of RS-232C commands, refer to RS-232C Communication / Network

command table (&17).

Connection

1. Turn off the projector and the computer.

2. Connect the projector's CONTROL port and the computer's RS-232C port

with a RS-232C cable (cross). Use the cable that ful lls the speci cation

shown in  gure

3. Turn the computer on, and after the computer has started up turn the projector

on.

4. Set the COMMUNICATION TYPE to OFF. (&OPTION menu - SERVICE -

COMMUNICATION in the User's Manual - Operating Guide)

(cross)

RS-232C Cable

RS-232C CONTROL

CD (1) (1) −

RD(2) (2) RD

TD (3) (3) TD

DTR (4) (4) −

GND (5) (5) GND

DSR (6) (6) −

RTS (7) (7) RTS

DTS (8) (8) CTS

RI (9) (9) −

CONTROL port

of the projector

RS-232C port

of the computer

54321



7 6

All manuals and user guides at all-guides.com

RS-232C Communication (continued)

Communicaion settings

1. Protocol

19200bps,8N1

2. Command format ("h" shows hexadecimal)

Byte Number 01234567 8 9 10 11 12

Command

Action

Header Data

Header

code

Packet

Data

size

CRC

ag Action Type Setting

code

L H L H L H L H L H L H

<SET>

Change setting to

desired value [(cL)(cH)]

by [(eL)(eH)].

BEh EFh 03h 06h 00h

(aL) (aH) 01h 00h (bL) (bH) (cL) (cH)

<GET>

Read projector

internal setup value [(bL)

(bH)] .

(aL) (aH) 02h 00h (bL) (bH) 00h 00h

Increment setup value

[(bL)(bH)] by 1.

(aL) (aH) 04h 00h (bL) (bH) 00h 00h

Decrement setup value

[(bL)(bH)] by 1.

(aL) (aH) 05h 00h (bL) (bH) 00h 00h

<EXECUTE> Run a

command [(bL)(bH)].

(aL) (aH) 06h 00h (bL) (bH) 00h 00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0

[CRC ag]

For byte number

5, 6,

refer to

RS-232C Communication / Network command

table

(&17).

[Action]

Set functional code to byte number 7, 8.

<SET> = [01h, 00h], <GET> = [02h, 00h], <INCREMENT> = [04h, 00h]

<DECREMENT> = [05h, 00h], <EXECUTE> = [06h, 00h]

Refer to the Communication command table (&above).

[Type] [Setting code]

For byte number

～

, refer to

RS-232C Communication / Network command

table

(&17).

All manuals and user guides at all-guides.com

RS-232C Communication (continued)

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

When the projector receives the Set, Increment, Decrement or Execute

command correctly, the projector changes the setting data for the specied

item by [Type], and it returns the code.

(2) NAK reply : 15h

When the projector cannot understand the received command, the projector

returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply : 1Ch + 0000h

When the projector cannot execute the received command for any reasons,

the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply : 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns

the responce code and 2 bytes of data.

NOTE • For connecting the projector to your devices, please read the

manual for each devices, and connect them correctly with suitable cables.

• Operation cannot be guaranteed when the projector receives an undened

command or data.

• Provide an interval of at least 40ms between the response code and any other

code.

• The projector outputs test data when the power supply is switched ON, and

when the lamp is lit. Ignore this data.

• Commands are not accepted during warm-up.

• When the data length is greater than indicated by the data length code, the

projector ignore the excess data code. Conversely when the data length is

shorter than indicated by the data length code, the projector returns the error

code to the computer.

All manuals and user guides at all-guides.com

Autres manuels pour CP-AW250N

Autres manuels Hitachi Projecteur

Hitachi

Hitachi CP-X467 Manuel utilisateur

Hitachi

Hitachi CP-A220N Manuel utilisateur

Hitachi

Hitachi CP-X505 series Document technique

Hitachi

Hitachi CP-WX11000 Manuel utilisateur

Hitachi

Hitachi CP-RX61 series Manuel utilisateur

Hitachi

Hitachi LP-EU5002 Manuel utilisateur

Hitachi

Hitachi CP-WX3030WN Manuel utilisateur

Hitachi

Hitachi CP-X2020 Manuel utilisateur

Hitachi

Hitachi Innovate ED-A111 Manuel utilisateur

Hitachi

Hitachi LP-WU6500 Manuel utilisateur

Hitachi

Hitachi CP-X417 series Mode d’emploi

Hitachi

Hitachi CP-X8150 Manuel utilisateur

Hitachi

Hitachi CP-X2530WN Manuel utilisateur

Hitachi

Hitachi CP-X275W Manuel utilisateur

Hitachi

Hitachi Innovate CP-RX93 Manuel utilisateur

Hitachi

Hitachi CPX605 - 4000 Lumens XGA LCD Projector Manuel utilisateur

Hitachi

Hitachi CP-X251 series Manuel utilisateur

Hitachi

Hitachi CP-A222WN Manuel utilisateur

Hitachi

Hitachi CP-X3015WN Manuel utilisateur

Hitachi

Hitachi CP-X301 series Document technique

Hitachi

Hitachi CP-S317 Manuel utilisateur

Hitachi

Hitachi LP-WU9100B Manuel utilisateur

Hitachi

Hitachi CP-X2515WN Manuel utilisateur

Hitachi

Hitachi CPX2(M1-20ML) Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
