QUICK SETUP GUIDE

Before using the TV, please read this guide thoroughly

and retain it for future reference. For more detailed

instructions, please see the User Manual.

Contents

Accessories List..............................................................................................................1

Installing the Stand.........................................................................................................2

Wall Brackets Installing Instructions ...............................................................................3

TV Front..........................................................................................................................5

TV Rear ..........................................................................................................................6

Making Connections.......................................................................................................6

Remote Control ............................................................................................................12

Turning the TV on for the First Time.............................................................................14

Specifications ...............................................................................................................15

TV Base Stand User Manual 3D Glasses

Quick Setup Guide AAA Batteries × 2 Remote Control Screw × 4

Support × 4 Screw (M3 × 8)(for mounting support) × 16 Power cord(Actual product

may vary in appearance.)

Accessories List

The following accessories are included with TV:

Quick Setup Guide

Incorrect replacement of the battery may lead to the risk, including the

replacement of another similar or the same type. Do not expose batteries

to heat such as sun or fire or something like that.

The device should not be exposed to dripping and spraying and it cannot

be placed under objects filled with liquids.

Main plug is used as the disconnect device, the disconnect device shall

remain ready for operating.

NOTES

Excessive sound pressure from earphones and headphones can cause hearing loss.

VOLC

BACK EXIT

INPUT

SubtitleT.shift

EPGCH.List

APP

Info

APP

Installing the Stand

CAUTION

Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount

brackets.

The LED display is very fragile, and must be protected at all times when installing the base

stand. Be sure that no hard or sharp object, or anything that could scratch or damage the

LED display, comes into contact with it. DO NOT exert pressure on the front of the TV at any

time because the screen could crack.

Follow the illustrations and textual instructions below to complete the installa-

tion steps:

Product images are only for reference, actual product may vary in appearance.

NOTE

1. Carefully place your TV face-down on a soft, flat surface to prevent damage to the

TV or scratching to the screen.

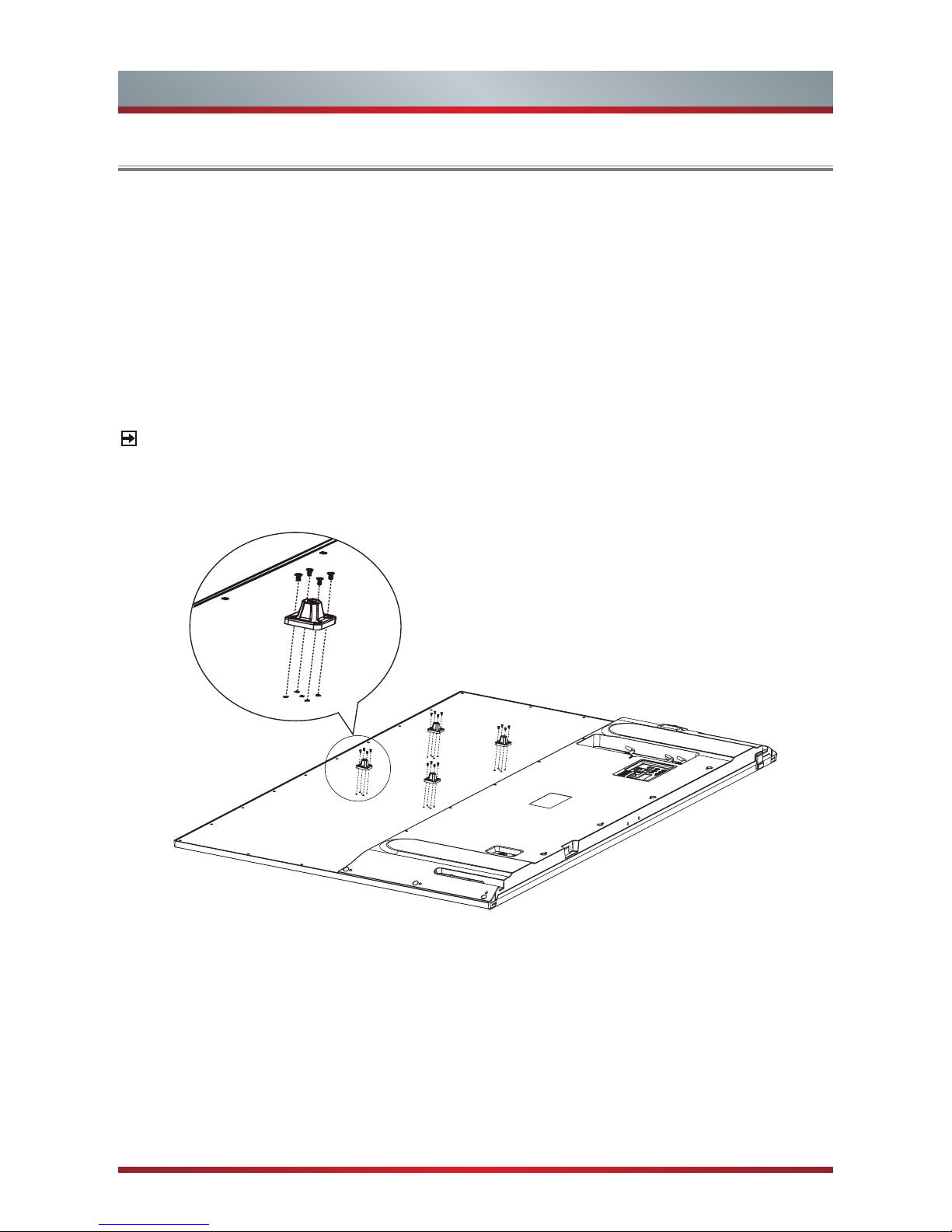

2. Secure the stand cover to the TV with the 4 screws provided.

BASE STAND

M4×12 (58")

M5×12 (65")

Wall Brackets Installing Instructions

Follow the illustrations and textual instructions below to complete the installa-

tion steps:

1. Carefully place your TV facedown on a soft, flat surface to prevent damage to

the TV or scratching to the screen.

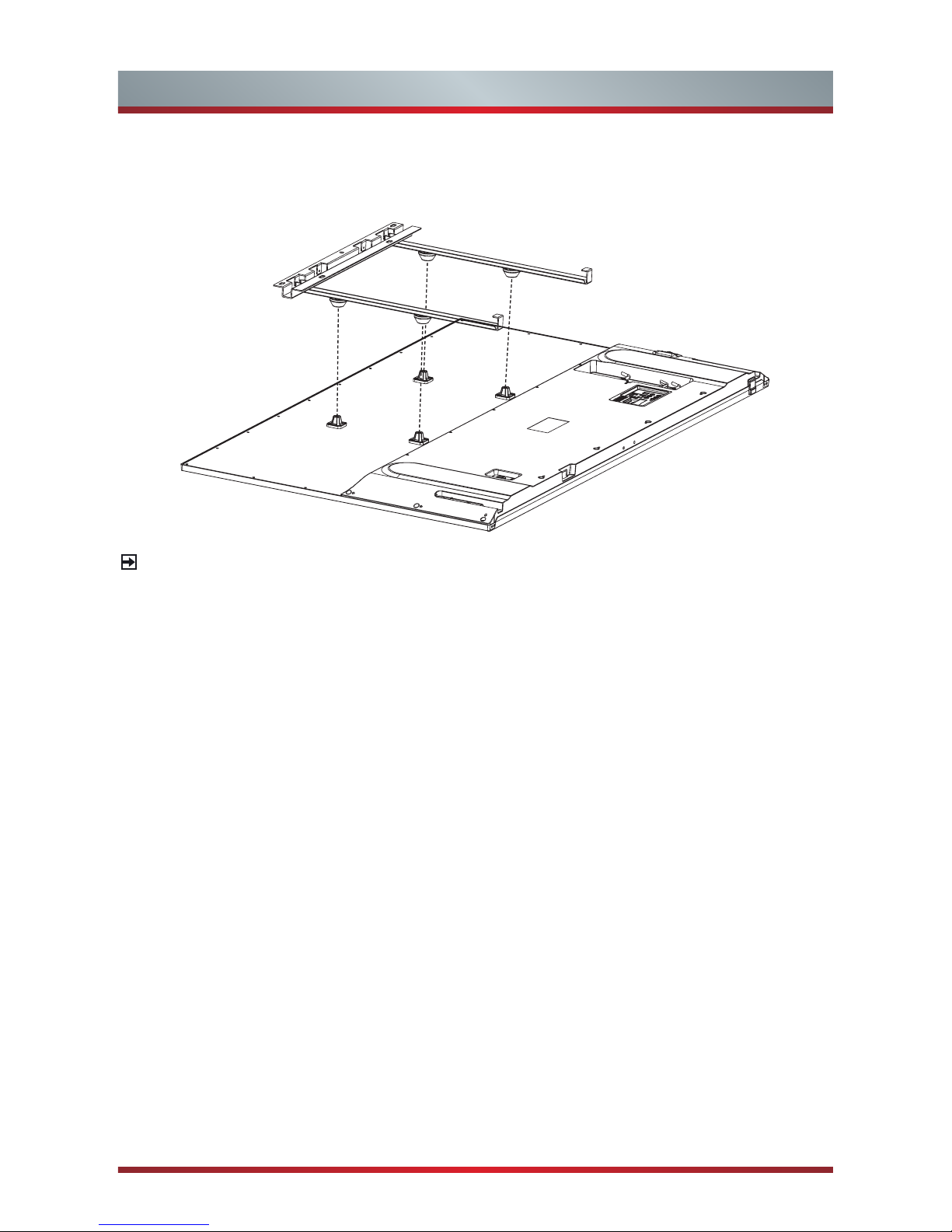

2. Take out the cover sheet on the wall or ceiling mounting position of the TV set.

Fasten the mounting support on the mounting position with the screws in the

accessory bag.

NOTE

Other mounting support and screws with different specifications may may cause

damage on the TV set.

M3 × 8

Wall Brackets Installing Instructions

3 Attach the wall-mount bracket (no provided) on the back of your TV.

NOTE

If you are not sure of your ability to do complete the installation, contact a

professional installer or service technician for assistance. The manufacturer is not

responsible for any damages or injuries that occur due to mishandling or incorrect

assembly.

TV Front

NOTES

The Picture is Only for Reference.

Powering on the TV requires several seconds to load program. Do not rapidly turn

the TV off as it may cause the TV to work abnormally.

Item Description

Remote sensor

Receives remote signals from the remote control.

Do not put anything near the sensor, as its function may be

affected.

Power indicator The light is red in standby mode.

Select among the different input signal sources or put the TV

in standby mode, or you can turn on the TV when the TV in

standby mode.

Toggle the OK button left and right to adjust the volume.

Toggle the OK button up and down to select the channel.

TV Bottom Panel

TV Back View

Remote sensor /

Power indicator

Bluetooth device pairing

TV Rear & Making Connections

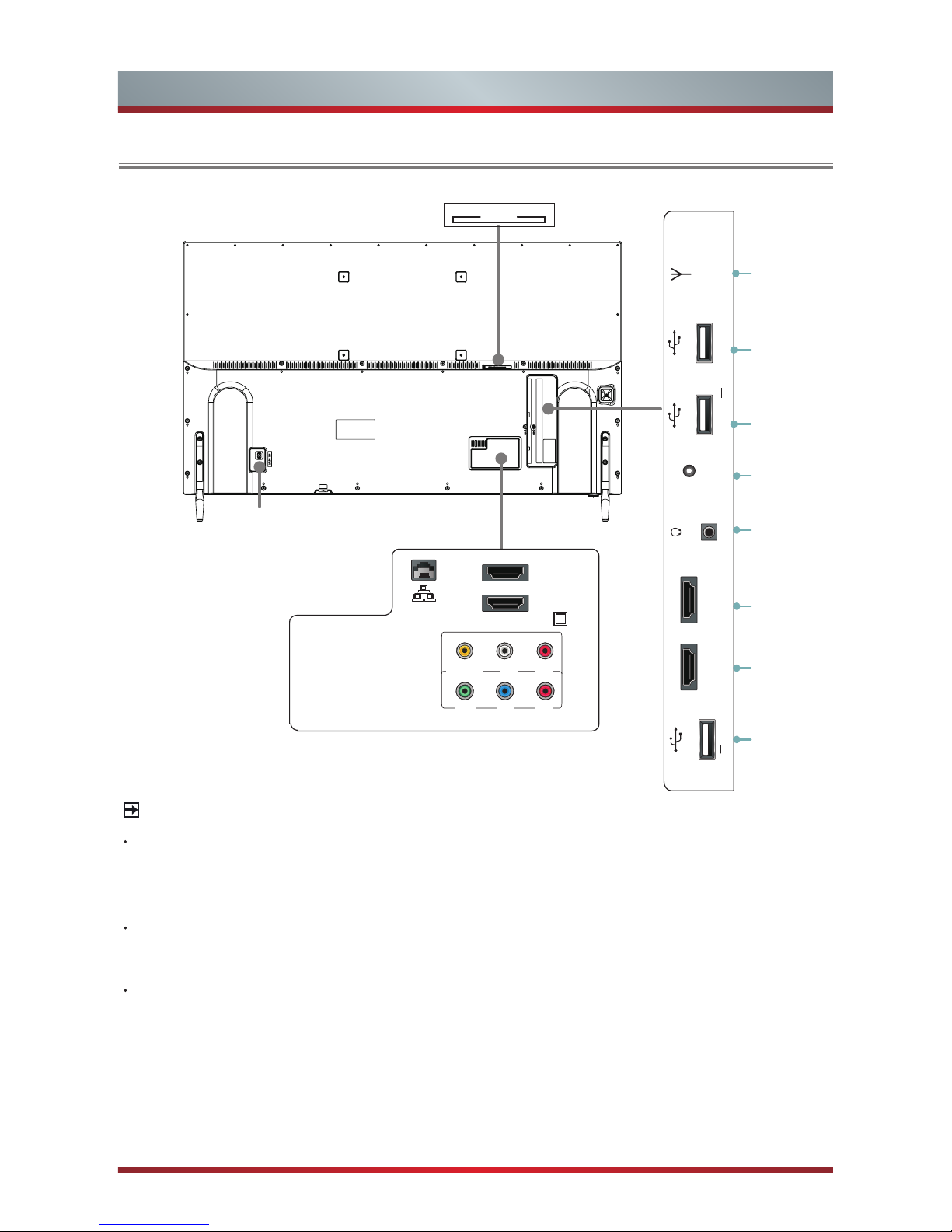

TV Rear

ANT

HEADPHONE

HDMI

SERVICE

HDMI 1(MHL)HDMI 2(ARC) SERVICE

HEADPHONE

USB

USB 3(3.0)

DC 5V --- 1A(MAX) DC 5V 0.5A(MAX)

USB 1

USB 2

LAN

HDMI 3(2.0)

HDMI 4(2.0)

OPTICAL

VIDEO

AV IN

COMPONENT IN

Power input

COMMONINTERFACE PCMCIA

NOTES

Check the jacks for position and type before making any connections. Loose

connections can result in image or color problems. Make sure that all connections

are tight and secure.

The TV may not be compatible with all external devices. To check compatibility,

please refer to the user manual of external device.

Do not connect external equipment while TV's power cord is plugged in. It may

cause electric shock.

Making Connections

HDMI/COMP/AV

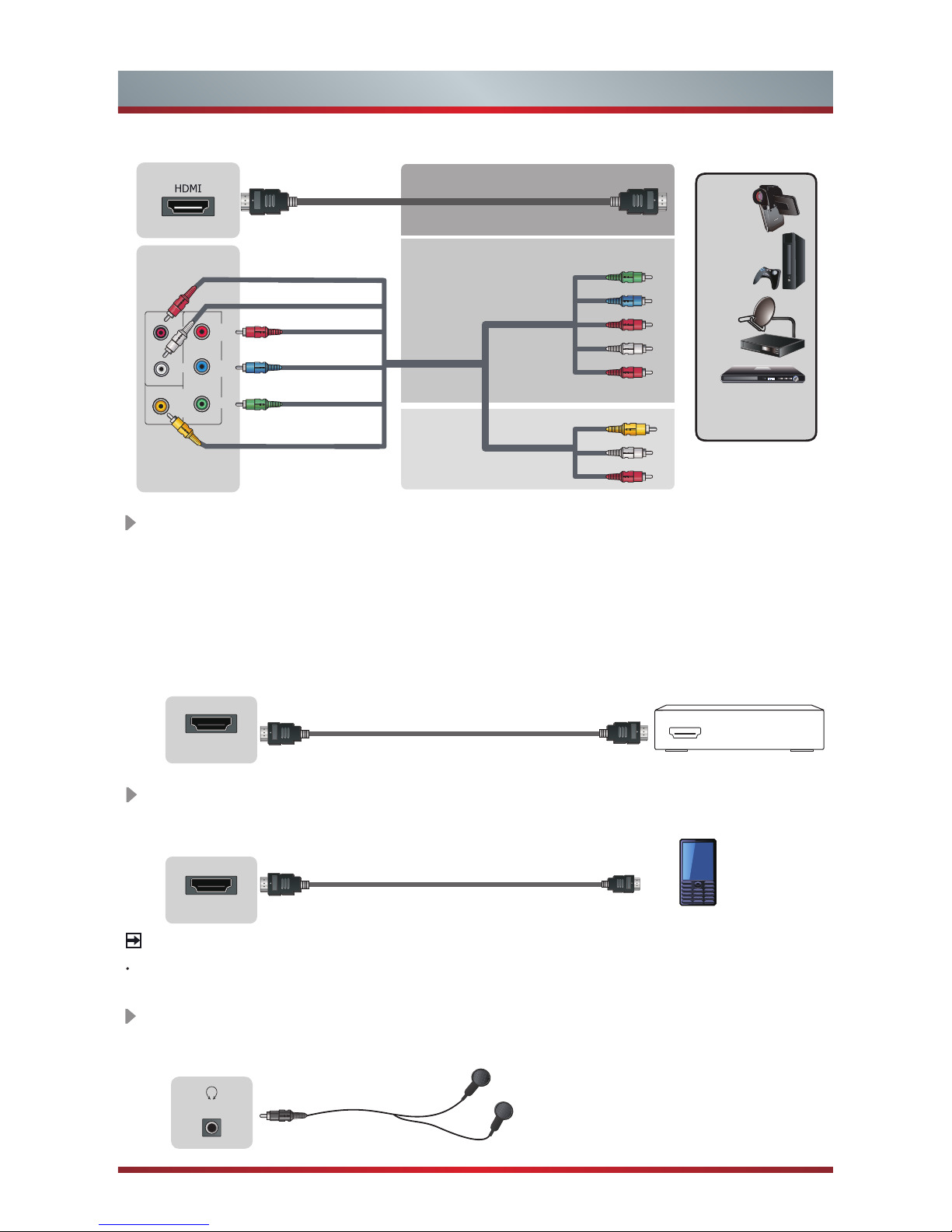

Connect a HDMI / Comp / AV cable from an external A/V equipment. No sound

connection is needed for HDMI to HDMI connection. If the signal resolution does not

match the specification table, you need to change the setting of device according to

the table. Please consult your device user manual for instruction.

·To select the HDMI / Component / AV

Press [Input] button, when the list of input Source appears, press [< / >] to select the

source [HDMI] / [COMPONENT] / [AV], then press [OK] to connect.

TV JACK Outdoor

Antenna

Antenna Cable (75Ω)

or ANT OUT

Cable

VHF/UHF Antenna

ANT Connect an outdoor VHF/UHF antenna or cable.

ANT

(not included)

COMMON INTERFACE

Insert the CI+ module for watching scrambled services like pay-tv channels or

some HD channels.

SMART CARD

CAM CARD

TV JACK

NOTES

Before you insert/remove the CI+ module, ensure that the TV is switched off.

Then insert the CI card into the CI+ module in accordance with the Service

Provider’s instructions.

Do not repeatedly insert or remove the Common Access Module as this may

damage the interface and cause a malfunction.

You must obtain a CI+ module and card from the service provider of the

channels you want to watch.

Insert the CI+ module with the SmartCard in the direction marked on the module

and SmartCard.

CI+ is not supported in some countries and regions; check with your authorized

dealer.

Making Connections

ARC Connect an HDMI cable from an external digital audio system.

ARC enables the TV to directly output the digital sound through an HDMI cable.

Please note that it works only when the TV is connected to the audio receiver that

supports the ARC (Audio Return Channel) function.

When this port is used as the ARC function, it can't be used as signal input at the

same time.

TV JACK

HDMI cable (not included)

MHL cable (not included)

HDMI 2(ARC)

HDMI

Audio Amplier/Speaker

HDMI 1(MHL)

MHL-enabled Device

MHL Connect an MHL cable (not provided) from your MHL-enabled device, such

as a cell phone.

BEST(HDMI)

Video Effect:

BETTER

(COMP)

GOOD

(AV)

Video Camera/

Set-top Box/

Satellite Receiver

Component

Video

VIDEO

L R

COMPONENT IN

HEADPHONE Connect Headphone for audio out of the TV.

The built-in speakers will be disabled once the headphone is connected.

TV JACK

Headphone (not included)

HEADPHONE

NOTE

HDMI 1 is special for MHL device. Some of nonstandard DVD players may not be supported.
