Before using the TV, please read this guide thoroughly and retain it for future

reference. For more detailed instructions, please see the User Manual.

QUICK SETUP GUIDE

Contents

Accessories List..............................................................................................................1

Installing the Stand.........................................................................................................2

TV Front..........................................................................................................................3

TV Rear ..........................................................................................................................4

Making Connections.......................................................................................................5

Remote Control ............................................................................................................10

Turning the TV on for the First Time.............................................................................12

Specifications ...............................................................................................................13

TV Base Stand User Manual

Quick Setup Guide AAA Batteries × 2 Remote Control

(ST4×16) × 4(49"/50"）(M4×12)×4(55")

Accessories List

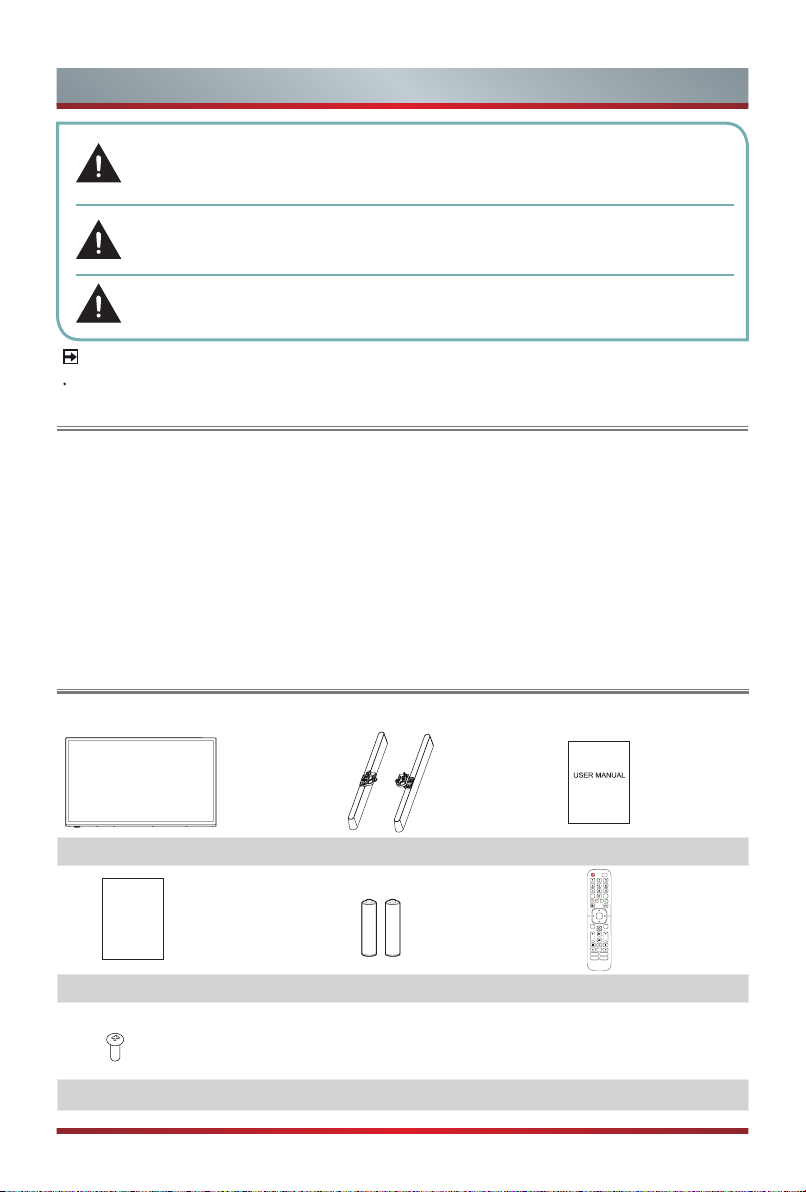

The following accessories are included with TV:

Quick Setup Guide

VOLC

BACK EXIT

INPUT

SubtitleT.shift

EPGCH.List

APP

Info

APP

Incorrect replacement of the battery may lead to the risk, including the

replacement of another similar or the same type. Do not expose batteries

to heat such as sun or fire or something like that.

The device should not be exposed to dripping and spraying and it cannot

be placed under objects filled with liquids.

Main plug is used as the disconnect device, the disconnect device shall

remain ready for operating.

NOTES

Excessive sound pressure from earphones and headphones can cause hearing loss.

Installing the Stand

CAUTION

Be sure to disconnect the A/C power cord before installing a stand or Wall-Mount

brackets.

The LED display is very fragile, and must be protected at all times when installing

the base stand. Be sure that no hard or sharp object, or anything that could scratch

or damage the LED display, comes into contact with it. DO NOT exert pressure on

the front of the TV at any time because the screen could crack.

Follow the illustrations and textual instructions below to complete the installa -

tion steps:

Pictures are only for reference, actual product may vary in appearance.

NOTE

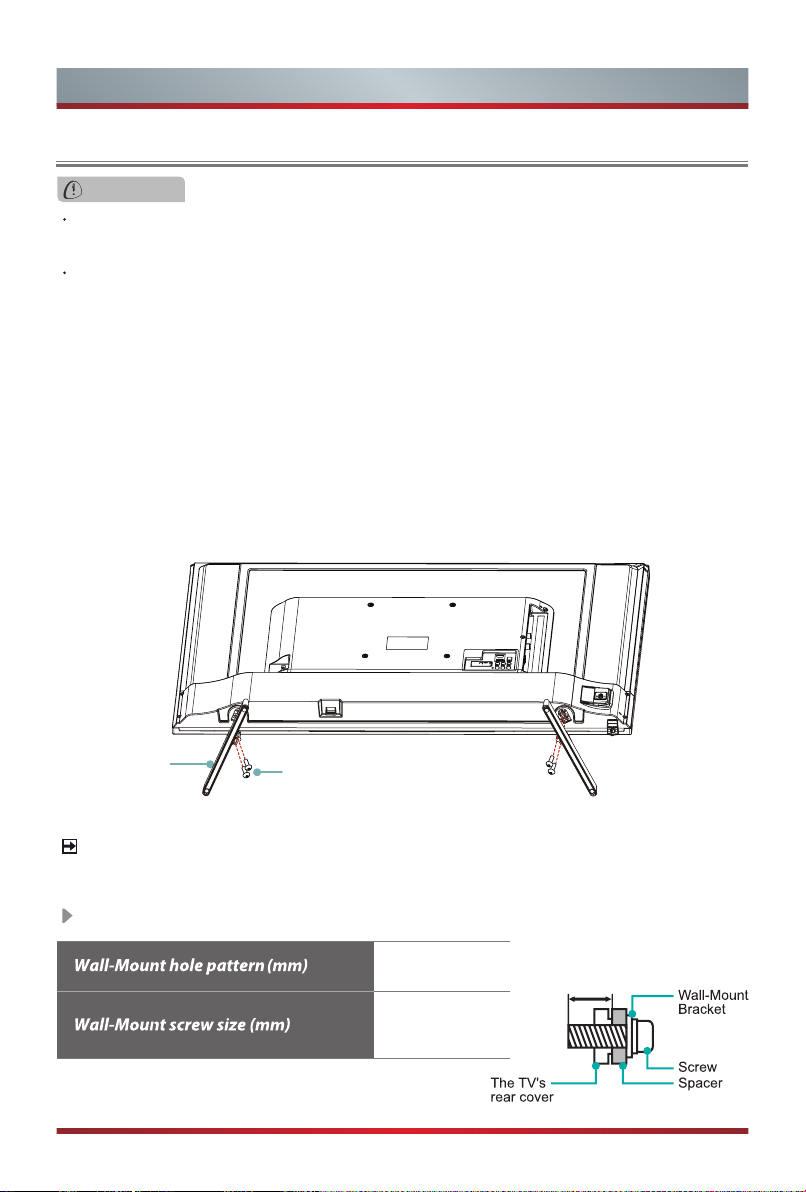

1. Carefully place your TV facedown on a soft, flat surface to prevent damage to the

TV or scratching to the screen.

2. Remove the 2 stands from the accessory bag and then insert the stands into the

bottom slots of the TV.

3. Secure the BASE STAND to the TV with the 4 screws in accessary tightly.

WALL-MOUNT BRACKET (not provided)

200 × 200

9.5~11.5mm

BASE STAND Screws: ST4×16(49"/50"）

M4X12 (55"）

TV Front

NOTES

The Picture is Only for Reference.

It takes several seconds to power on the TV and load program. Do not rapidly turn

the TV on and off as it may cause the TV to work abnormally.

Remote sensor

Power indicator

VOL -

VOL +

TV Bottom Panel

TV Back View

Item Description

Remote sensor Receive remote signals from the remote control.

Do not put anything near the sensor, as its function may be affected.

Power indicator The light is red in standby mode.

Select among the different input signal sources and put the TV

in standby mode, and you can turn on the TV when the TV in

standby mode.

Toggle the OK button left and right to adjust the volume.

Toggle the OK button up and down to select the channel.

TV Rear

NOTES

Check the jacks for position and type before making any connections. Loose

connections can result in image or color problems. Make sure that all connections

are tight and secure.

The TV may not be compatible with all external devices. To check compatibility,

please refer to the user manual of external device.

Do not connect external equipment while TV's power cord is plugged in. It may

cause electric shock.

HDMI 3

HDMI 2(ARC)

ANT

HDMI 1(MHL)

COMMON INTERFACE

USB 1

DC 5V 0.5A(MAX)

USB 2

DC 5V 0.5A(MAX)

SERVICE

Making Connections

HDMI/COMP/AV

Connect a HDMI / Comp / AV cable from an external AV equipment. No sound

connection is needed for HDMI to HDMI connection. If the signal resolution does not

match the specification table, you need to change the setting of device according to

the table. Please consult your device user manual for instruction.

·To select the HDMI / Component / AV

Press [Input] button, when the list of input Source appears, press [< / >] to select the

source [HDMI] / [COMPONENT] / [AV], then press [OK] to connect.

TV JACK Outdoor

Antenna

Antenna Cable (75Ω)

or ANT OUT

Cable

VHF/UHF Antenna

ANT Connect an outdoor VHF/UHF antenna or cable.

ANT

(not included)

COMMON INTERFACE

Insert the CI+ module for watching scrambled services like pay-tv channels or

some HD channels.

SMART CARDCAM CARD

TV JACK

NOTES

Before you insert/remove the CI+ module, ensure that the TV is switched off.

Then insert the CI card into the CI+ module in accordance with the Service

Provider’s instructions.

Do not repeatedly insert or remove the Common Access Module as this may

damage the interface and cause a malfunction.

You must obtain a CI+ module and card from the service provider of the

channels you want to watch.

Insert the CI+ module with the SmartCard in the direction marked on the module

and SmartCard.

CI+ is not supported in some countries and regions; check with your authorized

dealer.

Making Connections

ARC Connect an HDMI cable from an external digital audio system.

ARC enables the TV to directly output the digital sound through an HDMI cable.

Please note that it works only when the TV is connected to the audio receiver that

supports the ARC (Audio Return Channel) function.

When this port is used as the ARC function, it can't be used as signal input at the

same time.

MHL Connect an MHL cable (not provided) from your MHL-enabled device, such

as a cell phone.

TV JACK

HDMI cable (not included)

HDMI 2(ARC)

HDMI

TV JACK

MHL cable (not included)

HDMI 1(MHL)

MHL-enabled Device

NOTES

MHL is only available through HDMI 1(MHL) and only when the TV is connected to

compatible MHL devices. Please note that not all MHL devices are supported.

BEST(HDMI)

Video Effect:

BETTER

(COMP)

GOOD

(AV)

Video Camera/

Set-top Box/

Satellite Receiver

Component

Video

Making Connections

USB

Connect the USB1.1, USB2.0 devices such as hard drives, USB sticks and digital

cameras for browsing photos, listening music and watching recorded movies. You

can record live TV program (refer to PVR in user Manual). At the same time update

is also an easy thing and will be done just by plugging the USB with the updating

files into the USB interface.

NOTES

When connecting a hard disk or a USB hub, always connect the mains adapter of

the connected device to the power supply.

TV JACK

USB

DC 5V 0.5A(MAX)

HEADPHONE Connect Headphone for audio out of the TV.

The built-in speakers will be disabled once the headphone is connected.

TV JACK

Headphone (not included)

HEADPHONE

OPTICAL Connect an optical cable from an external digital audio system

Optical SPDIF—is a type of digital audio interconnect cable used in consumer

audio equipment to output audio over reasonably short distances. The signal is

transmitted over a fibre optical cable.

Before connecting a digital audio system to the Optical jack, you should decrease

the volume of both the TV and the system to avoid that the volume suddenly

become bigger.

TV JACK

Optical cable (not included)

Audio Amplier/Speaker

OPTICAL

NOTES

Please make sure that the headphone you plug in is without microphone function,

or it may not be supported.

Making Connections

LAN (Wired setup)

Connect your TV to your network by connecting the LAN port on the back of your

TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the

illustration below.

·We recommend to use a modem or router that supports Dynamic Host

Configuration Protocol (DHCP). Modems and routers that support DHCP

automatically provide the IP address, subnet mask, gateway, and DNS, so you

don’t have to enter them manually. Most home networks already have DHCP.

TV JACK

Modem CableLAN CableLAN Cable

External Modem

(ADSL / VDSL / Cable TV)

IP Sharer (Router)

(with DHCP server)

LAN

If a USB 1.1 or USB2.0 device requires more than 500mA or 5V, the USB device

may not be supported. Exceeding the max supported current may result in damage

or data loss.

If you want to store the video streaming of a DTV program, the transfer rate of the

USB storage device must not be less than 5MB/s.

Wireless setup

Connect your TV to your network wirelessly, you need a wireless router or modem.

See the illustration below.

·The TV’s built-in Wireless LAN Adapter supports the IEEE 802.11 b/g/n

communication protocols.

Wireless router with DHCP

LAN Cable

Wireless LAN Adapter

built-in TV set

Making Connections

NOTES

You must use the built-in Wireless LAN Adapter to use a wireless network because

the set doesn’t support external USB network adapter.

If the wireless router supports DHCP, your TV can connect more easily to the

wireless network.

If you apply asecurity system other than the systems listed below, it will not work with

the TV.

security system : WPA, WEP, WPA2.

In order to guarantee smooth network, the distance between router and TV is less

than 10 meters.

What is FreeviewPlus?

FreeviewPlus is a new television service delivered via broadband providing a state

of the art Electronic Program Guide (EPG) and seamless access to catch-up TV

across the free-to-air networks with the simple press of a button.

How does it work?

First ensure the TV is connected to internet and an antenna system. Then when

you’re watching TV, you’ll briefly see a prompt at the top left of the screen. Press

the ‘Green’ button on your remote to launch FreeviewPlus. More information about

FreeviewPlus can be found on http://www.freeview.com.au/

NOTE

FreeviewPlus service only available in Australia territories.
