Hioki IM9202 Manuel utilisateur

IM9202

Instruction Manual

TEST FIXTURE

Apr. 2020 Edition 1

IM9202A961-00 20-04H

Be sure to read this manual before using the instrument. p.3

When using the instrument for the

rst time Troubleshooting

Part Names and Functions p.6 Maintenance and Service p.25

Making Measurements p.8

HIOKI IM9202A961-00

Introduction

Thank you for choosing the Hioki IM9202 Test Fixture. To ensure your ability to get the most out

of the device over the long term, please read this manual carefully and keep it available for future

reference.

The device is used by connecting to the impedance analyzer. Before using the impedance

analyzer, read the instruction manual of the impedance analyzer carefully.

Intended audience

This manual has been written for use by individuals who use the product or provide information

about how to use the product.

In explaining how to use the product, it assumes electrical knowledge (equivalent of the knowledge

possessed by a graduate of an electrical program at a technical high school).

Contents

Checking Package Contents p.2

Safety Information p.3

Operating Precautions p.4

Overview p.5

Part Names and Functions p.6

Making Measurements p.8

■Measurement Procedure p.8

■Inspecting the Device Before Use p.9

■Attaching the Test Head and the Adapter p.10

■Calibration p.11

■Attaching the Device p.14

■Electrical Length Correction p.15

■Short Correction p.16

■Open Correction p.19

■Starting Measurement p.22

Specications p.23

Maintenance and Service p.25

Warranty Certicate

IM9202A961-00

HIOKI IM9202A961-00

Checking Package Contents

When you open the package, carefully inspect the device to ensure that everything is in good

condition, and that no damage occurred during shipping. Carefully check the accessories. If

device seems to have been damaged or does not work as specied, contact your authorized Hioki

distributor or reseller.

Conrm that the following items are provided.

(1)

(4) (7)

(13)(3)

(11)(10)

(6)

(5)

(2)

(8)

(12)

(9)

IM9202 Test Fixture ........................................................................................................(1)

H-side lead component clip*...........................................................................................(2)

L-side lead component electrode (with clip)*..................................................................(3)

L-side SMD electrode.....................................................................................................(4)

SMD open correction jig ................................................................................................ (5)

Short plate ..................................................................................................................... (6)

Brush for cleaning...........................................................................................................(7)

Carrying case .................................................................................................................(8)

Instruction manual

* The H-side lead component clip and the L-side lead component electrode are installed on the device.

Options (sold separately)

The options listed below are available for the device. To purchase an option, please contact your authorized

Hioki distributor or reseller. Options are subject to change. Please check Hioki's website for the latest

information.

IM9906 Adapter (3.5 mm/7 mm).....................................................................................(9)

IM9905 Calibration Kit (LOAD).......................................................................................(10)

IM9905 Calibration Kit (OPEN).......................................................................................(11)

IM9905 Calibration Kit (SHORT)*...................................................................................(12)

Magnifying glass (IM9200 Test Fixture Stand accessory) ..............................................(13)

IM9200 Test Fixture Stand

Options (sold separately) can be stored inside (9) to (13) of the carrying case. Please store them after

removing the packed sponge at the time of unpacking.

* The IM9905 Calibration Kit (SHORT) can be stowed side by side with the short plate (6).

HIOKI IM9202A961-00

Safety Information

Carefully read the following safety notes before using the device

CAUTION

• Mishandling during use could damage to the device. Familiarize yourself with the

instructions and precautions in this manual before use the device.

• If you have not used electrical measuring instrument before, you should be supervised

by a technician who has experience in electrical measurement.

Notations

In this document, the severity levels of risk and hazard are classied as follows.

WARNING Indicates a potentially hazardous situation that may result in death of or serious

injury to the operator.

CAUTION Indicates a potentially hazardous situation that may result in minor or moderate

injury to the operator or damage to the device or malfunction.

IMPORTANT Indicates information or content that is particularly important from the standpoint

of operating or maintaining the device.

Indicates an action that must not be performed.

Indicates an action that must be performed.

Notations related to standards compliance

Indicates the Waste Electrical and Electronic Equipment Directive (WEEE Directive) in EU

member states.

Indicates that the product conforms to regulations required by the EU Directive.

Other notations

*Instructs the reader to see below for additional information.

(p. ) Indicates the page number to reference.

HIOKI IM9202A961-00

Operating Precautions

Observe the following precautionary information to ensure that the device can be used safely and

in a manner that allows it to perform as described in its specications.

Use of the device should conrm not only to its specications, but also to the specications of all

accessories, options and other equipment in use.

Installation Environment

WARNING

Installing the device in inappropriate locations could cause a malfunction of the

device, an accident. Avoid locations that are:

•Exposed to direct sunlight or high temperatures

•Exposed to corrosive or combustible gases

•Exposed to strong electromagnetic elds or electrostatic charges

•Near induction heating systems (such as high-frequency induction heating

systems and IH cooking equipment)

•Susceptible to vibration

•Exposed to water, oil, chemicals, or solvents

•Exposed to high humidity or condensation

•Exposed to high concentrations of dust particles

CAUTION

Do not place the device on an unstable or uneven surface. Doing so could cause the

device to fall or turn over, causing bodily injury or damage to the device.

Handling the Device

CAUTION

• The DUT could pop off the device and into the air while being connected. To prevent

injury, use gradual movements when handling clips and electrodes.

• To avoid damage to the device, avoid subjecting it to vibration or mechanical shock

during transportation and handling. Exercise particular care to avoid subjecting the

device to mechanical shock, for example by dropping.

• To prevent device damage or an electric shock, use only the screws that are originally

installed for securing clips or the short plate in place. If you have lost any screws or

nd that any screws are damaged, please contact your authorized Hioki distributor or

reseller.

Measurements

CAUTION

• To avoid bodily injury or damage to the device, do not attempt to measure voltage

exceeding 42V.

• To avoid damage to the device, do not connect the charged capacitor to the device.

• Do not apply a voltage across the device’s measurement terminals while it is

connected to an impedance analyzer.

It may cause damage to the impedance analyzer.

IMPORTANT

The accuracy of measured values obtained using the device is not guaranteed. Measured values

should be treated as reference values.

Shipping Precautions

During shipment of the device, handle it carefully so that it is not damaged due to a vibration or

shock.

HIOKI IM9202A961-00

Overview

The device is the test xture to be used by connecting to the impedance analyzer of Hioki.

It performs two-terminal measurement of lead components and SMDs.

Measurable DUT size

Lead components

Axial

ALead interval

(Component body length)

1 mm to 25 mm

BLead length 2 mm to 10 mm

CHeight to lead*12.5 mm or shorter

Lead wire diameter 0.5 mm to 2 mm

Radial

DLead interval 2 mm to 26 mm

ELead length*12 mm or longer

Lead wire diameter 0.5 mm to 2 mm

SMD*2

FComponent length 1.6 mm to 23 mm

GComponent width 0.8 mm or longer

HComponent height 0.65 mm or longer

Supported SMD size: EIA0603 (JIS1608) or larger

*1: The component’s H-side lead must not make contact with the xture’s L-side electrode.

*2: The electrode on the bottom surface of the H side of the component must not make contact with the xture’s

L-side electrode.

HIOKI IM9202A961-00

Part Names and Functions

(2)

(1)

(3)

(4)

(5)

(10)

(7)

(8)

(12)

(9)

(8)

(11)

(6)

(1) Base plate The base plate is at the same potential as the L-side electrodes.

(2) H-side lead component

clip

Connect lead components to the H-side electrode by inserting the

lead wire here.

(3) H-side electrode Serves as the device’s measurement unit.

(4) IM9906 Adapter

(3.5 mm/7 mm)

This specially designed adapter is used to connect the device to the

impedance analyzer’s test head.

(5) Test head The test head comes with the impedance analyzer.

(6) IM9200 Test Fixture Stand

(option)

The exclusive stand for xing the test head of the impedance analyzer

and the device.

(7) Loupe The magnifying glass provided with the IM9200 Test Fixture Stand

(option). It is used by installing to the IM9200.

(8) Stand xing knob The knob xes the device to the IM9200 Test Fixture Stand.

(9) L-side lead component

clip

Connect lead components to the L-side electrode by inserting the lead

wire here.

(10) L-side lead component

electrode

Serves as the device’s measurement unit.

(11) Serial number The 9-digit serial number indicates the year (rst two digits) and the

month of manufacture (next two digits). Do not remove this sticker as

the number is important.

(12) Knob This knob is used to lock the L-side lead component electrode in

place.

HIOKI IM9202A961-00

Part Names and Functions

The electrode and the clips for measurement of lead components

(10)

(9) (2)

The electrode for measurement of SMDs

(13)

(14)

(13) L-side SMD electrode Used when measuring SMDs.

(14) Lever This lever causes the L-side SMD electrode to slide back and forth.

Short plate

(15)

(15) Short plate Used when performing short correction.

HIOKI IM9202A961-00

Making Measurements

Measurement Procedure

You will need (besides the device and accessories):

• IM7580 series Impedance Analyzer ×1

• IM9200 Test Fixture Stand ×1

• IM9905 Calibration Kit ×1

• IM9906 Adapter ×1

• 3.5 mm connector torque wrench ×1 (not included with the device)

• Tweezers ×1 (This is not included with the device. Tweezers which are thinner than the DUT size,

clean, and not magnetized are recommended.)

Connect the test head to theConnect the test head to the

impedance analyzer.impedance analyzer.

Connect the cable of the test head to the impedance

analyzer.

See the instruction manual

of the impedance analyzer. Test head

Attach the test head and adapterAttach the test head and adapter

to the stand.to the stand.

Attach the test head and the IM9906 Adapter to the

IM9200 Test Fixture Stand.

IM9200

IM9906

(p.10)

Execute the calibration.Execute the calibration. Execute the open calibration, short calibration, and load

calibration.

(p.11)

Attach the device.Attach the device. Attach the device to the IM9200 Test Fixture Stand.

Device (IM9202)

(p.14)

Execute the correction.Execute the correction. Execute the electrical length correction, short correction,

and open correction.

(From p.15)

Start the measurement.Start the measurement. Connect the DUT to the measurement location and start

the measurement by using the impedance analyzer.

(p.22)

HIOKI IM9202A961-00

Table des matières

Autres manuels Hioki Équipement de test

Hioki

Hioki 3636-20 Manuel utilisateur

Hioki

Hioki FT6031-50 Manuel utilisateur

Hioki

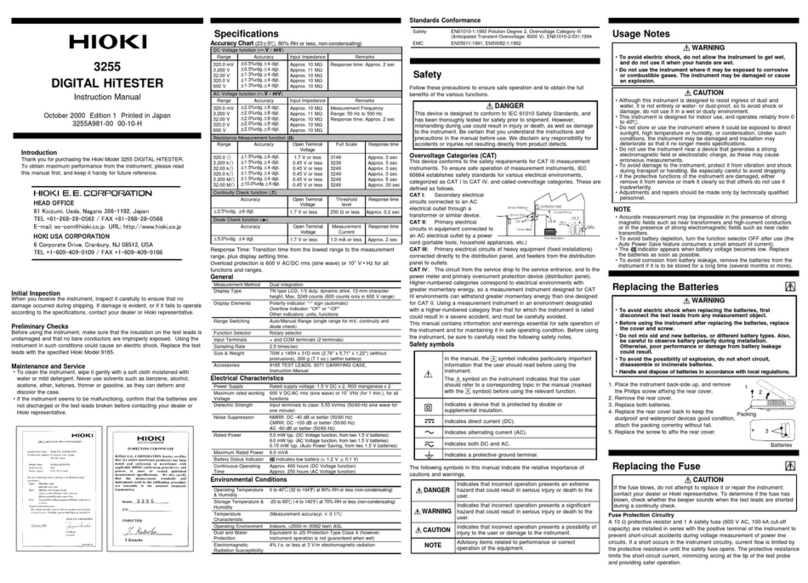

Hioki 3255 Manuel utilisateur

Hioki

Hioki 8807-01 Manuel utilisateur

Hioki

Hioki 3550 Manuel utilisateur

Hioki

Hioki P2000 Manuel utilisateur

Hioki

Hioki 3403 Manuel utilisateur

Hioki

Hioki 3280-10 Manuel utilisateur

Hioki

Hioki 3169-20 Manuel utilisateur

Hioki

Hioki ST5680 Manuel utilisateur

Hioki

Hioki 3285-20 Manuel utilisateur

Hioki

Hioki 3455 Manuel utilisateur

Hioki

Hioki IR4051 Manuel utilisateur

Hioki

Hioki BT3563A Manuel utilisateur

Hioki

Hioki FT6380-50 Manuel utilisateur

Hioki

Hioki 3144-20 Manuel utilisateur

Hioki

Hioki L2020 Manuel utilisateur

Hioki

Hioki MEMORY HiCORDER 8855 Manuel d'instructions

Hioki

Hioki 3159 Manuel utilisateur

Hioki

Hioki 3555 Manuel utilisateur

Hioki

Hioki FT3151 Manuel utilisateur

Hioki

Hioki 3257 Manuel utilisateur

Hioki

Hioki 3511-50 Manuel utilisateur

Hioki

Hioki ST5680 Guide de l'utilisateur

Manuels Équipement de test populaires d'autres marques

SMART

SMART KANAAD SBT XTREME 3G Series Manuel utilisateur

Agilent Technologies

Agilent Technologies BERT Serial Manuel utilisateur

Agilent Technologies

Agilent Technologies N3280A Manuel utilisateur

Vernier

Vernier Go Direct Voltage Manuel utilisateur

Lifeloc

Lifeloc R.A.D.A.R. Manuel utilisateur

Fluke

Fluke T5-600 Instructions d'utilisation et d'installation

Mercury

Mercury TSL01 Manuel utilisateur

MAHA

MAHA MBT Series Manuel utilisateur

Fuji Electric

Fuji Electric P-61 Manuel utilisateur

ETC

ETC SealerAtor Manuel utilisateur

Skyfine

Skyfine ETHYWAY V2 Manuel utilisateur

Appion

Appion G5 Twin Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuel utilisateur

BW Technologies

BW Technologies MicroDock II Manuel utilisateur

Sun Nuclear

Sun Nuclear 1027 Manuel utilisateur

Biomark

Biomark HPR LITE READER Manuel utilisateur

Ashcroft

Ashcroft ATE-100 Manuel utilisateur

Rohde & Schwarz

Rohde & Schwarz RTA4000 Manuel utilisateur
