Thank you for purchasing the HIOKI RM3543/3543-01 Resistance HiTester. This guide describes basic screen operations

and comparator setting procedures. Before using the instrument the first time, please read the operating manual.

RM3543, RM3543-01

RESISTANCE HiTESTER

Operation Guide

September 2011 Edition 1 RM3543A983-00 11-09H Printed in Japan

Select and change display screens and settings

Comparator Results

(COMP indicator LEDs)

Hi Measured Value is

above Upper limit

IN Pass (meets criteria)

Lo Measured Value is

below Lower limit

Numerical value

entry and related

settings

Absolute or relative value

Power On/Off

• Unlit: power off

(while power is not supplied)

• Red light: power off

(while power is supplied)

• Green light: power on

Measurement cable jacks

Decision criteria

Measurement decision criteria settings

(Comparator function)

REF% Decide by reference value and tolerance (%)

ABS Decide by specified threshold values

Measurement Screen

(MISC MEAS MEAS SETTINGS)

Measurement Settings

DELAY1 Adjust the delay from probing to trigger input

DELAY2 Adjust measurement object electrical response

SCALING Scaling function settings

INT(FAST/ MED/ SLOW) Make fine adjustment to integration time

AVERAGE Averaging function settings

CONT CHECK Contact check threshold settings

CONT IMP Contact Improver function settings

VOLT MONITOR Voltage level monitor function settings

CURRENT MODE Current mode setting (CONT/ PULSE)

(MISC DATA DATA SETTINGS)

Data Settings

AUTO MEMORY Turn Auto-Memory on/off

STATISTICS Statistical calculation on/off

DATA OUT Automatically output measured value

(MISC SYSTEM SYSTEM) System Settings

SET MONITOR Turn two-instrument setting comparison on/off

PROBE CHECK Turn probe short-circuit detection on/off

RETRY Retry function on/off

TRIG EDGE (External I/O) Set trigger rising/falling edge

EOM (External I/O) Set EOM (end-of-measurement) signal

INTERFACE Communications interface settings

100mΩCURR 100 mΩrange measurement current 100mA/1A

CALIBRATION Self-calibration operation AUTO/MANU

JUDGE BEEP Comparator beeper settings

KEY BEEP Key beeper on/off

CLOCK(Y-M-D) Set internal clock

LINE FREQ Set power source frequency

CONTRAST Adjust screen contrast

BACKLIGHT Adjust screen backlight

RESET Initialize

ADJUST Instrument Adjustment

Basic Settings Screen

Detailed Settings

Screens

TRG Change trigger source (INT/EXT)

RANGE Change range (10mΩto 1000Ω)

SPEED Change measurement speed (FAST/MED/

SLOW)

0ADJ Turn zero-adjust on/off

COMP Turn comparator on/off

LOCK Enable/disable key lock (OFF/FULL/MENU)

Measurementscreenoperationsare

shown on the back of this sheet.

Screen Organization

Setting screen

Set reference value

(example 10.5mΩ)

Change

sign:

Return to

Measurement

screen

Set upper tolerance

(example +4.5%)

Set lower tolerance

(example -4.5%)

Decide According to

Reference Value and Tolerance

When setting the upper tolerance, the

lower tolerance is automatically set to

its negative equivalent. Change the

setting as needed.

Select item

Cancel:

Setting Comparator Decision Criteria for Measured Values

REF% Mode

Change

numerical value:

Return to

Measurement

screen

Decide According to

Upper/Lower Thresholds

Set upper thresholds

(example 150mΩ)

Set lower thresholds

(example 50mΩ)

Setting screen Select item

Change

numerical value: Cancel:

ABS Mode

+OvrRng

-OvrRng

Contact Check Fault

Indicates possible contact fault or broken

cable.

Voltage Level Monitor Fault

Probe contact may be unstable, or electri-

cal noise ingress may be present.

No Measurement Data

No measurement value is present imme-

diately after power on or after changing

range. Errors with other causes can pre-

vent display of measured values.

Measurement Fault (Error) Indicators

Measurement Screen Indicators

Trigger Source

INT: Internal trigger

EXT: External trigger

Measurement

range Measurement speed

Appears only when OVC is enabled

(OVC: Offset Voltage Compensation)

Appears only when the scaling

function is enabled

Key-Lock State

F.LOCK: Changes to settings are disabled

M.LOCK: All except comparator settings are disabled

Zero-adjust (ON)

C.E. Hi

C.E. Lo

C.E. Volt

- - - - - - -

Cancel key-lock

(hold 1s)

PRINT Prints measured value

(Enabled when PRINT is selected as the INTERFACE

setting on the SYSTEM screen) PRINT Prints statistical data

(Enabled when PRINT is selected as the INTER-

FACE setting on the SYSTEM screen)

STAT Displays statistical calculation results

(Enabled when ON is selected as the STATISTICS set-

ting on the DATA screen) UNDO Deletes the previously stored measurement

and calculation result (only the most recent

measurement can be deleted)

NUMBER

Sets the number of measurements for Auto-Memo-

ry mode

(Enabled when ON is selected as the AUTO MEMORY

setting on the DATA screen)

ALLCLR Deletes all memories and calculations

Enable local

control

Tenkey Input Enabled

Change Settings

Out of Range (over- or under-range)

The measured value is above or below

the measurement range, or open device.

Remote control

Autres manuels pour RM3543

Ce manuel convient aux modèles suivants

Autres manuels Hioki Équipement de test

Hioki

Hioki 3550 Manuel utilisateur

Hioki

Hioki 9261 Manuel utilisateur

Hioki

Hioki ST5680 Manuel utilisateur

Hioki

Hioki BT3564 Manuel utilisateur

Hioki

Hioki 3541 Manuel utilisateur

Hioki

Hioki RM3542 Manuel utilisateur

Hioki

Hioki 3403 Manuel utilisateur

Hioki

Hioki 3144-20 Manuel utilisateur

Hioki

Hioki 3665-20 Manuel utilisateur

Hioki

Hioki 3285 Manuel utilisateur

Hioki

Hioki Analog MO HiTESTER Series Manuel utilisateur

Hioki

Hioki 3280-10 Manuel utilisateur

Hioki

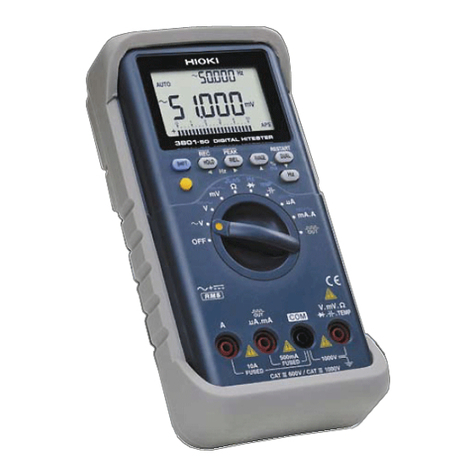

Hioki 3801 Manuel utilisateur
