User Manual

Thank you for purchasing our product. If there are any

questions, or requests, please do not hesitate to

contact the dealer.

This manual applies to the models below:

Type

Model

Type I Camera

DS-2CE16D(F)7T-AIT3Z

DS-2CE16D(F)7T-IT3Z

Type II Camera

DS-2CE56D(F)7T-IT3Z

This manual may contain several technical incorrect

places or printing errors, and the content is subject to

change without notice. The updates will be added to

the new version of this manual. We will readily improve

or update the products or procedures described in the

manual.

0100001060119

Privacy Notice

Surveillance laws vary by jurisdiction. Check all relevant

laws in your jurisdiction before using all this product for

surveillance purpose to ensure that your use of this

product conforms.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and

found to comply with the limits for a digital device,

pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against

harmful interference when the equipment is operated

in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in

which case the user will be required to correct the

interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation

EU Conformity Statement

This product and - if applicable - the

supplied accessories too are marked with

"CE" and comply therefore with the

applicable harmonized European

standards listed under the Low Voltage Directive

2006/95/EC, the EMC Directive 2004/108/EC.

2002/96/EC (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste in

the European Union. For proper recycling,

return this product to your local supplier

upon the purchase of equivalent new equipment, or

dispose of it at designated collection points. For more

information see: www.recyclethis.info.

2006/66/EC (battery directive): This

product contains a battery that cannot be

disposed of as unsorted municipal waste in

the European Union. See the product

documentation for specific battery

information. The battery is marked with

this symbol, which may include lettering to indicate

cadmium (Cd), lead (Pb), or mercury (Hg). For proper

recycling, return the battery to your supplier or to a

designated collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)

standards requirements.

1Introduction

1.1 Product Features

This series of camera adopts high performance sensor

and advanced circuit board design technology. It

features high resolution, low distortion, and low noise,

etc. It is suitable for surveillance system and image

process system.

The main features are as follows:

High performance CMOS sensor and high resolution

bring high-quality image;

Low illumination, 0.01 Lux @ (F1.2, AGC ON), 0 Lux

with IR;

IR cut filter with auto switch;

OSD menu, parameters are configurable;

Auto white balance and internal synchronization;

SMART IR mode;

True WDR;

Advanced 3-axis design meets different installation

requirements

1.2 Overview

The cables of device vary according to different models. The

cables of each type are shown in the figures below, please

refer to the actual sample.

You can debug the camera by connecting an auxiliary HD

TVI cable to the auxiliary video output.

1.2.1 Overview of Type I Camera

Photoconductive

Resistance

Model I Cables

Video Cable

24VAC/12VDC

Power Cord

Video Cable

DC 12V

Power Cord

Model II Cables

Main Body

Lens

Bracket

Cables

Auxiliary Video

Output

Menu Button

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Camera

Lock Screw

Enclosure

Video Cable

DC 12V

Power Cord

Base Plate

Figure 1-2 Overview of Type II Camera

2Installation

Before you start:

Please make sure that the device in the package is in

good condition and all the assembly parts are

included.

Make sure that all the related equipment is power-off

during the installation.

Check the specification of the products for the

installation environment.

Check whether the power supply is matched with

your required output to avoid damage.

Please make sure the wall is strong enough to

withstand three times the weight of the camera and

the mounting.

If the wall is the cement wall, you need to insert

expansion screws before you install the camera. If the

wall is the wooden wall, you can use self-tapping

screw to secure the camera.

If the product does not function properly, please

contact your dealer or the nearest service center. Do

not disassemble the camera for repair or

maintenance by yourself.

2.1 Installation of Type I Camera

Both wall mounting and ceiling mounting are suitable for the

bullet camera. Ceiling mounting will be taken as an example in

this section. You can take steps of ceiling mounting as a

reference if wall mounting is adopted.

2.1.1 Ceiling/Wall Mounting without Gang Box

Steps:

1. Attach the drill template (supplied) to the place

where you want to fix the camera, and then drill the

screw holes and the cable hole in the ceiling/wall

according to the drill template.

Figure 2-1 Drill Template

2. Route the cables through the cable hole.

3. Secure the camera to the ceiling with the supplied

Screws.

Figure 2-2 Fix the Camera to the Ceiling

4. Connect the corresponding cables.

5. Adjust the camera according to Figure 2-3 to get an

optimum angle.

1). Loosen the P screw to adjust the pan direction

[0°~360°]. Tighten the screw after completing

the adjustment.

2). Loosen the T screw to adjust the tilt direction

[0°~90°]. Tighten the screw after completing the

adjustment.

3). Loosen the R screw and rotate the camera

[0°~360°] to adjust the lens to the surveillance

angle. Tighten the screw after completing the

adjustment.

P Screw

T Screw

R Screw

Tilt Position Range

[0°-90°]

Pan Position Range

[0°-360°]

Rotation Position Range

[0°-360°]

Figure 2-3 3-axis Adjustment

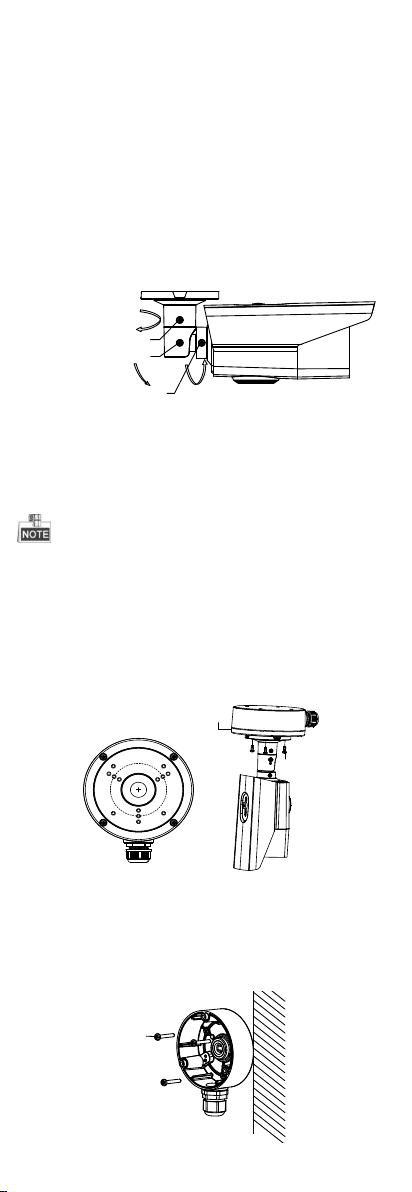

2.1.2 Ceiling/Wall Mounting with Gang Box

You need to purchase a gang box separately if you adopt celling

mounting.

Steps:

1. Take apart the gang box and align the screw holes of

the bullet camera and the gang box cover.

2. Route the cables through the cable hole of gang box

and fix the camera with the gang box cover with the

supplied screws, as shown in Figure 2-4.

Screw

Gang Box Cover

Figure 2-4 Fix the Camera with the Gang Box

3. Drill the screw holes in the ceiling/wall according to

the supplied drill template.

4. Hammer the supplied screws into the screw holes to

fix the gang box to the ceiling/wall.

Screw

Figure 2-5 Fix the Camera to the Ceiling

5. Connect the corresponding cables and install the

gang box cover with fixing screws.

Figure 2-6 Fix the Camera to the Ceiling/Wall

6. Refer to step 5 of 2.1.1 to adjust the camera to get

an optimum angle.

2.2 Installation of Type II Camera

Steps:

1. Attach the drill template (supplied) to the place

where you want to fix the camera, and then drill the

screw holes and the cable hole in the ceiling/wall

according to the drill template.

Figure 2-7 Drill Template

2. Loosen the screws to remove the clip plate and take

out the main body.

Figure 2-8 Remove the Clip Plate

3. Fix the mounting base to the ceiling with screws.

4. Route the cables through the cable hole and

connect the corresponding cables.

5. Install the main body to the mounting plate and

insert the clip plate.

Figure 2-9 Install the Turret Camera

6. Tighten the screws with the wrench.

7. Adjust the camera according to Figure 2-10 to get an

optimum angle.

Pan Position Range

[0°-360°]

Tilt Position Ran ge

[0°-75°]

Rotation Position Range

[0°-360°]

Figure 2-10 3-axis Adjustment

3Menu Description

MAIN MENU

AE WB DAY

&NIGHT

VIDEO

SETTING RESET

SAVE

&EXIT

BRIGHTNESS

EXPOSURE

MODE

GAIN

ATW

MWB

COLOR

B/W

CONTRAST

SHARPNESS

COLOR

GAIN

DNR

MIRROR

SMART

FORMAT FOCUS

SETUP

Figure 3-1 Main Menu Overview

With a camera controller (purchased separately) or calling

the preset No. 95 of DVR you can select the menu and

adjust the parameters.

Move the cursor up/down to select the menu item.

Move the cursor left/right to adjust the value of the

selected item.

Press the OK key to confirm a selection.

3.1 Format

Move the cursor to FORMAT, and press the menu

button to enter the FORMAT sub menu. You can set the

format of camera and confirm.

3.2 Focus

Move the cursor to FOCUS, and press the menu button

to enter the FOCUS sub menu. Move the cursor to

adjust the camera lens by the FOCUS+, FOCUS-, ZOOM+

and ZOOM-.

3.3 Main Menu

3.3.2 AE (Auto Exposure)

AE describes the brightness-related parameters. You

can adjust the image brightness by the BRIGHTNESS,

EXPOSURE MODE, and GAIN in different light

conditions.

EX PO SU RE

BR I GH T NES S

EX PO SUR E MO DE

GA IN

RETURN

BL C

MIDDLE

Figure 3-2 AE

BRIGHTNESS

Brightness refers to the brightness of the image. You

can set the brightness value from 1 to 10 to darken or

brighten the image. The higher the value is, the brighter

the image is.

EXPOSURE MODE

You can set AE mode as GLOBAL, BLC, and WDR.

GLOBAL

GLOBAL refers to the normal exposure mode which is

for adjusting the situations including unusual lighting

distribution, variations, non-standard processing, or

other conditions of under exposure to get an optimum

image.

BLC (Backlight Compensation)

BLC (Backlight Compensation) compensate light to the

object in the front to make it clear, but this causes the

over-exposure of the background where the light is

strong.

When BLC is selected as the exposure mode, the BLC

level can be adjusted from 1 to 10.

WDR (Wide Dynamic Range)

The wide dynamic range (WDR) function helps the

camera provide clear images even under back light

circumstances. WDR balances the brightness level of

the whole image and provide clear images with details.

GAIN

It optimizes the clarity of image in poor light scene. The

GAIN level can be set to HIGH, MIDDLE, and LOW.

Select OFF to disable the GAIN function.

The noise will be amplified if the GAIN is on.

3.3.3 WB (White Balance)

White balance is the white rendition function of the

camera to adjust the color temperature according to

the environment. It can remove the unrealistic color

casts in the image. You can set WB mode as ATW, and

MWB.

ATW

In ATW mode, white balance is being adjusted

automatically according to the color temperature of the

scene illumination.

MWB

You can set the R GAIN/B GAIN value from 0 to 255 to

adjust the shades of red/blue color of the image.

MODE

R GAIN

B GA I N

RETURN

MWB

Figure 3-3 MWB Mode

3.3.4 DAY-NIGHT

Color, B/W, and SMART are selectable for DAY and

NIGHT switches.

COLOR

The image is colored in day mode all the time.

B/W

The image is black and white all the time, and the IR

LED turns on in the low-light conditions.

SMART

You can select to turn on/off the INFRARED and set the

value of SMART IR in this menu.

DAY/NIGHT

MODE

INFRARED

SM AR T I R

RETURN

SM AR T

OP EN

Figure 3-4 Day & Night

INFRARED

You can select to turn on/off the IR LED to response to

the requirements of different circumstances.

SMART IR

The Smart IR function is used to adjust the light to its

most suitable intensity, and to prevent the image from

over exposure. The SMART IR value can be adjusted

from 0 to 3. The higher the value is, the more obvious

effects are, and it is disabled when the value is 0.

3.3.5 VIDEO SETTING

Move the cursor to VIDEO SETTING and press the

confirm button to enter the submenu. CONTRAST,

SHARPNESS, COLOR GAIN, DNR and MIRROR are

adjustable.

VI D E O SET T ING

CONTRAST

SHA R PNES S

COLOR GAIN

DNR

MIRROR

RETURN

DEFAULT

Figure 3-5 Video Setting

CONTRAST

This feature enhances the difference in color and light

between parts of an image. You can set the CONTRAST

value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging

system can reproduce. You can set the SHARPNESS

value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturation of the color.

The value ranges from 1 to 10.

DNR (Digital Noise Reduction)

The DNR function can decrease the noise effect,

especially when capturing moving images in low light

conditions and delivering more accurate and sharp

image quality.

You can set the DNR value from 1 to 10.

MIRROR

DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror function is disabled.

H: The image flips 180 degree horizontally.

V: The image flips 180 degree vertically.

HV: The image flips 180 degrees both horizontally and

vertically.

3.3.6 RESET

Reset all the settings to the default.

3.3.7 SAVE &EXIT

Move the cursor to SAVE &EXIT and press OK to save

the setting and exit the menu.

4IR Reflection Prevention

For the camera that supports IR, you are required to

pay attention to the following precautions to prevent IR

reflection:

Dust or grease on the dome cover will cause IR reflection.

Please do not remove the dome cover film until the

installation is finished. If there is dust or grease on the

dome cover, clean the dome cover with clean soft cloth and

isopropyl alcohol.

Make sure that there is no reflective surface too close to

the camera lens. The IR light from the camera may reflect

back into the lens causing reflection.

The foam ring around the lens must be seated flush against

the inner surface of the bubble to isolate the lens from the

IR LEDS. Fasten the dome cover to camera body so that the

foam ring and the dome cover are attached seamlessly.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HIK VISION Caméra de sécurité

HIK VISION

HIK VISION DS-2CD8253F-EI Guide de l'utilisateur

HIK VISION

HIK VISION iDS-2CD71G0-IZS Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CE16F7T-IT3 Manuel utilisateur

HIK VISION

HIK VISION DS-2CE71D0T-PIRLO Manuel utilisateur

HIK VISION

HIK VISION DS-2TD4238-7/S2 Manuel utilisateur

HIK VISION

HIK VISION DS-2DE4225W-DE Manuel utilisateur

HIK VISION

HIK VISION US-5 Inch Speed Dome Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2112 Guide de l'utilisateur

HIK VISION

HIK VISION DS-2CD3686G2T-IZS Manuel utilisateur

HIK VISION

HIK VISION TURBO HD DS-2CE56D(F)7T-IT1 Manuel utilisateur

HIK VISION

HIK VISION DS-2CE56D0T-IRP Manuel utilisateur

HIK VISION

HIK VISION E-series Manuel utilisateur

HIK VISION

HIK VISION DS-2CE11D0T-PIRLP Manuel utilisateur

HIK VISION

HIK VISION DS-2SE7C432MW-AEB Manuel utilisateur

HIK VISION

HIK VISION XM61 Series Manuel utilisateur

HIK VISION

HIK VISION DS?2CD753F?E Manuel utilisateur

HIK VISION

HIK VISION TurboHD H0T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2TD8166-150ZH2F/V2 Manuel utilisateur

HIK VISION

HIK VISION DS-2CC5181P-VPIR Manuel utilisateur

HIK VISION

HIK VISION iDS-2CD8C46G0-XZS Manuel utilisateur

HIK VISION

HIK VISION DS-2CV2G21G0-IDW Manuel utilisateur

HIK VISION

HIK VISION 4 Inch High Speed Dome Manuel utilisateur

HIK VISION

HIK VISION iDS-2CD75C5G0-IZHSY Manuel utilisateur

HIK VISION

HIK VISION TURBO HD 5 MP Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
