HIK VISION DS-2TD4166T-9 Manuel utilisateur

Thermal Bi-spectrum

Network Speed Dome

Quick Start Guide

Thermal Network Speed dome·Quick Start Guide

Quick Start Guide

Any and all information, including, among others, wordings, pictures, graphs are

the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its

subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter

referred to be “the Manual”) cannot be reproduced, changed, translated, or

distributed, partially or wholly, by any means, without the prior written permission

of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties,

guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Thermal Bi-spectrum Network Speed Dome.

The Manual includes instructions for using and managing the product. Pictures,

charts, images and all other information hereinafter are for description and

explanation only. The information contained in the Manual is subject to change,

without notice, due to firmware updates or other reasons. Please find the latest

version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of

Hikvision in various jurisdictions. Other trademarks and logos mentioned below

are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT

DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED

“AS IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION,

MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR

PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL

HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO

YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT

DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS

PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION,

Thermal Network Speed dome·Quick Start Guide

iii

IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS

BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF

PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT

TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE

OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK,

VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER,

HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT

LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO

ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL

NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH

ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE

APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the

limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and

used in accordance with the instruction manual, may cause harmful interference

to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference in which case the user will be required to correct

the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that

may cause undesired operation

EU Conformity Statement

This product and - if applicable - the supplied accessories too are

marked with "CE" and comply therefore with the applicable

harmonized European standards listed under the EMC Directive

2014/30/EU, the RoHS Directive 2011/65/EU.

Thermal Network Speed dome·Quick Start Guide

2012/19/EU (WEEE directive): Products marked with this symbol

cannot be disposed of as unsorted municipal waste in the European

Union. For proper recycling, return this product to your local supplier

upon the purchase of equivalent new equipment, or dispose of it at

designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that

cannot be disposed of as unsorted municipal waste in the European

Union. See the product documentation for specific battery information.

The battery is marked with this symbol, which may include lettering to

indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling,

return the battery to your supplier or to a designated collection point. For more

information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Safety Instruction

These instructions are intended to ensure that user can use the product correctly

to avoid danger or property loss.

The precaution measure is divided into Warnings and Cautions:

Warnings: Neglecting any of the warnings may cause serious injury or death.

Cautions: Neglecting any of the cautions may cause injury or equipment damage.

Warnings

The device should be used in compliance with local laws and electrical safety

regulations. Refer to the appropriate documentation for detailed information.

The input voltage should conform to IEC60950-1 standard: SELV (Safety Extra

Low Voltage) and the Limited Power Source (24 VAC/12 VDC). Refer to the

appropriate documentation for detailed information.

DO NOT connect multiple devices to one power adapter, to avoid over-heating

or fire hazards caused by overload.

Make sure the plug is properly connected to the power socket.

If smoke, odor, or noise arises from the device, immediately turn off the power,

unplug the power cable, and contact the service center.

Warnings Follow

these safeguards

to prevent serious

injury or death.

Cautions Follow these

precautions to prevent

potential injury or

material damage.

Thermal Network Speed dome·Quick Start Guide

The installer and user are responsible for password and security configuration

and its settings.

Both internal and external grounds should be connected properly. (The cross

section area of the grounding wire must be no less than 4 mm2, and no less

than that of the phase connector).

Cautions

Do not drop the device or subject it to physical shock.

Wipe the device gently with a clean cloth and a small quantity of ethanol, if

necessary.

Do not aim the lens at the sun or any other bright light.

When any laser equipment is in use, make sure that the device lens is not

exposed to the laser beam, or it may burn out.

Do not expose the device to high electromagnetic radiation or extremely hot,

cold, dusty, or damp environments.

Place the device in a dry and well-ventilated environment.

Keep non-waterproof devices away from liquids.

Keep the device in original or similar packaging while transporting it.

A few device components (e.g., electrolytic capacitor) require regular

replacement. The average lifespan varies, so periodic checking is

recommended. Contact your dealer for details.

Improper use or replacement of the battery may result in explosion hazard.

Replace with the same or equivalent type only. Dispose of used batteries in

conformance with the instructions provided by the battery manufacturer.

Never attempt to disassemble the device.

0505021080509


Thermal Network Speed dome·Quick Start Guide

vi
Table of Contents
1Preparation ................................................................................................. 1
2Appearance Description.............................................................................3
2.1 Speed dome Appearance ..................................................................................... 3

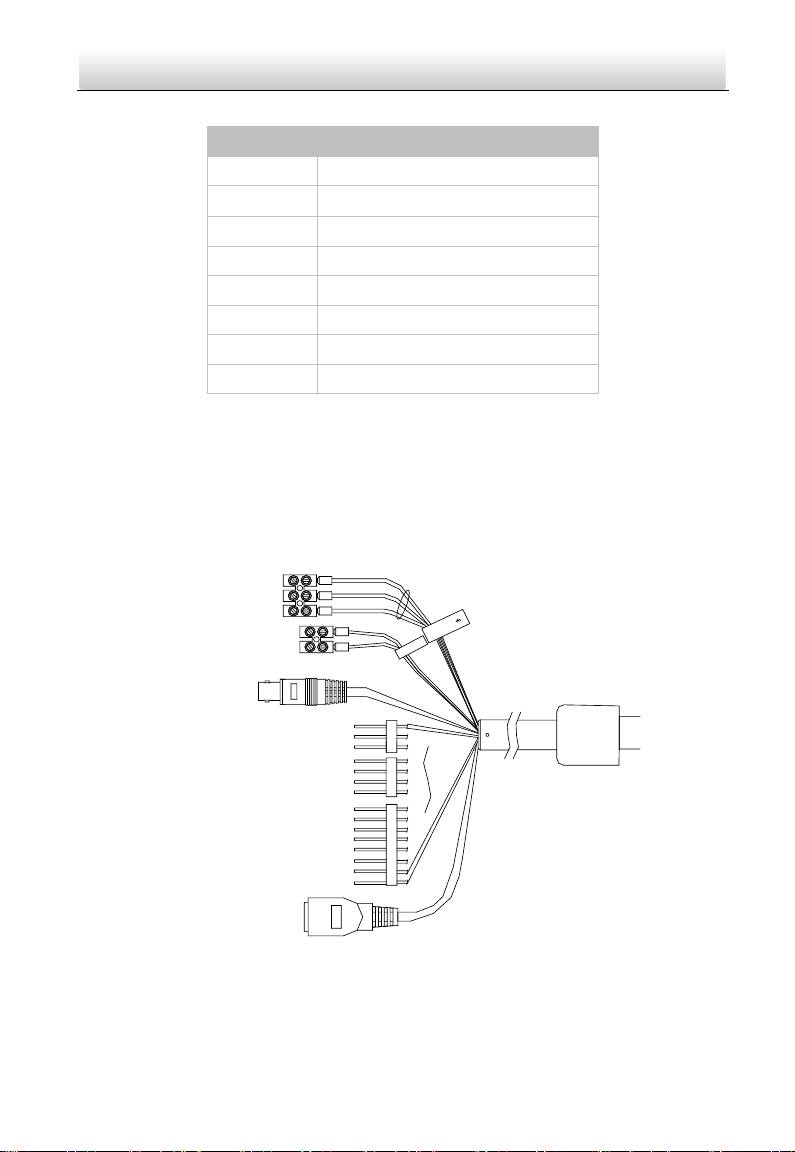

2.2 Cable Descriptions ................................................................................................ 4
2.3 Alarm In/Out Connections.................................................................................... 5
3Installing the Speed dome ......................................................................... 6
3.1 Monitoring Distance Range.................................................................................. 7
3.2 Wiring...................................................................................................................... 8
3.3 Installing Memory Card ...................................................................................... 11
3.4 Installing Speed Dome........................................................................................ 11
3.5 Finishing Installing .............................................................................................. 15
4Setting the System over the LAN............................................................. 16
4.1 Wiring.................................................................................................................... 16
4.2 Activating the System......................................................................................... 16
4.2.1 Activation via Web Browser..........................................................................17
4.2.2 Activation via SADP Software.......................................................................17
4.3 Modifying the IP Address ................................................................................... 18
5Operating via Web browser...................................................................... 20
5.1 Accessing the System ........................................................................................ 20
5.2 Live View Page..................................................................................................... 21
6Appendix ................................................................................................... 23
6.1 Common Material Emissivity Reference .......................................................... 23
6.2 Frequently Asked Questions (FAQ) ................................................................... 24
6.2.1 Device Running Error.................................................................................... 24
6.2.2 Device Upgrading.......................................................................................... 24
6.2.3 Others............................................................................................................. 24


Thermal Network Speed dome·Quick Start Guide

1Preparation

Basic Requirement

All the electronic operation should be strictly compliance with the electrical

safety regulations, fire prevention regulations and other related regulations

in your local region.

Check the package contents and make sure that the device in the package is

in good condition and all the assembly parts are included.

Use the system according to the working environment requirement.

Checking Installing Environment

Be sure that there is enough space to install the speed dome and

accessories.

Make sure that the wall is strong enough to withstand at least 8 times the

weight of the system and the mount.

Preparing Cables

According to the actual network bandwidth, the Cat5 (in 100M) or Cat6

(100M above) is needed.

When the Speed dome uses standard 24V AC power supply, the power cable

should be American wire gauge 18 or above. The formula of the

cross-section S (mm² ) and the maximum transmission distance L (m) of the

bare wire is L=50*S.

Choose the video cable according to the transmission length. The video

should meet the least demands as: 75Ω resistance; 100% copper core

conducting wire; 95% weaving copper shield.

RS485 communication cable, please refer to Appendix 2

24V AC power cable, please refer to Appendix 3

Preparing Tools

Before installation, please prepare the tools needed, such as the expansion

screws, electric hammer, electric drill, wrench, screwdriver, electroprobe and

network cable.

Original Packaging

When you unpack the speed dome, please keep the original package

properly, in case of returning or repairing the speed dome, you can pack the

speed dome with the package.

Thermal Network Speed dome·Quick Start Guide

Note: The user should be responsible for any damage caused when

transporting with unoriginal package.

Thermal Network Speed dome·Quick Start Guide

2Appearance Description

There are two kinds of thermal network speed domes: Type I speed dome, and

Type II speed dome. The appearance description of two cameras are shown

below.

2.1 Speed dome Appearance

Refer to the following figures for Type I thermal speed dome overview and

dimensions.

RED AC24V

YELLOW/GREEN

BLACK AC24V

ORANGE RS485+

YELLOW

RS485-

Type I Speed Dome Type II Speed Dome

Figure 2-1 Thermal Speed dome Overview

Thermal Network Speed dome·Quick Start Guide

Table 2-1 Descriptions of Cable Interface

No.

Description

Network Cable

Video Cable

Alarm Out

Audio Cable

Alarm In

RS-485

Power Cable

SD Card Slot

2.2 Cable Descriptions

The cable interfaces of speed dome are shown in Figure 2-2. The cables of

RS-485, power supply, alarm inputs, alarm outputs, etc. are distinguished by

different colors. Please refer to the labels attached on the cables for identification.

VIDEO

RED AC24V

YELLOW/GREEN

BLACK AC24V

YELLOW R485

ORANGE R485 +

Power Cable

RS485-

RS485+

Video Cable

Alarm Inputs

Network Cable

Alarm Outputs

Audio Input / Output

Figure 2-2 Cables of Other Speed domes

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HIK VISION Caméra de sécurité

HIK VISION

HIK VISION TURBO HD H8T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2TD2 Series Manuel utilisateur

HIK VISION

HIK VISION DS-2CD5165G0-IZS Manuel utilisateur

HIK VISION

HIK VISION DS-2CD4A26FWD-IZSP Manuel utilisateur

HIK VISION

HIK VISION DS-2CD4312F-I Guide de l'utilisateur

HIK VISION

HIK VISION DS-2CE16H1T-IT3Z Manuel utilisateur

HIK VISION

HIK VISION DS?2CD763PF?E Manuel utilisateur

HIK VISION

HIK VISION D8T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2DP1636ZIX-D Manuel utilisateur

HIK VISION

HIK VISION DS-2TD2637T-7/P Manuel utilisateur

HIK VISION

HIK VISION DS-2CD8253F-EI Guide de l'utilisateur

HIK VISION

HIK VISION TURBO HD DS-2CE56D5T-VFIR Manuel utilisateur

HIK VISION

HIK VISION DS-2XC6285G0-L Manuel utilisateur

HIK VISION

HIK VISION TURBO HD H0T PIR Series Manuel utilisateur

HIK VISION

HIK VISION iDS-TCM403-A Manuel utilisateur

HIK VISION

HIK VISION IDS-2CD7A46G0-IZHSY 8-32 Manuel utilisateur

HIK VISION

HIK VISION DS-2SE4C425MWG-E/26(F0) Manuel utilisateur

HIK VISION

HIK VISION DS-2AE7230T Manuel utilisateur

HIK VISION

HIK VISION TURBO HD U1T Series Manuel utilisateur

HIK VISION

HIK VISION DS-2DE2A404IW-DE3/W Manuel utilisateur

HIK VISION

HIK VISION DS-2CD2D21G0/M-D/NF Manuel utilisateur

HIK VISION

HIK VISION DS-2CD6D54G1-ZS Manuel utilisateur

HIK VISION

HIK VISION V5.1.0 Manuel utilisateur

HIK VISION

HIK VISION DS-2CC12D8T-AMM Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
