Quick Guide of Network Box Camera

Network Box Camera

Quick Guide

V3.0.0

Hangzhou Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

2010-04

Quick Guide of Network Box Camera

1.Camera Description

1.1 Side Panel Description

Serial NO.

Description

Lens mount

Bracket mounting holes, used to fix the camera to the bracket

Auto iris interface

Quick Guide of Network Box Camera

1.2 Rear Panel Description

Rear Panel of DS-2CD886BF-E and DS-2CD876BF:

Serial NO.

Description

F1+ F1-, F2+ F2- , F3+ F3-: Alarm output interface

T1, T2, T3, T4, GND: Alarm input interface

D+,D-: RS-485 interface

10M / 100M self-adaptive Ethernet interface

Video output interface

RESET: Reset all parameters to factory default settings

TXD , RXD,GND: RS-232 interface

Power supply

Power LED indicator, which turns red when power is applied to the unit

SD card slot

Audio input interface

Audio output interface

Ground

NOTE:

When the camera is power up, press the ‘RESET’ button for about 10 seconds, then all parameters,

including user name, password, IP address, port number, etc., will be reset to the factory default

settings.

Quick Guide of Network Box Camera

Rear Panel of DS-2CD886MF-E and DS-2CD876MF:

Serial NO.

Description

ALARM OUT, GND: Alarm output interface

ALARM IN, GND: Alarm input interface

D+, D-: RS-485 interface

TXD , RXD,GND: RS-232 interface

HDMI interface

RESET: Reset all parameters to factory default settings

10M / 100M self-adaptive Ethernet interface

Power supply

Power LED indicator, which turns red when power is applied to the unit

SD card slot

Audio input interface

Audio output interface

Ground

NOTE:

When the camera is power up, press the ‘RESET’ button for about 10 seconds, then all parameters,

including user name, password, IP address, port number, etc., will be reset to the factory default

settings.

Quick Guide of Network Box Camera

2.Installation

Box camera can be fixed in both wall and ceiling, the following section introduces the ceiling

mounting, and the wall mounting follows the same way:

Step 1: Fix the camera mounting bracket to the ceiling.

Fig 2.1 Fix camera mounting bracket

NOTE:

If it is wall, you need to fix the expand bolt (note: the mounting hole of the expand bolt should align

with the bracket) before fixing the bracket as ①in Fig 2.1 . If the wall surface is wooden, the part of

①in Fig 2.1 can be ignored and you can use the self-tapping screw to directly fix the bracket. Please

note that the wall on which the camera is fixed should be able to bear at least three times the

weight of the bracket and the camera.

Step 2: Screw the mounting hole to the mounting bracket, and then adjust the camera to the

desired monitoring location and finally tighten the knob on bracket to secure the camera to the

ceiling.

Quick Guide of Network Box Camera

Fig 2.2 Fix the Camera

Step 3: Mount the camera lens: connect the VIDEO OUT interface of the camera to the debugging

monitor, and adjust lens focus until you have obtained the clearest video images on the monitor,

and then lock the lens. If required, loosen the knob on the mounting bracket and adjust the camera

lens to the desired monitoring scene, and finally tighten the knob on bracket.

Fig 2.3 Mount and adjust Lens

Quick Guide of Network Box Camera

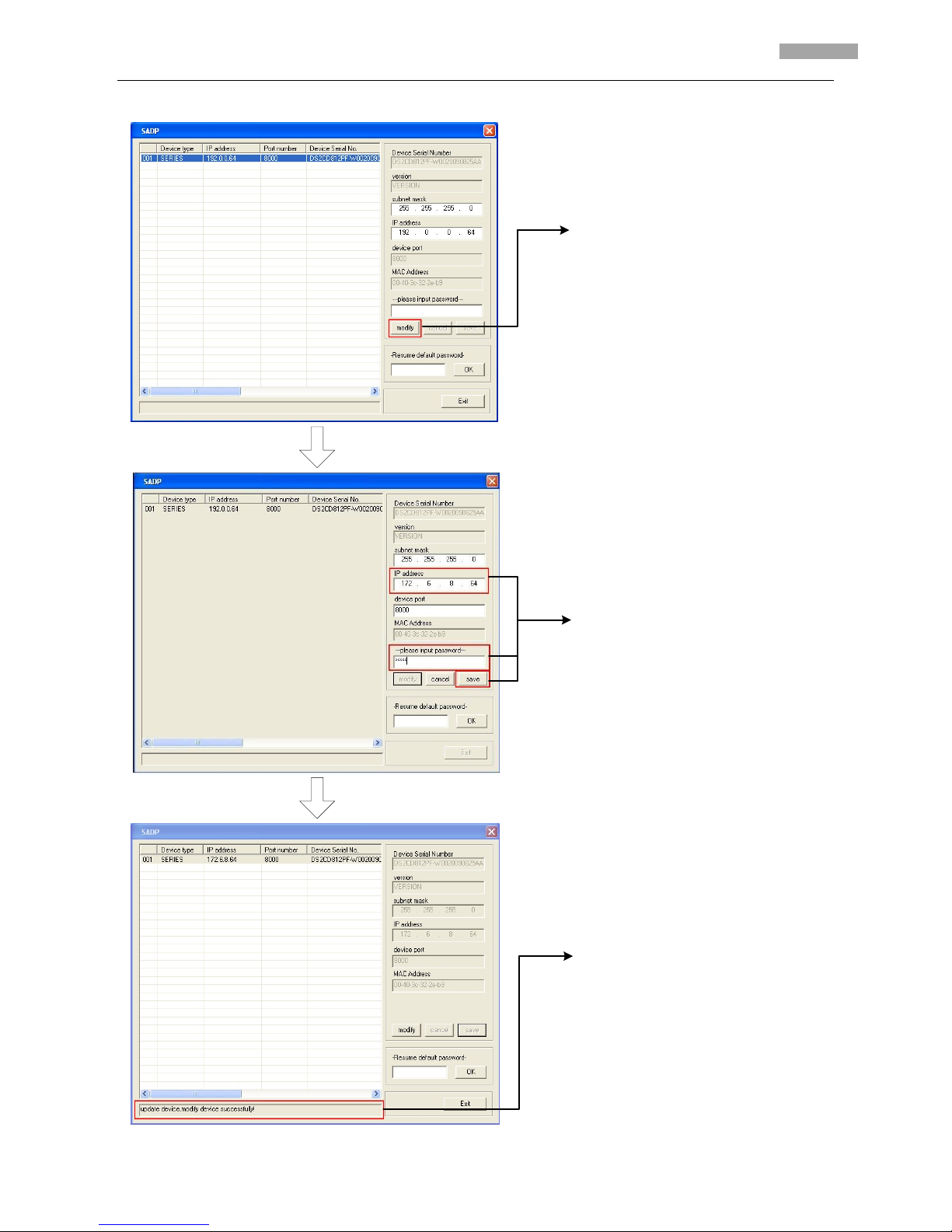

3.Search and Modify IP

SADP (Search Active Devices Protocol) software can automatically search the IP address of network

cameras’ on the same network with connection diagram as follows:

The operation of searching and modifying IP address is described as following:

2. Search IP address.

Click it Show the IP address of the camera

3. Modify IP address.

1. Install the SADP software , and then run the

“sadpdlg.exe”

Quick Guide of Network Box Camera

1. Click [modify]

2. Input new IP address and the

password ( Default: 12345) of

the camera, then click [save]

3. Modify successfully

Quick Guide of Network Box Camera

4.Preview via IE browser

Note:

The default IP of network cameras’ is ‘192.0.0.64’ with ‘admin’ as the administrator, ‘12345’ as

the password, and ‘8000’ as the default port.

For monitoring camera images, a comptuer running the Microsoft Windows Operating System and

Internet Explorer (Version 6.0 or later) are required. In this manual, we take Windows XP and IE 6.0

for example.

This chapter describes how to view the video from the camera via web browser, and operate as

following:

1. Open the IE browser, set the security level to [Medium] in

*Tools/InternetOptions/Security/Custom Level…+

Quick Guide of Network Box Camera

2. Type the IP address of the camera and press [Enter], and

then click the mention box that pop up.

3. Click [Run] to install the ActiveX control.
