Hikvision Technical Manual

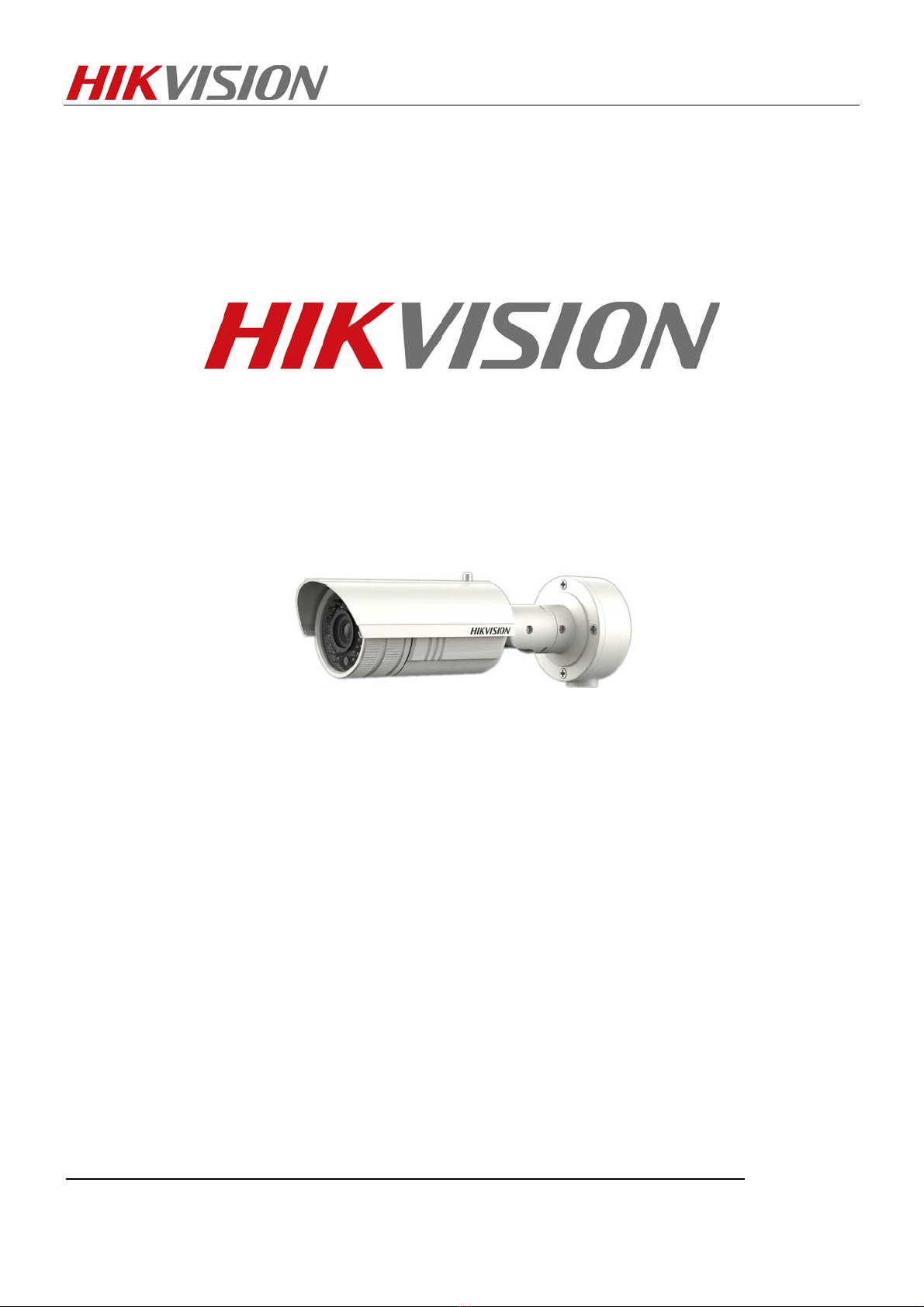

DS-2CD8253F-EI(S) Network Camera

Technical Manual

Hikvision Technical Manual

Notices

The information in this documentation is subject to change without notice and does not represent any

commitment on behalf of HIKVISION. HIKVISION disclaims any liability whatsoever for incorrect data

that may appear in this documentation. The product(s) described in this documentation are furnished

subject to a license and may only be used in accordance with the terms and conditions of such license.

This documentation is issued in strict confidence and is to be used only for the purposes for

which it is supplied. It may not be reproduced in whole or in part, in any form, or by any means or

be used for any other purpose without prior written consent of HIKVISION and then only on the

condition that this notice is included in any such reproduction. No information as to the contents or

subject matter of this documentation, or any part thereof, or arising directly or indirectly therefrom,

shall be given orally or in writing or shall be communicated in any manner whatsoever to any third party

being an individual, firm, or company or any employee thereof without the prior written consent of

HIKVISION. Use of this product is subject to acceptance of the HIKVISION agreement required to use

this product. HIKVISION reserves the right to make changes to its products as circumstances may

warrant, without notice.

This documentation is provided “as-is,” without warranty of any kind.

Please send any comments regarding the documentation to:

[email protected]

Find out more about HIKVISION at www.hikvision.com

Hikvision Technical Manual

Contents

1. Key Features

2. Specifications

3. Dimension

Hikvision Technical Manual

1.Key Features

zUpto2megapixel(1600×1200)resolution

zStandardH.264videocompressionwithhighcompressionratio

zProgressivescanCMOS,capturemotionvideowithoutsawtooth

zSupportePTZ(electronicpan/tilt/zoom)

zSupportdualstreams,andthesubstreamusedforthemobilephonesurveillance

zUpto32GBSD/SDHCcardlocalstorage

zIRcutfilterwithautoswitch

zPoE(PoweroverEthernet)

zAutoiris,electronicshutterfordifferentenvironment

zWeatherProofRating:IP66

Hikvision Technical Manual

2.Specifications

Model

Parameter

DS‐2CD8253F‐EI(S)

2MegapixelCMOSInfraredVari‐focalWeather‐proofICRNetworkBullet

Camera

ImageSensor1/3”ProgressiveScanCMOS

Min.Illumination0.5Lux@(F1.2,AGCON),0.1Lux@(F1.2,AGCON,sensitivity×5)

0LuxwithIR

ShutterTime1/25sto1/100,000s

Lens2.7–9mm@F1.2

Angleofview:101°‐30.4°

LensMountΦ14

AutoIrisDCdrive

Day&NightIRcutfilterwithautoswitch

CompressionStandard

VideoCompressionH.264/MPEG4/MJPEG

BitRate32Kbps–16Mbps

DualStreamYes

Image

Max.Image

Resolution1600x1200

FrameRate

50Hz:12.5fps(1600×1200),12.5fps(1600×912),25fps(1280×960),

25fps(1280×720)

60Hz:15fps(1600×1200),15fps(1600×912),25fps(1280×960),30

fps(1280×720)

ImageSettingsSaturation,Brightness,Contrastadjustablethroughclientsoftwareor

webbrowser

Network

NetworkStorageNAS(iSCSIoptional)

AlarmTriggerMotiondetection,Networkdisconnect,IPaddressconflict,Storage

exception

ProtocolsTCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,PPPoE,SMTP,NTP

(SNMP,HTTPS,FTP,SIP,SRTP,802.1x,IPv6optional)

SecurityPasswordprotection,Watermark

Interface

Communication

Interface1RJ4510M/100MEthernetinterface

LocalStorageBuilt‐inSD/SDHCslot,upto32GB

Hikvision Technical Manual

ResetButtonYes

General

Operating

Conditions

‐10°C‐60°C(14°F–140°F)

Humidity90%orless(non‐condensing)

PowerSupply12VDC±10%

PoE(802.3af)

PowerConsumption Max.8.5W

WeatherProof

RatingIP66

IRRangeApprox20to30meters

Dimension98×88.58×328.79mm(3.86”×3.49”×12.94”)

Weight1700g(3.75lbs)

*DS‐2CD8253F‐E,DS‐2CD8253F‐ESisnotequippedwithinfraredlightsanddoesn'thaveIRcutfilter

function.

*”‐S”isequippedwithaudiointerface,alarminterfaceandRS‐485interface.

OrderModels

DS‐2CD8253F‐E,DS‐2CD8253F‐ES

DS‐2CD8253F‐EI,DS‐2CD8253F‐EIS

3.Dimension



Unit: mm 
