Technical Manual

DS-2CC502 / 512 / 592 P(N)-DG1

Key features

1/3 inch SONY CCD

Auto White Balance, Auto Gain Control, Electronic Shutter Control, and Backlight Compensation

Compact Structure Design

Day / Night with Auto Switch

Digital Signal Processing

Internal Synchronization

Advanced Engineering Design, High Reliability

Technical Manual

Specification:

Model

Parameter

DS-2CC502P/502N-DG1 DS-2CC512P/512N-DG1 DS-2CC592P/592N-DG1

420 TVL 1/3" CCD

Day&Night Mini Camera

480 TVL 1/3" CCD

Day&Night Mini Camera

540 TVL 1/3" CCD

Day&Night Mini Camera

Camera

Image Sensor 1/3"SONY CCD

Signal System PAL / NTSC

Effective Pixels PAL:500 (H) × 582 (V)

NTSC:510 (H) × 492 (V)

PAL:752 (H) × 582 (V)

NTSC:768 (H) × 494 (V)

Min. Illumination 0.05Lux @ (F1.4,AGC ON)

0.16Lux @ (F2.5,AGC ON)

0.01Lux @ (F1.4,AGC ON)

0.03Lux @ (F2.5,AGC ON)

Shutter Time PAL: 1/50 to 1/100,000s

NTSC: 1/60 to 1/100,000s

Lens 3.7mm Pinhole Lens

Angle of view: 70°

Lens Mount M12

Day & Night Electronic

Horizontal

Resolution 420TVL 480TVL 540TVL

Synchronization Internal Synchronization

Video Output 1Vp-p Composite Output (75Ω/BNC)

S/N Ratio More than 50dB

BLC Auto

General

Operating

Conditions -10℃- 60℃(14°F-140°F) ,Humidity 90% or less(non-condensing)

Power Supply DC12V±10%

Power Consumption 1.1W MAX 1.5W MAX 0.9W MAX

Dimensions 30 × 32.5 × 19mm() 38.5 × 40 × 19() 25×25×17.5()

Weight 100g(lbs) 130g(lbs) 80g(lbs)

Available Models

DS-2CC502P-DG1 DS-2CC512P-DG1 DS-2CC592P-DG1

DS-2CC502N-DG1 DS-2CC512N-DG1 DS-2CC592N-DG1

Technical Manual

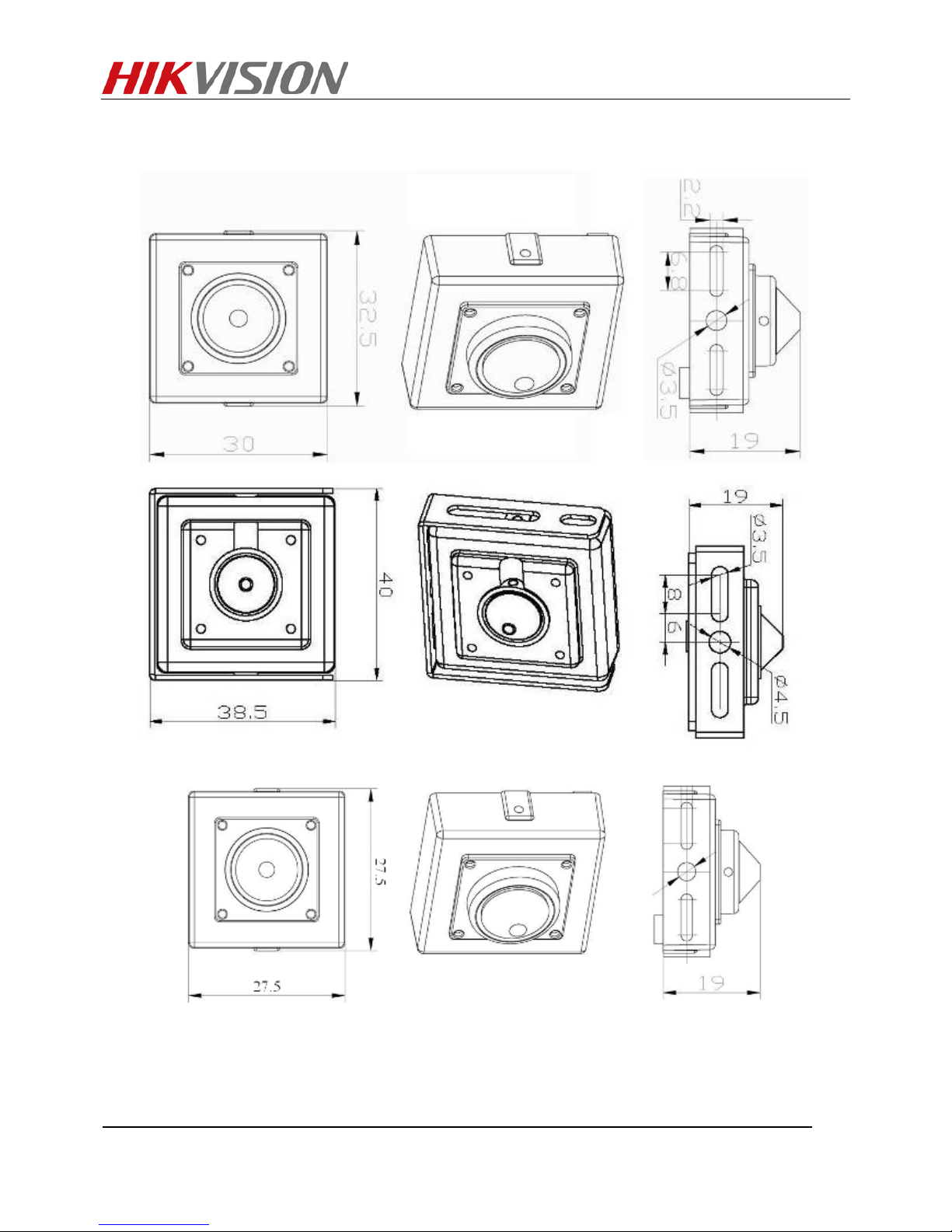

Dimension
