HIK VISION DS-2CD883F-E series Guide de l'utilisateur

Network Camera

Quick Operation Guide

V4.0.1

Hikvision Digital Technology Co., Ltd.

http://www.hikvision.com

Quick Operation Guide of Network Camera

Thank you for purchasing our product. If there are any questions, or requests, please do not hesitate

to contact the dealer. This manual applies to

Type

Model

Box camera III

DS-2CD883F-E, DS-2CD855F-E, DS-2CD854F(WD)-E,

DS-2CD853F-E, DS-2CD864F(WD)-E,

DS-2CD863PF(NF)-E, DS-2CD893PFWD(NFWD)-E,

DS-2CD833F-E, DS-2CD893PF(NF)-E

Dome camera III

DS-2CD783F-E(I), DS-2CD754F-E(I), DS-2CD764FWD-E(I),

DS-2CD764F-E, DS-2CD754FWD-E(I), DS-2CD753F-E(I),

DS-2CD763PF(NF)-E(I), DS-2CD793PF-E(I),

DS-2CD793PFWD(NFWD)-E(I), DS-2CD733F-E(I),

DS-2CD733F-EZ, DS-2CD755F-E(I), DS-2CD793NF-E(I)

Dome camera IV

DS-2CD7233F-EIZH, DS-2CD7253F-E(I)ZH,

DS-CD7254F-EIZH, DS-2CD7293PFWD(NFWD)-EIZH,

DS-2CD7263NF(PF)-EZH, DS-2CD 7264FWD-EZH,

DS-2CD7293PF(NF)-EIZH, DS-2CD7255F-EIZHS

Bullet Camera

DS-2CD8253F-EI(Z), DS-2CD8233F-EI(Z),

DS-2CD8264FWD-EI(Z), DS-2CD8264F-E,

DS-2CD8254F-EI, DS-2CD8254FWD-E, DS-2CD8283F-EI,

DS-2CD8255F-EI

Cube Camera I

DS-2CD8133F-E, DS-2CD8153F-E

Cube Camera II

DS-2CD8464F-EI, DS-2CD8433F-EI

Mini Dome Camera

DS-2CD7164-E,DS-2CD7153-E, DS-2CD7133-E

Quick Operation Guide of Network Camera

This manual may contain several technical incorrect places or printing errors, and the content is

subject to change without notice. The updates will be added to the new version of this manual. We

will readily improve or update the products or procedures described in the manual.

DISCLAIMER STATEMENT

“Underwriters Laboratories Inc. (“UL”) has not tested the performance or reliability of the security

or signaling aspects of this product. UL has only tested for fire, shock or casualty hazards as

outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification does not cover the

performance or reliability of the security or signaling aspects of this product. UL MAKES NO

REPRESENTATIONS, WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE

PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS

PRODUCT.”

Quick Operation Guide of Network Camera

Table of Contents

Chapter 1 Appearance Description.......................................................................... 1

1.1 Appearance Description of Box Camera ...........................................................1

1.1.1 Box Camera I .................................................................................................1

1.1.2 Box Camera II ................................................................................................2

1.1.3 Box Camera III ...............................................................................................5

1.2 Appearance Description of Dome Camera........................................................7

1.2.4 Dome Camera I..............................................................................................7

1.2.5 Dome Camera II.............................................................................................8

1.2.6 Dome Camera III..........................................................................................10

1.2.7 Dome Camera IV .........................................................................................12

1.3 Appearance Description of Bullet Camera ......................................................13

1.4 Appearance Description of Cube Camera .......................................................14

1.4.1 Cube Camera I .............................................................................................14

1.4.2 Cube Camera II ............................................................................................15

1.5 Appearance Description of Mini Dome Camera..............................................18

Chapter 2 Setting up the Network Camera over the LAN....................................... 20

Chapter 3 Accessing via Web Browsers ................................................................. 23

Quick Operation Guide of Network Camera

Chapter 1 Appearance Description

There are ten physical structures of network cameras, Box camera I, Box camera II, Box camera III,

Dome camera I, Dome camera II,Dome camera III, Dome camera IV, Bullet Camera, Cube Camera

and Mini Dome Camera.

1.1 Appearance Description of Box Camera

1.1.1 Box Camera I

Camera description:

Figure 1-1 Overview

Table 1-1 Description

No.

Description

CS Lens mount

Back focus ring

Auto-iris interface

10M/100M self-adaptive Ethernet interface

AUDIO IN: Audio input interface

AUDIO OUT: Audio output interface

SD: SD card slot

VIDEO OUT: Video output interface

Power supply interface

PWR: Power LED indicator

D+, D-: RS-485 interface

Ground

1A, 1B: Alarm output interface

Quick Operation Guide of Network Camera

IN, G: Alarm input interface

Note: The type of auto-iris interface is shown in Figure 1-2, and the definition of each pin is shown

below:

Figure 1-2 Auto-iris Interface

Table 1-2 Pins

Video-driven

DC-driven

Power

Damp-

Damp+

Video

Drive+

GND

Drive-

Power, Video and GND pins are used when the auto-iris is driven by video; Damp+, Damp-, Drive+

and Drive- pins are used when the auto-iris is driven by DC.

Camera wiring Diagram:

Figure 1-3 Wiring Diagram

1.1.2 Box Camera II

Camera description:

Quick Operation Guide of Network Camera

Figure 1-4 Overview

Figure 1-5 Overview

Table 1-3 Description

No.

Description

CS Lens mount

Auto-iris interface

Bracket mounting holes

F1+ F1-, F2+ F2- ,F3+ F3-: Alarm output interface

T1,T2,T3, T4,GND: Alarm input interface

D+, D-: RS-485 interface

10M/100M self-adaptive Ethernet interface

VIDEO OUT/HDMI: Video output interface

RESET: Reset button

TXD, RXD, GND: RS-232 interface

Power supply interface

POWER: Power LED indicator

SD: SD card slot

AUDIO IN: Audio input interface

AUDIO OUT: Audio output interface

Quick Operation Guide of Network Camera

Ground

Notes:

After the powering on of the camera, pressing and holding the RESET button for about 10

seconds can reset all the parameters to the default settings.

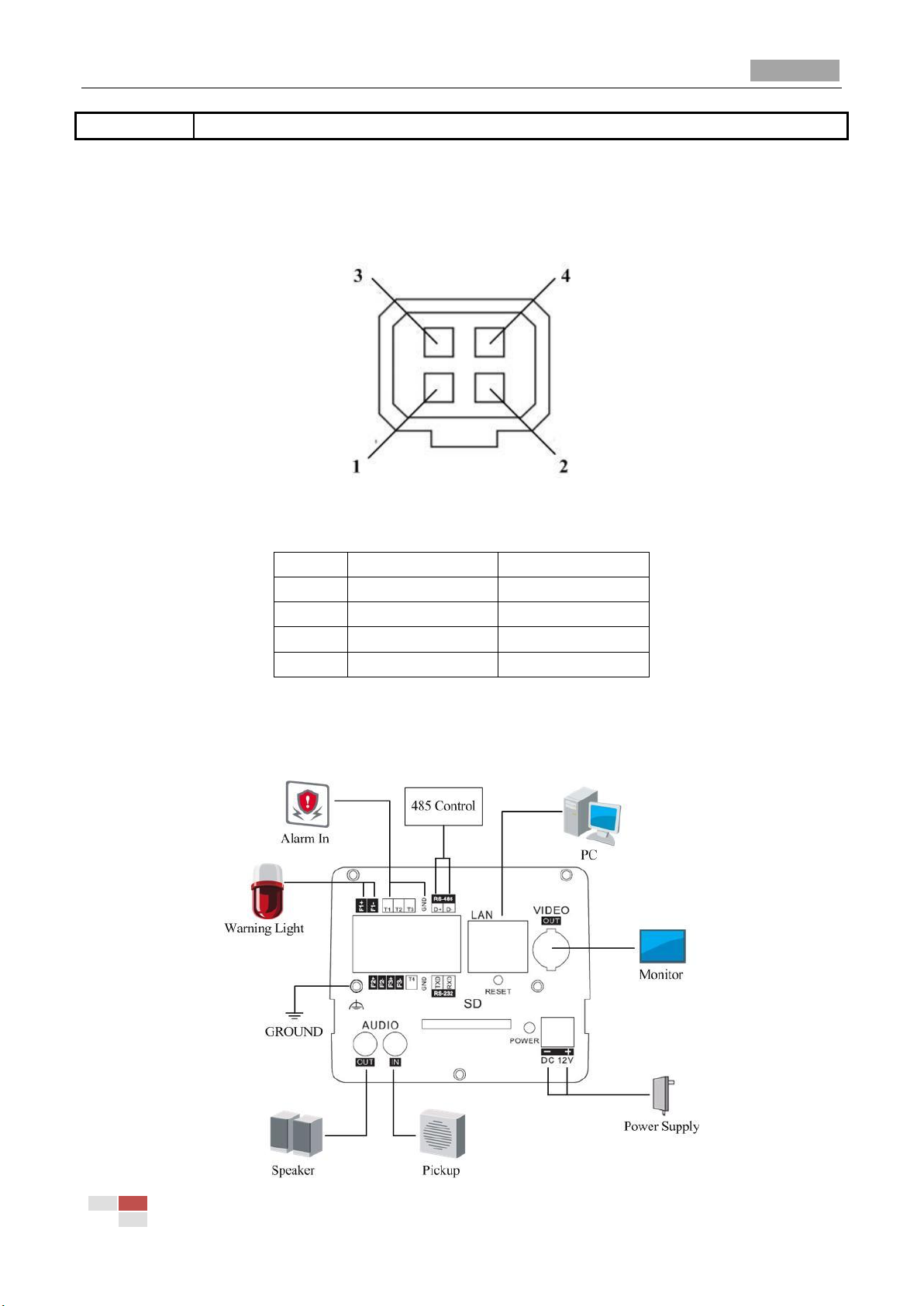

The type of auto-iris interface is shown in Figure 1-6, and the definition of each pin is shown

below:

Figure 1-6 Auto-iris Interface

Table 1-4 Pins

Video-driven

DC-driven

Power

Damp-

Damp+

Video

Drive+

GND

Drive-

Power, Video and GND pins are used when the auto-iris is driven by video; Damp+, Damp-, Drive+

and Drive- pins are used when the auto-iris is driven by DC.

Camera wiring Diagram:

Quick Operation Guide of Network Camera

Figure 1-7 Wiring Diagram

1.1.3 Box Camera III

Camera description:

Figure 1-8 Overview

Table 1-5 Description

No.

Description

Lens mount

Back focus ring

SD card slot

Auto-iris interface

10M/100M self-adaptive Ethernet interface

VIDEO OUT: Video output interface

AUDIO OUT: Audio output interface

POWER: Power LED indicator

Power supply interface

MIC IN: Audio input interface

D+, D-: RS-485 interface

IN, G: Alarm input interface

1A, 1B: Alarm output interface

Ground

RESET: Reset button

Notes:

After the powering on of the camera, pressing and holding the RESET button for about 10

Quick Operation Guide of Network Camera

seconds can reset all the parameters to the default settings.

The type of auto-iris interface is shown in Figure 1-9, and the definition of each pin is shown

below:

Figure 1-9 Auto-iris Interface

Table 1-6 Pins

Video-driven

DC-driven

Power

Damp-

Damp+

Video

Drive+

GND

Drive-

Power, Video and GND pins are used when the auto-iris is driven by video; Damp+, Damp-, Drive+

and Drive- pins are used when the auto-iris is driven by DC.

Camera wiring Diagram:
