Entrance Ticket Station (DS-TMT201-D)
Quick Start Guide
Entrance Ticket Station • Quick Start Guide
I
Symbol Conventions
The symbols that may be found in this document are defined as follows.
Symbol
Description
Provides additional information to emphasize or supplement
important points of the main text.
Indicates a potentially hazardous situation, which if not avoided,
could result in equipment damage, data loss, performance
degradation, or unexpected results.
Indicates a hazard with a high level of risk, which if not avoided, will
result in death or serious injury.
Entrance Ticket Station • Quick Start Guide
1
Chapter 1 Introduction
Product Introduction
Entrance Ticket Station (hereinafter referred to as device) is used for data collection and
management of entrance and parking lot. Through interaction with the software, the device can
control the entrance, manage the parking lot effectively, and charge parking fee. It integrates
functions of information display, voice prompt, two-way audio, card reading and ticket printing.
Overview
The overview of Entrance Ticket Station is shown as below.
Device Overview
Device Overview Description
No.
Name
Description
1
Help button
Press it to start two-way audio with the management center.
2
MIC
For two-way audio with the management center.
3
LCD
Display information such as prompt, parking charge, license
plate number, etc.
4
Card reader
Swipe a card here to read it.
Entrance Ticket Station• Quick Start Guide
2
5
Taking ticket button
Press the button to take a ticket when the vehicle enters the
parking lot.
6
Ticket out exit
Take a ticket here to enter the parking lot and start time-based
charge.
7
Loudspeaker
Play voice prompt such as welcome.
Entrance Ticket Station• Quick Start Guide
3
Chapter 2 Device Installation
Installation Environment
Select the appropriate position for installing the device according to your actual requirement. Pay
attention to the following tips.
●Install the device on horizontal ground.
●Installation surface requirements:
○If no base is installed, the installation surface must be firm enough to fix the host to
guarantee the device can run stably.
○If base is needed, it is recommended to install the base with quick setting cement. The base
should be horizontal. The height should not be larger than 300 mm. The length and width of
base should be larger than those of the actual device installation surface. Bury the set bolts
prepared by yourself before installation.
○Bury the cables before installation. The conduit should be 50 mm higher than the ground to
avoid the gathered water on the ground to enter into the cable and cause short circuit.
Install Device
Follow the steps below to install the device.
Cut off power during the installation.
Fix the device firmly. Add safety guards if necessary. Check the firmness periodically. It may cause
serious personal injury or death if the device tilts or falls.
Do not use this product in high vibration environments such as the roof of a car, which may cause
damage to the product.
Steps
1. Mark the positions of holes on the refuge island as shown below. The hole depth is approx. 120
mm.
Entrance Ticket Station• Quick Start Guide
4
Mark Positions of Holes
The pipe diameter of the pre-embedded cable should be no more than 60 mm.
2. Take the three M12 × 150 expansion screws out from the package. Punch the screws into the
marked positions on refuge island. Fasten the nuts to make the screws expand to grip the
ground. Then unfasten the nuts.
Install Expansion Screws
3. Unlock the device back cover with key, and open the back cover. Remove the printer protective
foam.
Entrance Ticket Station• Quick Start Guide
5
Open Back Cover
4. Fix the device.
1) Put the device on the positions of expansion screws on the refuge island to make the screws
pass through the holes on the bottom.
2) Fasten the expansion nuts on the screws to fix the device.
Fix Device
Wiring
Cut off power before wiring.
Entrance Ticket Station• Quick Start Guide
6
Steps
1. Connect the laid network cable to the network interface.
2. Connect the laid power cord (RVV3 × 1.5 mm²or above) to the power input of the device.
3. Connect all the ground wires to PE interface of the printer.

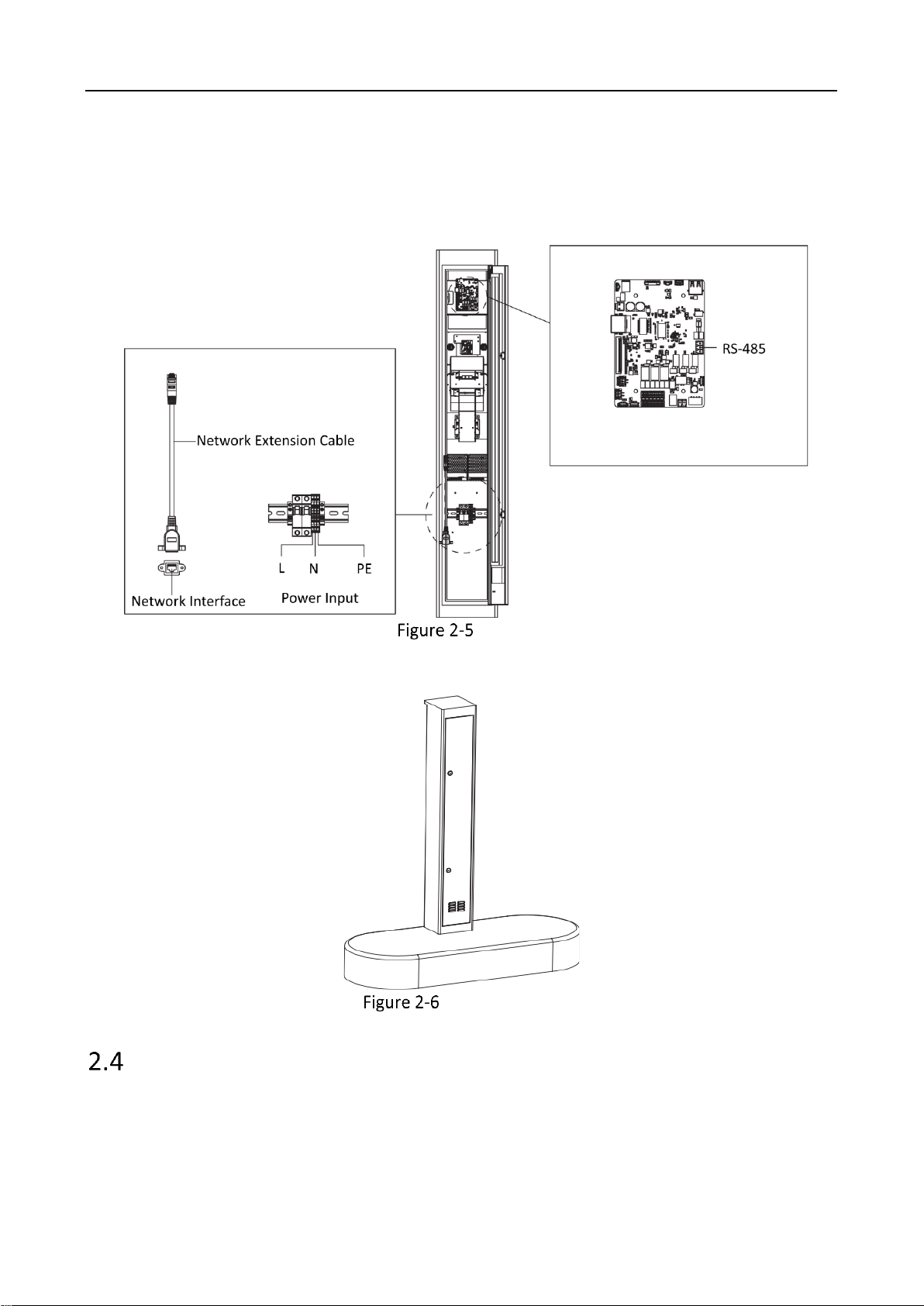

Wiring
3. Lock the back cover with key.
Lock Back Cover
Printing Paper
2.4.1 Install Printing Paper
Follow the steps below to install the printing paper.
Entrance Ticket Station• Quick Start Guide
7
Steps
1. Take the printing paper from the printer package. Take the printing paper spool from the
accessory kit.
2. Insert the printing paper spool into the central hole of the printing paper.
Insert Printing Paper Spool
3. Connect all the ground wires to PE interface of the printer.
Connect Ground Wire to PE
4. Install the printing paper into the paper slot.
Entrance Ticket Station• Quick Start Guide
8

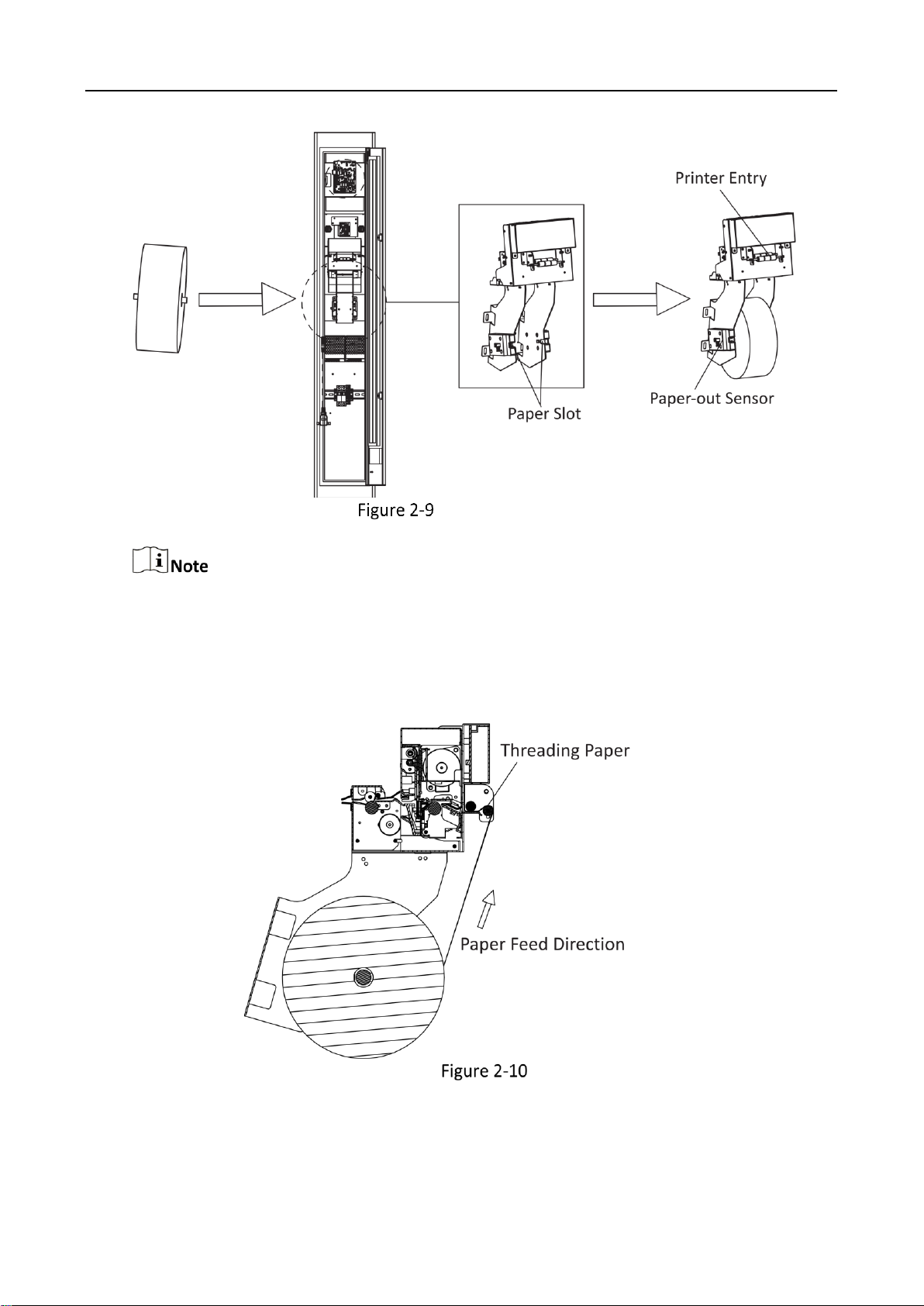

Install Printing Paper into Paper Slot
The paper-out sensor position is set by default, and it can be adjusted according to the actual
situation.
5. Power on the device, and turn on the air switch. Start up the device.
6. Make the paper enter the printer entry in the direction as shown below, and it will go to the exit
automatically.
Paper Feed
2.4.2 Replace Printing Paper
If the printer is out of paper, follow the steps below to replace the printing paper.
