HIK VISION DS-7300HI Series Guide de l'utilisateur

DS-7300HI/7300HFI/8100HDI-ST Series DVR

Quick Operation Guide

Version 2.0.1

Quick Operation Guide of DS-7300HI/7300HFI/8100HDI-ST Series DVR

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer.

This manual is applicable to DS-7304HI-ST, DS-7308HI-ST, DS-7316HI-ST; DS-7304HFI-ST, DS-7308HFI-ST,

DS-7316HFI-ST; DS-8104HDI-ST, DS-8108HDI-ST, DS-8116HDI-ST series DVR.

Verify Contents

Verify that the package contents are correct by checking the items against the packing list.

Note: Please contact your dealer for damaged or missing items.

DVR Pre-Installation

The DS-7300HI/7300HFI/8100HDI-ST Series DVR is highly advanced surveillance equipment that should be

installed with care. Please take into consideration the following precautionary steps before installation of the DVR.

1. Keep all liquids away from the DVR.

2. Install the DVR in a well-ventilated and dust-free area.

3. Ensure environmental conditions meet factory specifications.

4. Install a manufacturer recommended HDD.

DVR Installation

During the installation of the DVR:

1. Use brackets for rack mounting.

2. Ensure there is ample room for audio and video cables.

3. When installing cables, ensure that the bend radius of the cables are no less than five times than its diameter.

4. Connect both the alarm and RS-485 cable.

5. Allow at least 2cm (~0.75-inch) of space between racks mounted devices.

6. Ensure the DVR is grounded.

7. Environmental temperature should be within the range of -10 ºC ~ 55 ºC, 14ºF ~ 131ºF.

8. Environmental humidity should be within the range of 10% ~ 90%.

Hard Disk Installation

Before you start:

Before installing a hard disk drive (HDD), please make sure the power is disconnected from the DVR. A factory

recommended HDD should be used for this installation.

Up to 4 SATA hard disks can be installed for DS-7300HI-ST, DS-7300HFI-ST and DS-8104HDI-ST models, and

up to 8 SATA hard disks for DS-8108HDI-ST and DS-8116HDI-ST models.

Tools Required: Screwdriver.

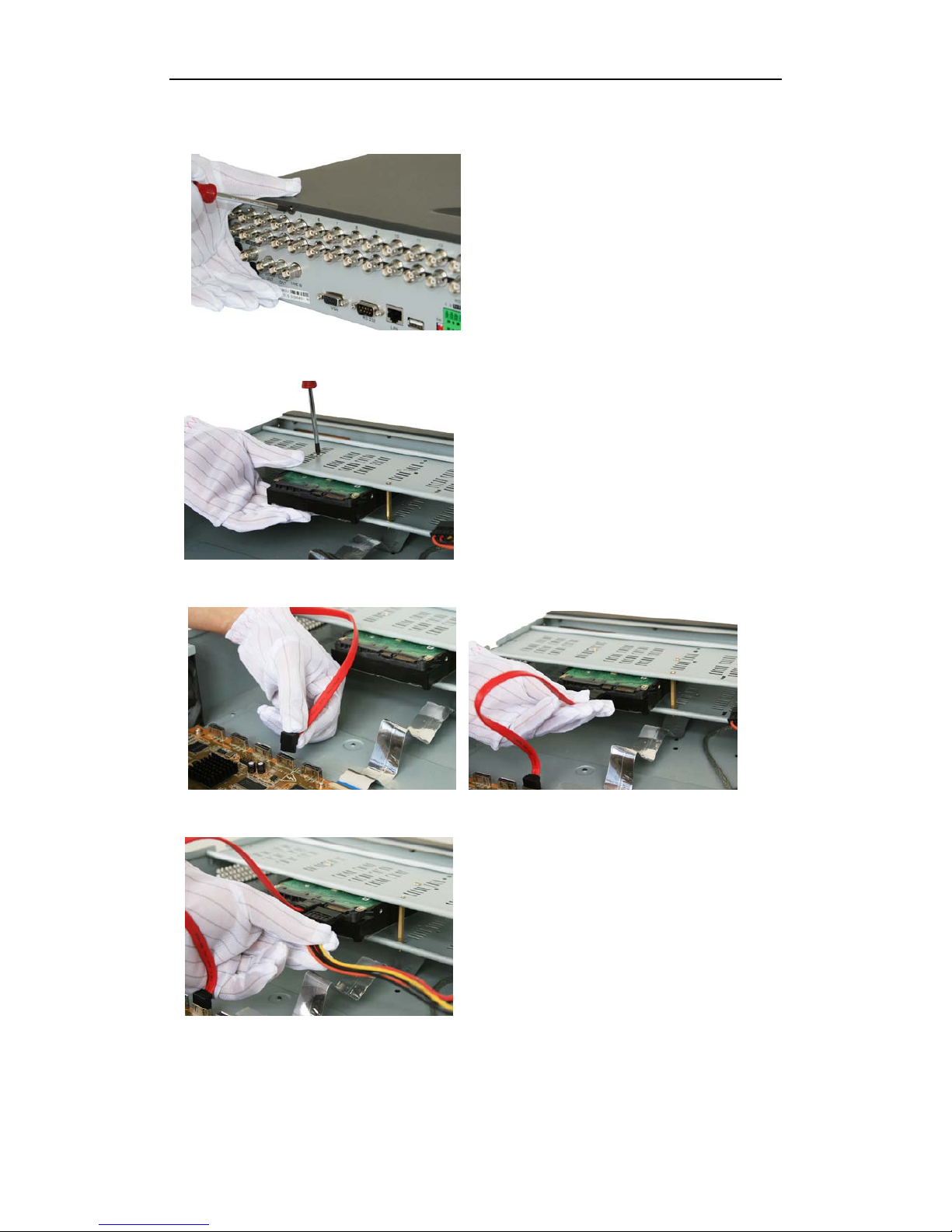

Steps (for DS-7300HI/7300HFI-ST):

1. Remove the cover from the DVR by unfastening the screws on the rear and side

panel.

2. Use the provided screws to install the HDD to the bottom of chassis.

Quick Operation Guide of DS-7300HI/7300HFI/8100HDI-ST Series DVR

3. Connect one end of the data cable to the motherboard of DVR and the other end to the HDD.

4. Connect the power cable to the HDD.

5. Re-install the cover of the DVR and fasten screws.

Quick Operation Guide of DS-7300HI/7300HFI/8100HDI-ST Series DVR

Steps (for DS-8100HDI-ST):

1. Remove the cover from the DVR by unfastening the screws on the back and side.

2. Install the HDD to the HDD rack using the provided screws, and then fasten the screws to fix the HDD.

3. Connect one end of the data cable to the motherboard of DVR and the other end to the HDD.

4. Connect the power cable to the HDD.

5. Re-install the cover of the DVR and fasten screws.

Quick Operation Guide of DS-7300HI/7300HFI/8100HDI-ST Series DVR

Front Panel

DS-7300HI-ST& DS-7300HFI-ST:

No. Name Function Description

1 POWER ON/OFF Power on/off switch.

2 IR Receiver Receiver for IR remote control.

3 USB Connect to USB mouse or USB flash memory devices.

4 DVD-ROM Slot for DVD-ROM.

POWER Power indicator lights in green when DVR is powered up.

READY Ready indicator is normally green, indicating that the DVR is functioning properly.

STATUS

Indicator turns green when DVR is controlled by an IR remote control with the

address from 1~244;

Indicator turns red when the SHIFT button is used;

Indicator does not light when the DVR is controlled by a keyboard or by the IR

remote control with the address of 255;

Indicator turns green when the DVR is controlled by IR remote control (with the

address from 1~244) and keyboard at the same time , and the SHIFT button is not

used;

Indicator turns orange : (a) when the DVR is controlled by IR remote control (with

the address from 1~244) and keyboard at the same time and the SHIFT button is

used as well; (b) when the DVR is controlled by IR remote control (with the

address from 1~244) and the SHIFT button is used.

ALARM

Alarm indicator turns red when a sensor alarm is detected.

HDD

HDD indicator blinks in red when data is being read from or written to HDD.

TX/RX TX/RX indictor blinks in green when network connection is functioning properly.

1/MENU Enter numeral “1”;

Access the main menu interface.

2ABC/F1

Enter numeral “2”;

Enter letters “ABC”;

The F1 button can be used to select all items on the list;

In PTZ Control mode, the F1 button can be used to zoom out (zoom-) the PTZ

camera;

In live view or playback mode, the F1 button can be used to switch between main

and spot video output.

3DEF/F2

Enter numeral “3”;

Enter letters “DEF”;

In PTZ Control mode, the F1 button can be used to zoom in (zoom+) the PTZ

camera;

The F2 button can be used to cycle through tab pages.

4GHI/ESC Enter numeral “4”;

Enter letters “GHI”;

Exit and back to the previous menu.

5JKL/EDIT

Enter numeral “5”;

Enter letters “JKL”;

Delete characters before cursor;

Select the checkbox and ON/OFF switch;

Start/stop record clipping in playback.

SHIFT

Switch of compound keys between the numeric/letter input and functional control.

6MNO/PLAY

Enter numeral “6”;

Quick Operation Guide of DS-7300HI/7300HFI/8100HDI-ST Series DVR

Enter letters “MNO”;

In Playback mode, it is used for direct access to playback interface.

7PQRS/REC

Enter numeral “7”;

Enter letters “PQRS”;

Manual record, for direct access to manual record interface; manually

enable/disable record.

8TUV/PTZ Enter numeral “8”;

Enter letters “TUV”;

Access PTZ control interface.

9WXYZ/PREV

Enter numeral “9”;

Enter letters “WXYZ”;

Multi-camera display in live view;

In Playback mode or MenuPlaybackTag playback interface, this button can be

used to delete the selected tag.

0/A

Enter numeral “0”;

Switch between input methods (upper and lowercase alphabet, symbols and

numeric input).

In Playback mode, this button can be used to add the default tag.

7 DIRECTION

The DIRECTION buttons are used to navigate between different fields and items

in menus.

In Playback mode, the Up and Down button is used to speed up and slow down

recorded video.

In All-day Playback mode, the Left/Right button can be used to select the recorded

video of next/previous day; in Playback by Normal Video Search, the Left/Right

button can be used to select the next/previous recorded file.

In Live View mode, the directional buttons can be used to cycle through channels.

In PTZ control mode, it can control the movement of the PTZ camera.

ENTER

Confirm selection in any of the menu modes. It can also be used to tick checkbox

fields.

In Playback mode, it can be used to play or pause the video.

In Single-frame Playback mode, pressing the ENTER button will advance the

video by a single frame.

In Auto-switch mode, it can be used to stop /start auto switch.

8 JOG SHUTTLE

Control

Move the active selection in a menu. The inner ring will move the selection up and

down; the outer ring will move it left and right.

In Playback mode, the inner ring is used to jump 30s forward/backward in video

files. The outer ring can be used to speed up/slow down the video.

In Live View mode, it can be used to cycle through different channels.

In PTZ control mode, in can control the movement of the PTZ camera.

Note: It is important to note that you must click the EDIT button on either the remote or front panel on a text field

before you’re able to edit its content. After you’re done entering text, you must hit the ENTER button to be able to

move on to the next field.

Quick Operation Guide of DS-7300HI/7300HFI/8100HDI-ST Series DVR

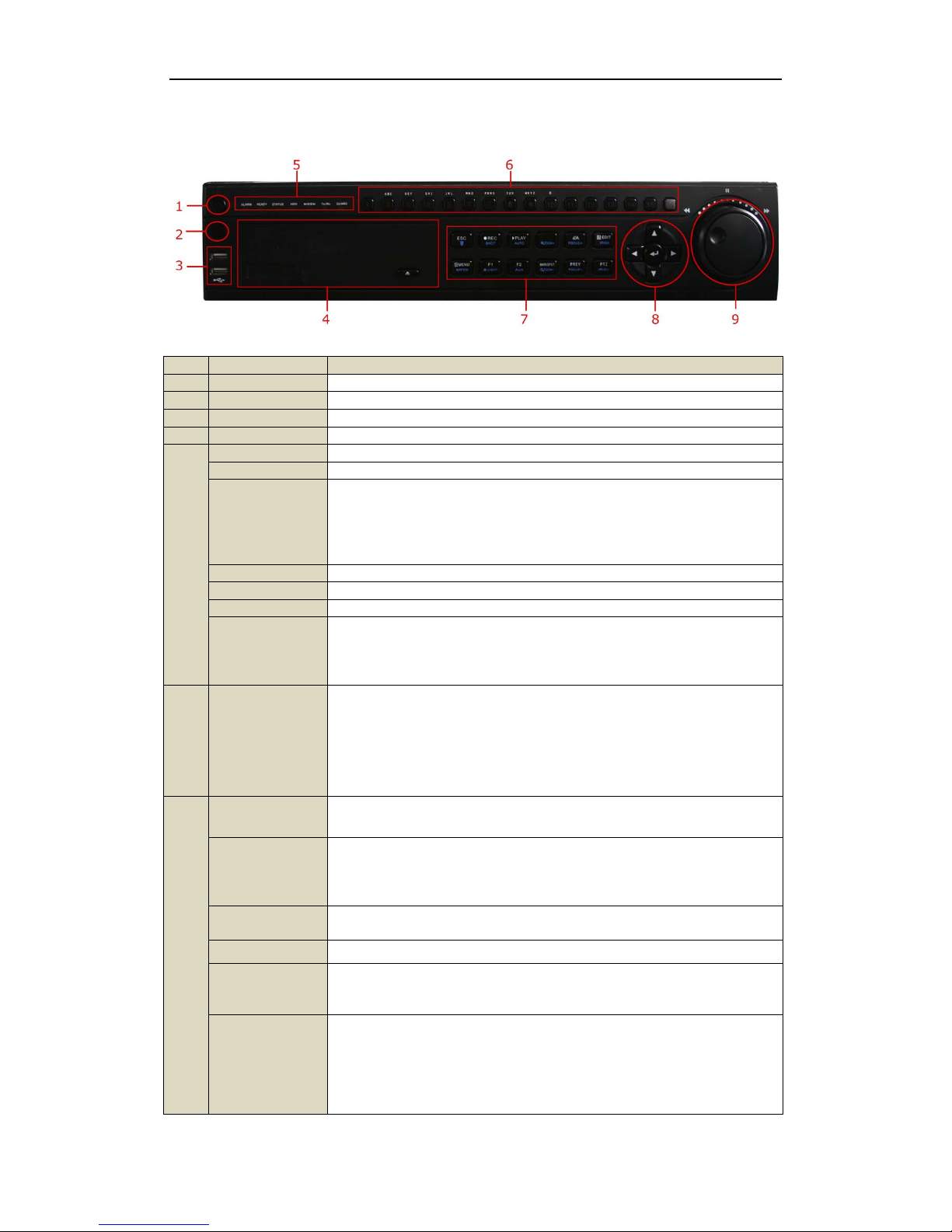

DS-8100HDI-ST:

No.

Name

Function Description

POWER ON/OFF

Power on/off switch.

IR Receiver

Receiver for IR remote control.

USB

Connect to USB mouse or USB flash memory devices.

DVD-ROM

Slot for DVD-ROM.

ALARM

Alarm indicator turns red when a sensor alarm is detected.

READY

Ready indicator is normally blue, indicating that the DVR is functioning properly.

STATUS

Indicator turns blue when DVR is controlled by an IR remote.

Indicator turns red when controlled by a keyboard and orange when IR remote and

keyboard is used at the same time.

Indicator does not light when the DVR is controlled by the IR remote control with

the address of 255.

HDD

HDD indicator blinks in red when data is being read from or written to HDD.

MODEM

Reserved.

TX/RX

TX/RX indictor blinks in blue when network connection is functioning properly.

GUARD

Indicator turns blue when the device is armed;

Indicator does not light when the device is disarmed;

The arm/disarm state can be initiated by pressing and holding on the ESC button

for more than 3 seconds in live view mode.

Channel Status

LED Indicators &

Alphanumeric

Buttons

Switch to the corresponding channel in Live View or PTZ Control mode.

Input numbers and characters in Edit mode.

Switch between different channels in All-day Playback mode.

The light of the button is blue when the corresponding channel is recording; it is

red when the channel is in network transmission status; it is pink when the channel

is recording and transmitting.

ESC Exit and back to the previous menu.

Arm/disarm the DVR in live view mode.

REC/SHOT

Enter the Manual Record interface.

Turn audio on/off in Playback mode;

In PTZ control mode, pressing the REC/SHOT button and a Numeric button will

call a PTZ preset.

PLAY/AUTO Enter the Playback menu;

Auto scan in the PTZ Control mode.

ZOOM+ Button In PTZ control mode, the ZOOM+ button is used to zoom in the PTZ camera.

A/FOCUS+ Adjust focus in the PTZ Control mode.

Switch between input methods (upper and lowercase alphabet, symbols and

numeric input).

EDIT/IRIS+

Edit text fields. When editing text fields, it will also function as a Backspace button

to delete the character in front of the cursor.

On checkbox fields, pressing the button will tick the checkbox.

In PTZ Control mode, the button adjusts the iris of the camera.

In Playback mode, it can be used to generate video clips for backup.

Quick Operation Guide of DS-7300HI/7300HFI/8100HDI-ST Series DVR

MENU/WIPER Return to the Main menu (after successful login);

Turn off audible key beeper by pressing and holding the button for 5 seconds;

Start wiper (if applicable) in PTZ Control mode.

F1/LIGHT The F1/LIGHT button when used in a list field will select all items on the list.

In PTZ Control mode, it will turn on/off PTZ light.

F2/AUX The F2/AUX button is used to cycle through tab pages.

MAIN/SPOT/ZO

OM- Switch to the control of spot output;

In PTZ Control mode, it can be used to zoom out the PTZ camera.

PREV/FOCUS- Switch between single screen and multi-screen mode.

In PTZ Control mode, it is used to adjust the focus in conjunction with the

A/FOCUS+ button.

PTZ/IRIS- Enter the PTZ Control mode.

In PTZ Control mode, it is used to close the iris of the PTZ camera.

8 DIRECTION

The DIRECTION buttons are used to navigate between different fields and items

in menus.

In Playback mode, the Up and Down button is used to speed up and slow down

recorded video.

In All-day Playback mode, the Left/Right button can be used to select the recorded

video of next/previous day; in Playback by Normal Video Search, the Left/Right

button can be used to select the next/previous recorded file.

In Live View mode, the directional buttons can be used to cycle through channels.

In PTZ control mode, it can control the movement of the PTZ camera.

ENTER

Confirm selection in any of the menu modes. It can also be used to tick checkbox

fields.

In Playback mode, it can be used to play or pause the video.

In Single-frame Playback mode, pressing the ENTER button will advance the

video by a single frame.

In Auto-switch mode, it can be used to stop /start auto switch.

9 JOG SHUTTLE

Control

Move the active selection in a menu. The inner ring will move the selection up and

down; the outer ring will move it left and right.

In Playback mode, the inner ring is used to jump 30s forward/backward in video

files. The outer ring can be used to speed up/slow down the video.

In Live View mode, it can be used to cycle through different channels.

In PTZ control mode, in can control the movement of the PTZ camera.

Note: If GUARD indicator is blue (default), all alarm event and exception settings are valid. Otherwise, alarm

event and exception settings will be invalid, but normal recording will still be available.

Note: It is important to note that you must click the EDIT button on either the remote or front panel on a text field

before you’re able to edit its content. After you’re done entering text, you must hit the ENTER button to be able to

move on to the next field.

Quick Operation Guide of DS-7300HI/7300HFI/8100HDI-ST Series DVR

Rear Panel

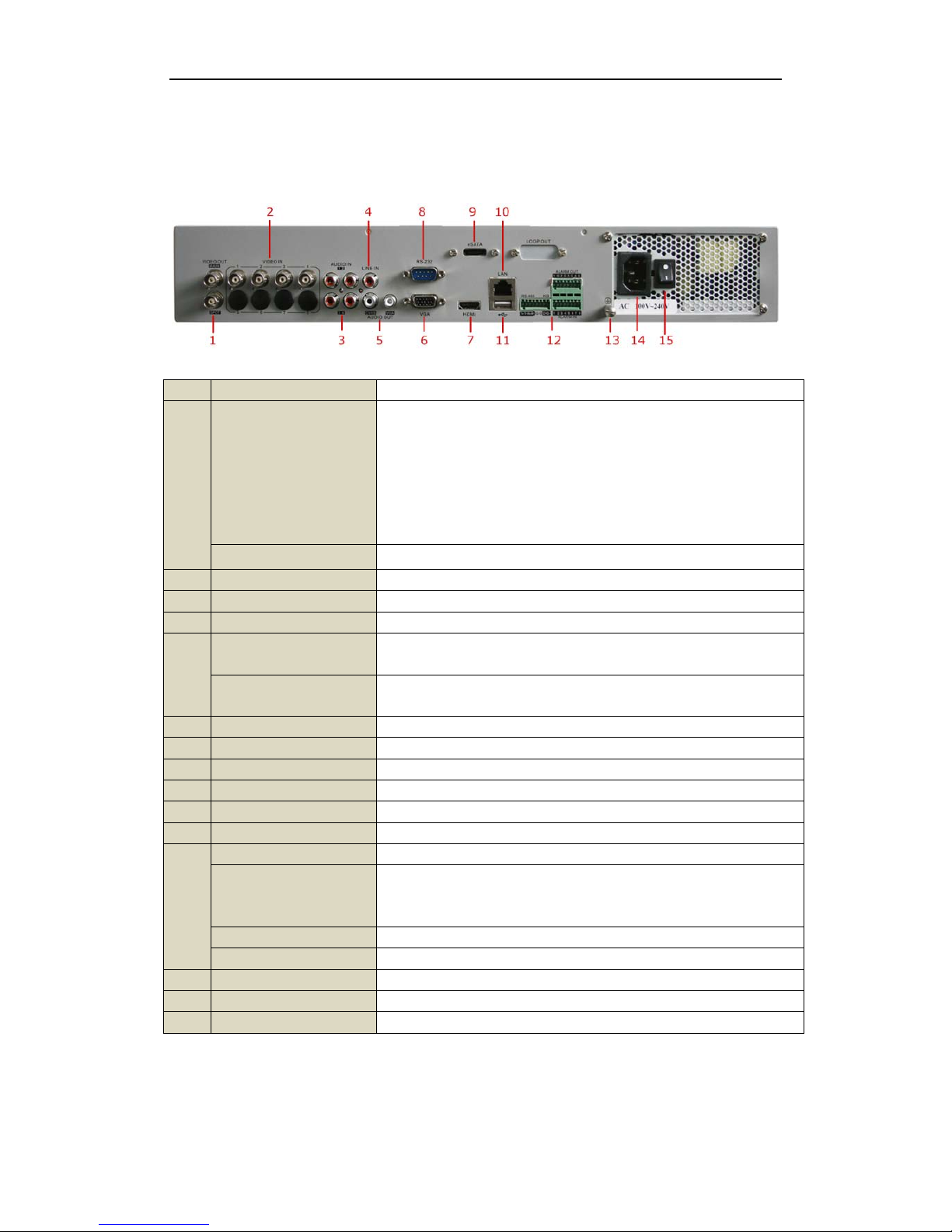

DS-7304HI-ST & DS-7304HFI-ST:

Note: The DS-7308HI-ST & DS-7308HFI-ST provide 8 BNC video input connectors on the rear panel.

No. Item Description

MAIN VIDEO OUT BNC connector for video output.

1. When both HDMI and VGA are connected, or either one is connected, it is

used as the auxiliary video output for live view, playback, recording and

PTZ controls;

2. When both HDMI and VGA are not connected, it is used as the main video

output for live view playback, recording, PTZ control and menu

operations.

SPOT VIDEO OUT BNC connector for video output.

2 VIDEO IN BNC connector for analog video input.

3 AUDIO IN RCA connector for audio input.

4 LINE IN RCA connector for voice talk input.

CVBS AUDIO OUT RCA connector for audio output. This connector is synchronized with CVBS

video output.

VGA AUDIO OUT RCA connector for audio output. This connector is synchronized with VGA

video output.

6 VGA DB15 connector for VGA output. Display local video output and menu.

7 HDMI HDMI video output connector.

8 RS-232 Interface Connector for RS-232 devices.

9 eSATA Connects external SATA HDD, CD/DVD-RM or disk array.

10 LAN Interface Connector for LAN (Local Area Network).

11 USB Connect to USB mouse or USB flash memory devices.

RS-485 Interface Connector for RS-485 devices. T+, T- pin connects to PTZ.

Controller Port

D+, D- pin connects to Ta, Tb pin of controller. For cascading devices, the

first DVR’s D+, D- pin should be connected with the D+, D- pin of the next

DVR.

ALARM IN Connector for alarm input.

ALARM OUT Connector for alarm output.

13 GROUND Ground (needs to be connected when DVR starts up).

14 AC 100V ~ 240V AC 100V ~ 240V power supply.

15 POWER Switch for turning on/off the device.

Quick Operation Guide of DS-7300HI/7300HFI/8100HDI-ST Series DVR

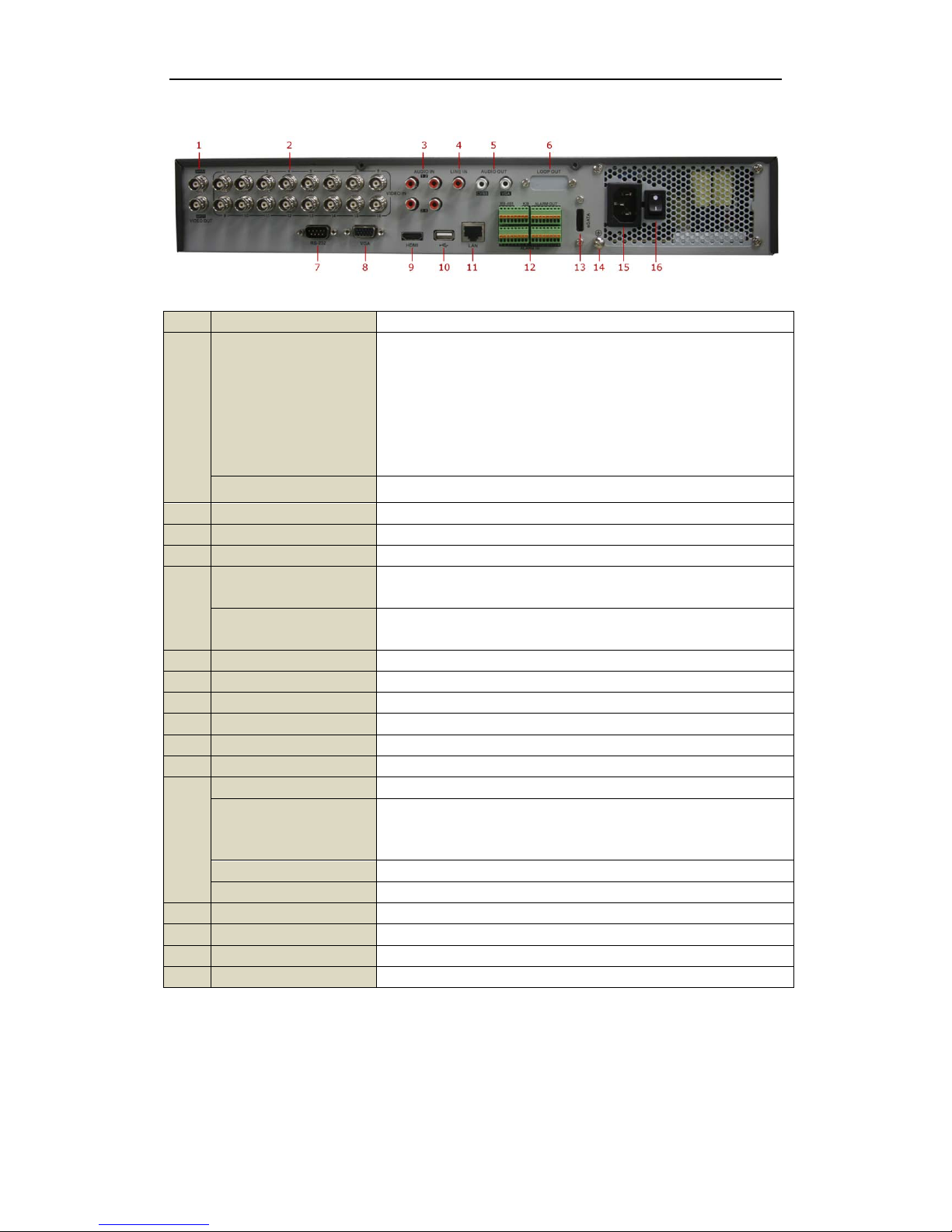

DS-7316HI-ST & DS-7316HFI-ST:

No. Item Description

MAIN VIDEO OUT BNC connector for video output.

1. When both HDMI and VGA are connected, or either one is connected, it

is used as the auxiliary video output for live view, playback, recording

and PTZ controls;

2. When both HDMI and VGA are not connected, it is used as the main

video output for live view playback, recording, PTZ control and menu

operations.

SPOT VIDEO OUT BNC connector for video output.

2 VIDEO IN BNC connector for analog video input.

3 AUDIO IN RCA connector for audio input.

4 LINE IN RCA connector for voice talk input.

5 CVBS AUDIO OUT RCA connector for audio output. This connector is synchronized with

CVBS video output.

VGA AUDIO OUT RCA connector for audio output. This connector is synchronized with VGA

video output.

6 LOOP OUT Optional

7 RS-232 Interface Connector for RS-232 devices.

8 VGA DB15 connector for VGA output. Display local video output and menu.

9 HDMI HDMI video output connector.

10 USB Connect to USB mouse or USB flash memory devices.

11 LAN Interface Connector for LAN (Local Area Network).

RS-485 Interface Connector for RS-485 devices. T+, T- pin connects to PTZ.

Controller Port

D+, D- pin connects to Ta, Tb pin of controller. For cascading devices, the

first DVR’s D+, D- pin should be connected with the D+, D- pin of the next

DVR.

ALARM IN Connector for alarm input.

ALARM OUT Connector for alarm output.

13 eSATA Connects external SATA HDD, CD/DVD-RM.

14 GROUND Ground (needs to be connected when DVR starts up).

15 AC 100V ~ 240V AC 100V ~ 240V power supply.

16 POWER Switch for turning on/off the device.

Autres manuels pour DS-7300HI Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels HIK VISION DVR

HIK VISION

HIK VISION DS-8104 Guide de l'utilisateur

HIK VISION

HIK VISION DS-5504HMI series Manuel utilisateur

HIK VISION

HIK VISION DS7324HUHI-K4 Manuel utilisateur

HIK VISION

HIK VISION DS-7204HI-S Series Manuel utilisateur

HIK VISION

HIK VISION DS-8100-S Series Manuel utilisateur

HIK VISION

HIK VISION DS-72 HUI Series Manuel utilisateur

HIK VISION

HIK VISION DS-9616NI-I8-12TB Manuel utilisateur

HIK VISION

HIK VISION DS-7200-ST Series Guide de l'utilisateur

HIK VISION

HIK VISION DS-72xx Series Manuel utilisateur

HIK VISION

HIK VISION DS-6102HLI-T Manuel utilisateur

HIK VISION

HIK VISION ERT-F2 Series Manuel utilisateur

HIK VISION

HIK VISION Ds-7604ni-e1, ds-7608ni-e1 Manuel utilisateur

HIK VISION

HIK VISION DS-9100HFI-ST Manuel utilisateur

HIK VISION

HIK VISION Pro Series Manuel utilisateur

HIK VISION

HIK VISION Digital Video Recorder Manuel utilisateur

HIK VISION

HIK VISION DS-8000 Series Manuel utilisateur

HIK VISION

HIK VISION MD5043SD Manuel utilisateur

HIK VISION

HIK VISION DS-8100-S Series Manuel utilisateur

HIK VISION

HIK VISION DS-8000HTI-S Series Manuel utilisateur

HIK VISION

HIK VISION DS-7004HI-S Manuel utilisateur

HIK VISION

HIK VISION DS-7300HI-S Series Manuel utilisateur

HIK VISION

HIK VISION DS-7104NI-Q1 Manuel utilisateur

HIK VISION

HIK VISION DS-9500 Series NVR Guide de l'utilisateur

HIK VISION

HIK VISION DS-8104AH(L) I-S Series Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
