Quick Start Guide
DS-7208 & 7216HVI-S Series DVR
Quick Start Guide - DS-7208 & 7216HVI-S Series DVR 1

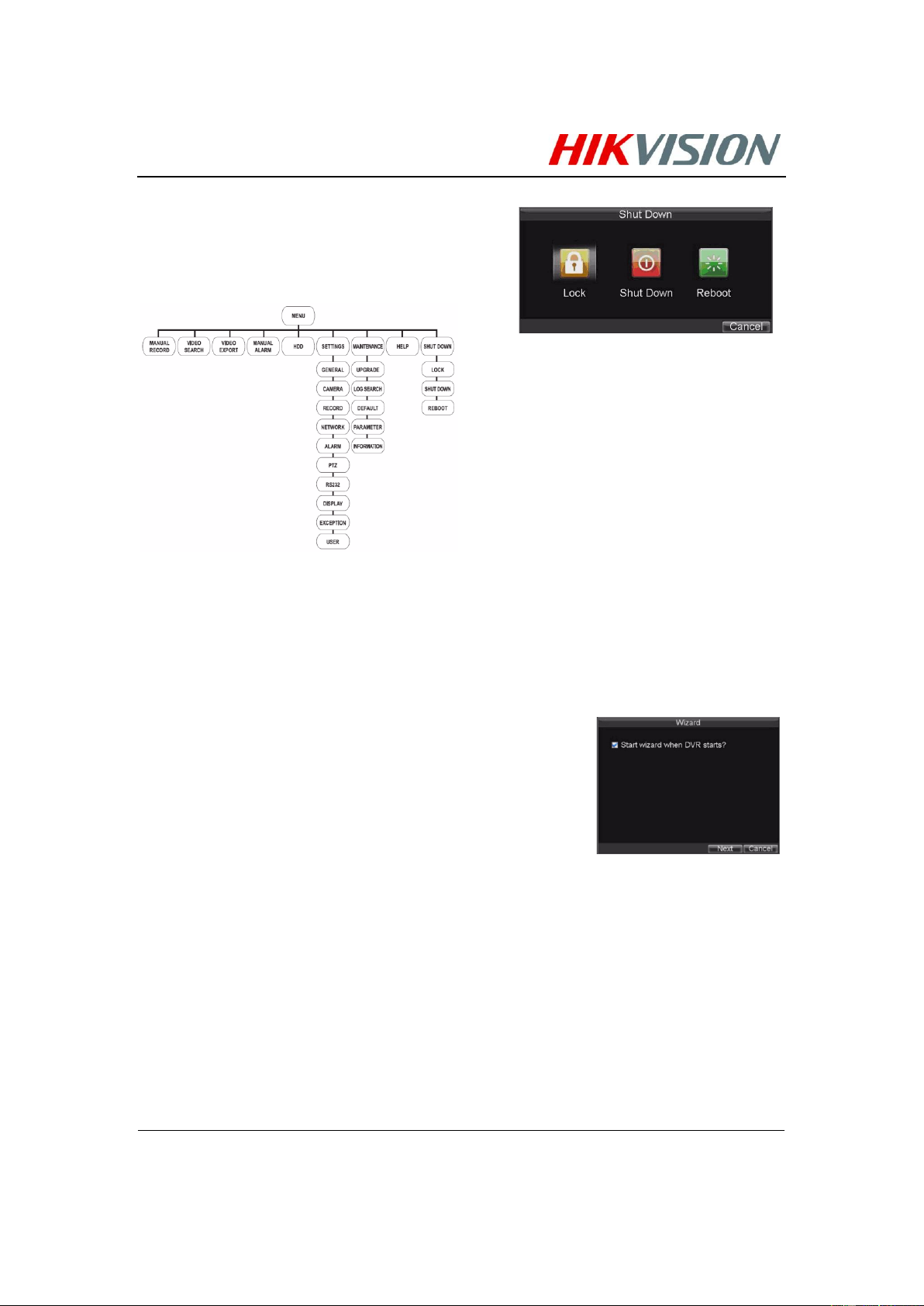

Menu Structure
The menu structure of the DS-7208HVI-S & 7216HVI-S
Series DVR is as followed:
Startup and Shutdown
Proper startup and shutdown procedures are crucial to
expanding the life of your DVR.
To startup your DVR:
1. Ensure the power supply is plugged into an electrical
outlet. It is HIGHLY recommended that an
Uninterruptible Power Supply (UPS) is used in
conjunction with the unit.
2. Turn on the switch on rear panel. The Status indicator
LED should turn green. The unit will begin to start.
3. After startup, the Power indicator LED will remain
Green.
There are two proper ways to shutdown the DVR. To
shutdown the DVR:
• OPTION 1: Standard Shutdown
1. Enter the Shutdown menu by clicking on Menu >
Shut down.
2. Select the Shutdown button.
3. Message “Please close power!”will pop up
4. Turn off switch on rear panel
• OPTION 2: Manual Shutdown
1. Press and hold the POWER button for 3 seconds.
2. Enter the administrator‟s username and password in the
dialog box for authentication.
3. Message “Are you sure to turn off DVR?”will popup.
4. Click “Yes”then message “Please close power”will
pop up
5. Turn off switch on rear panel
Note: Do not press the POWER button again when the
system is shutting down.
Using the Setup Wizard
By default, the
Setup Wizard will
start once the
DVR has loaded.
The Setup Wizard
will walk you
through some of
the more important settings of your DVR. If you do not
wish to use the Setup Wizard at this time, click the Cancel
button. You may also choose to use the Setup Wizard at a
later time by leaving the “Start Wizard when DVR starts?”
checkbox checked.
To start using the Setup Wizard:
2 Quick Start Guide - DS-7208 & 7216HVI-S Series DVR

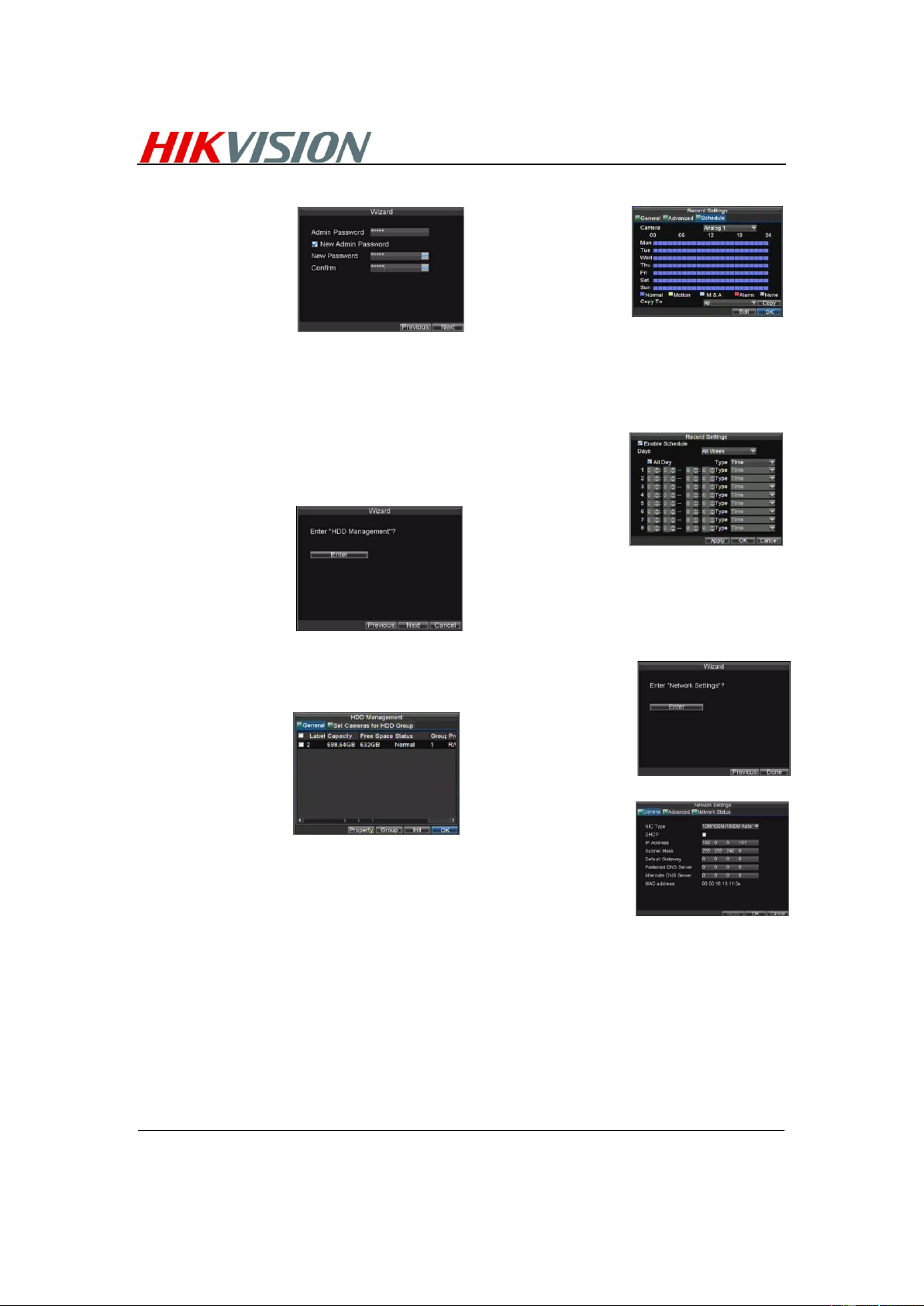

1. Click the Next button
on the Wizard window.
This will take you to
the User Permission
window.
2. Navigate to the Admin
Password input field.
3. Enter the admin password into the Admin Password input
field. By default, the password is 12345.
4. To change the admin password, check the New Admin
Password checkbox. Enter the new password and confirm
the password in the given fields.
5. Click the Next button.
This will take you to
the HDD Management
window.
6. To start HDD
management, click the
Enter button.
7. If a new HDD was recently installed, select the HDD from
the list to initialize it.
Initializing the HDD
will format and
remove all data from
it.
8. After the HDD has
been initialized, click
the OK button which will take you back to the Setup Wizard
window.
9. Click the Next button.
This will take you to
the Record Settings
Window.
10. To enter the Record
Settings window, click
the Enter button.
11. Select the Schedule tab.
12. Click the Edit button.
This will open up a new recording schedule.
13. Check both the
Enable Schedule and
All Day checkbox. This
will enable the
recording schedule and
have it record
continuously all day.
14. Click the OK button.
This will take you back to the Schedule tab. To copy the
schedule to a different channel, select the channel or all
under Copy To and
click the Copy button.
15. Click the Next button.
This will take you to the
Network Settings
window.
16. To configure network
settings, click the Enter
button.
17. Enter the IP Address,
Subnet Mask and
Default Gateway.
18. Click the OK button to
return to the Setup Wizard.
19. If all the settings are entered as desired, click the Done
button to finish and exit the Setup Wizard.
Quick Start Guide - DS-7208 & 7216HVI-S Series DVR 3
Congratulations! You‟ve completed the Setup Wizard. The
next step in the initial setup process is to setup the system
date and time.

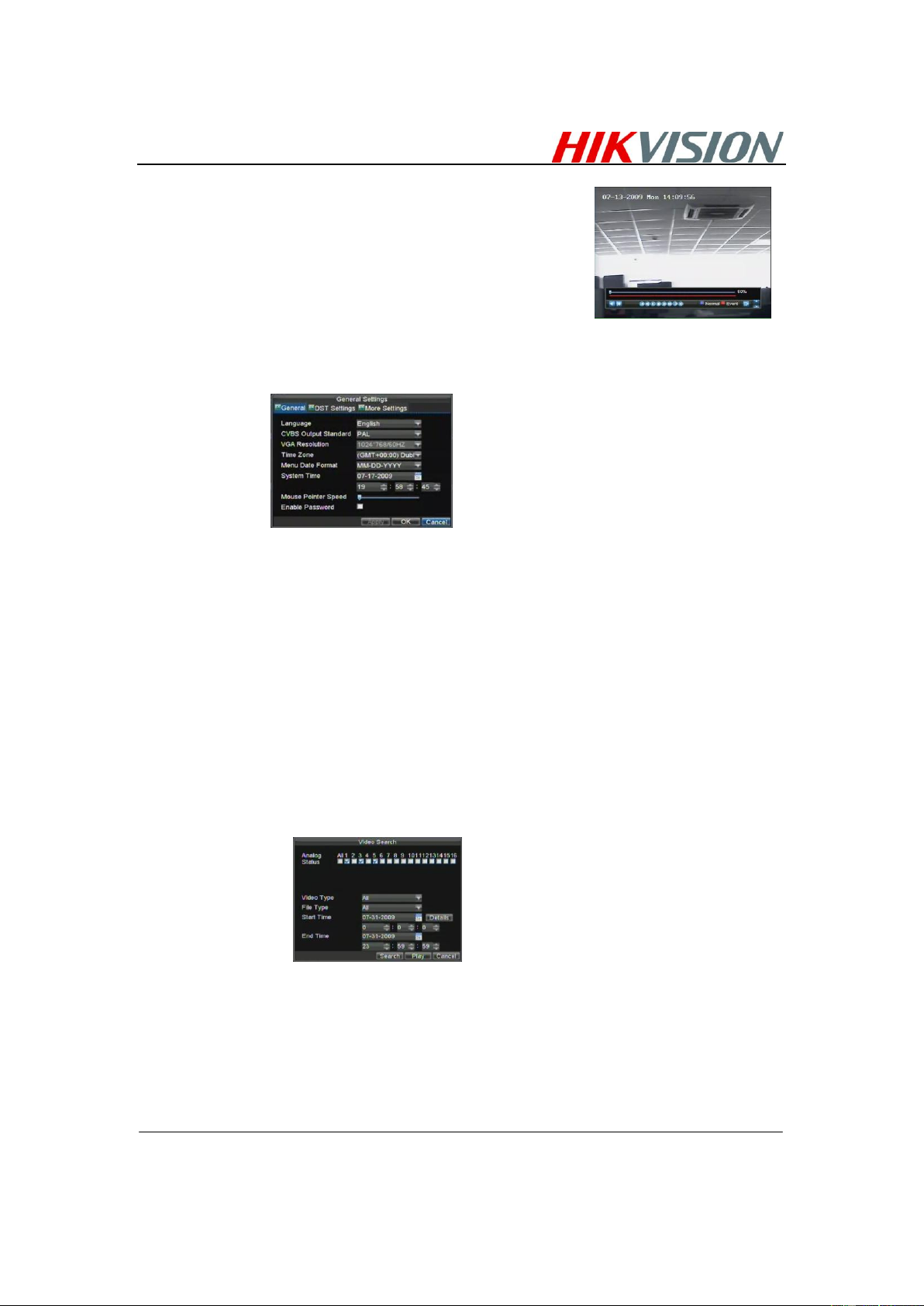

Setting Date & Time
It is extremely important to setup the system date and time to
accurately timestamp recordings and events.
To setup date and
time:
1. Enter General
Settings menu by
clicking Menu
> Setting >
General.
2. Enter the correct date and time under System Time.
3. Click the Apply button to save the setting.
Playback
Playback from Search
To playback files from a video search:
1. Enter into the Video Search menu by clicking Menu >
Video Search.
2. Set the search parameters
by selecting cameras to
search, video/file type and
the start/end time.
3. Click the Play button to
start playback of all the
files found with the
specified search criteria
or click the Search
button to bring up the list
of search results. After search results are presented, select the file
you would like to playback and press Play.
4. Recordings will
automatically be
playbacked in
the Playback
interface.
Playback from Live Preview
You may also instantly playback from a channel while
watching a Live Preview. The playback will be of recordings
from the past 5 minutes.
To playback from a channel instantly in Live Preview:
• Using a Mouse:
1. Right-click the mouse on desired channel and select the
Playback button.
2. Recordings from the selected channel will start playing
back in the Playback interface. An Attention message
will appear if there are no recordings found from the
previous 5 minutes. You may also press the Play button
to view the day‟s recording for the selected channel.
3. You may also select additional channels for playback
from the channel list on the right hand side of the
Playback interface.
• Using the Front Panel/Remote:
1. Press the PLAY button. This will take you into the
Playback interface.
2. Enter the channel you would like to watch recordings
for on the front panel or remote (i.e. press „11‟ for channel
11).
3. Recordings will begin for the selected channel.
4 Quick Start Guide - DS-7208 & 7216HVI-S Series DVR
Playback from System Log
You may also playback recordings from the System Log.
To playback video from the System Log:
1. Enter the Log Search menu by clicking Menu>
Maintenance > Log Search.
2. Set Major Type setting to Information.
3. Set Minor Type setting to Start Record or End Record.
4. Set Start Time and End Time.
5. Click the Search button.
6. A list of results with your search criteria will be displayed.
Select the video log to playback and click Play.
7. The recording will begin to play in the Playback interface.

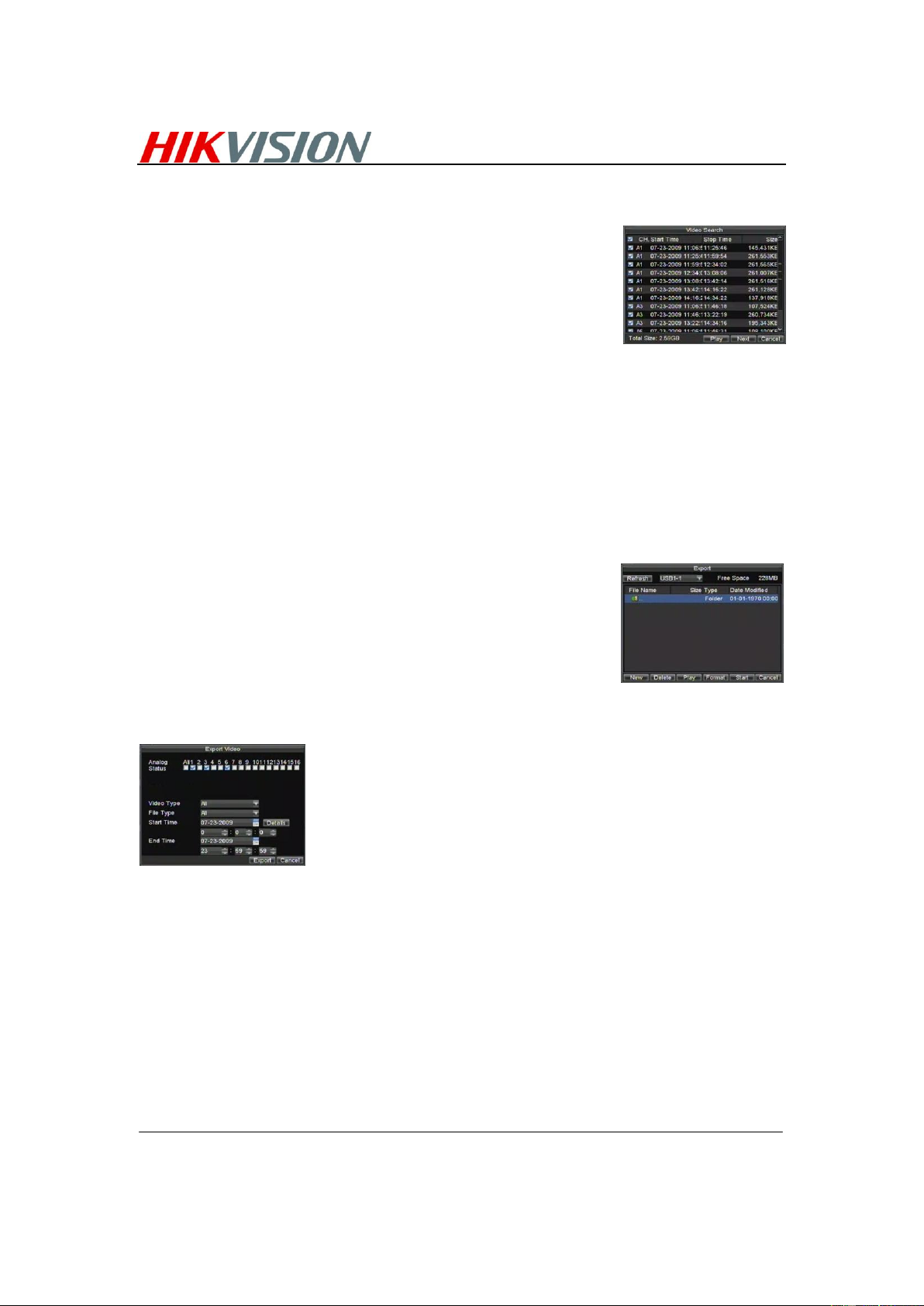

Backup
Recorded files can be backed up to various devices, such as
USB flash drives, USB HDDs or a DVD writer.
To export recorded files:
1. Enter the Export Video menu by clicking Menu > Video
Export.
2. Select desired parameters to search for files to export.
3. Press the Export button. This will take you to the Video
Search menu.
4. Select the files to export.
You may also click the Play button to verify that these files
are indeed the ones you would like to export.
5. The size of the currently selected files is displayed in the
lower-left corner of the window. Select the Next button to
enter the Export menu.
6. Select device to export to from drop-down list (USB Flash
Drive, USB HDD, and DVD Writer). If backup device is not
recognized:
• Click the Refresh button.
• Reconnect device.
• Check for compatibility from vendor.
7. Click Start to begin backup process.
8. After the backup process has completed, you may select
the files from your device and click the Play button to verify
that it has been exported successfully.
Note: Video Player software will automatically be copied
on to the device that the recorded files were exported on.
Quick Start Guide - DS-7208 & 7216HVI-S Series DVR 5
Using the Front Panel Controls

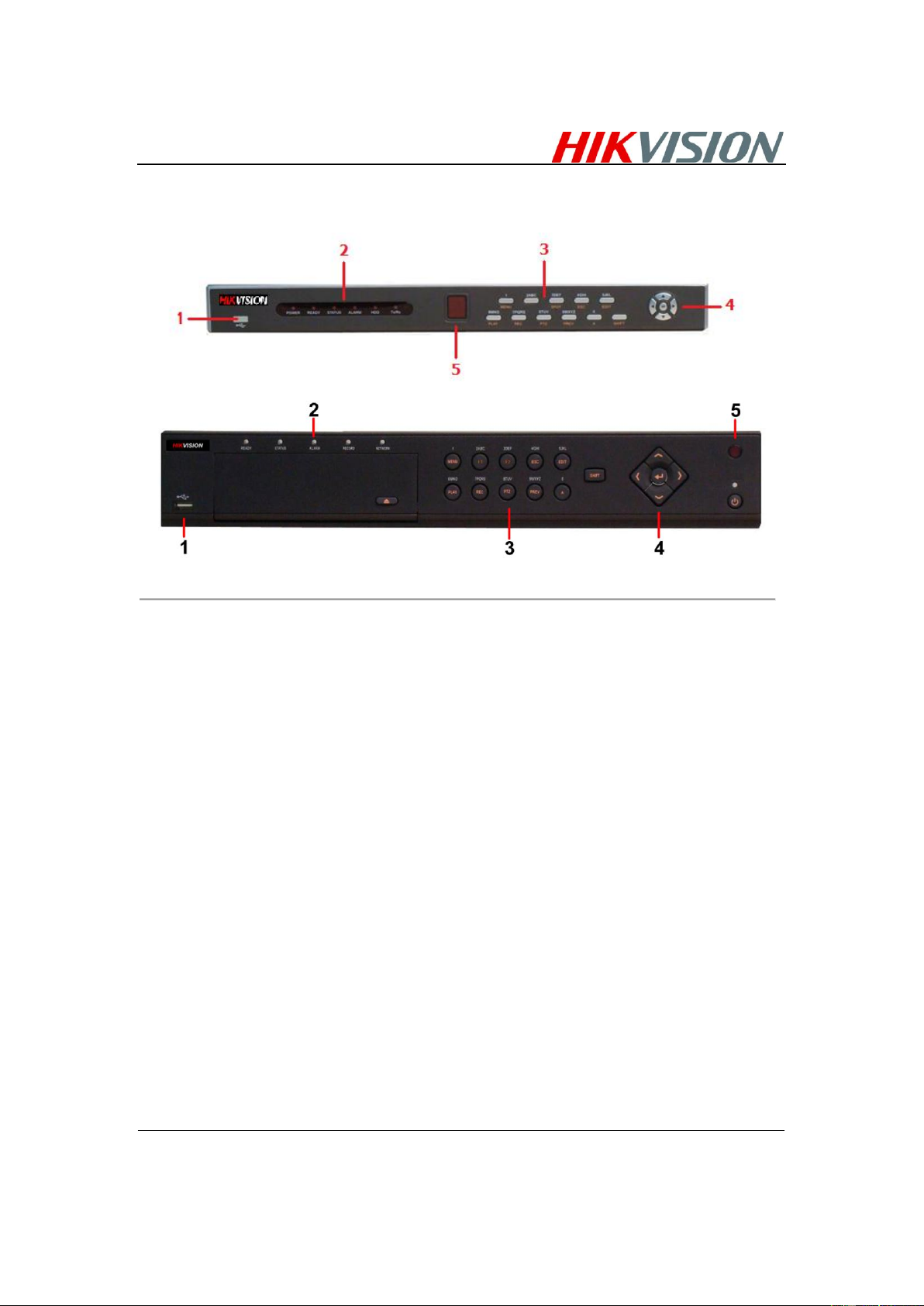

Figure 4. DVR Front Panel Controls
The controls on the front panel include:
1. USB Ports: Universal Serial Bus (USB) ports for additional devices such as USB mouse and
USB Hard Disk Drive (HDD).
2. Status Indicators: Status indicators for different features of the DVR.
• Alarm: Alarm indicator turns red when a sensor alarm is detected.
• Ready: Ready indicator turns green when DVR is functioning properly.
• Status: Status indicator turns green when DVR is controlled by an IR remote.
• HDD: HDD indicator blinks red when data is being read from or written to HDD.
• NETWORK: NETWORK indictor blinks blue when network connection is functioning
properly.
3. Control Buttons:
• 1/MENU Button: The 1/MENU button works as numeric [1]. Pressing this button will return
the user to the Main menu (after successful login). The 1/MENU button will also bring up
Sensitivity Interface settings.
• 2ABC/F1: The 2ABC/F1 button works as numeric [2] and letter [ABC]. When it is used in a
list field will select all items on the list.
• 3DEF/F2: The 3DEF/F2 button works as numeric [3] and letter [DEF]. It is also used to cycle
through tab pages.
• 4GHI/ESC: The 4GHI/ESC button works as numeric [4] and letter [GHI], it is also used to
6 Quick Start Guide - DS-7208 & 7216HVI-S Series DVR
escape to the previous menu
• 5JKL/EDIT: The 5JKL/EDIT button works as numeric [5] and letter [JKL]. The 5JKL/EDIT
button is used to edit text fields. When editing text fields, it will also function as a Backspace
button to delete the character in front of the cursor. On checkbox fields, pressing the
5JKL/EDIT button will tick the checkbox. In Playback mode, it can be used to generate video
clips for backup.
• 6MNO/PLAY: The 6MNO/PLAY button works as numeric [6] and letter [MNO]. It is used to
enter the Playback menu. It is also used to turn audio on/off in the Playback menu.
• 7PQRS/REC: The 7PQRS/REC button works as numeric [7] and letter [PQRS]. It is also used
to enter the Manual Record interface.
• 8TUV/PTZ: The 8TUV/PTZ button works as numeric [8] and letter [TUV]. It is also used to
enter the PTZ Control mode.
• 9WXYZ/PREVIEW: The 9WXYZ/PREVIEW button works as numeric [9] and letter
[WXYZ]. It is also used to switch between single screen and multi-screen mode.
• 0/A: The 0/A button works as numeric [0]. It is also used to switch between input methods
(upper and lowercase alphabet, symbols and numeric input). It can also be used to clear entire
masked areas, such as in the Motion Detection and Privacy Mask menus.
•SHIFT: The SHIFT button is used for switch button action between numeric button and
control button.
4. DIRECTION/ENTER Buttons:
• DIRECTION Buttons: The DIRECTION buttons are used to navigate between different fields
and items in menus. In Playback mode, the Up and Down button is used to speed up and slow
down recorded video. The Left and Right button will jump 30s backward and forward in a
video. In Preview mode, these buttons can be used to cycle through channels.
• ENTER Button: The ENTER button is used to confirm selection in any of the menu modes. It
can also be used to tick checkbox fields. In Playback mode, it can be used to play or pause the
video. In Single Play mode, pressing the ENTER button will advance the video by a single
frame.
5. IR Receiver: Receiver for IR remote.
Note: It is important to note that you must click the EDIT button on either the remote or front panel on a text
field before you‟re able to edit its content. After you‟re done entering text, you must hit the ENTER button to be
able to move on to the next field.
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels HIK VISION DVR
HIK VISION
HIK VISION DS-7604NI-S Series Manuel utilisateur
HIK VISION
HIK VISION DS-9600NI-ST Series Guide de l'utilisateur
HIK VISION
HIK VISION DS-9600-ST Manuel utilisateur
HIK VISION
HIK VISION DS-8100HFI-ST Series Manuel utilisateur
HIK VISION
HIK VISION DS 7204HQHI K1/B Manuel utilisateur
HIK VISION
HIK VISION DS-8100HDI-S Series Manuel utilisateur
HIK VISION
HIK VISION DS-7108HI series Manuel utilisateur
HIK VISION
HIK VISION iDS-6700NXI-I/BA Series Manuel utilisateur
HIK VISION
HIK VISION HWD Series Manuel utilisateur
HIK VISION
HIK VISION DS-8000AHI Series Manuel utilisateur
HIK VISION
HIK VISION DS-7300HWI-SH Series Manuel utilisateur
HIK VISION
HIK VISION DS-7100HGHI-F1/N Manuel utilisateur
HIK VISION
HIK VISION DS7208HVI-ST Manuel utilisateur
HIK VISION
HIK VISION DS-9008HUHI-F8/N Manuel utilisateur
HIK VISION
HIK VISION DS-9000 Series Manuel utilisateur
HIK VISION
HIK VISION DS-8104HMI-A Manuel utilisateur
HIK VISION
HIK VISION DS-7004HI Manuel utilisateur
HIK VISION
HIK VISION DS-8100HMI-B Series Manuel utilisateur
HIK VISION
HIK VISION iDS-7700NXI-I4/16P/16S Series Manuel utilisateur
HIK VISION
HIK VISION DS-72xxHGHI-SH Manuel utilisateur
