HIK VISION DS-K1101M Manuel utilisateur

DS-K1100 Series Card Reader

Installation Manual

UD.6L0206A1004A01

Regulatory information

FCC information

This device complies with Part 15 of the F Rules. Operation is

subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including

interference that may cause undesired operation.

Please take attention that changes or modification not expressly

approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

FCC compliance: This product has been tested and found to

comply with the limits for a lass B digital device, pursuant to Part

15 of the F Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential

installation. This product generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that

interference will not occur in a particular installation. If this

product does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference

by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—onnect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

—onsult the dealer or an experienced radio/TV technician for

help.

This equipment should be installed and operated with a minimum

distance 20cm between the radiator and your body.

Thank you for purchasing our product. If there is any question or

request, please do not hesitate to contact the dealer.

This manual is applicable to the following models:

Series

Models

Description

DS-K1101

Series

K1101M

MIFARE

ard

eader (without keypad)

K1101MK

MIFARE

ard

eader (with a keypad)

K1101

ard

eader (

without keypad

)

K1101 K

ard

eader (

with a keypad

)

DS-K1102

Series

K1102M

MIFARE

ard

eader (without keypad)

K1102MK

MIFARE

ard

eader (with a keypad)

K1102

ard

eader (

with

out keypad

)

K1102 K

ard

eader (

with a keypad

)

DS-K1103

Series

K1103M

MIFARE

ard

eader (without keypad)

K1103MK

MIFARE

ard

eader (with a keypad)

K1103

ard

eader (

without keypad

)

K1103 K

ard

eader (

with a keypad

)

DS-K1104

Series

K110

MIFARE card reader (without keypad)

K110

MIFARE card reader (with a keypad)

K110

card

reader (

without keypad

)

K110

card

reader (

with a keypad

)

This manual is a kind of guide only for reference and may contain

several technically inaccurate points or printing errors, and the

content is subject to change without notice. The updates will be

added into the new version of this manual. We will readily

improve or update the products or procedures described in the

manual.

There may be differences between real object. The real product

should be considered as final.

Chapter 1 Pre enti e and Cautionary

Tips

To guarantee the card reader works properly, please read and

obey the notes below.

If the card reader is powered by the controller, the power

supply distance is recommended to be no longer than 100m.

If the distance is longer than 100m, you are advised to power

the card reader by external 12V (range: -%10 ~ +%10) D

power supply, which is nonswitched and linear.

To guarantee the communication between the controller and

the card reader, you must use RVVP cable above 0.5 to

connect them.

If the card reader is installed outside or in environment easy

to permeable, it is advisable to install a waterproof shield.

If you need to install several card readers, the distance

among them must over 30cm.

To reduce the noise in long distance transmission, the shield

of cable should connect to the GND of both controller and

card reader terminal.

Chapter 2 Introduction

DS-K1100 series card reader is a kind of high-performance

product, with a 32 bit high-speed processor. It communicates with

access controller via either RS-485 protocol or Wiegand protocol.

And a build-in tamper-proof module helps to protect card reader

from malicious damage. As to the physical appearance, the

P +ABS material makes water proof and dust proof possible in

poor environment.

2.1 Front View

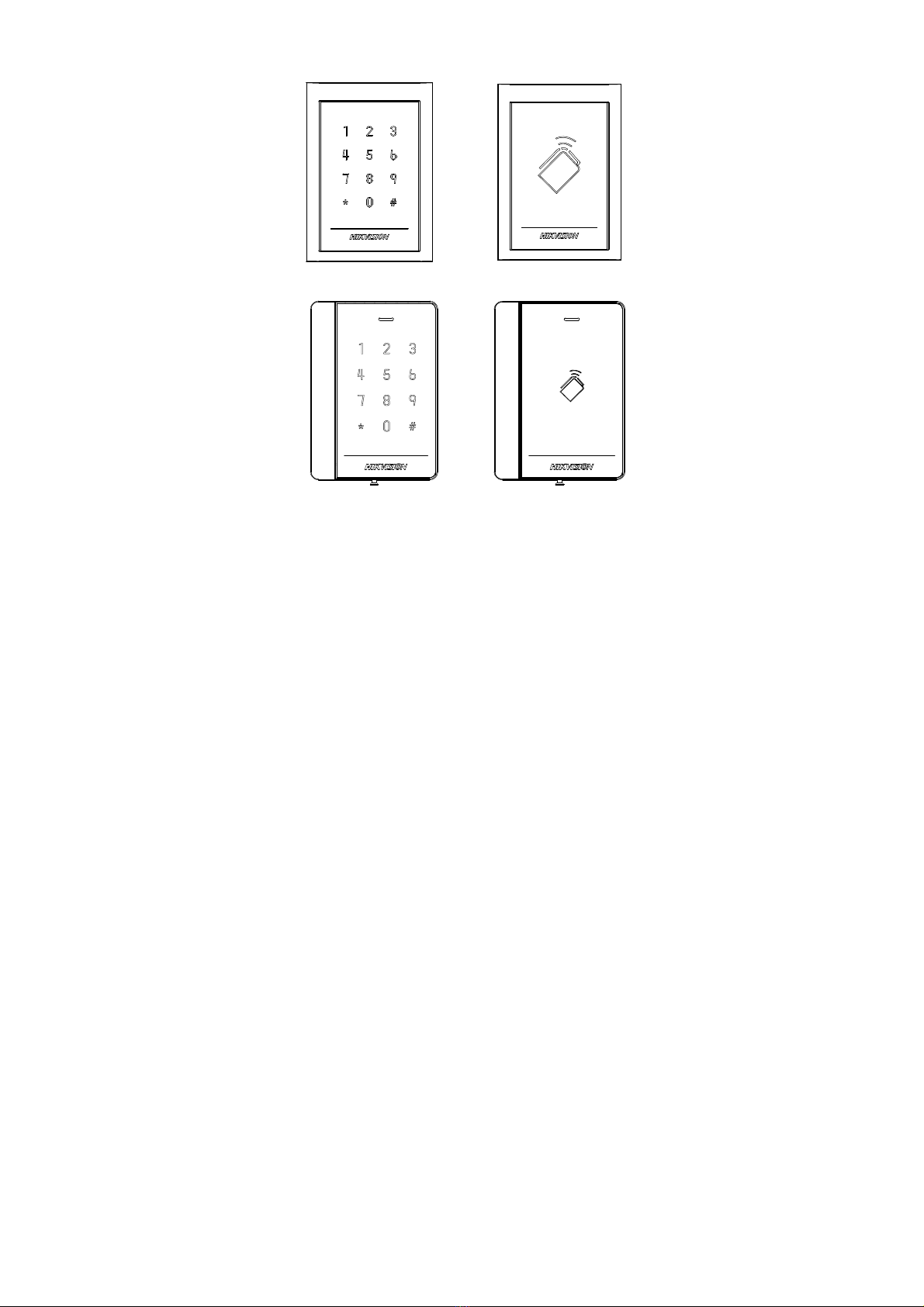

The front view of DS-K1101 series card reader is shown below:

Figure 2-1 DS-K1101MK/DS-K1101 K

Figure 2-2 DS-K1101M/DS-K1101

The front view of DS-K1102 series card reader is shown below:

Figure 2-3 DS-K1102MK/DS-K1102 K

Figure 2-4 DS-K1102M/DS-K1102

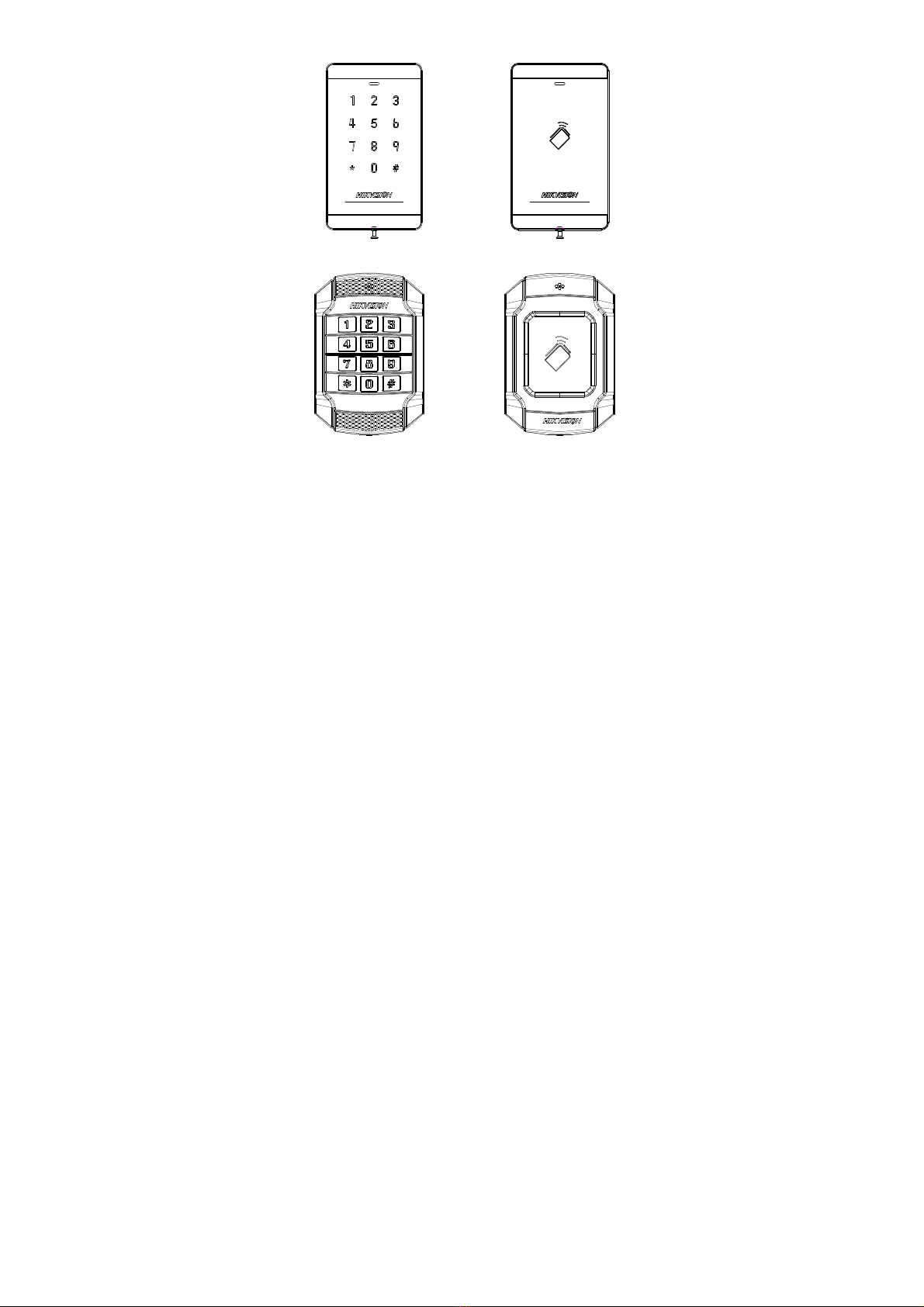

The front view of DS-K1103 series card reader is shown below:

Figure 2-5 DS-K1103MK/DS-K1103 K

Figure 2-6 DS-K1103M/DS-K1103

The front view of DS-K1104 series card reader is shown below:

Figure 2-7 DS-K1104MK/DS-K1104 K

Figure 2-8 DS-K1104M/DS-K1104

2.2 Rear View

The rear view of card reader is shown below:

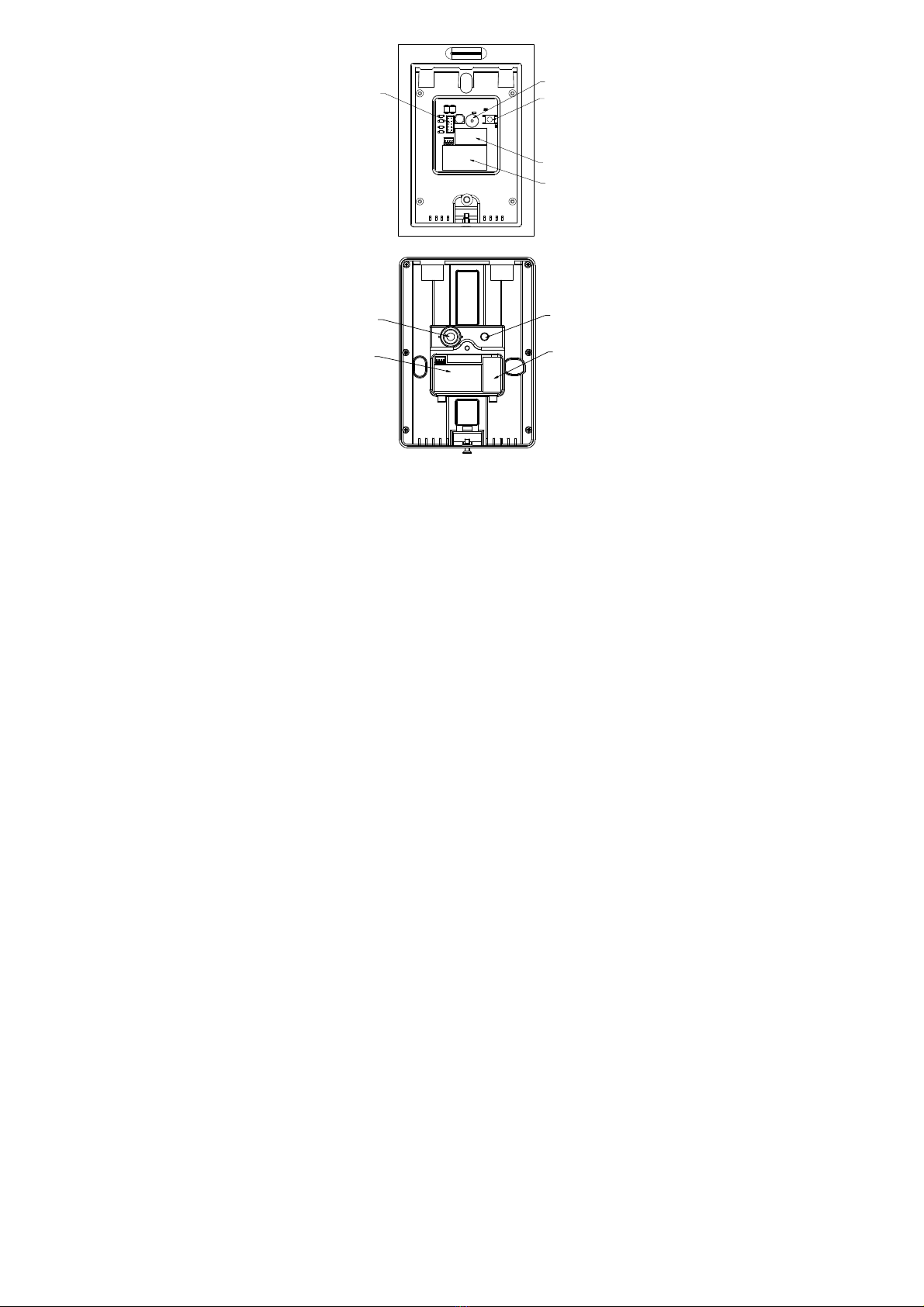

Figure 2-9 Rear View of DS-K1101 Series

Figure 2-10 Rear View of DS-K1102 Series

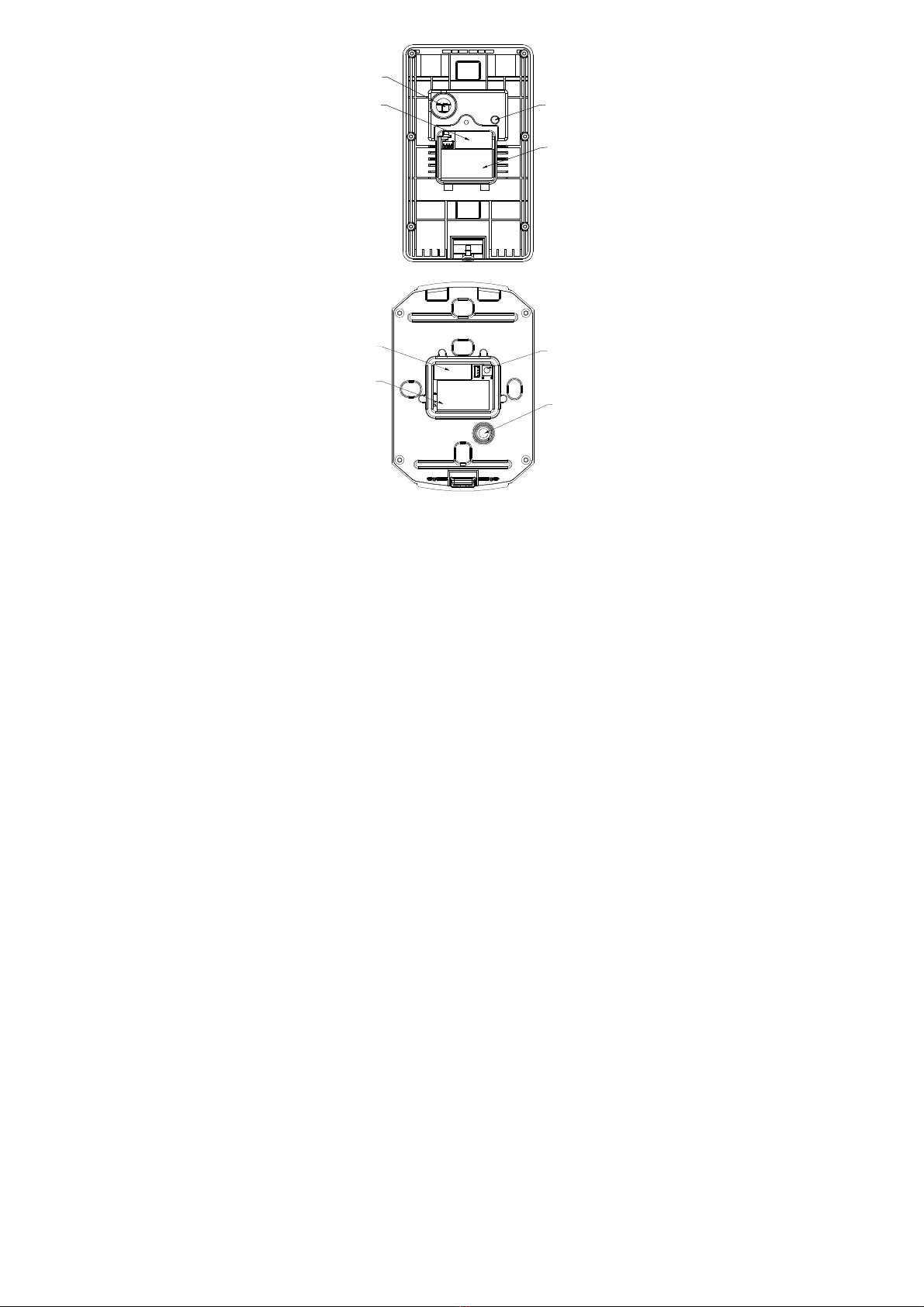

Figure 2-11 Rear View of DS-K1103 Series

Figure 2-12 Rear View of DS-K1104 Series

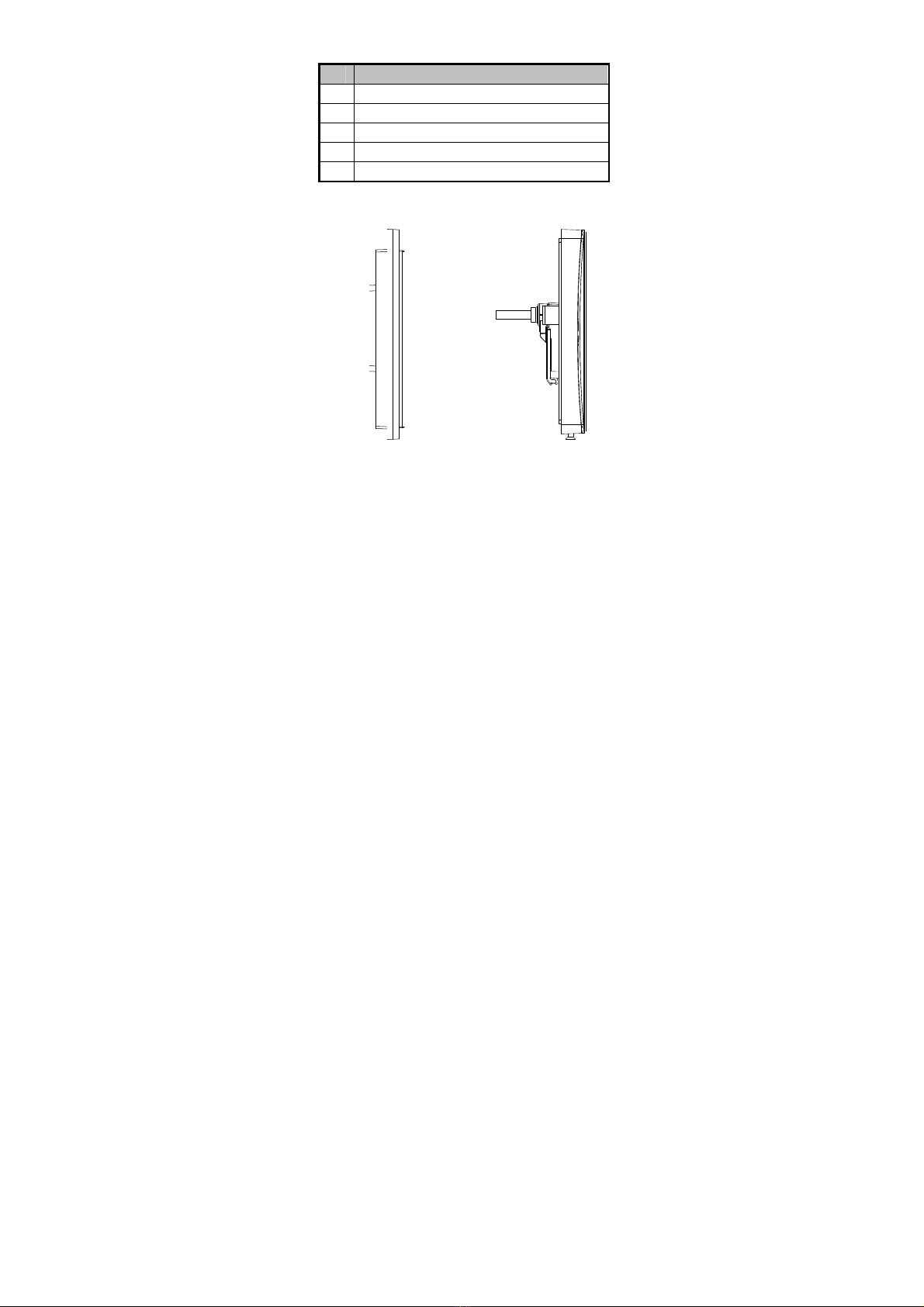

Table 2-1 Description of Rear View

No.

Name

1 able Interface of RS-485, Power, LED ontrol, etc.

2 Buzzer

3 Tamper-proof Module

4 DIP Switch

5 PSAM ard Slot (available for PU card reader)

2.3 Side View

The side view of card reader is shown below:

Figure 2-13 DS-K1101 Series Figure 2-14 DS-K1102 Series

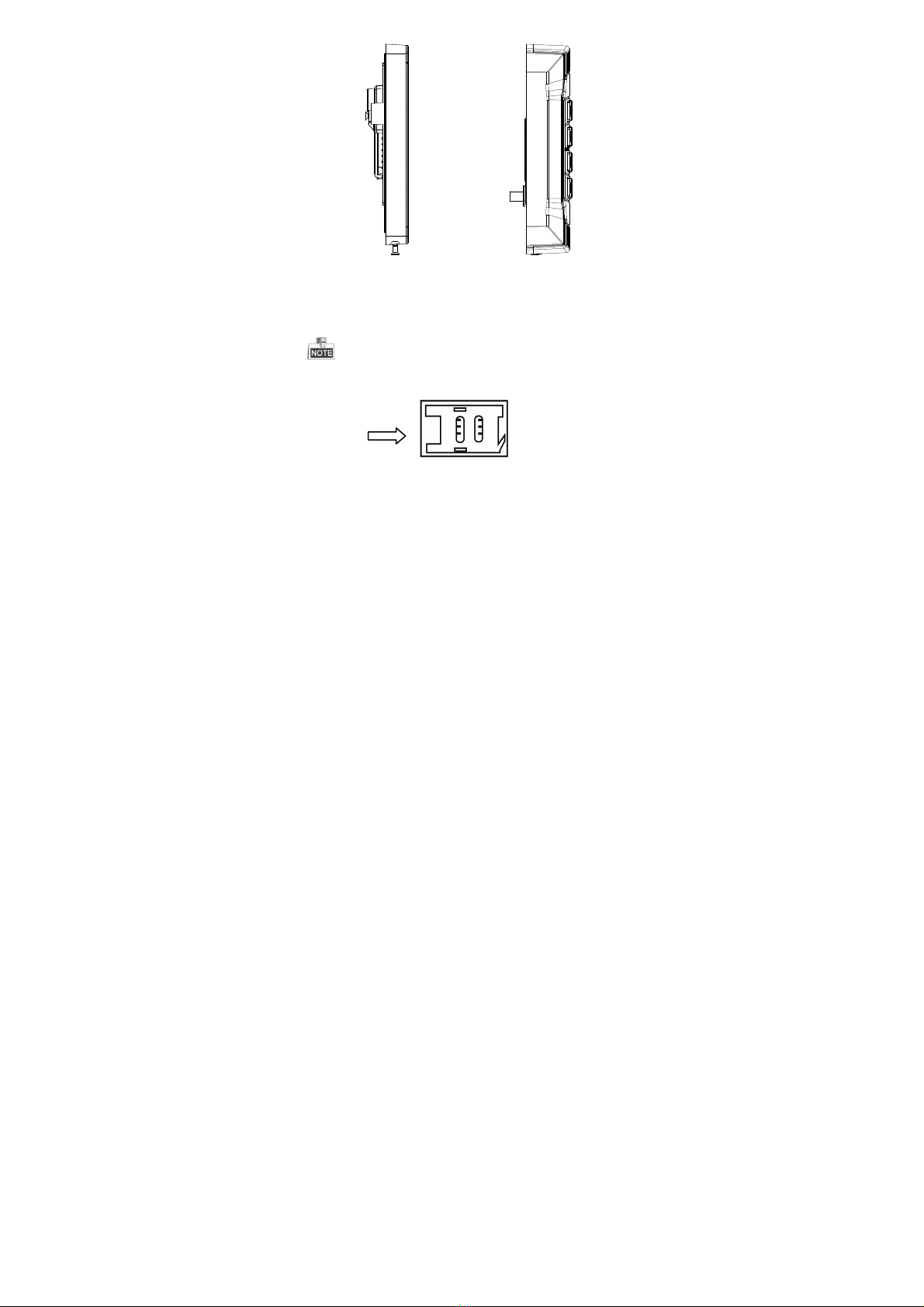

Figure 2-15 DS-K1103 Series Figure 2-16 DS-K1104 Series

Chapter 3 Installation

3.1 Installing PSAM Card

PSAM card slot is only available for PU card reader.

Insert the PSAM card into the slot according to the direction

shown below.

Figure 3-1 PSAM ard Slot
