HDP®600ii Recommended Maintenance Manual
HDP®600ii
Recommended Maintenance
Manual
PLT-06360, A.0
February 2022
Copyright
© 2022 HID Global Corporation/ASSA ABLOY AB. All rights reserved.
This document may not be reproduced, disseminated, or republished in any form without the prior written permission of
HID Global Corporation.
Trademarks
HID GLOBAL, HID, the HID Brick logo, the Chain Design, and HDP are trademarks or registered trademarks of HID
Global, ASSA ABLOY AB, or its affiliate(s) in the US and other countries and may not be used without permission. All
other trademarks, service marks, and product or service names are trademarks or registered trademarks of their
respective owners.
Contacts
For technical support, please visit: https://support.hidglobal.com.
What's new
Date Description Revision
February 2022 Initial release. A.0
A complete list of revisions is available inRevision history.
PLT-06360, A.0 2 February 2022
Powering
Trusted Identities
HDP®600ii Recommended Maintenance
Manual
HDP®600ii Recommended Maintenance Manual 1
Introduction 4
1.1 Daily maintenance 5
1.2 Preventive maintenance 5
Cleaning routines 6
2.1 Adhesive cleaning card routine 7
2.2 IPA cleaning card routine 8
2.3 Film drive roller cleaning routine 9
2.4 Print head cleaning routine 10
PLT-06360, A.0 3 February 2022
Powering
Trusted Identities
HDP®600ii Recommended Maintenance
Manual
Section 01
Introduction
1.1 Daily maintenance
Perform these steps daily:
lRemove and discard any rejected cards.
lClean the card transport path as needed. Once every 1,000 cards at a minimum depending on environment, card
quality, and usage rate as noted in Preventive maintenance.
Note: For maximum output in high throughput situations, daily card path cleaning is recommended.
lWipe exterior of printer with dry microfiber cloth to remove dust and debris from surfaces, including card input hopper
covers.
1.2 Preventive maintenance
It's recommended to perform inspection and preventative maintenance regularly depending on environment and usage.
The following tasks are for ideal conditions, with a clean and dry air office environment.
lEach print ribbon includes a new cleaning roller. When you replace the print ribbon, replace the supplied cleaning
roller.
lClean the printer after every 1,000 cards printed or one month, whichever comes first.
This involves cleaning parts, such as the card path, card path rollers and print head using the cleaning kits available
for sale. Please ensure to use both the adhesive card and IPA card when cleaning the card path and rollers.
PLT-06360, A.0 5 February 2022
Powering
Trusted Identities
HDP®600ii Recommended Maintenance
Manual
Section 02
Cleaning routines
2.1 Adhesive cleaning card routine
Video link: https://player.vimeo.com/video/654620989

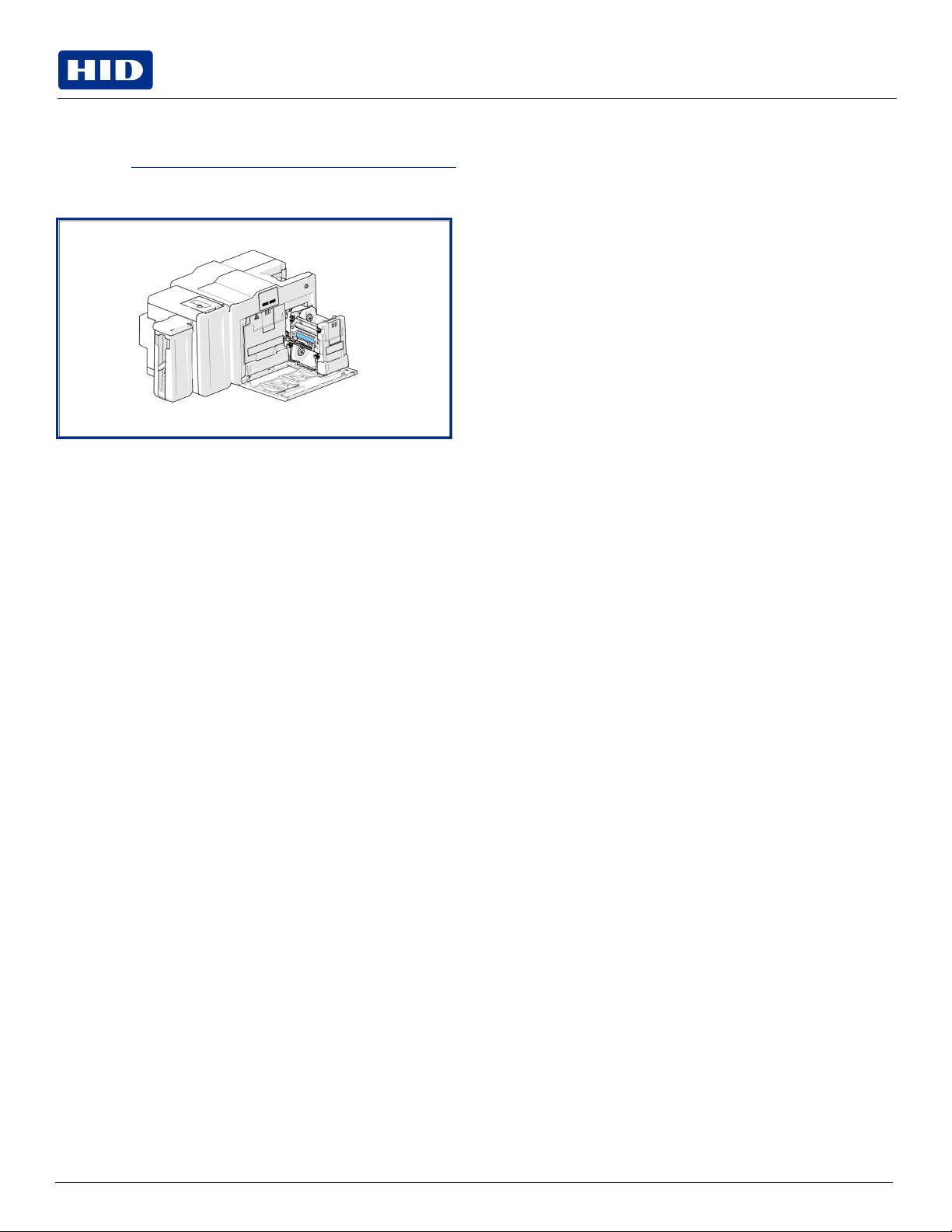

The following diagram shows the location where the cleaning card is inserted into the printer.
1. Remove the input hopper using the key; leave the key in place to keep the printer unlocked.
2. Open the front door and remove the film material from the printer.
3. Slide the film drawer in and close the front door.
4. Prepare the cleaning card by removing the adhesive backing paper.
5. Navigate through the onscreen menu to the Toolbox and select Clean Printer.
6. Manually feed the cleaning card into the feed rollers and into the printer.
The printer cleans itself and ejects the card into the output hopper.
7. Place the input hopper back in place.
8. Open the front door and re-install the film material.
9. Close the door and remove the key.
PLT-06360, A.0 7 February 2022
Powering
Trusted Identities
HDP®600ii Recommended Maintenance
Manual
2.2 IPA cleaning card routine
Video link: https://player.vimeo.com/video/654620130
The following diagram shows the location where the IPA cleaning card is inserted into the printer.
1. Using the key, open the printer front door and remove the input hopper.
2. Remove the long IPA card from its packaging.
3. Feed the card into the feed rollers using the onscreen forward and backward buttons.
a. Make sure to keep a hold of the end of the card.
b. When the card is all the way into the printer, continue pressing the forward button to allow the rollers to rotate
over the now stationary cleaning card.
c. Repeat this a few times to ensure the rollers are clean.
4. Close the printer front door.
5. Place the input hopper back in place.
PLT-06360, A.0 8 February 2022
Powering
Trusted Identities
HDP®600ii Recommended Maintenance
Manual
2.3 Film drive roller cleaning routine
Video link: https://player.vimeo.com/video/654632842
The following diagram shows the location of the film drive roller.
1. Using the key, open the printer front door and slide out the film drawer.
2. Remove the film material.
3. Slide in the film drawer and close the front door.
4. Using the onscreen options, navigate to the Toolbox and select Cln Flm Roller.
5. Prepare an adhesive cleaning card by removing the paper backing.
6. Press the Start Cleaning button to start the film drive roller movement.
7. Hold the adhesive cleaning card with the adhesive backing paper removed up to the drive roller to clean it.
Repeat this a few times with different sections of the cleaning card until there is no debris left on the roller.
8. Discard the cleaning card as it is a one-time use item.
9. Re-install the film material.
10. Slide in the film drawer and close the front door.
PLT-06360, A.0 9 February 2022
Powering
Trusted Identities
HDP®600ii Recommended Maintenance
Manual
2.4 Print head cleaning routine
Video link: https://player.vimeo.com/video/654573767
The following diagram shows the location of the print head.
1. Using the key, open the printer front door.
2. Slide the ribbon drawer out and remove the ribbon material.
3. Turn the power off by switching the power switch to off position (O).
4. Remove the print head cleaning swab from the packaging.
5. Rub the swab back and forth on the print head terminals.
Repeat this a few times, while flipping the swab over to the other side as well.
6. Reload the ribbon material.
7. Slide in the ribbon drawer and close the front door.
8. Switch on the printer.
PLT-06360, A.0 10 February 2022
Powering
Trusted Identities
HDP®600ii Recommended Maintenance
