HiBoost Plus Series Manuel utilisateur
Installation Guide
Plus Series----
4K/10K Plus Pro
Package Contents
4K/10K Plus Pro
Booster Light Patterns
Signal Booster Outdoor CableOutdoor Cable
Indoor Cable
Outdoor Antenna Indoor Antenna
Power Supply waterproof tape
Accessories for main parts
to protect connections SMA-Male to SMA-Female
are all provided
Through-Window Cable
(No drilled hole)
49.2 ft NM-SMAM
30 ft NM-SMAM
16.4ft SMAF-NM
01
ALARM
Power
ISO
LED STATUS
Normal
Slight Overload
Overload
Slow Flashing Green
Solid Green
Quick Flashing Green
Quick Flashing Red
Green
Off
Solid Green
Slow Flashing Green
Quick Flashing Green
Quick Flashing Red
Normal
Slight Loopback
Loopback
Booster automatically shut
Normal
DC Power Problem
INDICATION
off due to strong loopback
Booster automatically shut off
due to strong overload
0202
Bands contained in the Gauges
Gauge Band Uplink Downlink
LTE700
CELL800
PCS1900
AWS2100 4 1710-1755MHz 2110-2155MHz
12/17 698-716MHz 728-746MHz
13 776-787MHz 746-757MHz
5 824-849MHz 869-894MHz
25/2 1850-1915MHz 1930-1995MHz
Please focus on the gauge that contains the band you are using.
Getting Started
Connect the Power Supply and the Booster
Register an ID first and log in.
Add the booster to the device list.
Connect the Booster with the App
Step 1
Step 2
LED STATUS INDICATORS
LED
Bluetooth
Wi-Fi Slow Flashing Green Wi-Fi Connected
STATUS INDICATION
Slow Flashing Green Bluetooth Disconnected
Quick Flashing Green Bluetooth Connected
Solid Green Wi-Fi Disconnected
Download NetWork Cell Info Lite in the Google store and open it.
It can be seen from the example picture that the frequency band is band 13.
(According to the form before, you need to pay attention to Gauge LTE700)
Then click MAP. You can see your phone connecting to a tower, and you can try
aiming your outdoor antenna at it. But sometimes this is not accurate. You could also
move to Step 3.2 to find the tower
Note: Please take screenshots at this stage.
Find the cell tower & Determine the outdoor antenna’s position
3.1 Find the band you are using
03
Step 3
For Android
(1) Dial *3001#12345#*
(2) Follow the instructions, take the screenshots as required.
(1) Enter cellmapper.net
(2) Choose your own carrier and band here.
04
For ios
3.2 Find the cell tower
AT&T AT&T

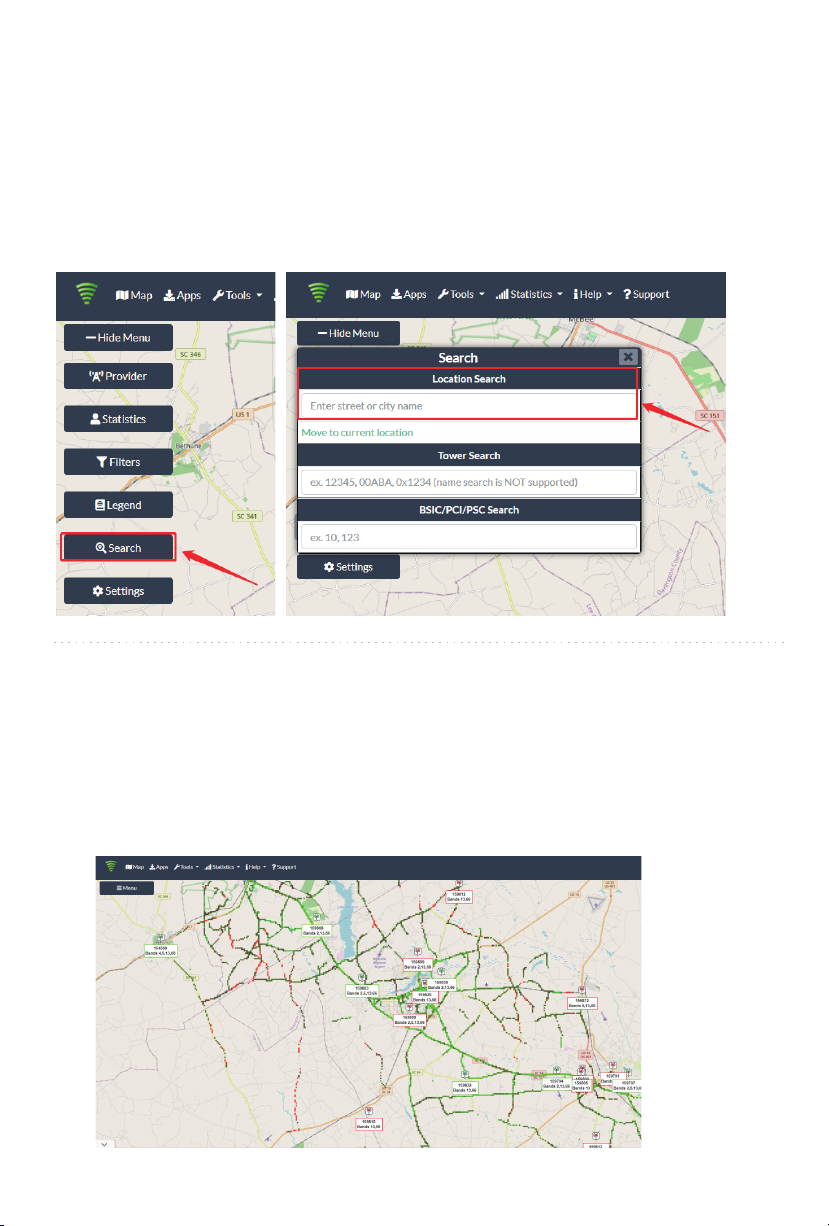

(3) Then enter the coordinate of where you are trying to install the signal booster, and press
Enter key.
(4) The map on the right will jump to the location, then you can scroll the mouse pulley, zoom
it out, you will see the tower near the location. It would be better to take a screenshot of this
page to guide the following installing steps. Should you have any questions, please contact
our tech support.
Note:If you need help finding the tower, please contact our tech support and provide your
carrier, band and screenshots taken in the last steps.
Step 5
05
(In fact when you open Cellmapper, the map on the right will automatically locate
your area if you've given the site permission to access your location. If you found
tower sites not even displayed on the map, it might because the app intercepts
the locations for security reasons.)
Connect the outdoor antenna with the booster
3.3 Determine the outdoor antenna’ s position
The outdoor antenna is usually placed at one of the 4 ends of the roof.
Please choose the position according to the tower’ s location. Make sure there are no barriers
between the antenna and the tower.
Step 4
06
This booster has a built-in
antenna for indoor coverage,
The indoor1 and indoor 2 ports
are only used if you want more
rooms or space to cover.
49.2ft NM-SMAM
(SMA-Male to SMA-Female
16.4ft SMAF-NM
(No drilled hole)
Adjust and fix the Outdoor Antenna
Step 6
07
5.2 Fix the outdoor antenna direction when you get the best output power
5.1 Adjust the outdoor antenna
Install the booster and the cables
4K Plus Pro
10K Plus Pro
1) Have your outdoor antenna pointed to the cell
tower you found before and observe the reading on
the app. Adjust the outdoor antenna accordingly.
2) Try to get the highest possible output power for
each band and try to make 2-3 gauges turn green.
3) You can either observe the signal meter value (full
output power is the best) or the signal description
(Super is the best).
4) The full output power for 4k Plus Pro is 10dbm.
And the full gain is 65dB.
The full output power for 10k Plus Pro is 12dbm.
And the full gain is 68dB.
Since there's a built-in indoor antenna
in 4K/10K Plus Pro, the booster shall be
installed as a panel antenna. Please
have your booster pointed to the area
you would like to cover with signal.
Notes:
Step 5
Indoor Antenna
1) There's a built-in indoor antenna in the booster.
2) The indoor 2 port is reserved to cover more rooms, then you can buy another
antenna kit to access it. But it's worth noting that the booster's built-in antenna
will be disabled once connected to this port.
Notes:
08
Connect the indoor antenna with the booster
Booster
You could do the following:
(1)First make sure the signal gauge value is unchanged from that during
the outdoor antenna installation.
(2)Do speed tests with the booster on and off, and make a comparison.
(3)Check if the number of signal bars increases.
(4)Make a phone call or send messages and check if the voice and
streaming are better.
Signal quality test
Step 7
Step 8
Indoor cable
Notes:
It would be best if you could make the outdoor antenna and the two indoor
antennas face opposite directions.
For 4K Plus Pro, please make sure the gain reaches about 60dB. If not, please
adjust the direction of the indoor antenna/increase the vertical and horizontal
distance between the two antennas/add some barriers.
For 10K Plus Pro, please make sure the gain reaches about 65dB. If not, please
adjust the direction of the indoor antenna/increase the vertical and horizontal
distance between the two antennas/add some barriers.
Adjust the indoor antenna
09
（1）
（2）
（3）
Step 9
Have your indoor antenna pointed to the area you would like to cover with signal.
30ft
Panel antenna
30ft
30ft horizontal
13ft vertical
You could do the following:
(1)First make sure the signal gauge value is unchanged from that during
the outdoor antenna installation.
(2)Do speed tests with the booster on and off, and make a comparison.
(3)Check if the number of signal bars increases.
(4)Make a phone call or send messages and check if the voice and
streaming are better.
Signal quality test
Step 10
