HERO SPLENDOR+ PROGRAMMED FI Manuel utilisateur

PREFACE

Your Authorised Hero MotoCorp dealer will be glad to provide further information or

assistance and is equipped to handle your future service needs.

Thank you for selecting a Hero MotoCorp SPLENDOR+ PROGRAMMED FI. We wish

you many miles of continued riding pleasure in the years ahead.

We, at Hero MotoCorp, are committed to demonstrate excellence in our environment

performance on a continual basis, as an intrinsic element of our corporate philosophy. To

achieve this we commit ourselves to continue product innovations to improve environment

compatibility, comply with all applicable legislation including environment legislation and

strengthen the green supply chain.

Your vehicle is conforming to latest (Bharat stage-VI norms) regulation for emission, safety &

noise levels. We are also using non asbestos brake shoes/pads and engine gaskets which are

environment friendly in nature.

This vehicle is fitted with a lighting feature known as “Automatic Headlamp ON”. The feature

is mandated for all 2 Wheelers by Ministry of Road Transport & Highways (Government of

India) vide notification GSR 188 (E) dated 22nd February 2016. This feature helps in

conspicuity for improving rider safety. The headlamp of this vehicle will always be lit ON when

the engine gets ON.

This booklet is your guide to the basic operation and maintenance of your new Hero

MotoCorp SPLENDOR+ PROGRAMMED FI. Please take time to read it carefully. As with

any fine machine, proper care and maintenance are essential for trouble-free operation and

optimum performance.

Let us make this world a safer, healthier and more environment friendly place.

Hero MotoCorp Ltd RESERVES THE RIGHT TO MAKE CHANGES IN ITS

CONTENTS AT ANY TIME WITHOUT NOTICE AND/OR INCURRING ANY

OBLIGATION, WHATSOEVER. NO ONE IS ALLOWED TO REPRODUCE ANY

PART OF THIS PUBLICATION WITHOUT OBTAINING PRIOR WRITTEN

PERMISSION FROM Hero MotoCorp Ltd.

ALL INFORMATION, ILLUSTRATION, PHOTOGRAPH, DIRECTIONS,

SPECIFICATIONS AND OTHER CONTENTS COVERED IN THIS OWNER'S

MANUAL ARE BASED ON THE LATEST PRODUCT INFORMATION AVAILABLE

AT THE TIME OF ITS PRINTING APPROVAL, AND THE ACCURACY OR

CORRECTNESS OF THE SAME IS NOT UNDERTAKEN OR GUARANTEED.

NOTE

ACCESSORIES SHOWN MAY NOT BE THE PART OF STANDARD FITMENT. IT

IS OUR ENDEAVOUR TO CONSTANTLY IMPROVE OUR PRODUCTS. THIS

COULD LEAD TO CHANGE IN PRODUCT SPECIFICATIONS WITHOUT

NOTICE. Hero MotoCorp Ltd ‘SPLENDOR+ PROGRAMMED FI’ COMPLIES

WITH THE LATEST EMISSION NORMS.

Pg. No.Pg. No.

CONTENTS

Pg. No.

VEHICLE IDENTIFICATION 1

VEHICLE VIEWS 2

VEHICLE SPECIFICATION 5

ACCESSORIES & MODIFICATIONS 7

ANTI-THEFT TIPS 7

VEHICLE SAFETY 8

•Important safety information 8

•Protective apparel 9

SAFE RIDING TIPS 10

TIPS FOR HEALTHY ENVIRONMENT 11

PARTS FUNCTION 12

•Ignition switch 12

MAINTENANCE 25

i3s (IDLE STOP START SYSTEM) 16

FEATURES 14

PARKING/UTILITY BOX 24

USB CHARGER 19

TOOL KIT/FIRST AID KIT 24

RIDING/BRAKING 22

CLEANING AND WASHING OF VEHICLE 25

STARTING THE ENGINE 21

PRE-RIDE INSPECTION 20

FUEL TANK 18

SIDE STAND INDICATOR/SWITCH 18

•Instruments & Indicators 13

HANDLEBAR SWITCHES CONTROLS 14

DRIVE CHAIN SLACKNESS 38

OIL FILTER SCREEN & CENTRIFUGAL FILTER 32

SUSPENSION 44

MAIN/SIDE STAND LUBRICATION 46

AIR CLEANER 33

FUSE REPLACEMENT 51

SAFETY PRECAUTION 26

MAINTENANCE SCHEDULE 27

SPARK PLUG INSPECTION 30

CLUTCH LEVER FREE PLAY 36

ENGINE OIL 31

VALVE CLEARANCE ADJUSTMENT 35

THROTTLE OPERATION 37

DRIVE CHAIN SLIDER INSPECTION 40

BRAKES 41

WHEEL 44

TUBELESS TYRES 47

NUTS, BOLTS & FASTENERS 50

BATTERY 50

STOP LAMP SWITCH 52

HEADLAMP FOCUS ADJUSTMENT 53

CATALYTIC CONVERTER 53

EVAPORATIVE EMISSION CONTROL SYSTEM 54

POLISHING OF VEHICLE 54

BASIC TROUBLESHOOTING 55

ROAD SIGNS 57

WARRANTY

HERO GENUINE PARTS

ZONAL/REGIONAL/AREA OFFICES

1. During registration of the vehicle.

VIN and Engine No. may be required:

2. For dealing with legal & insurance departments.

HA11ED#

#######

MBLHAW12#########

VIN: MBLHAW12#########

MBL HAW12 # # # #####

Manufacturer

code Vehicle

Description Model Year Plant

Code Month of

Manufacturing Production

Serial Number

Check

Digit

Engine No.: HA11ED########

HA11EY # # # #####

Engine

Description Year of

Manufacturing Assembly Plant Month of

Manufacturing Serial Number

VIN Engine

Variants

Model: SPLENDOR+ PROGRAMMED FI

Electric Start/Drum/Cast Wheel/i3s

HA11ED

HAW12

VEHICLE IDENTIFICATION

Engine No.

Location: Stamped on the lower side of the

left crankcase.

Location: Stamped on the right side of the

steering head tube.

Vehicle Identification Number (VIN)

Electric Start/Drum/Cast Wheel

HA11EV

HAW11

Kick Start/Drum/Cast Wheel

HA11ET

HAC05

Electric Start/Drum/Cast Wheel/i3s

HA11EY

HAW12

(1) Turn signal indicator

(4) Turn signal lamp switch

(2) Side stand indicator

(3) Horn switch

(5) Clutch lever

(6) Rear view mirror

(10) i3s indicator

(9) Speedometer

(11) Neutral indicator

(8) Odometer

(7) Headlamp dimmer switch

(14) High beam indicator

(15) i3s switch

(21) Leg guard

(13) Fuel gauge

(12) Programmed FI malfunction indicator

lamp (MIL)

(16) Front brake lever

(17) Throttle grip

(18) Electric starter switch

(19) Ignition switch with steering lock

(20) Fuel tank lid

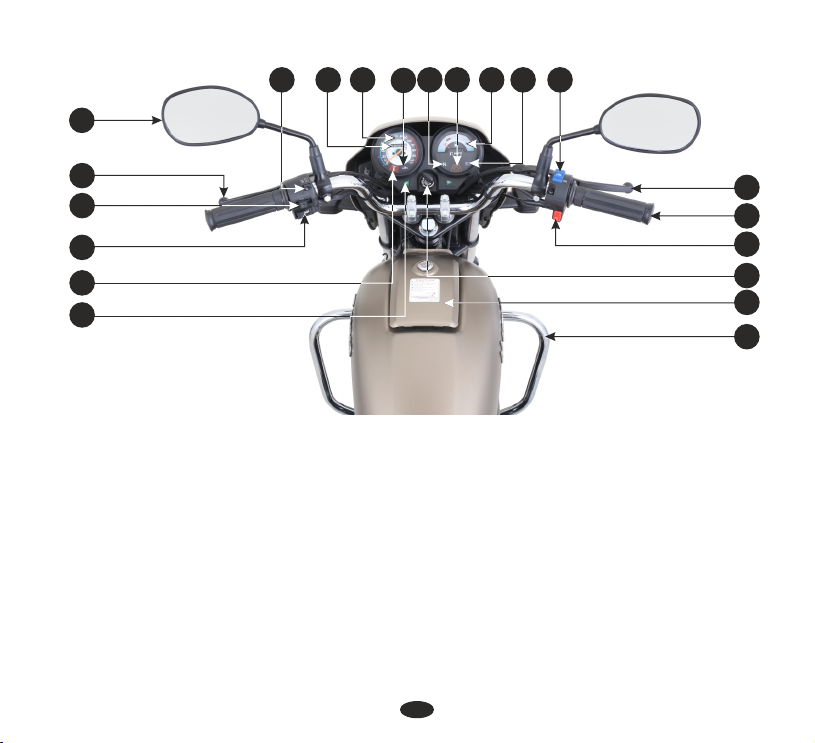

TOP VIEW

VEHICLE VIEWS

10 11 13

*Accessories and features shown may not be part of standard fitment.

8 9 14 15

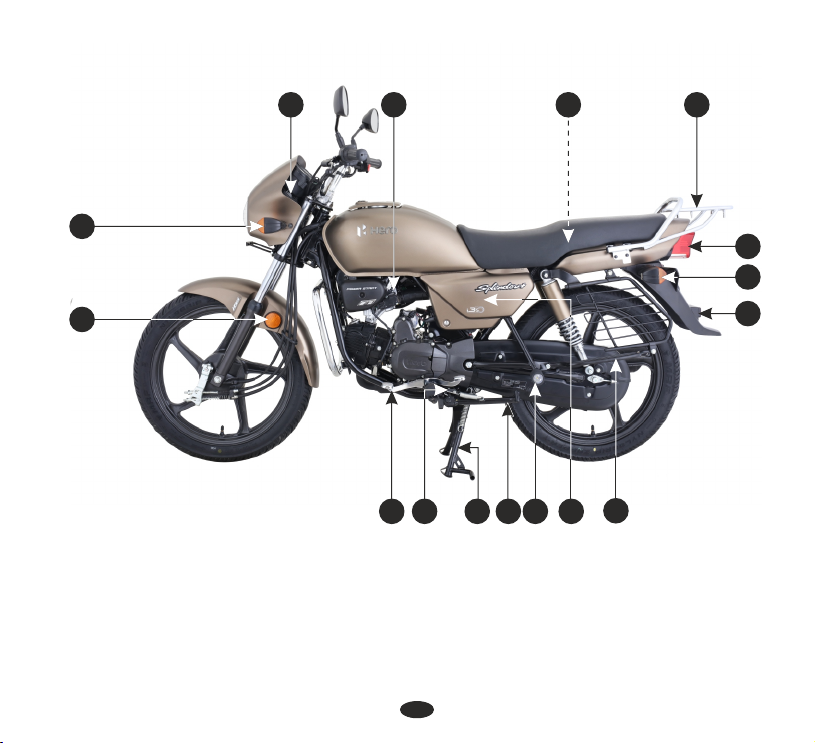

LEFT SIDE VIEW

145

(7) Saree guard with

women pillion step

(8) Rear reflex reflector

(9) Rear turn signal lamp

(10) Tail/stop lamp

(11) Rear carrier

(1) Gearshift pedal

(2) Side stand switch

(3) Main stand

(4) Side stand

(5) Pillion footrest

(6) Left side cover

( 2)1 ECU (inside)

(14) USB charger

(15) Front turn signal lamp

(16) Side reflex reflector

(13) Throttle body

*Accessories and features shown may not be part of standard fitment.

13 12

(7) Oil level dipstick

(10) Headlamp

(6) Rear brake pedal

(8) Utility box

(9) Front suspension

(12) Fuel tank

(11) Front visor

(13) Seat

(14) Rear shock absorber

(15) Exhaust muffler

RIGHT SIDE VIEW

(2) Battery compartment (Inside)

(1) Pillion footrest

(3) Kick starter pedal

(4) Rider footrest

(5) Starter motor

*Accessories and features shown may not be part of standard fitment.

SPECIFICATIONSITEM

Dimensions

Overall length 2000 mm

Overall width 720 mm

Overall height 1052 mm

Wheelbase 1236 mm

Saddle height 785 mm

Ground clearance 165 mm

Engine oil 1 litres at disassembly and 0.85 litre at draining

Weight

Capacities

Maximum power 5.9 kW @ 8000 r/min

Maximum torque 0.82 kgf-m (8.05 N-m) @ 6000 r/min

Bore and stroke 50.0x49.5 mm

Displacement 97.2 cc

Engine

Spark plug gap 0.6-0.7 mm

Idle speed 1400 100 r/min± in hot condition

Front suspension Telescopic hydraulic shock absorbers

Valve clearance 0.10 mm

0.10 mm

Intake

Exhaust

Chassis and suspension

Rear suspension Swing arm with 5 step adjustable hydraulic shock

absorbers

Compression ratio 9.9:1

VEHICLE SPECIFICATION

Spark plug NGK-CR7HSA, BOSCH-UR4AC,

Federal Mogul-P-RZ9HC

Caster angle 26°

Fuel tank 9 .8 litres

Trail length 80 mm

Kerb weight 112 kg

Side stand indicator LED

Hi beam indicator 12V-1.7W

Alternator 125 W @ 5000 r/min

Neutral indicator 12V-1.7W

Headlamp (High/Low) 12V-35/35W (Halogen Bulb**MFR)

Tail/Stop lamp 12V-5/10W-**MFR

Meter illumination 12V-1.7Wx2

31.238 (26/21)

40.958 (23/24)

1.706 (29/17)

Electricals

SPECIFICATIONSITEM

Brakes

Internal expanding shoe type, 130 mm

(Integrated braking system)

Front

Rear

Gear ratio, 1 3.182 (35/11)

Final reduction 3.143 (44/14)

Primary reduction 3.722 (67/18)

Transmission

Tyre size Front

Rear

80/100-18M/C 47P (Tubeless tyre)

80/100-18M/C 54P (Tubeless tyre)

Turn signal lamp 12V-10Wx4 **MFR

Turn signal indicator 12V-3.0Wx2

* MF stands for Maintenance Free

** MFR stands for Multi-Focal Reflector

i3s indicator LED

VEHICLE SPECIFICATION

Programmed-Fi Malfunction indicator lamp (MIL) LED

Fuse 15A,10A (Circuit fuse) & 15A, 10A (Spare fuse)

Fuse box (1)

Fuse box (2) 10A (Circuit fuse) & 10A (Spare fuse)

Position lamp 12V-3W

Battery *MF Battery12V-3Ah/ETZ-4

ACCESSORIES & MODIFICATIONS

Modifying your vehicle or using non-Hero

MotoCorp accessories can make your vehicle

unsafe. Before you consider making any

modifications or adding an accessory, be sure

to read the following information.

operation. Such changes could seriously

impair your vehicle's handling, stability and

braking, making it unsafe to ride. Removing or

modifying your lamps, mufflers, emission

control system or other equipment can also

make your vehicle illegal.

•Use an additional anti-theft device of good

quality.

•Never park your vehicle in an isolated area.

Park as far as possible in a designated area.

•Always lock the steering and never leave the

key in the ignition switch. This sounds

simple but people do forget.

•Park your vehicle in a locked garage

whenever possible.

•Be sure the registration information for your

vehicle is accurate and correct.

ANTI-THEFT TIPS

•Enter your name, address and phone

number in this Owner's Manual and keep it

in your vehicle at all times. Many times

stolen vehicles are identified by information

in the Owner's Manuals that are still with

them.

NAME: _____________________________________________

_______________________________________________________

ADDRESS: _______________________________________

_______________________________________________________

PHONE NO : _____________________________________

Modifications

Accessories

•Make sure that the accessory does not

obscure any lamps, reduce ground

clearance, limit suspension travel or steering

travel, affect your riding position or interfere

with operating any controls.

•Be sure electrical equipment does not

exceed the 's electrical system vehicle

capacity (page 6). A blown fuse can cause a

loss of lights.

•Do not pull a trailer or sidecar with your

vehicle. This vehicle was not designed for

these attachments, and their use can

seriously impair your vehicle's handling.

We strongly advise you not to remove any

original equipment or modify your vehicle in

any way that would change its design or

•Follow all instructions in this owner's manual

regarding accessories and modifications.

•Improper accessories or modifications can

cause a crash in which you can be seriously

hurt or killed.

WARNING

Table des matières

Autres manuels HERO Moto

HERO

HERO Karizma ZMR Manuel utilisateur

HERO

HERO SPLENDOR+ Manuel utilisateur

HERO

HERO Achiever Manuel utilisateur

HERO

HERO IGNITOR TECHNO Manuel utilisateur

HERO

HERO SPLENDOR PRO Manuel utilisateur

HERO

HERO Splendor Pro CLASSIC Manuel utilisateur

HERO

HERO DESTINI 125 PROGRAMMED FI Manuel utilisateur

HERO

HERO HF-DAWN Manuel utilisateur

HERO

HERO SPLENDOR NXG Manuel utilisateur

HERO

HERO Passion Pro Manuel utilisateur

HERO

HERO GLAMOUR Manuel utilisateur

HERO

HERO XPULSE 200 PROGRAMMED FI Manuel utilisateur

HERO

HERO Achiever Manuel utilisateur

HERO

HERO GLAMOUR PROGRAMMED FI Manuel utilisateur

HERO

HERO PLEASURE+ PROGRAMMED FI Manuel utilisateur

HERO

HERO Passion Xpro Manuel utilisateur

HERO

HERO Passion PRO TR Manuel utilisateur

HERO

HERO HF-Deluxe Manuel utilisateur

HERO

HERO Super Splendor Manuel utilisateur

HERO

HERO GLAMOUR Manuel utilisateur

HERO

HERO SPLENDOR+ Manuel utilisateur

HERO

HERO XPULSE 200T 4V 2023 Manuel utilisateur

HERO

HERO HUNK 150R Manuel utilisateur

HERO

HERO SPLENDOR iSMART PROGRAMMED FI Manuel utilisateur

Manuels Moto populaires d'autres marques

OHVALE

OHVALE GP-0 Manuel de la liste des pièces

Yamaha

Yamaha Star XV19CTSZ 2009 Manuel utilisateur

KTM

KTM 350 XCF-W USA Manuel utilisateur

HYOSUNG

HYOSUNG ST7 Manuel utilisateur

Husqvarna

Husqvarna FC 250 2016 Manuel utilisateur

Ducati

Ducati SCRAMBLER 800 Manuel d'instructions

MOTO GUZZI

MOTO GUZZI QUOTA 1100 ES Manuel utilisateur

APRILIA

APRILIA ETV MILLE CAPONORD - PART1 02-2001 Manuel utilisateur

Yamaha

Yamaha 2006 YZF-R1V Manuel utilisateur

KTM

KTM Freeride E-XC 2021 Manuel utilisateur

Fantic

Fantic Enduro 125 Manuel utilisateur

Ducati

Ducati Supersport 750 desmodue Manuel utilisateur

MV Agusta

MV Agusta 2008 F4 312RR 1078 Manuel d'instructions

Yamaha

Yamaha XVS650A Manuel utilisateur

Yamaha

Yamaha YZF-R6T(C) Manuel

Ducati

Ducati 748 monoposto strada Manuel utilisateur

ATK

ATK 1988 250 Manuel utilisateur

Excelsior-HENDERSON

Excelsior-HENDERSON 1999 HCX Manuel utilisateur
