HELVIA HSMA PLAY Series Manuel utilisateur
HSMA / HDMA / HMMA PLAY Series
1 / 2 / 4-Zones Integrated Mixer Amplier with DAB+/USB/BT
Manuale d’uso
en-ita
Please read this manual carefully and keep it for future reference
Leggete questo manuale e conservatelo per future consultazioni
User Manual
Gentile Cliente,
Prima di tutto, grazie per aver acquistato un prodotto HELVIA®. La nostra missio-
ne e di orire soluzioni basate sulle tecnologie più aggiornate a tutte le esigenze
di integrazione di sistemi nei settori privati, commerciali e corporate.
Speriamo che siate soddisfatti da questo prodotto e, qualora vogliate partecipare,
saremmo molto lieti di poter ricevere il vostro feedback sul funzionamento del
prodotto e su possibili miglioramenti da apportare in futuro. Potete andare sulla
sezione CONTATTACI del sito www.frenexport.com e inviare una e-mail con la vo-
stra opinione; questo ci aiuterebbe a realizzare apparecchiature sempre più vicine
alle reali esigenze dei Clienti.
Vi preghiamo, inne, di leggere attentamente questo manuale di istruzioni prima
di utilizzare il prodotto; un uso incorretto potrebbe causare danni a voi e al pro-
dotto stesso: pensateci!
Il team HELVIA
Dear value Customer,
First, thank you for purchasing a HELVIA® product. Our mission is to oer
solutions based on the most up-to-date technologies for all systems integration
needs in the private, commercial and corporate sectors.
We hope you are satised with this product and, if you wish to participate, we
would be very pleased to receive your feedback on the operation of this product
and possible improvements for the future. You can go to “CONTACT” section of
www.frenexport.com and send an e-mail with your opinion; this would help us
make equipment that are closer to the real needs of our customers.
Finally, please read this user manual carefully before using the product; incorrect
use could cause damages to you and the product. Take care!
The HELVIA team
TABLE OF CONTENTS
1. PRECAUTIONS .................................................................................. 4
1.1. Important Safety Symbols................................................................................................ 4
1.2. Important Safety Instructions ......................................................................................... 4
2. GETTING STARTED........................................................................... 6
2.1. Unpacking..............................................................................................................................6
2.2. First Start-Up .........................................................................................................................7
2.3. Phantom Power....................................................................................................................7
3. PRODUCT OVERVIEW ......................................................................7
3.1. Features: .................................................................................................................................8
4. INSTRUCTION................................................................................... 8
4.1. Product Size ..........................................................................................................................8
4.2. Front Panel.............................................................................................................................8
4.3. Rear panel ............................................................................................................................12
5. DAB+/FM/BT/USB Player Operation .........................................16
5.1. DAB+ Mode ........................................................................................................................16
5.2. FM mode..............................................................................................................................16
5.3. Bluetooth Mode................................................................................................................. 17
5.4. USB Mode............................................................................................................................18
5.5. Remote Control..................................................................................................................18
6. SPECIFICATIONS..............................................................................19
6.1. 1-Zone Models....................................................................................................................19
6.2. 2-Zone Models.................................................................................................................. 20
6.3. 4-Zone Models...................................................................................................................21
7. WARRANTY AND SERVICE .......................................................... 22
8. WARNING........................................................................................ 22
HSMA / HDMA / HMMA PLAY Series Mixer Amplifiers with Multi-Player
4
1. PRECAUTIONS

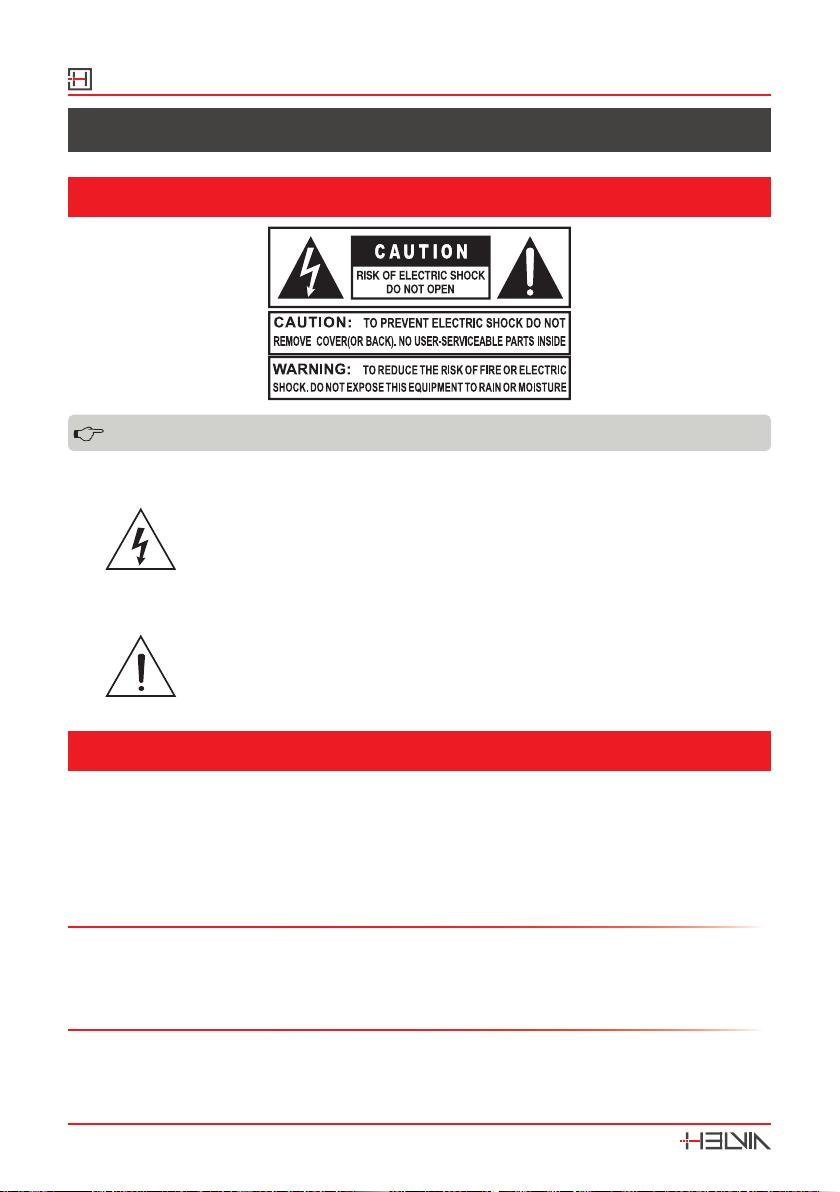

1.1. Important Safety Symbols
The above warning is located on the rear of the unit
The lightening ash with arrowhead symbol within an equi-
lateral triangle is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sucient magnitude to constitute a risk of elec-
tric shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature accompa-
nying the product.
1.2. Important Safety Instructions
yRead these instructions
yKeep these instructions
yHeed all warning
yFollow all instructions
Water and Moisture
The apparatus should be protected from moisture and rain and can not be used
near water; for example near a bathtub, a kitchen sink, a swimming pool, etc.
Heat
The apparatus should be located away from heat sources such as radiators, stoves
or other appliances that produce heat.
HSMA / HDMA / HMMA PLAY Series
Mixer Amplifiers with Multi-Player
5
Ventilation
Do not block areas of ventilation opening. Failure to do could result in re. Always
install according to the manufacturer’s instructions.
Object and Liquid Entry
Objects do not fall into and liquids are not spilled into the inside of the apparatus
for safety.
Power Cord and Plug
In case of external power cord, protect it from being walked on or pinched partic-
ularly at plugs, convenience receptacles, and the point where they exit from the
apparatus. Please disconnect the device from power source by pulling the plug
other than the power cord. Pulling the power cord may result in damages. Do not
defeat the safety purpose of the polarized or grounding-type plug. A polarized
plug has two poles; a grounding-type plug has two poles and a third grounding
terminal. The third prong is provided for your safety. If the provided plug does not
t into your outlet, refer to an electrician for replacement.
Power Supply
In case of products with external power adapter, the unit should be connected to
power adapters only of the type as marked on the apparatus or described in the
manual. Failure to do could result in damage to the product and possibly the user.
Unplug this apparatus during lightning storms or when unused for long periods.
Fuse
In case of products with external fuse holder, in order to prevent the risk of re
and damaging the unit, please use only of the recommended fuse type as de-
scribed in the manual. Before replacing the fuse, make sure the unit turned o
and disconnected from the AC outlet.
Positioning
Please disconnect the device from power source before relocating the device.
For avoiding deformation of panels and damages to internal components, please
do NOT place the device where there is heavy dust or violent vibration, or where
it is extremely cold or hot. Please keep this device o water drops or splash or
vase lled with water or any other articles of similar nature.
Noise and Interferences
Do not use the device in the nearby of a TV, radio, stereo equipment, mobile
HSMA / HDMA / HMMA PLAY Series Mixer Amplifiers with Multi-Player
6
phone, or other electric devices. Otherwise, the device, TV, or radio may generate
noise.
Electrical Connection
Please disconnect other equipment from power source before they are connect-
ed to this product. Please tune volume to its minimum level before the device
is powered ON or OFF. Improper electrical wiring may invalidate the product
warranty.
Precautions in Operation and Cleaning
Please do NOT insert any nger into any gap or opening of the device. Also pre-
vent foreign objects (paper, plastics or metal etc.) from being inserted or falling
into any gap or opening of the device. In such case, please cut o power source
immediately. Clean only with a dry cloth. Do not use any solvents such as ben-
zene or alcohol.
Servicing
Do not implement any servicing other than those means described in the manual.
Refer all servicing to qualied service personnel only. Only use accessories/attach-
ments or parts recommended by the manufacturer.
2. GETTING STARTED
2 .1 . Unpacking
Thank you for purchasing your HSMA / HDMA / HMMA Play Mixer Amplier. All
units have been rigorously tested before leaving the factory. This product is widely
used in schools, shops, bars, pubs, shipping malls and other places: it is the ideal
choice for public broadcasting. In order to facilitate your installation, commission-
ing and use of this product, please read this manual before installation.
Carefully unpack the carton and check the contents to ensure that all parts are
present and in good conditions:
y1 x mixer amplier
y1x 19” Rack Ear Kit (screws included)
y1x Active Antenna
y1x stereo RCA cable
y1x Power Cord
y1x Remote Control
yThis User manual
HSMA / HDMA / HMMA PLAY Series
Mixer Amplifiers with Multi-Player
7
If anything damaged during transport, notify the shipper immediately and keep
packing material for inspection. Again, please save its carton and all packing
materials. If the unit must be returned to the manufacturer, it is important that
the unit is returned in the original manufacturer’s packing. Please do not take any
action without rst contacting us.
Our products are subject to a continuous process of further development. There-
fore modications to the technical features remain subject to change without
further notice.
2.2. First Start-Up
When starting up the mixer amplier for the rst time, please proceed as follows:
1. Turn down the master volume.
2. Turn down the attenuator of each zone.
3. Connect the amplier to a power source. Turn on the power switch. The power
indicator will light.
4. Adjust the master volume to half level as rst regulation.
5. Adjust the zone volume on the amplier until you reach the volume you want.
If you need to change the wiring or installation, make sure to disconnect the
power line of the equipment rst.
6. Adjust volumes source levels according to you needs, and nally adjust again
zone levels and master level once reached the desired levels.
2.3. Phantom Power
Turn on the Phantom Power Switch to supply for all input interfaces of the micro-
phone (+48V). It is not recommended to turn on in normal use, but only when
using MIC2, MIC3 and MIC4.
3. PRODUCT OVERVIEW
Helvia HSMA / HDMA / HMMA Play Series bring a wide oer of integrated PA
Sound Reinforcement solutions with digital ampliers in class-D with processing,
zone number from 1 to 4 with 100V outputs, rated powers between 120W and
350W total, an overall 4-16Ω power output and a whole series of features such as
DAB+receiver, BT audio streaming, USB player, FM radio, mixer with 1 front Mic
input with priority, 3 Mic/Line inputs, +48V Phantom Power, 2 stereo Aux Inputs,
Level Attenuators for each zone, EMC input at 100V, auxiliary power supply at
+24V DC.
In short, these new mixer-ampliers enclose in 2 standard 19 “units (rack-ear kit
included) everything required for a simple and ecient small-to-medium multi-
zone installation.
HSMA / HDMA / HMMA PLAY Series Mixer Amplifiers with Multi-Player
8
3.1 . Features:
y1/2/4 Zones Operation with Independent Output Attenuator
yClass-D Power Ampliers with 120W, 240W or 350W rated powers
y100V Constant Voltage Zone Outputs
y4-16Ω Overall Low-Impedance Output
yBuilt-in High-Eciency Digital Audio Processing
yAdvanced Over Current and Overload Protection
yDC 24V Auxiliary Power Supply for Emergency Purposes
yEMC 100V Emergency Input with Priority
yMultimedia Player with OLED Screen and Remote Control
yFM, DAB+, BT 5.0, USB Operation
yMixer with Independent Volume Control, Master Level and 2-Band EQ
y3 Mic/Line Balanced Inputs with +48V Phantom
y1 Front Mic Unbalanced Input with Priority
y2 Stereo Line Auxiliary Inputs
4. INSTRUCTION
4.1 . Product Size
LHD
30088
482
Unit: mm
Depth
Length
Height
4.2. Front Panel
1 2 3 4 5 6 7 8 9 10 11 12
13 14 15 16 17 18 1920 21 2223 24
HSMA / HDMA / HMMA PLAY Series
Mixer Amplifiers with Multi-Player
9
1. USB Input Port 9. Peak Indicator 17. Low-Freq. Knob
2. Mic 1 Volume 10. Protect Indicator 18. High-Freq. Knob
3. Mic 2 Volume 11. Power Indicator 19. Play/Pause Button
4. Mic 3 Volume 12. Power On/O Switch 20. Previous Button
5. Mic 4 Volume 13. Mic 1 Unbalanced 1/4” Jack 21. Next Button
6. Master Volume 14. Aux 1 Volume 22. Menu Button
7. OLED Screen 15. Aux 2 Volume 23. Chime Button
8. Signal Indicator 16. USB/BT/DAB+/FM Volume 24.Zone Attenuator and Led
1. USB Input Port
USB Type-A plug: it reads USB drives in MS-DOS® FAT-32 format (Up to
128GByte). File readable formats are MP3, MP2, WMA, WAV.
2. Mic 1 Volume
Adjusts Microphone 1 Level
3. Mic 2 Volume
Adjusts Microphone 2 Level
4. Mic 3 Volume
Adjusts Microphone 3 Level
5. Mic 4 Volume
Adjusts Microphone 4 Level
6. Master Volume
This controls the overall level of the speaker.
7. OLED Screen
It shows all information about player functions. Please check “5. DAB+/FM/BT/
USB Player Operation” on page 16 for further details.
8. Signal Indicator
When any input signals are detected, this LED lights.
9. Peak Indicator
The Peak indicator lights up when the input signal is too high and the limiter
works to prevent unwanted damage to the amplier and the transducers.
HSMA / HDMA / HMMA PLAY Series Mixer Amplifiers with Multi-Player
10
NOTE: to better adjust levels and prevent the limiter from operating
and consequently cutting the signals, once the desired sound source
is connected, slowly increase the levels 2, 3, 4, 5, 14, 15, 16 and
Master Level (6) until the desired volume is reached taking care, the
Peak indicator lights up occasionally. Always protect your hearing if
you are near when the loudspeaker plays at high volume.
10. Protect Indicator
These mixer ampliers feature an advanced protection circuit. This indicator lights
up in case of over-current and overload to prevent unwanted damage to the
amplier and the transducers.
NOTE: Although these products adopt protection systems against
overheating, short circuits and any excessive current absorbing
based on digital processor, this condition might occur in case of high
environmental temperature or extremely high levels for very long
time. We suggest to increase the heating dissipation (by allowing the
fan system to correctly operate) and reduce overall sound level.
11. Power Indicator
This Led lights up when the unit is turned on.
12. PowerOn/OSwitch
Use this switch to turn the speaker on and o.
WARNING: Ensure the Master Volume controls is set to minimum
when switching on and off.
13. Mic 1 Unbalanced 1/4” Jack
It accepts unbalanced microphone signals (like dynamic microphones). Please
note that it does not provide Phantom Power for condenser microphones. This
input has priority on all input signals.
Priority function consists in reducing all input levels (Mic 2, Mic 3, Mic 4, Aux 1,
Aux 2, Multi Player) when a signal comes to Mic 1 input. Original levels are re-
stored after about half second that there is no signal at Mic 1 input. This function
is particularly useful for announcement purposes.
If you have to use a microphone but don’t need priority function, please use Mic2,
Ce manuel convient aux modèles suivants
11
Table des matières
Langues :
Autres manuels HELVIA Amplificateur
HELVIA
HELVIA HRMA-1206C Manuel utilisateur
HELVIA
HELVIA HPMA Series Manuel utilisateur
HELVIA
HELVIA HTMA TOUCH Series Manuel utilisateur
HELVIA
HELVIA HMMA PLAY Series Manuel utilisateur
HELVIA
HELVIA HWA-40 PLAY Manuel utilisateur
HELVIA
HELVIA HCA-60 PLAY Manuel utilisateur
HELVIA
HELVIA ZEUS CA Series Manuel utilisateur
HELVIA
HELVIA HCA-40 PLAY Manuel utilisateur
HELVIA
HELVIA ZEUS X Series Manuel utilisateur
HELVIA
HELVIA HRMA PLAY Series Manuel utilisateur
