HELVIA HPMA Series Manuel utilisateur

HPMA Series

Single-Zone Class-D Compact Mixer Ampliers with DAB+, FM,

USB, BT Player

Mixer-Amplicatori Compatti in Classe D a Zona Singola con

Lettore DAB+, FM, USB, BT

Manuale d’uso

en-ita

Please read this manual carefully and keep it for future reference

Leggete questo manuale e conservatelo per future consultazioni

User Manual

PA Mixer-Amp with Player

HPMA-240 PLAY

Source

Aux

Mic AuxLowPlayer High Master

010010010010

-10

-10-40+6

PA Mixer-Amp with Player

HPMA-120 PLAY

Source

Aux

Mic AuxLowPlayer High Master

010010010010

-10

-10-40+6

PA Mixer-Amp with Player

HPMA-60 PLAY

Source

Aux

Mic AuxLowPlayer High Master

010010010010

-10

-10-40+6

PA Mixer-Amp with Player

HPMA-30 PLAY

Source

Aux

Mic AuxLowPlayer High Master

010010010010

-10

-10-40+6

Gentile Cliente,

Prima di tutto, grazie per aver acquistato un prodotto HELVIA®. La nostra missio-

ne e di orire soluzioni basate sulle tecnologie più aggiornate a tutte le esigenze

di integrazione di sistemi nei settori privati, commerciali e corporate.

Speriamo che siate soddisfatti da questo prodotto e, qualora vogliate partecipare,

saremmo molto lieti di poter ricevere il vostro feedback sul funzionamento del

prodotto e su possibili miglioramenti da apportare in futuro. Potete andare sulla

sezione CONTATTACI del sito www.frenexport.com e inviare una e-mail con la vo-

stra opinione; questo ci aiuterebbe a realizzare apparecchiature sempre più vicine

alle reali esigenze dei Clienti.

Vi preghiamo, inne, di leggere attentamente questo manuale di istruzioni prima

di utilizzare il prodotto; un uso incorretto potrebbe causare danni a voi e al pro-

dotto stesso: pensateci!

Il team HELVIA

Dear value Customer,

First, thank you for purchasing a HELVIA® product. Our mission is to oer

solutions based on the most up-to-date technologies for all systems integration

needs in the private, commercial and corporate sectors.

We hope you are satised with this product and, if you wish to participate, we

would be very pleased to receive your feedback on the operation of this product

and possible improvements for the future. You can go to “CONTACT” section of

www.frenexport.com and send an e-mail with your opinion; this would help us

make equipment that are closer to the real needs of our customers.

Finally, please read this user manual carefully before using the product; incorrect

use could cause damages to you and the product. Take care!

The HELVIA team

TABLE OF CONTENTS

1. PRECAUTIONS .................................................................................. 4

1.1. Important Safety Symbols................................................................................................ 4

1.2. Important Safety Instructions ......................................................................................... 4

2. GETTING STARTED........................................................................... 6

2.1. Unpacking..............................................................................................................................6

2.2. First Start-Up .........................................................................................................................7

2.3. Phantom Power....................................................................................................................7

3. PRODUCT OVERVIEW..................................................................... 8

3.1. Features: .................................................................................................................................8

4. INSTRUCTions................................................................................... 9

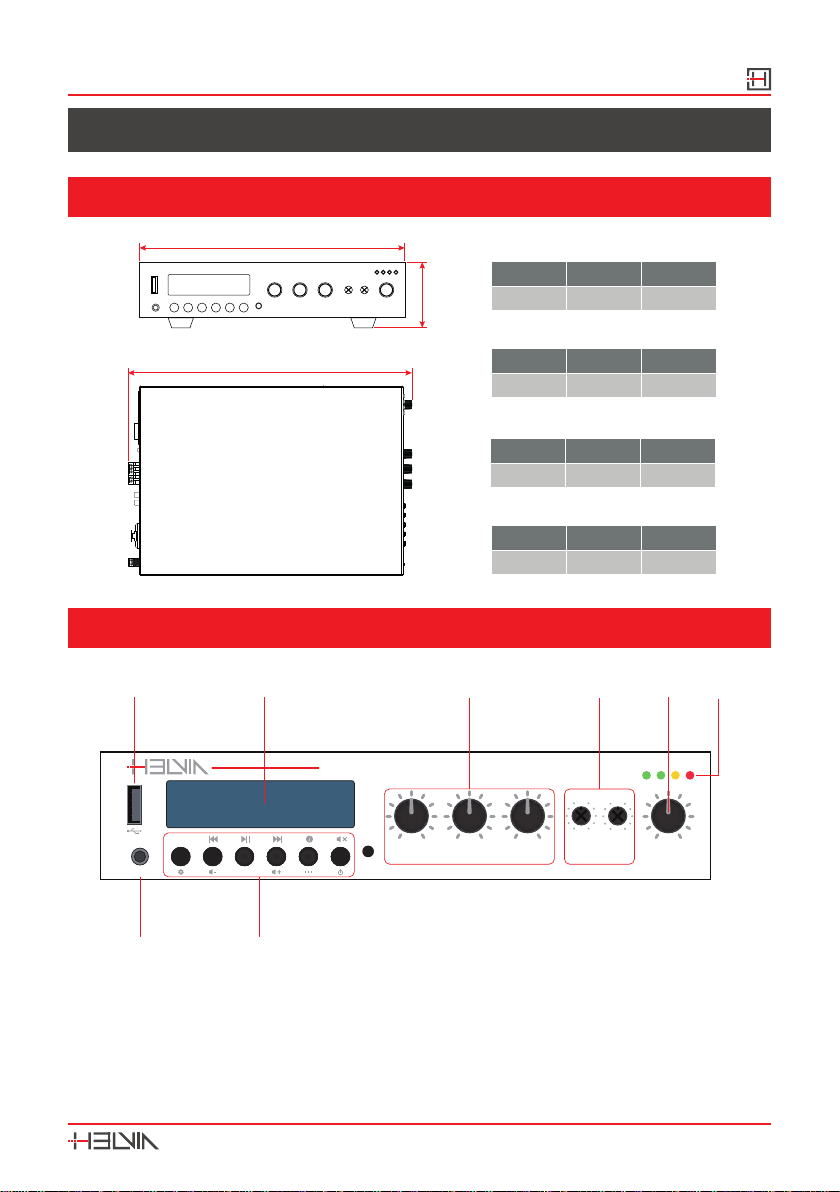

4.1. Product Size ..........................................................................................................................9

4.2. Front Panel.............................................................................................................................9

4.3. Rear panel ............................................................................................................................ 11

5. OPERATION......................................................................................14

5.1. Media Player Functions....................................................................................................14

5.2. BT Mode ...............................................................................................................................16

5.3. FM Tuner Mode..................................................................................................................17

5.4. DAB+ Mode ......................................................................................................................19

5.5. REMOTE CONTROL...........................................................................................................21

6. SPECIFICATIONs............................................................................. 22

7. WARRANTY AND SERVICE .......................................................... 23

8. WARNING........................................................................................24

HPMA-PLAY Series

Single-Zone Mixer-Amp with DAB+, FM, USB, BT Player

1. PRECAUTIONS

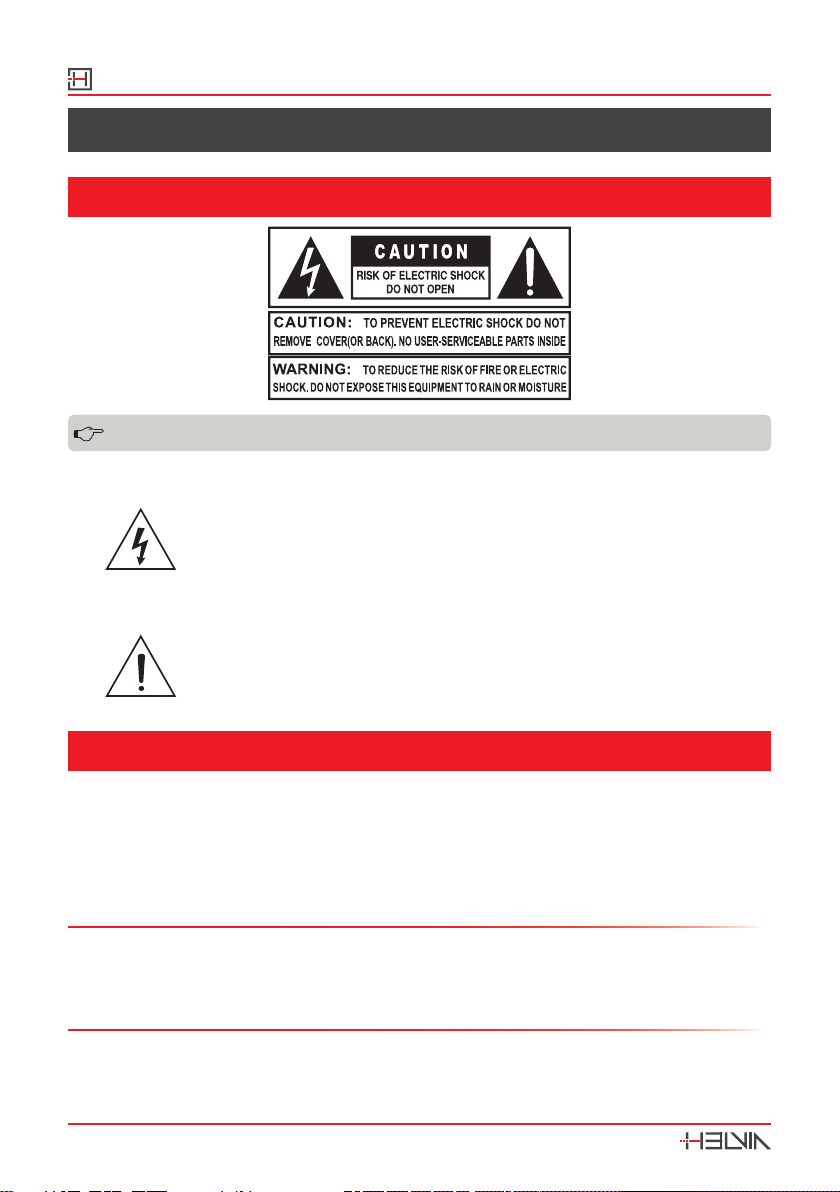

1.1. Important Safety Symbols

The above warning is located on the rear of the unit

The lightening ash with arrowhead symbol within an equi-

lateral triangle is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s enclosure

that may be of sucient magnitude to constitute a risk of elec-

tric shock to persons.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature accompa-

nying the product.

1.2. Important Safety Instructions

yRead these instructions

yKeep these instructions

yHeed all warning

yFollow all instructions

Water and Moisture

The apparatus should be protected from moisture and rain and can not be used

near water; for example near a bathtub, a kitchen sink, a swimming pool, etc.

Heat

The apparatus should be located away from heat sources such as radiators, stoves

or other appliances that produce heat.

HPMA-PLAY Series

Single-Zone Mixer-Amp with DAB+, FM, USB, BT Player

Ventilation

Do not block areas of ventilation opening. Failure to do so could result in re.

Always install according to the manufacturer’s instructions.

Object and Liquid Entry

Do not spill liquids or let objects fall into the inside of the apparatus.

Power Cord and Plug

In case of external power cord, protect it from being walked on or pinched partic-

ularly at plugs, convenience receptacles, and the point where they exit from the

apparatus. Please disconnect the device from power source by pulling the plug

other than the power cord. Pulling the power cord may result in damages. Do not

defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two poles; a grounding-type plug has two poles and a third grounding

terminal. The third prong is provided for your safety. If the provided plug does not

t into your outlet, refer to an electrician for replacement.

Power Supply

In case of products with external power adapter, the unit should be connected

to power adapters only of the type as marked on the apparatus or described in

the manual. Failure to do so could result in damage to the product and possibly

the user. Unplug this apparatus during lightning storms or when unused for long

periods.

Fuse

In case of products with external fuse holder, in order to prevent the risk of re

and damaging the unit, please use only of the recommended fuse type as de-

scribed in the manual. Before replacing the fuse, make sure the unit is turned o

and disconnected from the AC outlet.

Positioning

Please disconnect the device from power source before relocating the device.

For avoiding deformation of panels and damages to internal components, please

do NOT place the device where there is heavy dust or violent vibration, or where

it is extremely cold or hot. Please keep this device o water drops, splashes, vases

lled with water or any other articles of similar nature.

Noise and Interferences

Do not use the device in the nearby of a TV, radio, stereo equipment, mobile

HPMA-PLAY Series

Single-Zone Mixer-Amp with DAB+, FM, USB, BT Player

phone, or other electric devices. Otherwise, the device, TV, or radio may generate

noise.

Electrical Connection

Please disconnect other equipment from power source before they are connect-

ed to this product. Please tune volume to its minimum level before the device

is powered ON or OFF. Improper electrical wiring may invalidate the product

warranty.

Precautions in Operation and Cleaning

Please do NOT insert any nger into any gap or opening of the device. Also pre-

vent foreign objects (paper, plastics or metal etc.) from being inserted or falling

into any gap or opening of the device. In such case, please cut o power source

immediately. Clean only with a dry cloth. Do not use any solvents such as ben-

zene or alcohol.

This product, in combination with loudspeakers may be capable of producing

sound levels that could cause permanent hearing loss. Do not operate for a long

period of time at a high-volume level or at a level that is uncomfortable. If you

experience any hearing loss or ringing in the ears, you should consult with otorhi-

nolaryngologic.

Servicing

Do not implement any servicing other than those means described in the manual.

Refer all servicing to qualied service personnel only. Only use accessories/attach-

ments or parts recommended by the manufacturer.

2. GETTING STARTED

2 .1 . Unpacking

Thank you for purchasing your HPMA Play Mixer Amplier. All units have been

rigorously tested before leaving the factory. This product is widely used in schools,

shops, bars, pubs, shopping malls and other places: it is the ideal choice for public

broadcasting. In order to facilitate your installation, commissioning and use of this

product, please read this manual before installation.

Carefully unpack the carton and check the contents to ensure that all parts are

present and in good conditions:

y1x Mixer amplier

y1x Antenna

y1x stereo RCA cable

HPMA-PLAY Series

Single-Zone Mixer-Amp with DAB+, FM, USB, BT Player

y1x Power Cord

y1x Remote Control

yThis User manual

If anything got damaged during transport, notify the shipper immediately and

keep packing material for inspection. Again, please save its carton and all packing

materials. If the unit must be returned to the manufacturer, it is important that

the unit is returned in the original manufacturer’s packing. Please do not take any

action without rst contacting us.

Our products are subject to a continuous process of further development. There-

fore modications to the technical features remain subject to change without

further notice.

2.2. First Start-Up

When starting up the mixer amplier for the rst time, please proceed as follows:

1. Turn down the master volume.

2. Turn down the AUX-channel and MIC-channel volume.

3. Connect the amplier to a power source. Turn on the power switch. VU-meter

indicators will briey light.

4. Once the VU-meter lights are o, adjust the master volume to half level as rst

regulation.

5. Adjust the Aux or Mic volume depending on the source you are using, until you

reach the volume you want. If you need to change the wiring or installation,

make sure to disconnect the power line of the equipment rst.

2.3. Phantom Power

Turn on the Phantom Power Switch in case of condenser microphone. Please read

the specications of your condenser microphone and make sure it requires +48V

Phantom Power. It is not recommended to turn on in normal use.

Warning: if it needs a power supply of less than 48V do not connect

to your HPMA amplifiers because you risk to damage the microphone.

HPMA-PLAY Series

Single-Zone Mixer-Amp with DAB+, FM, USB, BT Player

3. PRODUCT OVERVIEW

Sound system installations for commercial applications, while requiring more and

more versatility and high performance in terms of power and sound pressure,

have increasingly limited space. Helvia is well aware of these requirements and

oers a line of single-zone-mixer-amplies in standard ½ 19”rack unit format with

power ratings ranging from 30W to 240W, capable of operating on both 100V

and low impedance lines up to 2 ohms* with maximum stability. The HPMA -

where “P” stands for Pocket - integrates a mixer with 1 Combo Mic/Line input with

48V Phantom power, a front AUX input with stereo mini-jack plus a rear stereo

AUX RCA input, and a Multimedia Player with DAB+ and FM tuner, USB player

and BT; the level of each input is independently adjustable from the front panel.

The Class-D amplier modules integrate digital processing with limiter, over-

heat protection, fan control, DC-oset and in-current to ensure operation at any

high impedance audio level down to a minimum of 2 ohms* in complete safety.

HPMA-Play series ampliers can be rack mounted with the optional HPMA R1-Kit

mounting kit.

*2 ohms operation is provided only for 120W and 240W models; for 30W and

60W models the minimum limit is 4 ohms.

3.1. Features:

yDimensions contained in ½ rack unit

yPower ranging from 30W to 240W

yOperation at 100V and 2 or 4 ohms (according to each model)

y24V DC Auxiliary Power supply

y3-channel mixer with combo Mic, Line input and RCA Stereo Aux input

y48V phantom power for condenser microphones and input priority

yRCA Line output

yMultimedia player with DAB+, FM, USB, BT and Remote Control

yMute function in case of emergency

HPMA-PLAY Series

Single-Zone Mixer-Amp with DAB+, FM, USB, BT Player

4. INSTRUCTIONS

4.1 . Product Size

Unit: mm

Width

Height

Depth

WDH

54204

210

HPMA-30 PLAY

WDH

54250

210

HPMA-60 PLAY

WDH

54325

210

HPMA-120 PLAY

WDH

54355

210

HPMA-240 PLAY

4.2. Front Panel

PA Mixer-Amp with Player

HPMA-240 PLAY

Aux

Mic Aux LowPlayer High Master

0 10 0 10 0 10 0 10

-10

-10 -4 0 +6

Source

1 3 45 6

1. USB drive input 5. Bass & Treble controls

2. 3.5 mm AUX input 6. Master volume

3. OLED display 7. VU-Meter

4. MIC, AUX and Media player

volume controls 8. Media Player control buttons

HPMA-PLAY Series

Single-Zone Mixer-Amp with DAB+, FM, USB, BT Player

1. USB Drive Input

Supports up to 32GB USB ash drives formatted in FAT32 le system. Supports

audio formats such as FLAC, WMA,WAV and high quality MP3 (up to 320Kbps).

For further details, please read the paragraph “1. USB Drive Input” on page 14 .

2. 3.5 mm AUX Input

3.5 mm stereo TRS input for auxiliary audio source. For further details, please read

the paragraph “3. 3.5 mm Aux Input” on page 15.

3. OLED Display

The HPMA mixer ampliers feature a multimedia player with an OLED display and

remote control. For further details please read the paragraph “2. OLED Screen”

on page 15.

4. MIC, AUX and Media Player Volume Controls

Rotary knobs for adjusting volume level of selected channel.

5. Bass & Treble Controls

Tone controls provide attenuation of bass and treble response. The at position is

obtained when the knobs are set to middle position. Turn the knob clock wise to

raise tone level approximately +7.5dB for bass and+10 dB for treble; turn count-

er - clockwise to lower tone level by approximately -7.5 dB for bass and-10 dB for

treble.

6. Master Volume

Rotary knobs for adjusting master volume.

7. VU-Meter

There are 4 dierent color indicators. Starting from the left, the two green LEDs

indicate respectively that the output signal is -10dB and -4dB; the yellow LED

indicates a 0dB output signal; the red LED indicates a +6dB level.

Be careful when adjusting the volumes to ensure that only occasionally does the

red LED light up. Should the signal be so strong that all 4 indicators illuminate

steadily, keep in mind that the limiter intervenes to reduce the output signal.

CAUTION: Excessive output level causes overheating and may dam-

age the amplifier in the long run.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels HELVIA Amplificateur

HELVIA

HELVIA HTMA TOUCH Series Manuel utilisateur

HELVIA

HELVIA ZEUS X Series Manuel utilisateur

HELVIA

HELVIA HSMA PLAY Series Manuel utilisateur

HELVIA

HELVIA ZEUS CA Series Manuel utilisateur

HELVIA

HELVIA HRMA-1206C Manuel utilisateur

HELVIA

HELVIA HCA-40 PLAY Manuel utilisateur

HELVIA

HELVIA HMMA PLAY Series Manuel utilisateur

HELVIA

HELVIA HCA-60 PLAY Manuel utilisateur

HELVIA

HELVIA HWA-40 PLAY Manuel utilisateur

HELVIA

HELVIA HRMA PLAY Series Manuel utilisateur

Manuels Amplificateur populaires d'autres marques

ASTRO

ASTRO HVO V40 P Manuel utilisateur

Marantz

Marantz SUPERSCOPE BLA-545 Instructions de montage

NAD

NAD CI980 Manuel utilisateur

Technics

Technics SE-CH770 Manuel utilisateur

Harman Kardon

Harman Kardon HK6300 Manuel utilisateur

NAD

NAD T975 Manuel utilisateur

McIntosh

McIntosh MA6850 Manuel utilisateur

Electro-Harmonix

Electro-Harmonix ENGLISH MUFF’N Manuel utilisateur

Viatron

Viatron Autrix Manuel utilisateur

GME

GME GA9800 Manuel utilisateur

Atlas

Atlas CP700 Manuel utilisateur

Roland

Roland KC-1000 Manuel utilisateur

Pyle

Pyle PFMRA350BW Manuel utilisateur

Advantage

Advantage S-250 Manuel utilisateur

IRT Electronics

IRT Electronics DVA-3007 Manuel utilisateur

Dimavery

Dimavery BA-100 Series Manuel utilisateur

Sony

Sony XM-S400D Manuel utilisateur

Schertler

Schertler ROY X Manuel utilisateur
