QUICK START GUIDE
TT230SM / TT230SMC
Thermal Transfer Printer
www.Hellermann.Tyton.com
|
800.537.1512
2
TT230SM & TT230SMC Quick Start Guide
Unpacking and Inspection
This printer has been carefully packaged to withstand damage during
shipping. Please carefully inspect the packaging and printer upon receipt.
Retain the packaging materials in case you need to reship the printer.

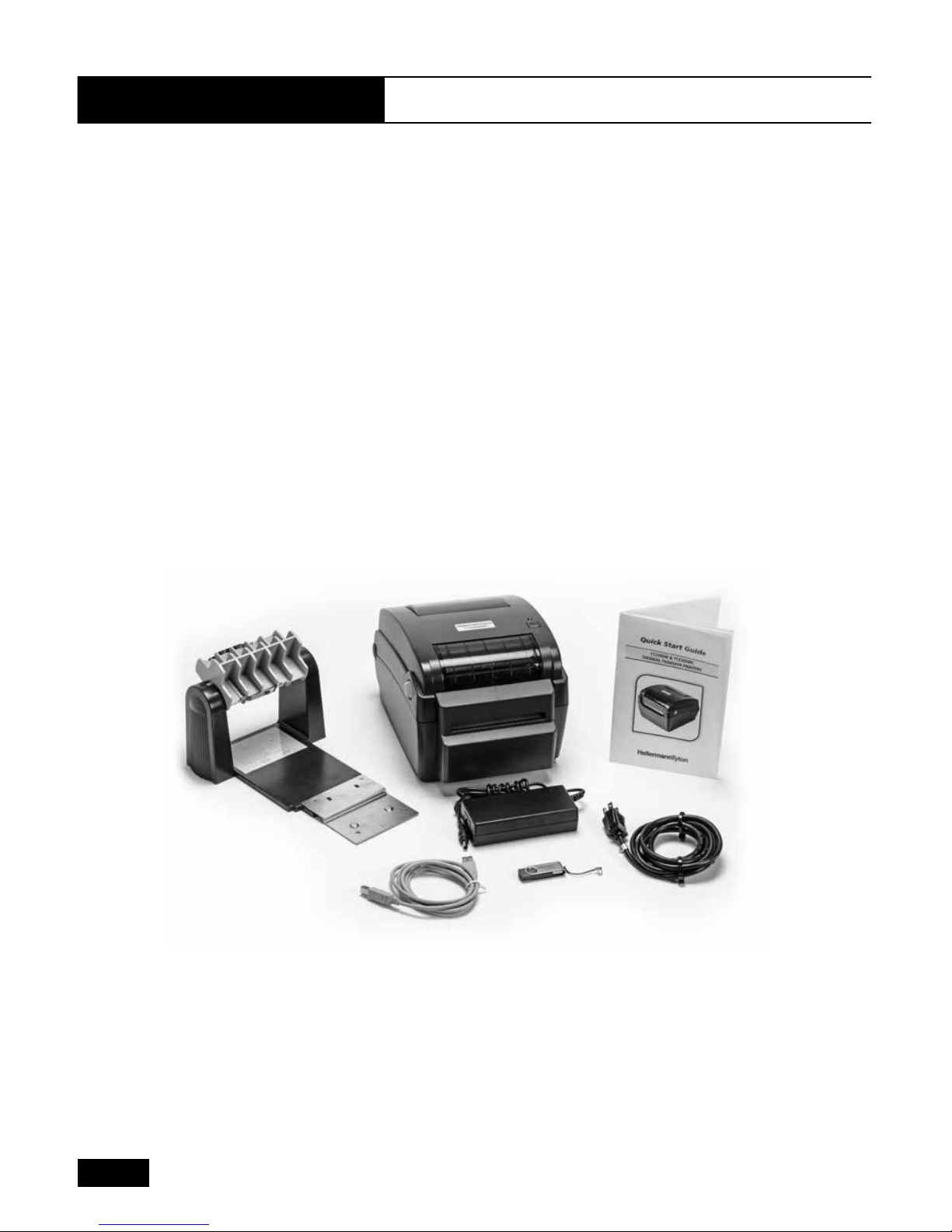

The following items are included in the carton:
If any of the parts listed above are missing, please contact
HellermannTyton Support: 1.800.537.1512
• Printer unit
• Windows USB key drive that
contains drivers and manuals
• Quick Start Guide
• Power cord
• Auto switching power supply
• USB cable
• Printer caddy
• Cardboard ribbon rewind
core (not pictured)
www.Hellermann.Tyton.com
|
800.537.1512 3
TT230SM & TT230SMC
Quick Start Guide
Printer Overview
Front View (TT230SMC with cutter shown)
1. Cutter (TT230SMC only) 4. Feed button
2. Ribbon access cover 5. LED indicator
3. Top cover locking tabs 6. SD card slot
7. Media view window
2
1
456 73
www.Hellermann.Tyton.com
|
800.537.1512
4
TT230SM & TT230SMC Quick Start Guide
Printer Overview
Interior View
1. Ribbon rewind hub
2. Ribbon rewind gear
3. Gap sensor (receiver)
4. Internal media holder
5. Media holder lock switch
6. Gap sensor (transmitter)
7. Print head
8. Ribbon supply hub
9. Top cover support arm
10. Media guide adjustment knob
11. Black mark sensor
12. Platen roller
1
2
7
8
9
10
11
12
3
4
5
6
www.Hellermann.Tyton.com
|
800.537.1512 5
TT230SM & TT230SMC
Quick Start Guide
Printer Overview
Rear View
1. Ethernet interface
2. USB interface
3. Centronics interface
4. RS-232C interface
5. Power jack socket
6. Power switch
7. Paper entrance chute
1 2
7
3 4 5 6
www.Hellermann.Tyton.com
|
800.537.1512
6
TT230SM & TT230SMC Quick Start Guide
Printer Setup
Initial Setup
1. Place the printer on a flat, secure surface.
2. Make sure the power switch is off.
3. Plug the power cord into the AC power cord socket at the rear of the
printer, then plug the power cord into a properly grounded power
outlet.
4. Connect the provided USB cable to the printer and then connect
to your computer.
Ethernet RJ-45
interface
USB interface
Centronics interface
RS-232C
interface
Power
Supply
Power
Switch
Plug
www.Hellermann.Tyton.com
|
800.537.1512 7
TT230SM & TT230SMC
Quick Start Guide

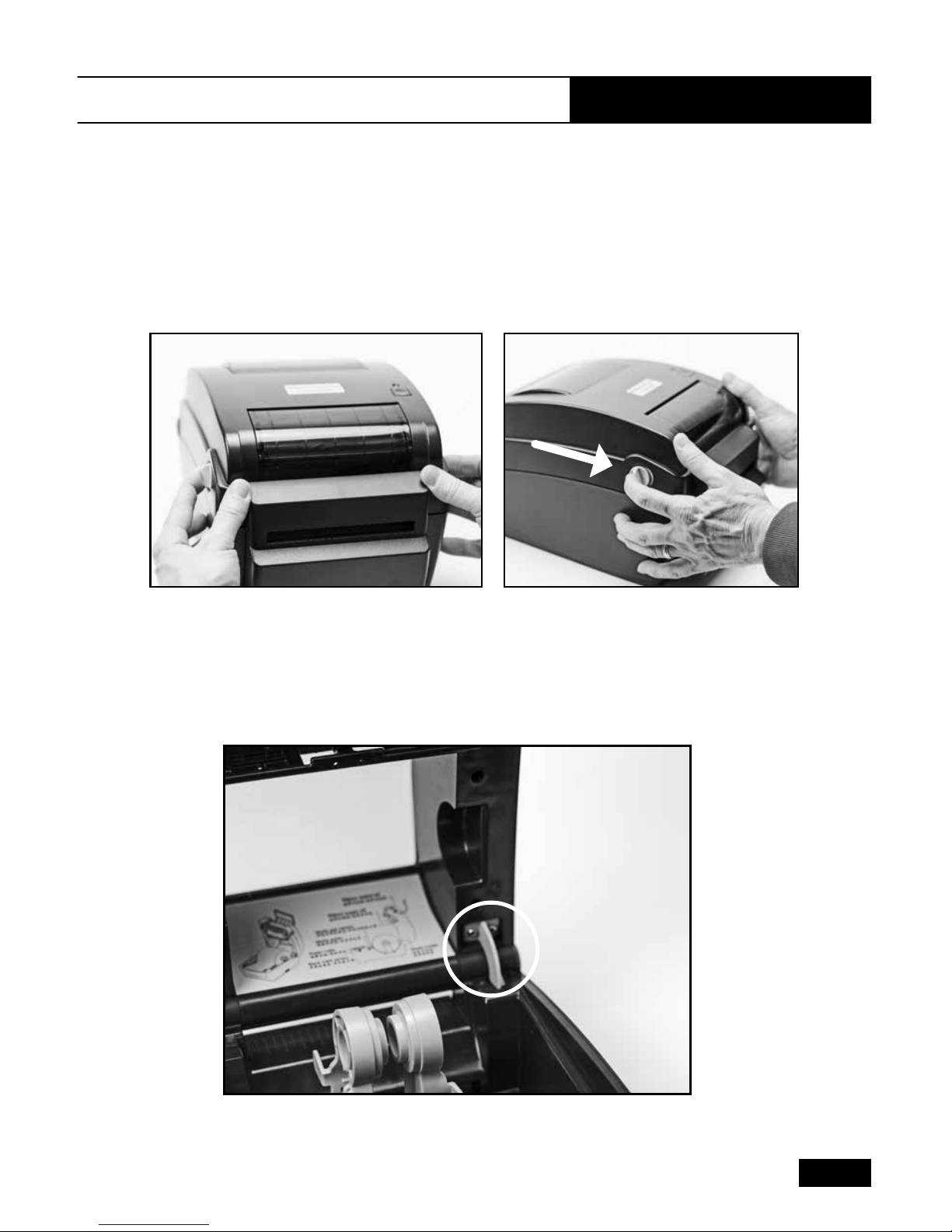

Opening the Top Cover
1. Open the top cover by pulling the locking tabs (located on each side)
towards the front of the printer. Lift the top cover to the maximum
open angle.
2. Once fully open, the top cover support arm, at the right rear of the
printer, will engage to hold the top cover open.
www.Hellermann.Tyton.com
|
800.537.1512
8
TT230SM & TT230SMC Quick Start Guide
Loading Ribbon
For a video tutorial on loading the ribbon,
visit www.hellermann.tyton.com

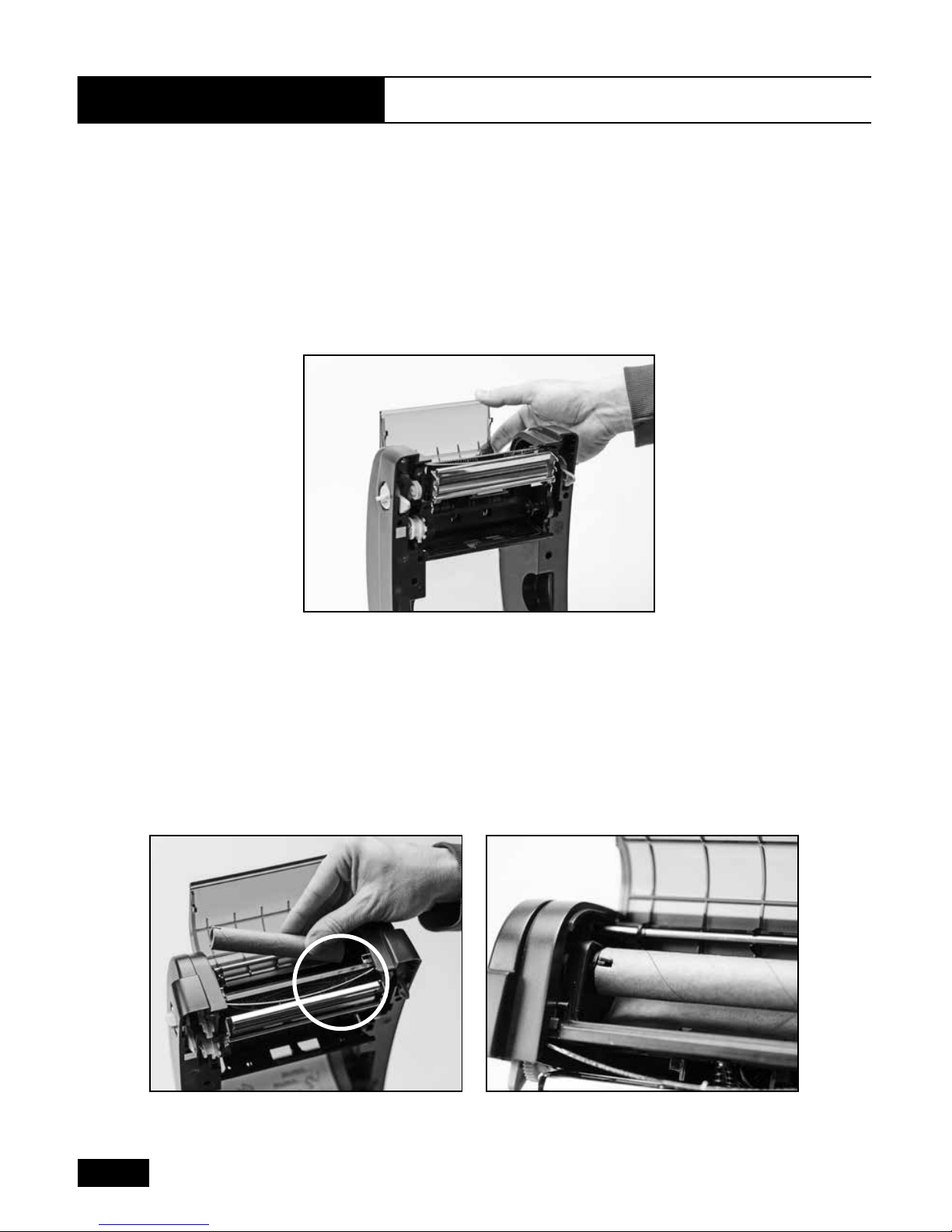

1. While the top cover is open and supported, open the ribbon access
cover.
Note:
The ribbon access cover can be opened while opening the top cover. The ribbon access cover
can be closed while top cover is open or closed.
2. Insert the cardboard ribbon rewind core (included with every ribbon)
into the right side of the rewind hub by aligning the notches on the
right side and mounting onto the spokes.
www.Hellermann.Tyton.com
|
800.537.1512 9
TT230SM & TT230SMC
Quick Start Guide
3. Insert the cardboard ribbon rewind core into to the left side of the
supply hub by aligning the notches on the left side and mounting onto
the spokes.
4. Install the ribbon by securing the female notches at the ends of the
ribbon core to the mounting spokes on the ribbon supply hub.
www.Hellermann.Tyton.com
|
800.537.1512
10
TT230SM & TT230SMC Quick Start Guide
5. Unravel the ribbon leader (blue or silver), and stick it onto the cardboard
rewind core.
