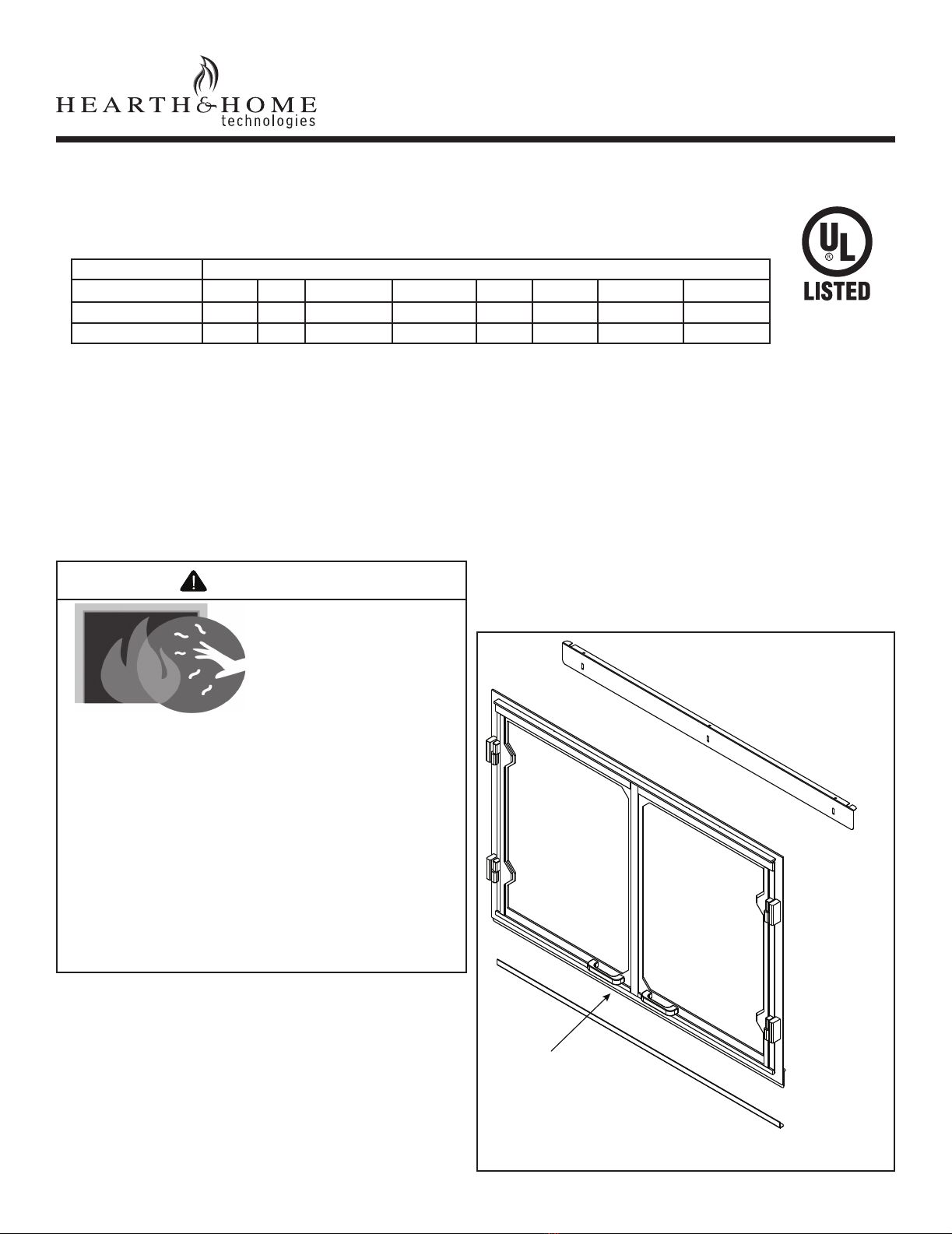

Hearth & Home Technologies • Grand Vista Mesh Doors • 4060-026 Rev F • 03/23 1

Models:

Grand Vista 60, Grand Vista 80, Grand Vista 100

Mesh Door Kits

Installation

Instructions

These mesh door kits have been tested for use with specic Hearth & Home Technologies products. Check with your local

building code agency before you begin installation to ensure compliance with local codes, including the need for permits

and follow-up inspections. If you encounter any problems regarding code approvals, or if you need clarication of any of

the instructions contained here, contact your Hearth & Home Technologies Inc. dealer. For the dealer nearest you, please

visit www.hearthnhome.com.

WARNING

Hot screen/mesh and glass doors will cause burns.

• Do not touch screen/mesh or glass doors until cooled

• NEVER allow children to touch screen/mesh or glass

doors

• Keep children away

• CAREFULLY SUPERVISE children in same room as

replace.

• Alert children and adults to hazards of high

temperatures.

High temperatures may ignite clothing or other

ammable materials.

• Keep clothing, furniture, draperies and other ammable

materials away.

HOT SURFACES!

Screen/mesh, glass doors and

other surfaces are hot during

operation AND cool down.

NOTICE: All ngerprints and smudges must be wiped clean

from the viewable surfaces of the door kit prior to the initial

burning of the replace. If this is not done, these prints and

smudges will be cured into the nish and set for the life of

the replace. To keep the nish looking its best, gently wipe

with a soft cloth and if desired, soap and water. Never use

thinner or abrasive cleaners since these products will damage

the nish.

CAUTION! Risk of Cuts/Abrasions. Wear protective

gloves and safety glasses during installation. Sheet metal

edges are sharp.

Upper

Mounting Bracket

Lower

Mounting Bracket

Mesh Door Assembly

Figure 1 Grand Vista Mesh Door

Door Model Number For Use on Models

GV60BK I60CT I60H EXCLAIM-36T EXCLAIM-36H SB60 SB60HB

GV80BK I80CT I80H EXCLAIM-42H EXCLAIM-42T SB80 SB80HB Legacy42-IFT Phoenix42-IFT

GV100BK I100CT I100H EXCLAIM-50T EXCLAIM-50T SB100 SB100HB

Hearth & Home Technologies • Grand Vista Mesh Doors • 4060-026 Rev F • 03/23

CAUTION! The door kit is heavy. We recommend two

installers to put the front assembly in place.

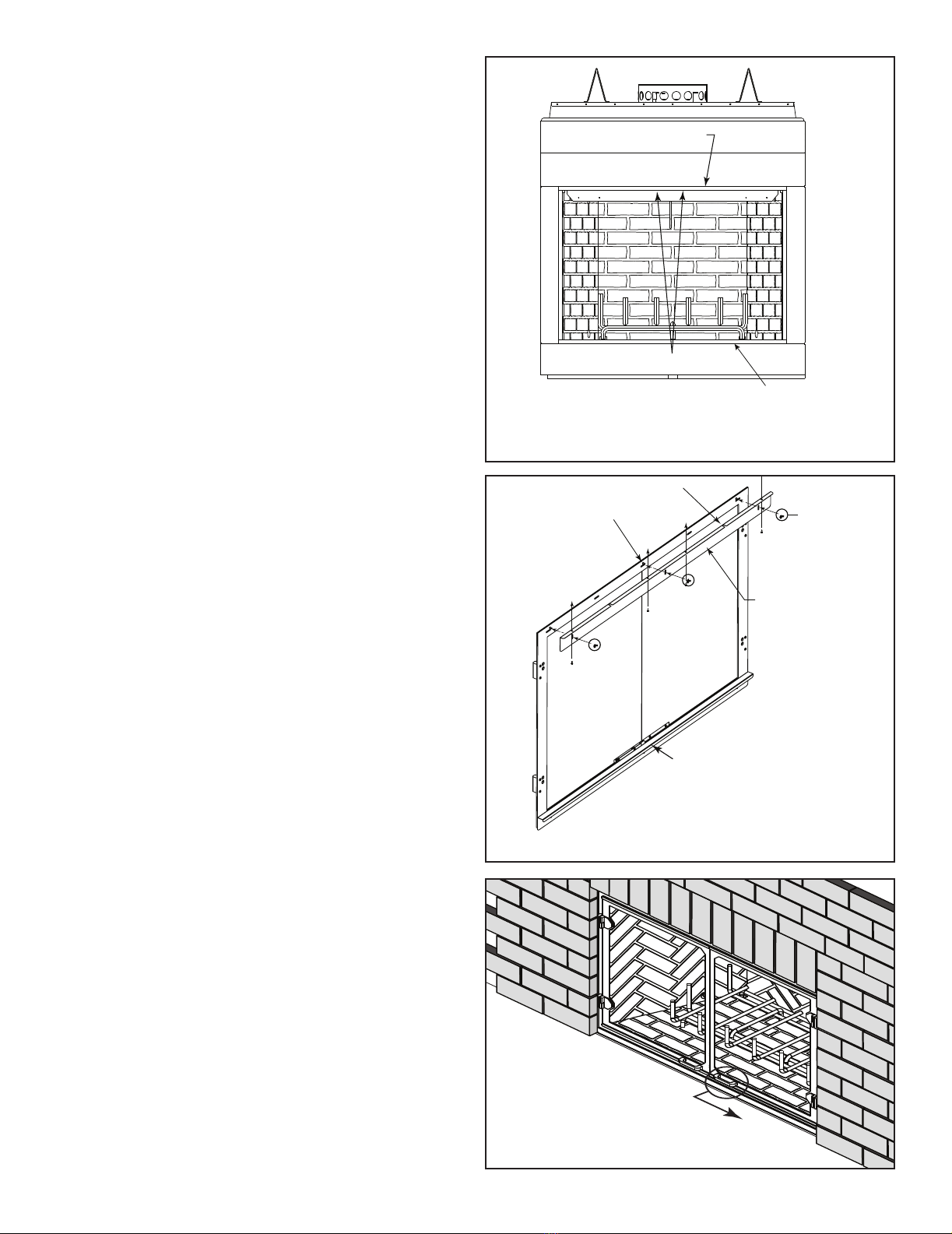

Installation:

1. Remove the existing screens from the replace.

See Figure 2:

• Remove one screw in each of the screen rods

behind the upper screen cover

• Slide screen rods out of support holes.

• Rods and screen will come out as an assembly.

• Discard.

2. Remove all but the two screws (aligned with the slots

on the upper mounting bracket) securing the upper

screen cover, see Figure 2. Save screws for Step 6. If

installing on ICON Series skip steps 3 and 4.

3. Remove (4) screws, securing lower screen cover,

see Figure 2.

4. Install lower mounting bracket, see Figure 1, using

the screws removed in Step 3.

5. Remove (3) wingnuts, (4) on GV100, and the

mounting bracket from the frame assembly.

See Figure 3. Set aside for Step 9.

6. Slide mounting bracket slots, see Figure 3, over the

two remaining screws of the screen cover, tighten and

secure in place with the screws removed in Step 2.

7. Remove the doors from the frame assembly.

8. Lift frame assembly and slide bottom ange, see Figure

3, over the lower screen cover.

9. Attach frame assembly to the upper mounting

bracket and tighten wingnuts.

• ICON Series: The bottom ange should t

between the lower screen cover and the hearth

stone.

• LEGACY42-IFT & PHOENIX42-IFT: The bottom

ange should t between the lower screen cover

and lower mounting bracket installed in Step 4.

10. Press the top of the frame assembly against the

upper mounting bracket. The threaded studs of the

frame assembly, see Figure 3, will t through the

matching holes of the upper mounting bracket.

Secure with wing nuts removed in Step 5.

11. Hang the doors on the frame assembly by

positioning the hinge pins of the door in the mating

hinge receivers. See Figure 3.

WARNING! Risk of Fire! DO NOT place combustible mate-

rials on the metal replace face or columns.

Slide handle

to the right to open

Wing

Nut (3)

Upper Mounting

Bracket

Threaded Studs (3)

Bottom Flange

Slots (2)

Figure 3 Frame Assembly

Screen Rod Screws

Upper Screen Cover

Lower Screen Cover

Figure 2 Remove Existing Screens

Figure 4 Completed Mesh Door Installation

►
