HE-VA Rondo-Dan Manuel utilisateur

Rondo-Dan 10-11-2010

 Rondo-Dan 10-11-2010

3

Contents

Declaration of Conformity..........................................................................................................................4
Delivery check..............................................................................................................................................5
Machine Description....................................................................................................................................5
Range of Application.................................................................................................................................5
Technical specifications.............................................................................................................................5
Responsibility of the user............................................................................................................................6
Safety instructions for Rondo-Dan.............................................................................................................6
Starting up....................................................................................................................................................7
Spare Parts List............................................................................................................................................8
Frame.........................................................................................................................................................8
Carrying-out.............................................................................................................................................10
Carrying-out motor..................................................................................................................................12
Hydraulic....................................................................................................................................................14
Oil motor..................................................................................................................................................14



Rondo-Dan 10-11-2010

DS/EN 45 014

Declaration of Conformity

HE-VA ApS

N. A. Christensensvej 34,

DK-7900 Nykøbing Mors

declares under sole responsibility that the product:

Rondo-Dan

No : _____________

to which this declaration relates,

is in conformity with the provisions of

98/37/EF (Machinery) Directive with later amendments.

Nykøbing Mors, July 2 2010

Rondo-Dan 10-11-2010

Delivery check

Upon delivery to the dealer/supplier as well as to the customer, check the Rondo-Dan for possible

damages.

Machine Description

Range of Application.

This Rondo-Dan unwinder can be used for unwinding and feeding out round bales of hay and straw.

This book must be read before the machine is used, and the book must follow your Rondo-Dan through

its life.

The factory reserves the right to changes.

Technical specifications.

Left

Right

Working width

2,15 m.

Length

2,0m.

Weight

577 kg.

Lifting required

1100 kg.

Max. weight of bale

650 kg.

Max. bale diameter

1,80 m.

Max. bale width

1,50 m.

Rondo-Dan 10-11-2010

Responsibility of the user

The user is responsible that the operator has the needed competence. Since HE-VA cannot control the use

of the unwinder, we can only guarantee the quality of the machine, and cannot accept any kind of claims

for compensation in connection with the work of the machine.

Any kind of injury caused by staying in dangerous areas will always be the responsibility of the user.

The user is responsible that the machine is legal during transport on public roads. Please pay attention to:

lights, weight, transport width, disposition of weight on the tractor (extra front weight might be

necessary).

The user is responsible for frequent control and tightening of all bolts and nut.

Safety instructions for Rondo-Dan

The machine must not be started if exposed persons** are inside a dangerous area*.

When persons are in dangerous areas (by e.g. adjustment, maintenance, connecting and disconnecting)

following points must be fulfilled:

1. The machine must be lowered to solid foundation.

2. The hydraulic must be relieved.

3. The tractor must be stopped and the key must be removed from the ignition.

The operator must ensure, that during work no exposed persons are inside a dangerous area.

* Dangerous area: Every area on the machine and within a distance of 3m. from the machine.

** Exposed person: All persons who are in a dangerous area.

Rondo-Dan 10-11-2010

Starting up

1. Install Rondo-Dan in the tractor’s three-point coupling, and connect the two hydraulic hoses to

the oil motor to a double-action remote socket outlet. Note max. working pressure: 210 bar.

2. Check that nobody is within the danger area.

3. Activate the double-action remote socket outlet on the tractor and check from the driver’s seat

that bottom chain and unroller drum rotate freely.

4. Stop oil motor and set machine on a level floor with good access. The latch looking the three-

point frame with spike to the unrolling table is released from the driver’s seat.

5. Drive tractor forward and check that spike slide easily out of their tubular guides. Adjust as

necessary with top link.

6. Fetch round bale from storage by lowering the spikes all the way to the ground. Back the spikes

in under the round bale until it pushes against the three-point frame, and lift it.

7. Unload round bale on to unrolling table by lowering three-point frame and drive forward until

spikes are free.

8. Then lower spikes, and reverse so that they slide into their respective tubular guides. Check that

lock interlocks automatically and couples with three-point frame and unrolling table. Lift

machine.

9. Drive round bale to unloading place.

10. Before unrolling commences, use remote control handle to ensure that nobody is within danger

area. Depending on tractor’s r.p.m. and forward speed, dose out the quantity desired.

11. If oil motor stops in the middle of unloading, reverse oil flow for a moment with remote control

handle, after which machine is again ready to continue unrolling. For round bales with hard cores

it can be necessary for reasons of time to reverse the oil motor and transport the core out under

the guard against the unroller drum

NB With large round bales of about 1,80m. in diameter, be careful of open rear window in

driver’s cabin. With raised machines it can be necessary to close window to avoid damage.

Rondo-Dan 10-11-2010

Spare Parts List

Frame

Rondo-Dan 10-11-2010

Pos.

Part No.

Description

Number

1070290

Carrying frame, right carrying-out

1070295

Carrying frame , left carrying-out

1070260

Hand rail, right carrying-out

1070261

Hand rail, left carrying-out

1070330

Wearing bar

0243200

Machine screw M6x20

1070051

Three-point suspension

0410500

Spike 1250mm. with nut

1068890

Spike Ø25x145mm.

0378600

Split pin Ø11x40mm.

1055460

Spike Ø28x120mm.

1070971

Locking device

0431630

Spring Ø2,5x18x80mm.

0235840

Hexagon bolt M16x60mm. 8.8

0272290

Disc Ø16

0264090

Lock nut M16

0486250

Rope Ø6

1044600

Disc Ø26x8mm.

Rondo-Dan 10-11-2010

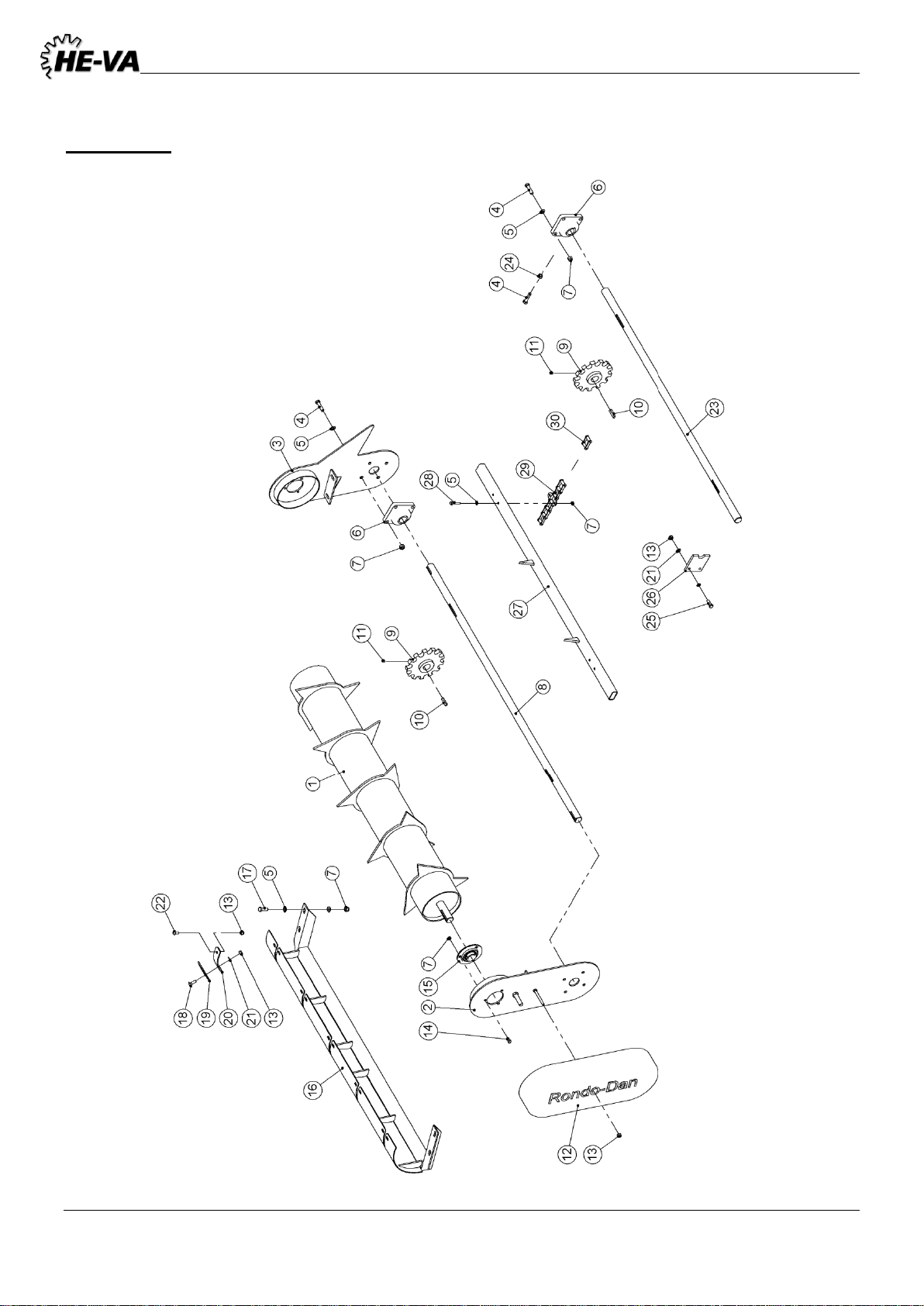

Carrying-out
